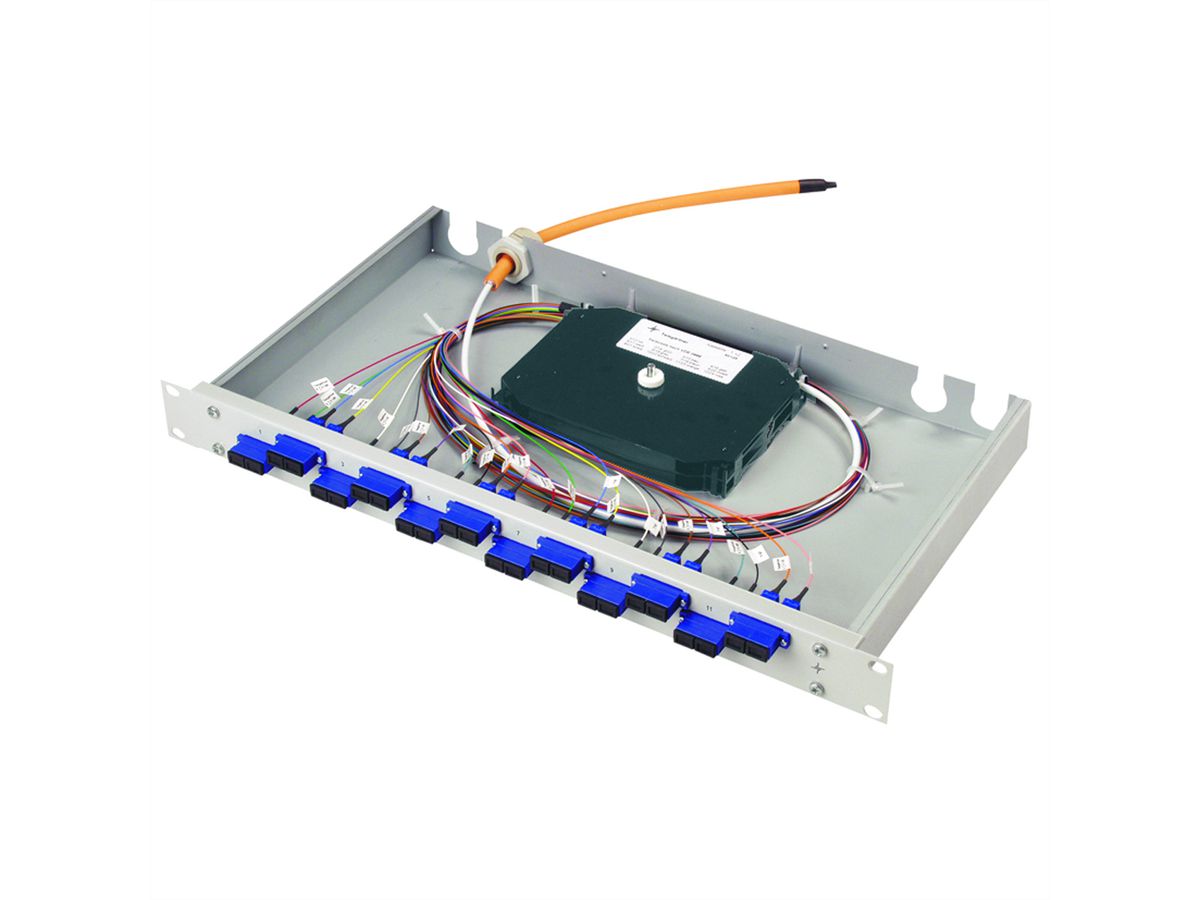

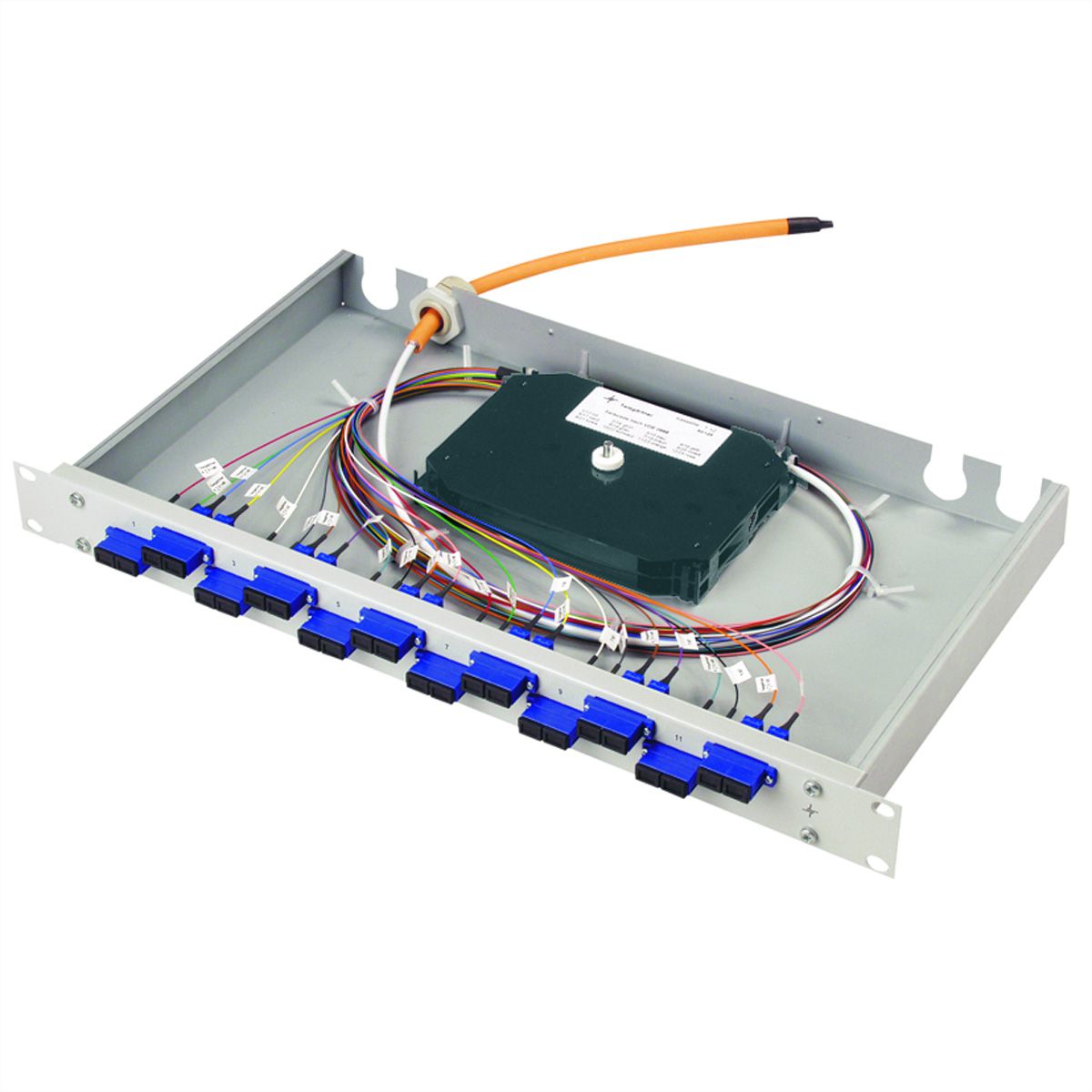

TELEGÄRTNER 19" FO-PP BAS-ECO 1U 12 LCD OM4 PT, assembled adaptors and pigtails, 12xLC duplex, OM4, violet
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 21170682 |
|---|---|
| Brand / Manufacturer | TELEGÄRTNER |
| Manuf. item no. | 100021997 |
| EAN | 4018359480295 |
| Item weight | 2.404 kg |
:strip_icc():strip_exif()/logos/telegaertner.png "TELEGÄRTNER")
Description
BASIS eco patch panel with assembled adaptors and pigtails, 12xLC duplex, OM4, violet
- For installation of Breakout cables and TICNET pre-terminated cables
- Can accommodate up to 12 splice cassettes
- Fixed housing
- Number of adaptors: 12
- Color: violet
- Fiber pigtails: 24x 50/125, OM4, 2 m, LC
- Color of adaptor: violet
- Adaptors: LC duplex, ceramic sleeve, plastic housing, violet
- Notes: colored, stripped for splicing
- Patch panels with pigtails: splice protectors included
- Save handling & storaging of fibers and spliced thanks to pre-installed splice cassettes
- 265mm: the perfect depth for your rack
- Fixation of the rear side cabled via velcroes, cable ties and cable glands
- For rear side installation: Max. 2x M20 & 2x M25
- Housing material: bending resistant powder coated steal
- closed housing for improved dust protection
- Removable powder coated steel cover included
Specifications
| Manufacturer | TELEGÄRTNER |
|---|---|
| Product group | Connection technology FO |
| Product type | Patch Panel FO |
| Colour | grey |
| Scope of delivery | Housing with 2 x cable entries each for M20 and M25, 1 x cable gland M20 for 5-9 mm, 1 x cable gland M25 for 9-13 mm, 2 x blanking plugs for M20 and M25, splice cassette with integrated splice holders for max. 24 fibers and cover, front plate, adaptors and pigtails |
| Protection class (IP Code) | IP20 |
| RAL colour | RAL 7035 Light grey |
| Height | 44 mm |
| Width | 482 mm |
| Depth | 265 mm |
| Weight | 2440 g |
| Height of packaging (single piece) | 90 mm |
| Width of packaging (single piece) | 330 mm |
| Depth of packaging (single piece) | 530 mm |
| Package weight (single piece) | 2.404 kg |
The products of the TELEGÄRTNER brand stand for professional connection technology.
