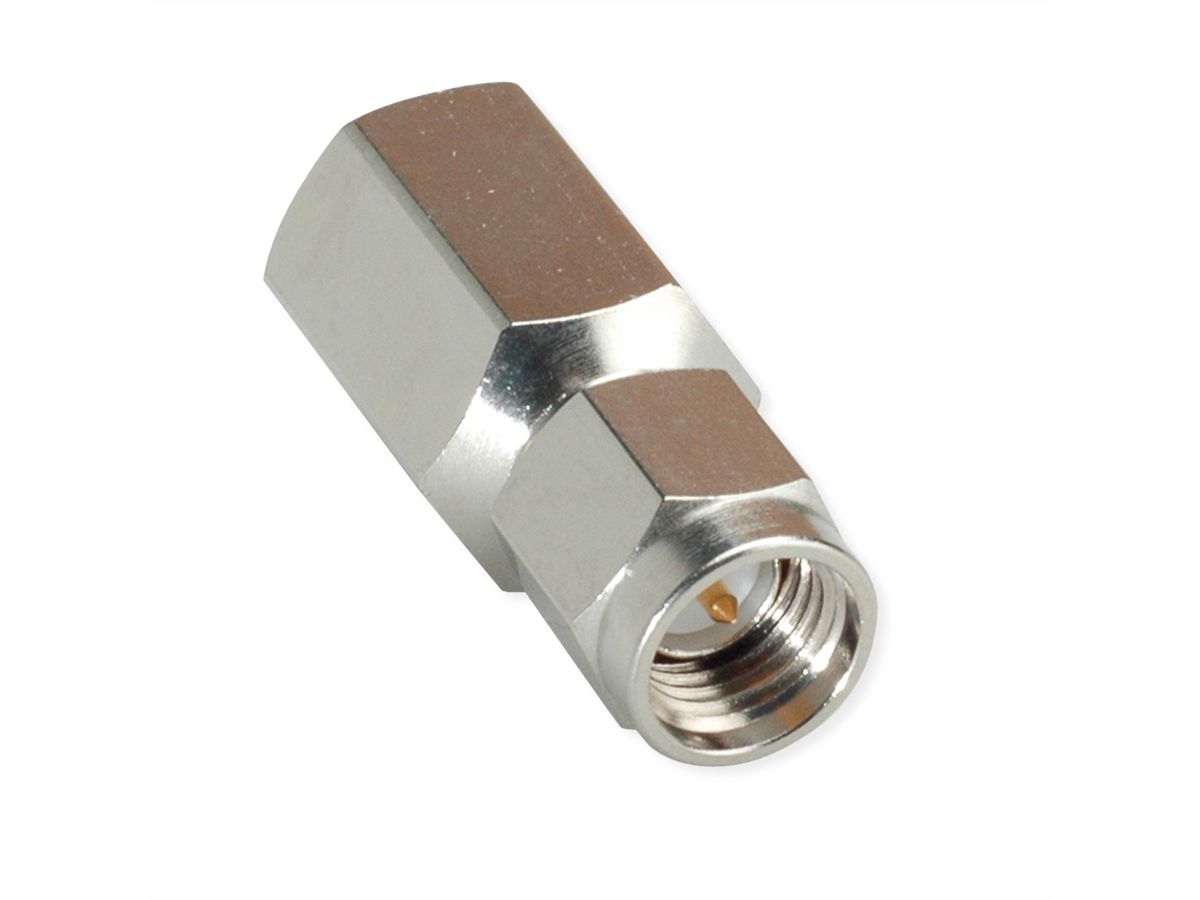

TELEGÄRTNER Adaptor Straight FME to SMA
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 21170435 |
|---|---|
| Brand / Manufacturer | TELEGÄRTNER |
| Manuf. item no. | 100025661 |
| EAN | 4018359283407 |
:strip_icc():strip_exif()/logos/telegaertner.png "TELEGÄRTNER")
Description
The FME series is a miniature coax connector with screw coupling. The FME series can be used up to a frequency of 2 GHz.
- Durability (Matings) ≥ 500
- Disengagement min. 0,5 N
- Max. coupling torque 200 Ncm
- Material: spring contacts CuNi1Pb1P(C97)
- Material: crimp ferrule Cu
- Material: other metal parts CuZn39Pb3
- Material: insulators PP; PTFE
- Finish: Inner conductor Cu2Ag5
- Finish: Other metal parts Cu2Ni5
- Climatic category acc. to IEC 60068 - 1 55/085/21
- Contact resistance inner conductor ≤ 10 mΩ
- Contact resistance outer conductor ≤ 5 mΩ
- Insulation resistance ≥ 5 GΩ
- Voltage proof 1 kVeff/50 Hz
- Impedance 50 Ω
- Working voltage ≤ 100 Veff/50 Hz
- Insertion loss ≤ 0.2 dB/1.8 GHz
- Return loss ≥ 20 dB/1.8 GHz
- Frequency range up to 2 GHz
Remark: Picture similar
Specifications
| Manufacturer | TELEGÄRTNER |
|---|---|
| Product group | Plug / cable ties |
| Product type | Coaxial Connectors |
| Colour | silver |
| Quantity of ports | 1 |
| Connection direction | Straight |
| Height of packaging (single piece) | 0 mm |
| Width of packaging (single piece) | 0 mm |
| Depth of packaging (single piece) | 0 mm |
| Package weight (single piece) | 0 kg |
The products of the TELEGÄRTNER brand stand for professional connection technology.
