Description

Mating face sealing for N connectors between plug and jack (mated) according to IP 68.

• Recommended coupling torque 4 - 6 Nm
• Material: spring contacts CuBe2, CuNi1Pb1P(C97)
• Durability (Matings) ≥ 500
• Material: outer conductor CuZn39Pb3
• Material: other metal parts CuZn39Pb3
• Material: insulators PTFE
• Material: gaskets Silicone, NBR
• Finish: Inner conductor Cu2Ag5
• Finish: Outer conductor CuSnZn3 (Telealloy); Ag2CuSnZn0.5 (Optargen)
• Finish: Other metal parts CuSnZn3 (Telealloy), Cu2Ni5

• Contact resistance inner conductor ≤ 1,5 mΩ
• Contact resistance outer conductor ≤ 1 mΩ
• Insulation resistance ≥ 5 GΩ
• Voltage proof 2.5 kVeff/50 Hz
• Impedance 50 Ω
• Return loss: Straight style ≥ 30.5 dB/1 GHz
• Return loss: Angle style ≥ 30.5 dB / 1 GHz
• Working voltage ≤ 1 kVeff/50 Hz
• Frequency range up to 11 GHz

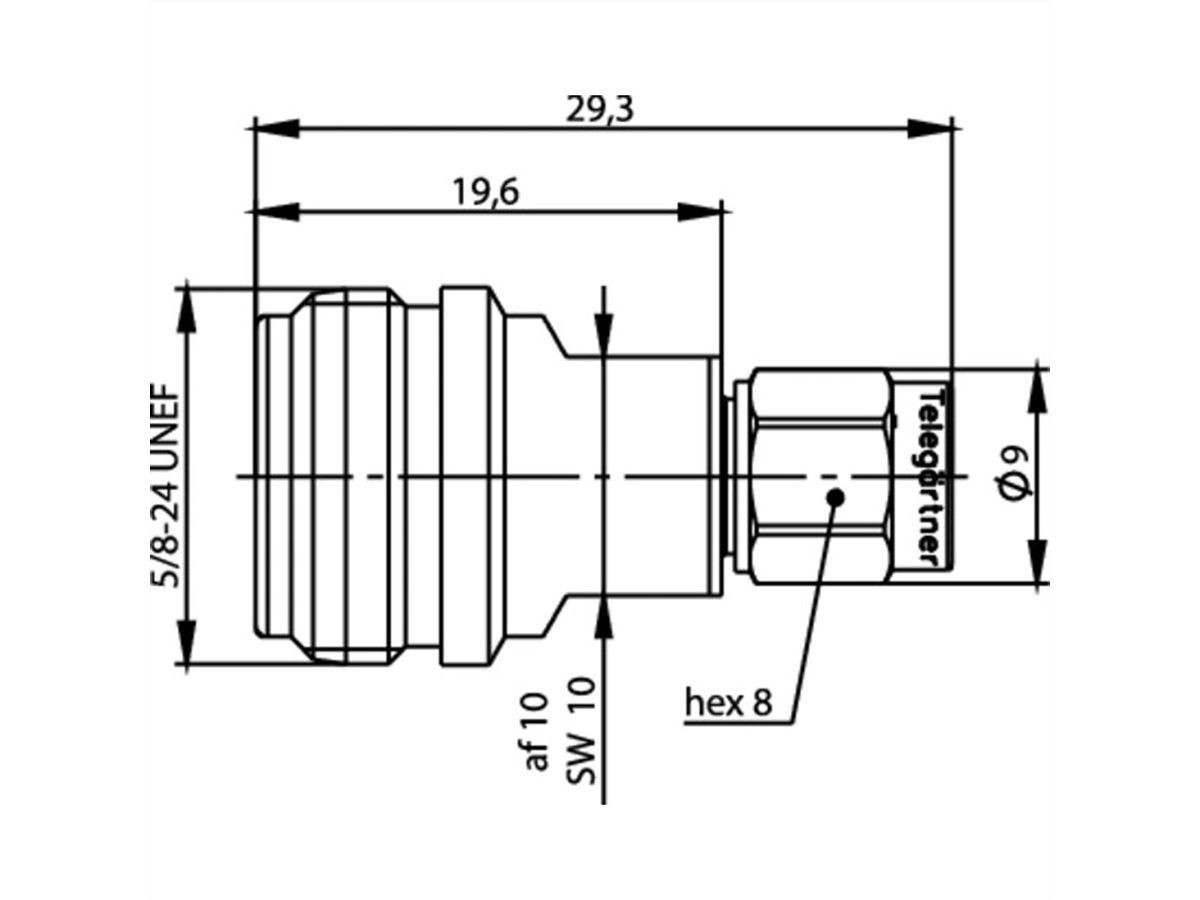

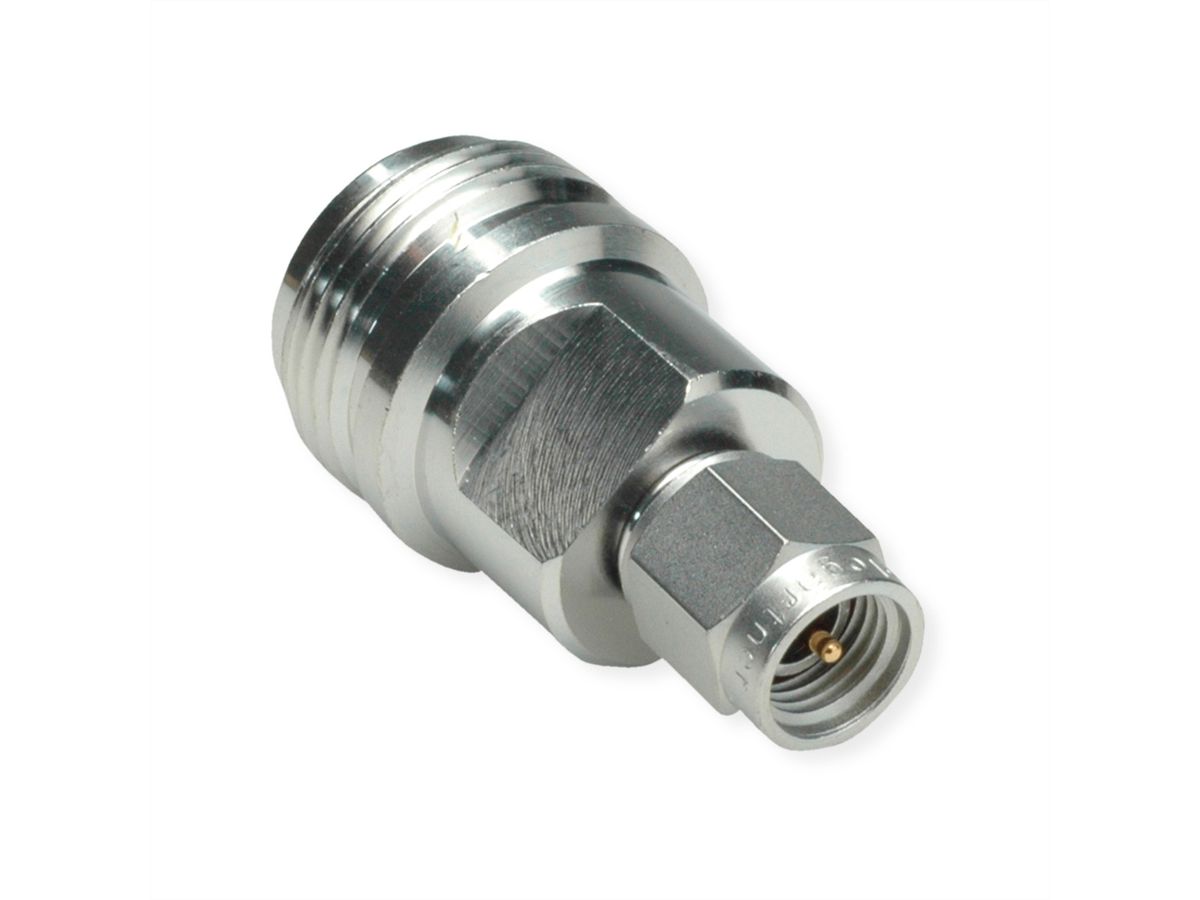

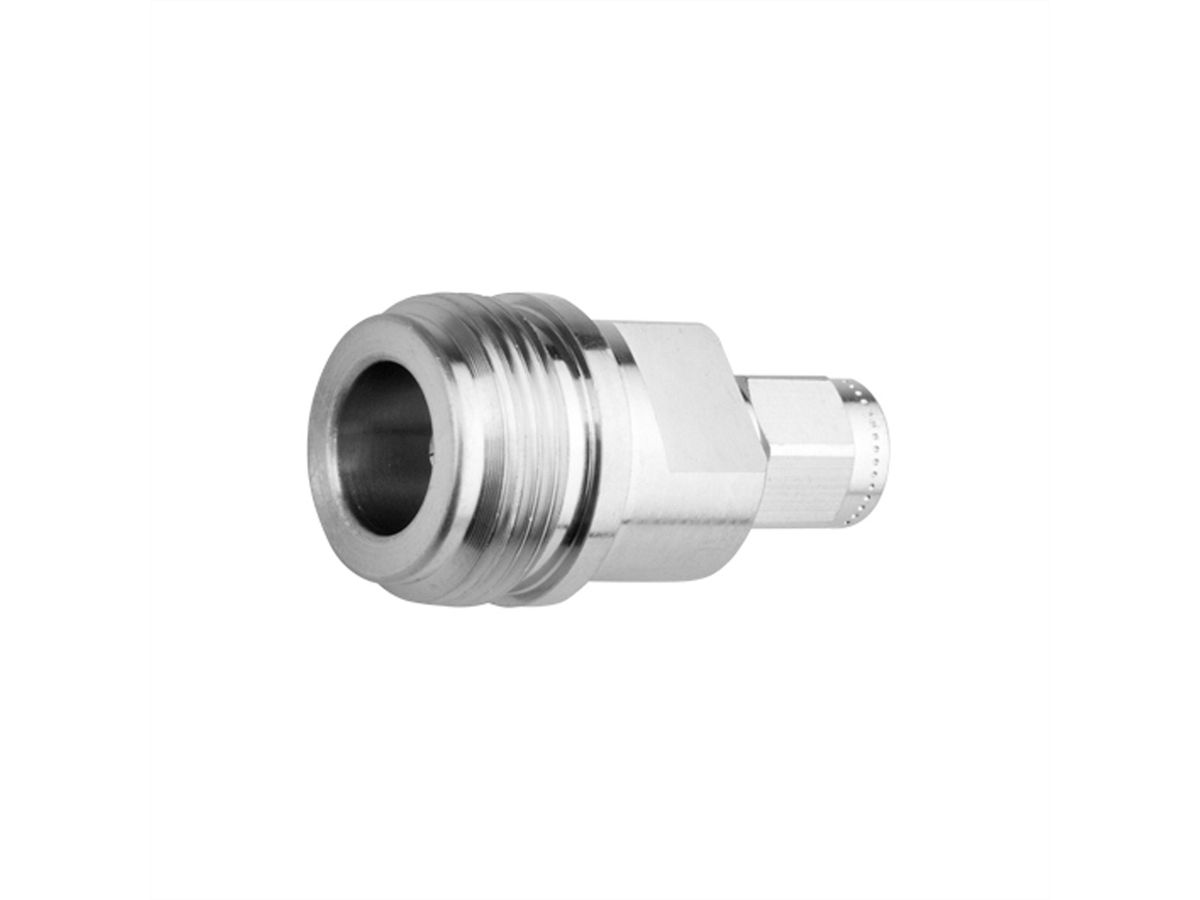

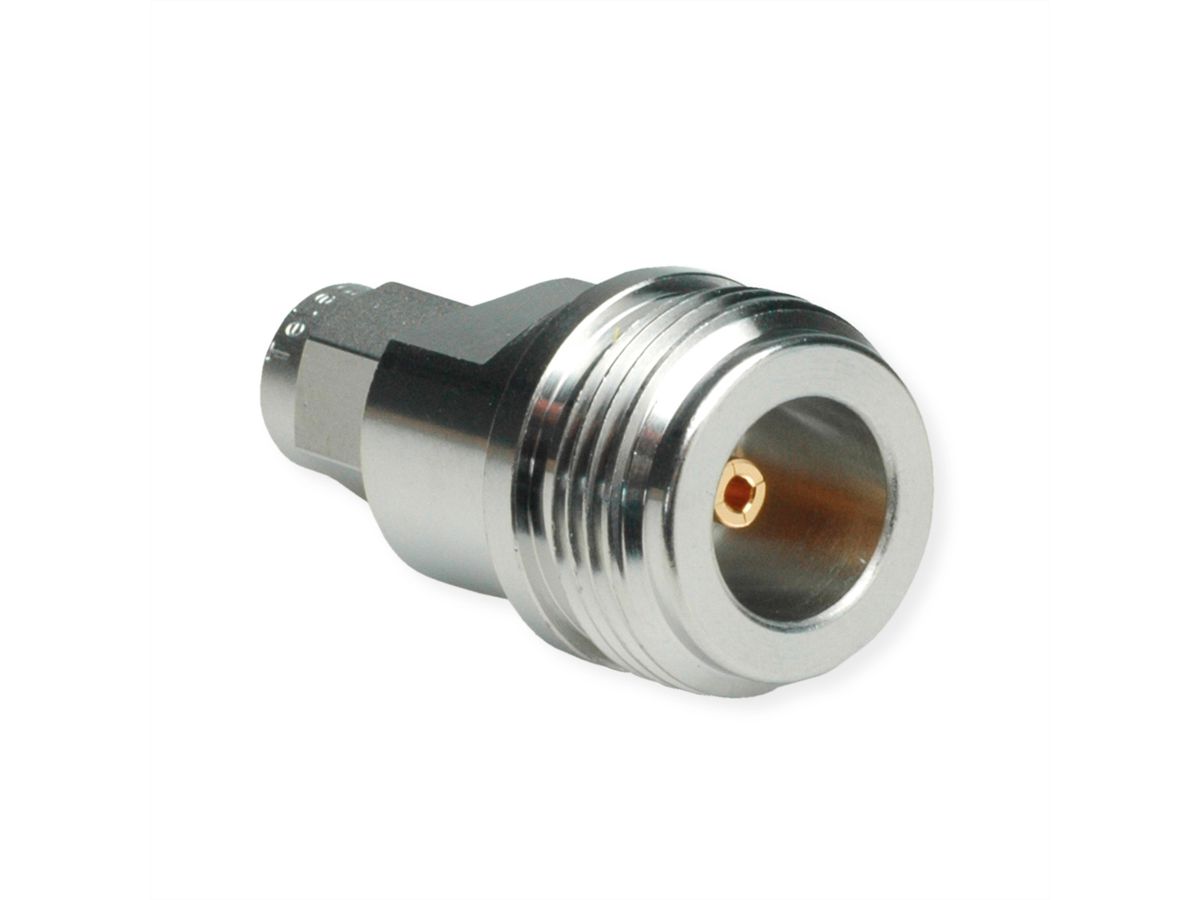

Remark: Picture similar

Specifications

Manufacturer	TELEGÄRTNER
Product group	Plug / cable ties
Product type	Coaxial Connectors
Colour	silver
Quantity of ports	1
Connection direction	Straight
Height of packaging (single piece)	0 mm
Width of packaging (single piece)	0 mm
Depth of packaging (single piece)	0 mm
Package weight (single piece)	0 kg

Downloads

Manufacturer data sheet - English (65.1 KB)

Download
