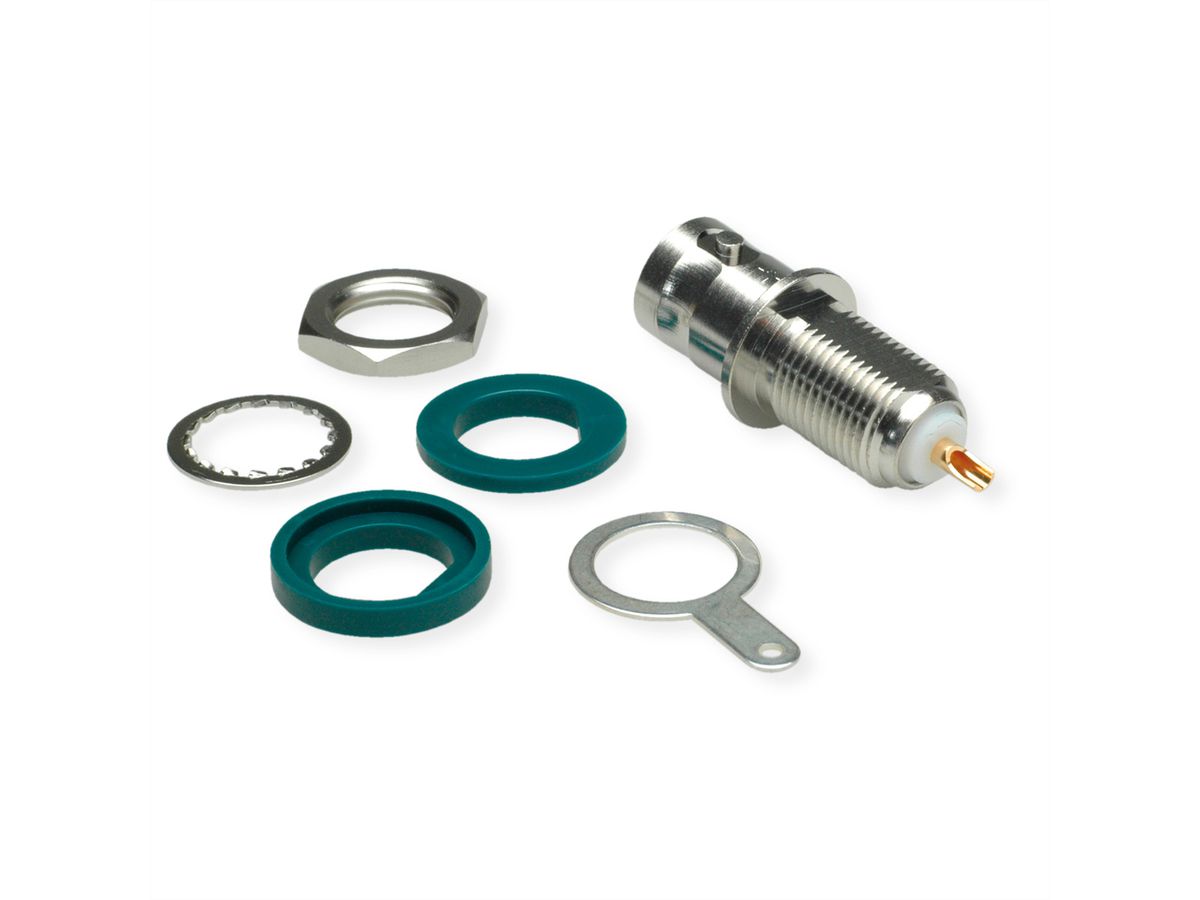

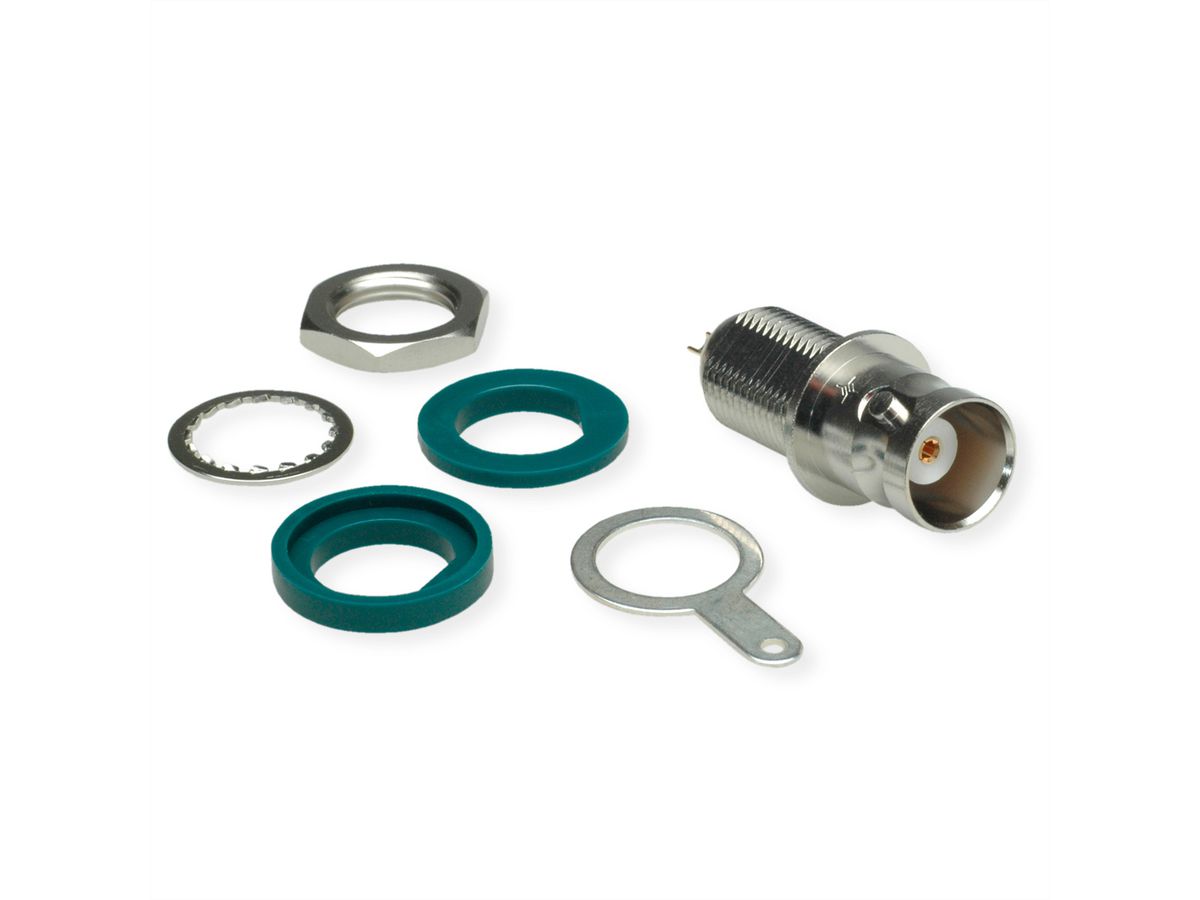

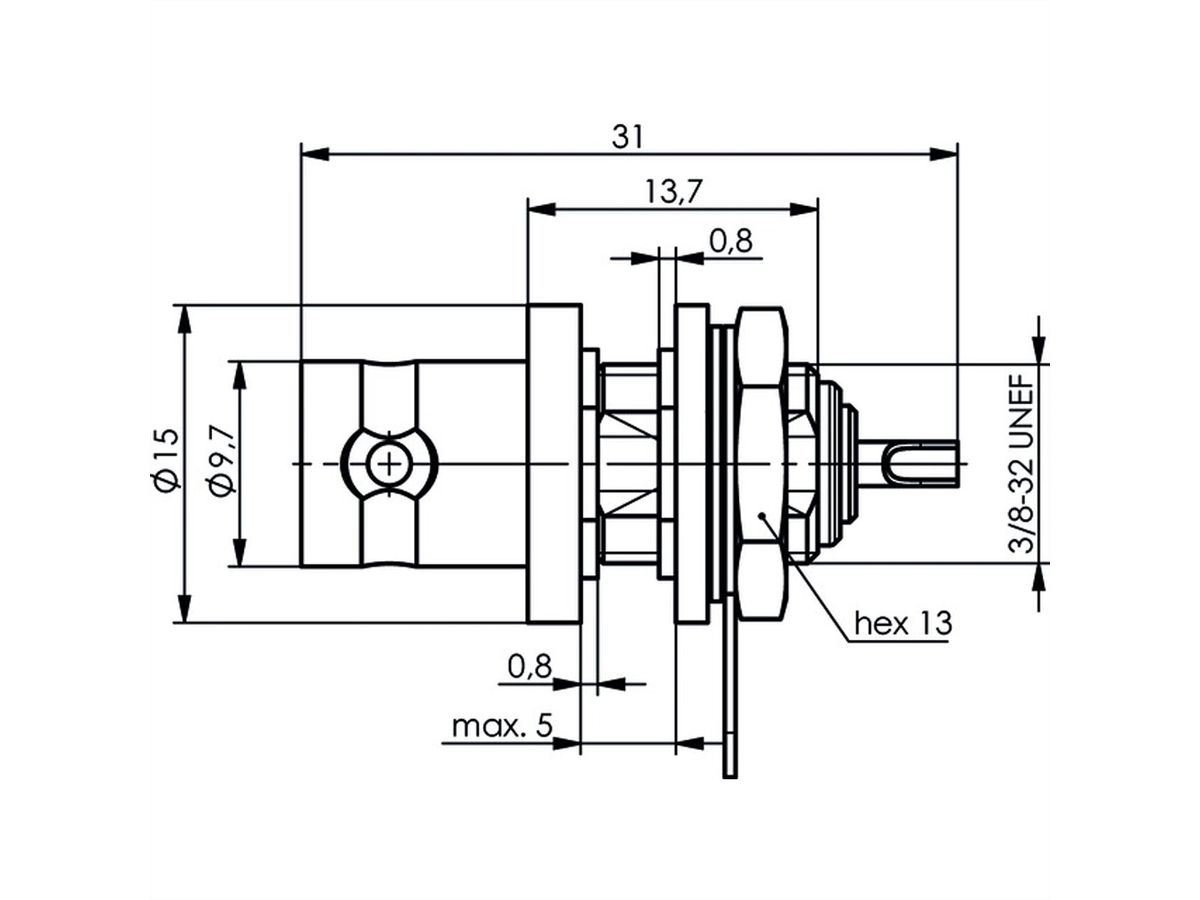

TELEGÄRTNER BNC Bulkhead Socket, insulated with green insulating washers

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Item no.	21170474
Brand / Manufacturer	TELEGÄRTNER
Manuf. item no.	100023442
EAN	4018359103644

Description

Mating face sealing for BNC connectors between plug and jack (mated) according to IP 54.

Material: spring contacts CuBe2; CuPb1.15Ni1
Material: outer conductor CuZn39Pb3
Material: other metal parts CuZn39Pb3
Material: insulators PTFE; PE
Material: gaskets Silicone
Finish: Inner conductor Cu1Ni2Au0.8
Finish: Outer conductor Cu2Ni5 (Nickel); Ag2CuSnZn0.5 (Optargen)
Finish: Other metal parts Cu2Ni5
Durability (Matings) ≥ 500
Types with PTFE insulator 40/155/21
Types with PE insulator 40/75/21

Contact resistance inner conductor ≤ 20 mΩ
Contact resistance outer conductor ≤ 5 mΩ
Insulation resistance ≥ 5 GΩ
Voltage proof 1.5 kVeff/50 Hz
Impedance 50 Ω/(75 Ω)
Return loss: Straight style ≥ 20 dB/3 GHz (50 Ω types)
Return loss: Angle style ≥ 17.7 dB / 3 GHz (50 Ω types)
Working voltage ≤ 500 Veff/50 Hz
Frequency range up to 4 GHz

Remark: Picture similar

Specifications

Manufacturer	TELEGÄRTNER
Product group	Plug / cable ties
Product type	Coaxial Connectors
Colour	silver
Quantity of ports	1
Connection direction	Straight
Height of packaging (single piece)	0 mm
Width of packaging (single piece)	0 mm
Depth of packaging (single piece)	0 mm
Package weight (single piece)	0 kg
