Description

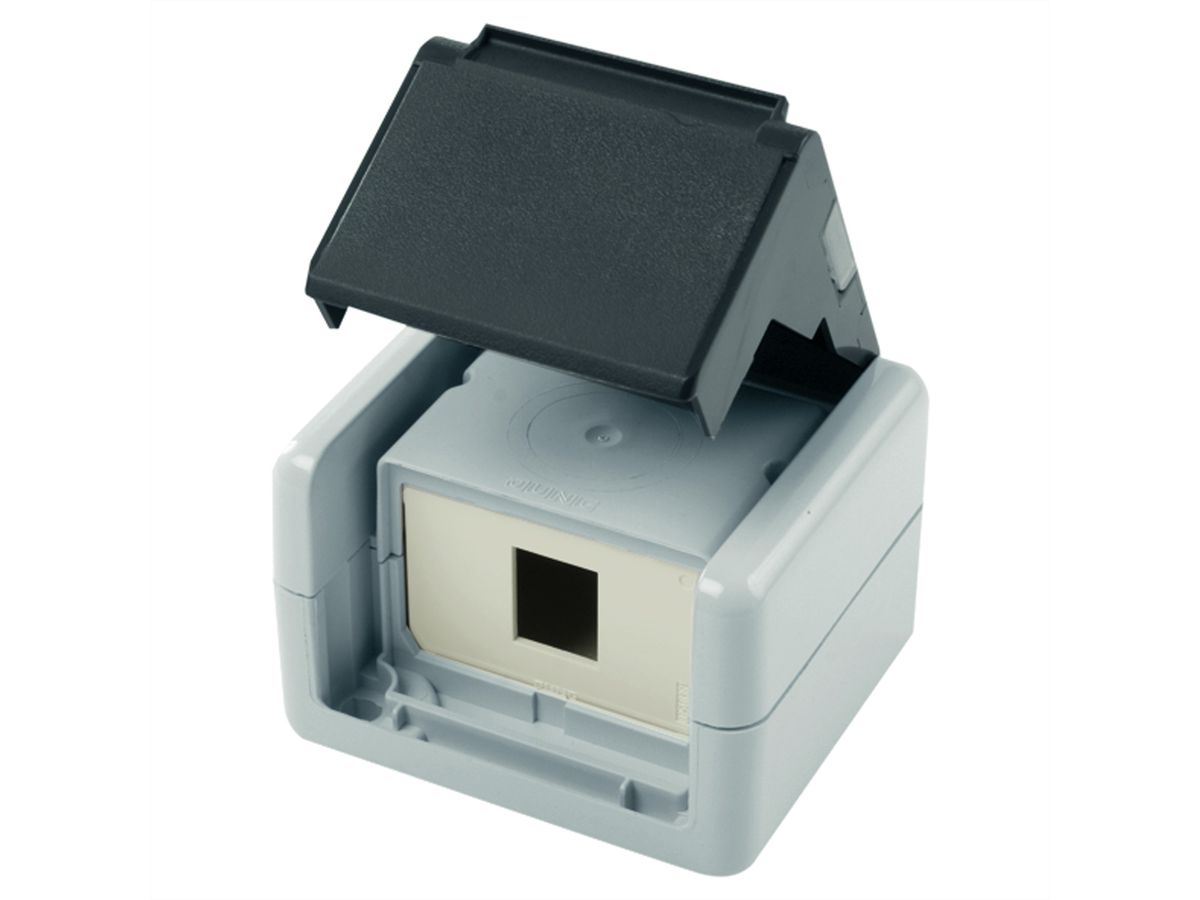

data outlet IP44 incl. mounting plate for 1x AMJ resp. UMJ Module/Adaptor

The AMJ Modules and Couplers which are commonly used in the office world are effectively protected against ingress of solid impurities measuring more than 1 mm in diameter, as well as against water jets from all directions, by a housing with protection class IP44. With its compact size of 75x86x58 mm, the housing can not only accommodate up to two data outlets, but is also unbreakable. The grey housing is available with one or two cable entries. A splash-proof transparent label (21x59 mm) permits identification of the ports. The Terminal Outlet (TO) is completed tool-less by snapping in the corresponding modules and coupler into the single or double gang inserts. The SC Duplex adaptor can also additionally be mounted with screws.

• unbreakable housing
• little space required for two data outlets (dimensions: 75x86x58 mm)
• spring-laoded hinged cover for easy access to the jacks
• port identification via splash-proof, transparent label
• Degree of Protection IP44
• Either single or double gang inserts for AMJ Modules,Couplers, SC duplex adaptors either snapping and/or screwing SC Duplex adaptors
• tool-free mounting (snap-in) of the AMJ Modules and Couplers
