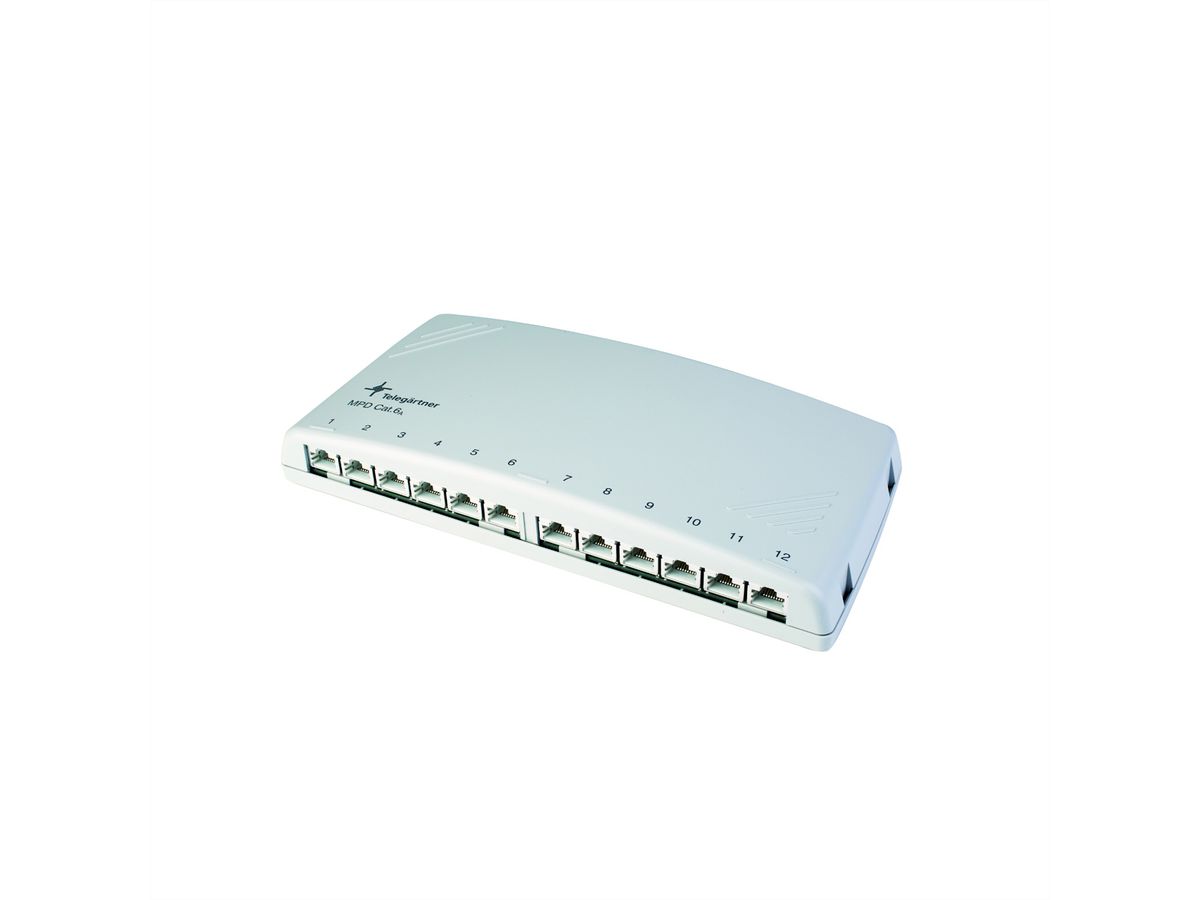

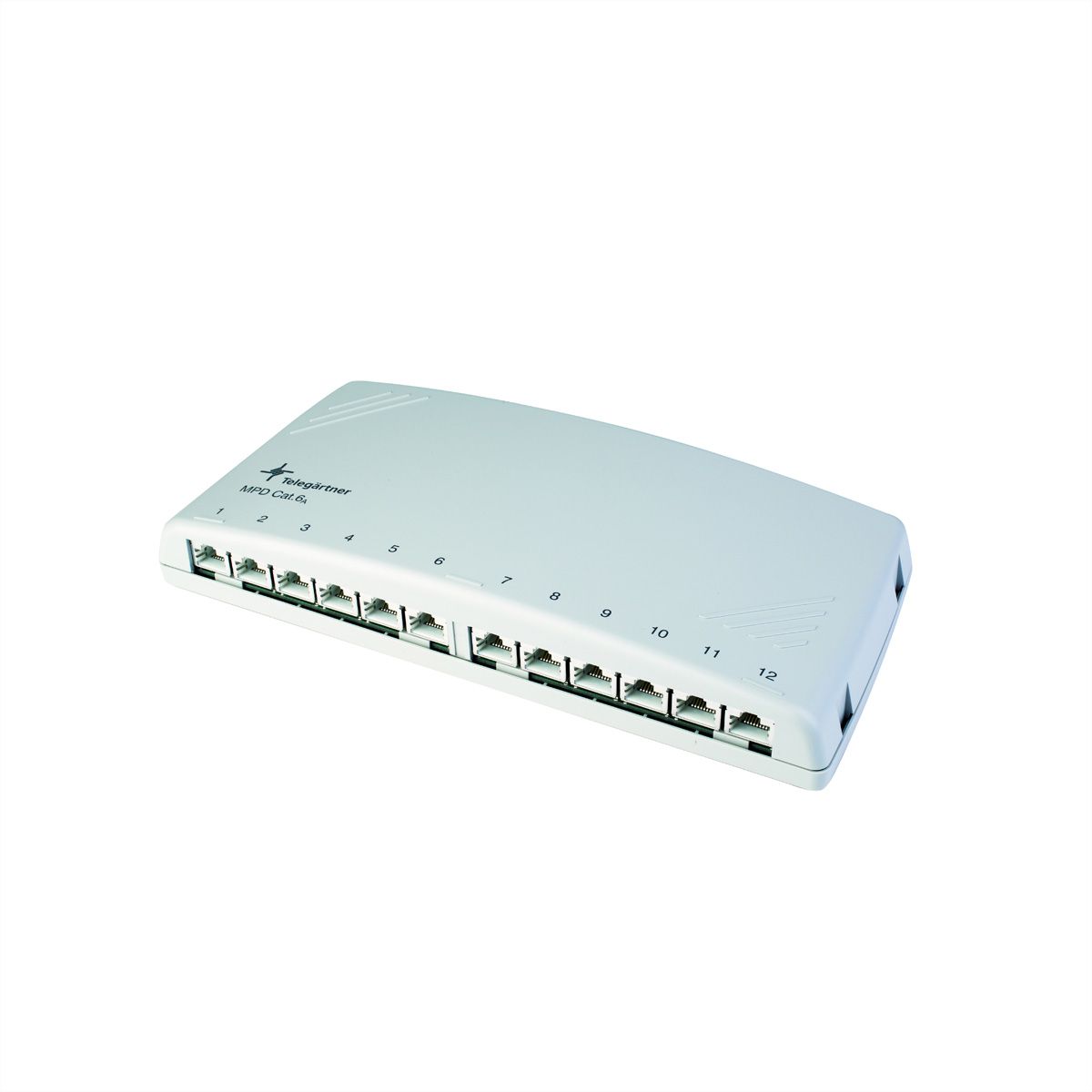

TELEGÄRTNER Mini Distributor MPD12-HS K, shielded, Cat.6A, alpine white
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 26110154 |
|---|---|
| Brand / Manufacturer | TELEGÄRTNER |
| Manuf. item no. | 100006997 |
| EAN | 4018359367770 |
| Item weight | 0.432 kg |
:strip_icc():strip_exif()/logos/telegaertner.png "TELEGÄRTNER")
Description
Mini Distributor MPD12-HS K Cat.6A; alpine white
- 360 degrees shielding of MPD-HS can be connected directly on the PCB on a large contact spot using a screw clamp without need of twisting the braid
- shielding cover made of stainless steel
- cables are terminated via IDC (LSA Plus) terminals with colour coding acc. to EIA/TIA 568A and B
- limit of 13 mm max. of untwisted length of wires can be easily achieved without restricting an easy installation
- Cat.6A- & Cat.6A types with overbending protection: suitable for 6- (RJ11/12) and 8-pin connectors (RJ45); can be used in the modular jack without additional installation kits.
- 19" rack-mount design size 3 HU/7 PU with 6xRJ45 and 3 HU/10 PU with 12xRJ45 available, front plate anodized aluminium
- housing made of thermoplastic, halogene-free, with non-slip bumpers
- enclosed cable ties for strain relief of the cables without need of screws and special tools
- printed circuit board is mounted horizontally in the housing, shielded versions are provided inside with a metal shielding cover; in addition, a bonding cable can be connected to the PCB (with screw M4)
- Mini distributor MPD6, MPD8 MPD12 with 6, 8 or 12 RJ 45 jacks assembled on one common PCB
- Mini distributors MPD8 AMJ/UMJ and MPD12 AMJ/UMJ for 8 resp. 12 AMJ-S/AMJ/UMJ modules or couplers
- no special tooling required for mounting of cover (shielded type)
Specifications
| Manufacturer | TELEGÄRTNER |
|---|---|
| Product group | Connection technology TP |
| Product type | Patchpanel Cat.6A / Class EA |
| Colour | white |
| Transfer quality | Cat6A / Class EA |
| Material (casing) | ABS |
| Protection class (IP Code) | IP20 |
| Dimensions (HxWxD) | 37 x 255 x 118 mm |
| Operating temperature min. | -40 °C |
| Operating temperature max. | 70 °C |
| Height | 37 mm |
| Width | 255 mm |
| Depth | 118 mm |
| Weight | 432 g |
| Height of packaging (single piece) | 50 mm |
| Width of packaging (single piece) | 130 mm |
| Depth of packaging (single piece) | 260 mm |
| Package weight (single piece) | 0.432 kg |
The products of the TELEGÄRTNER brand stand for professional connection technology.
