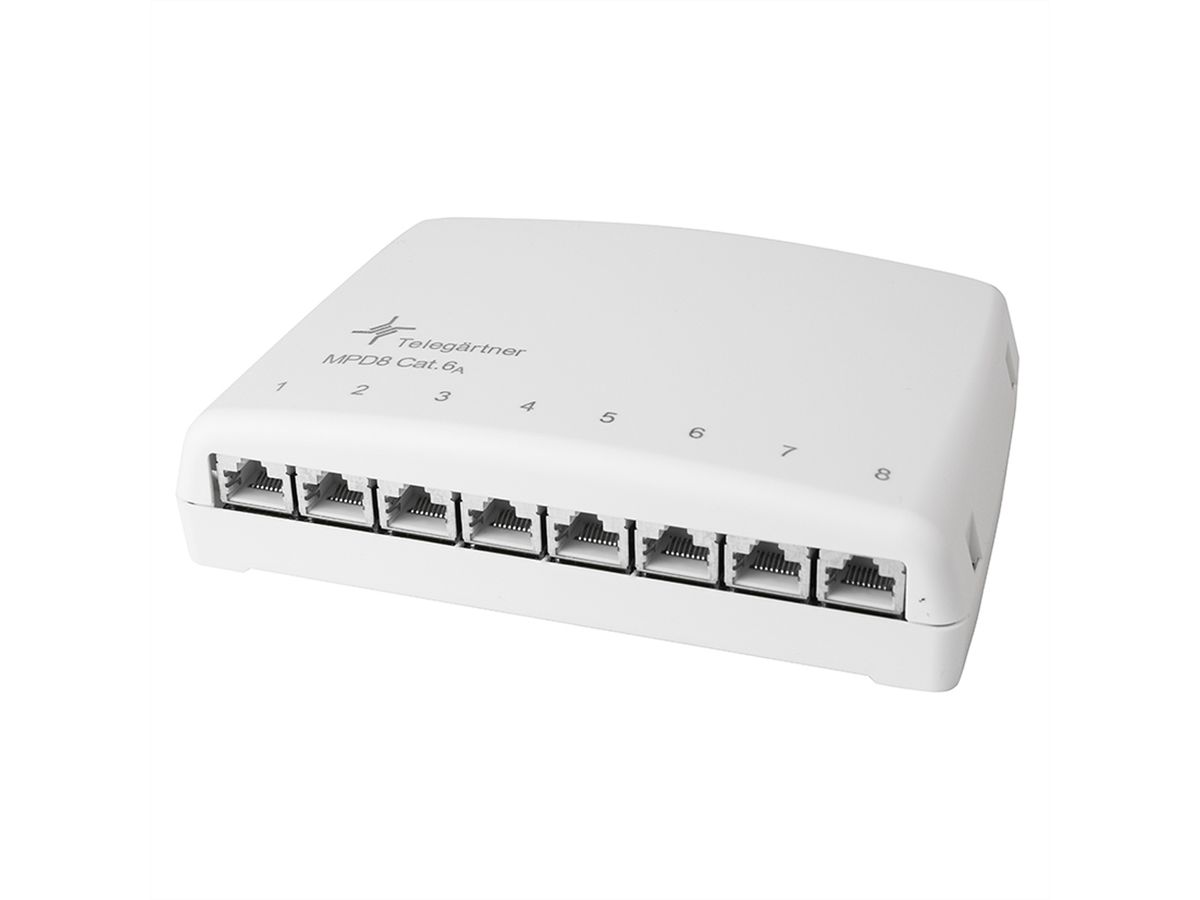

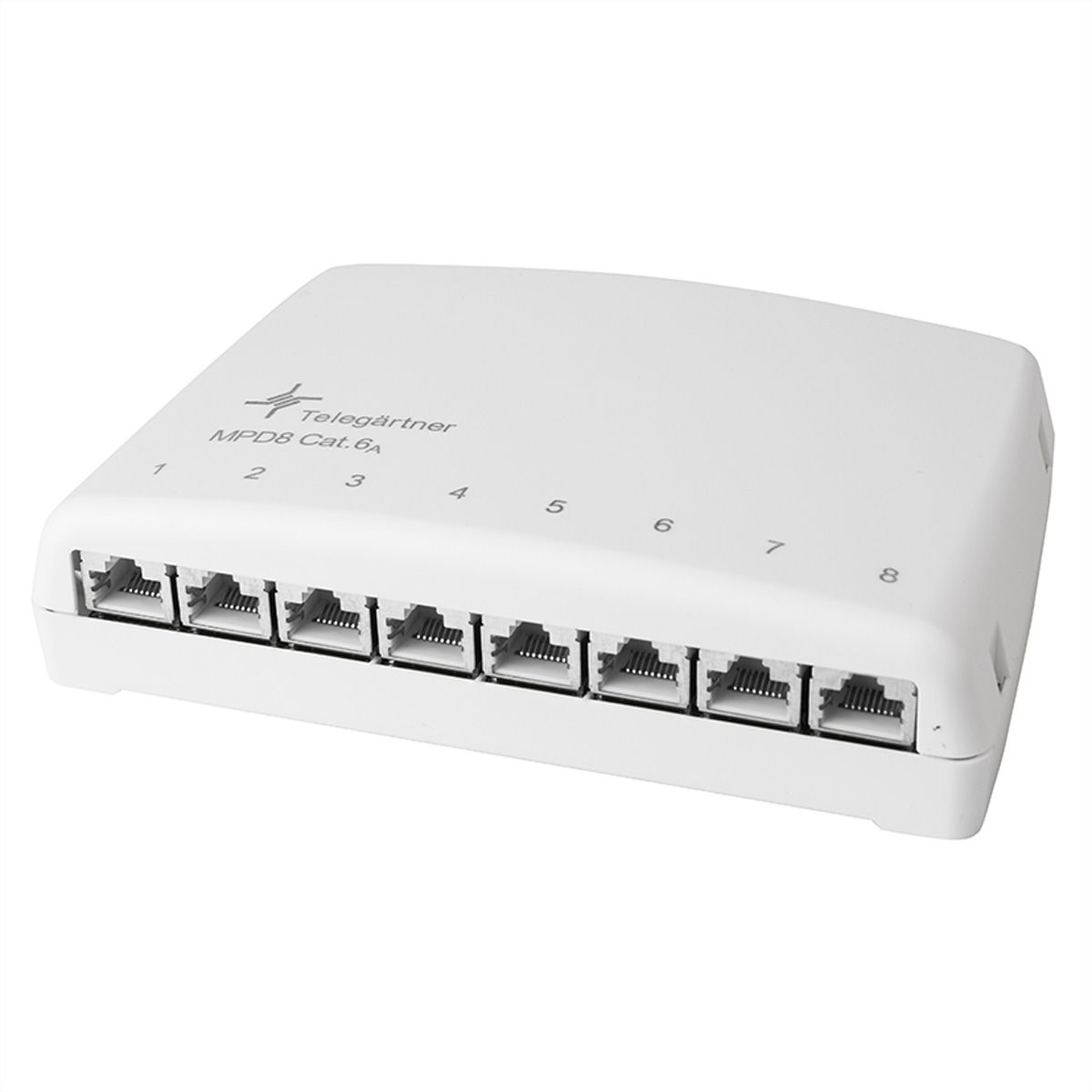

TELEGÄRTNER Mini Distributor TH35/AP, alpine white, MPD8-HS K Cat.6A
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 26110152 |
|---|---|
| Brand / Manufacturer | TELEGÄRTNER |
| Manuf. item no. | 100006984 |
| EAN | 4018359474966 |
| Item weight | 0.288 kg |
:strip_icc():strip_exif()/logos/telegaertner.png "TELEGÄRTNER")
Description
Mini Distributor MPD8-HS K Cat.6A, TH35/AP, alpine white
- 360 degrees shielding of MPD-HS can be connected directly on the PCB on a large contact spot using a screw clamp without need of twisting the braid
- shielding cover made of stainless steel
- cables are terminated via IDC (LSA Plus) terminals with colour coding acc. to EIA/TIA 568A and B
- limit of 13 mm max. of untwisted length of wires can be easily achieved without restricting an easy installation
- Cat.6A- & Cat.6A types with overbending protection: suitable for 6- (RJ11/12) and 8-pin connectors (RJ45); can be used in the modular jack without additional installation kits
- housing made of thermoplastic, halogene-free, with non-slip bumpers
- enclosed cable ties for strain relief of the cables without need of screws and special tools
- printed circuit board is mounted horizontally in the housing, shielded versions are provided inside with a metal shielding cover
- in addition, a bonding cable can be connected to the PCB (with screw M4)
- Mini distributor MPD6, MPD8 MPD12 with 6, 8 or 12 RJ 45 jacks assembled on one common PCB
- Design: shielded, mounted on TH35 DIN rail without adapter
- Color: alpine white
Specifications
| Manufacturer | TELEGÄRTNER |
|---|---|
| Product group | Connection technology TP |
| Product type | Patchpanel Cat.6A / Class EA |
| Colour | white |
| Transfer quality | Cat6A / Class EA |
| Material (casing) | ABS |
| Protection class (IP Code) | IP20 |
| Dimensions (HxWxD) | 40,5 x 164 x 110 mm |
| Operating temperature min. | -40 °C |
| Operating temperature max. | 70 °C |
| Height | 40.5 mm |
| Width | 164 mm |
| Depth | 110 mm |
| Weight | 280 g |
| Height of packaging (single piece) | 50 mm |
| Width of packaging (single piece) | 120 mm |
| Depth of packaging (single piece) | 180 mm |
| Package weight (single piece) | 0.288 kg |
The products of the TELEGÄRTNER brand stand for professional connection technology.
