Description

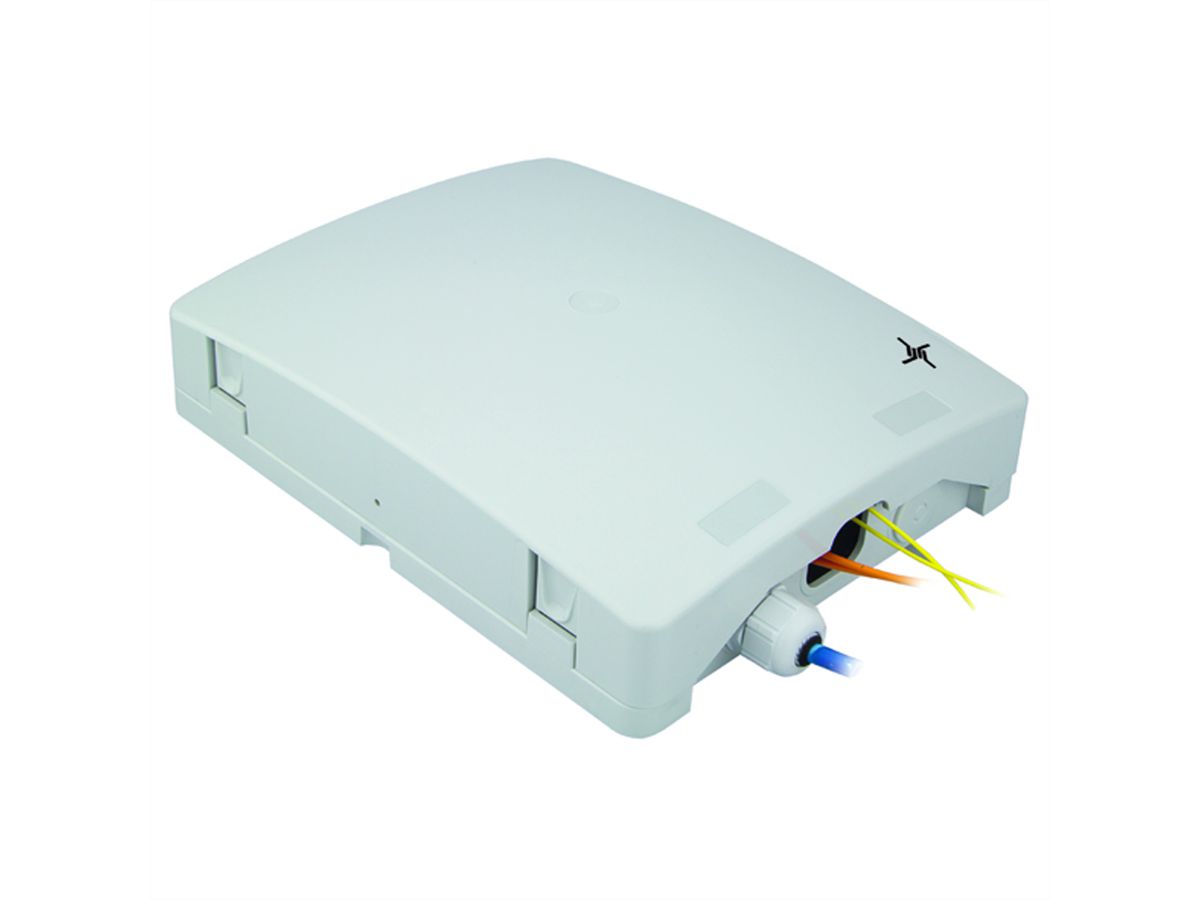

ODB 54 equipped with 6x SC duplex adaptors, 12 pigtails, OS2, blue

The IP54-protected Telegärtner wall-mounted distributor ODB 54 enables you to address a wide range of installation requirements with a single product. Whether used as a splice tray or a distribution housing, the robust ODB 54 plastic enclosure offers sufficient space to quickly, easily, and flexibly accommodate up to 24 fiber optic ports.
In Fiber-to-the-Building/Home networks, fiber optics must be securely terminated in the customer access area. Additionally, there is a requirement to use different connectors, couplers, or xWDM solutions based on customer preferences.

• Protection class IP54
• Material: PC, IK 04
• Locking with 2 snap-fits and optional lead seal
• Slack storage
• Please order splice holder separately
• Possibility to attach optical function modules
• Mounting of gas- or waterblocker for blow fiber system (optional)
• With flexible cable sealing for up to 24 patch cords Ø 1.8 - 2.8 mm

Specifications

Manufacturer	TELEGÄRTNER
Product group	Connection technology FO
Product type	Patch Panel FO
Colour	grey
Material (casing)	thermoplastic
Halogen free	yes
Protection class (IP Code)	IP54
RAL colour	RAL 7035 Light grey
Height	200 mm
Width	250 mm
Depth	64 mm
Weight	980 g
Height of packaging (single piece)	0 mm
Width of packaging (single piece)	0 mm
Depth of packaging (single piece)	0 mm
Package weight (single piece)	0 kg

Downloads

Manufacturer data sheet - Deutsch (661.3 KB)

Download

Manufacturer data sheet - English (661.3 KB)

Download
