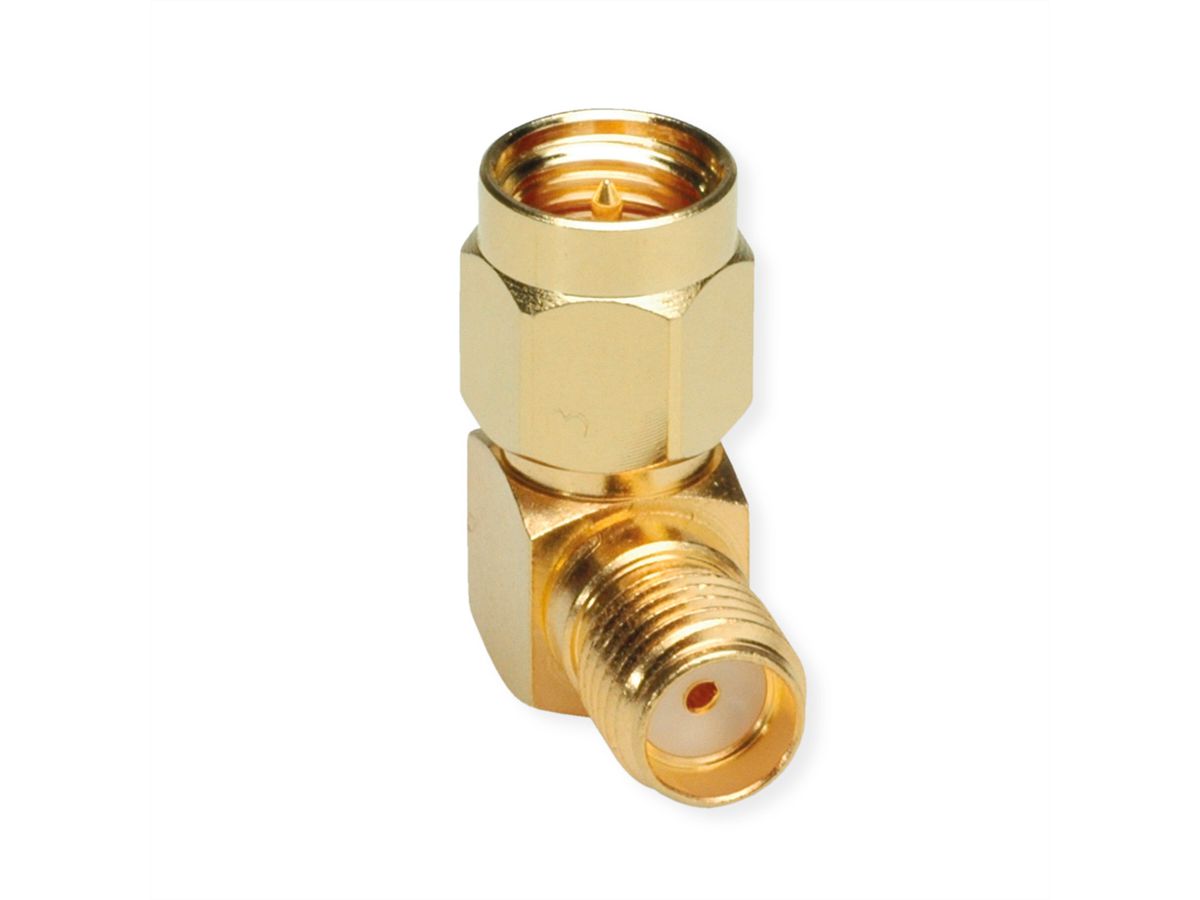

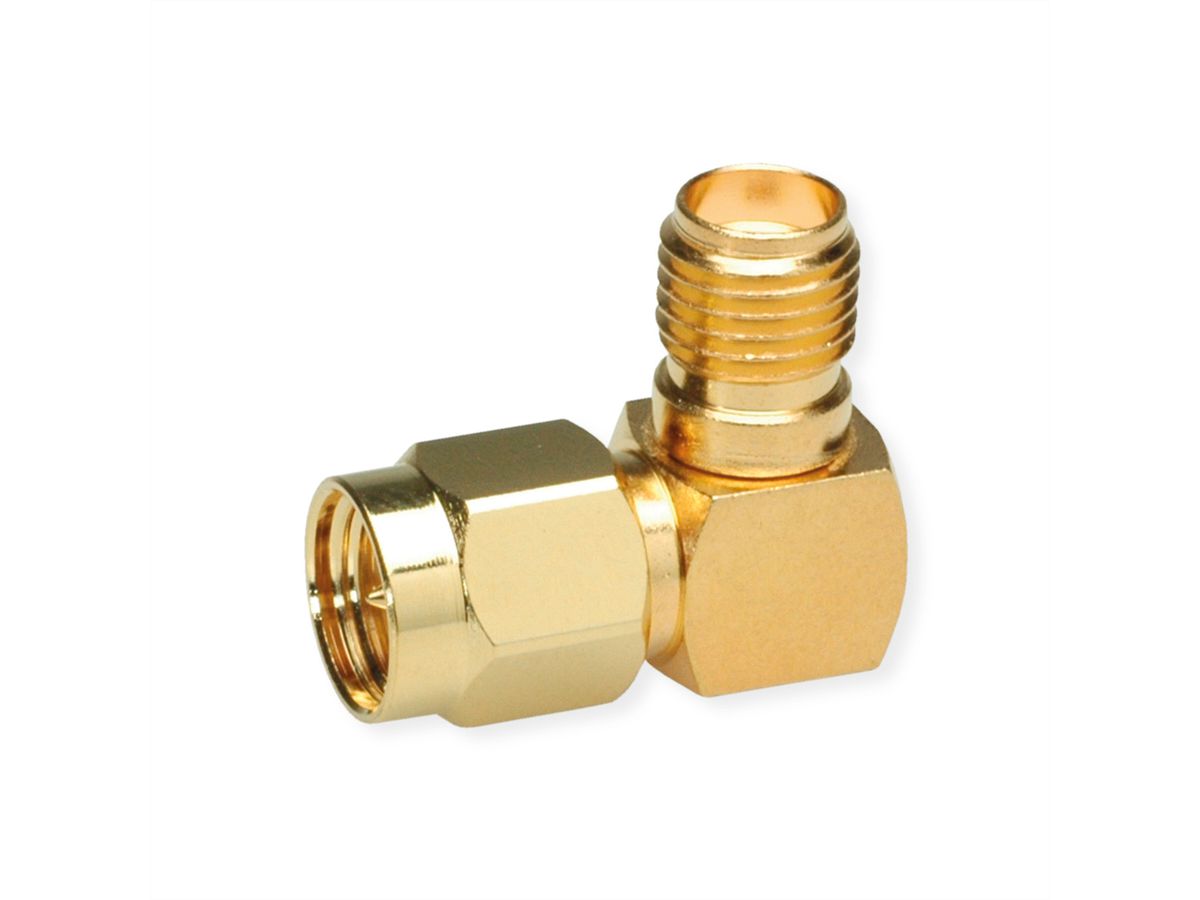

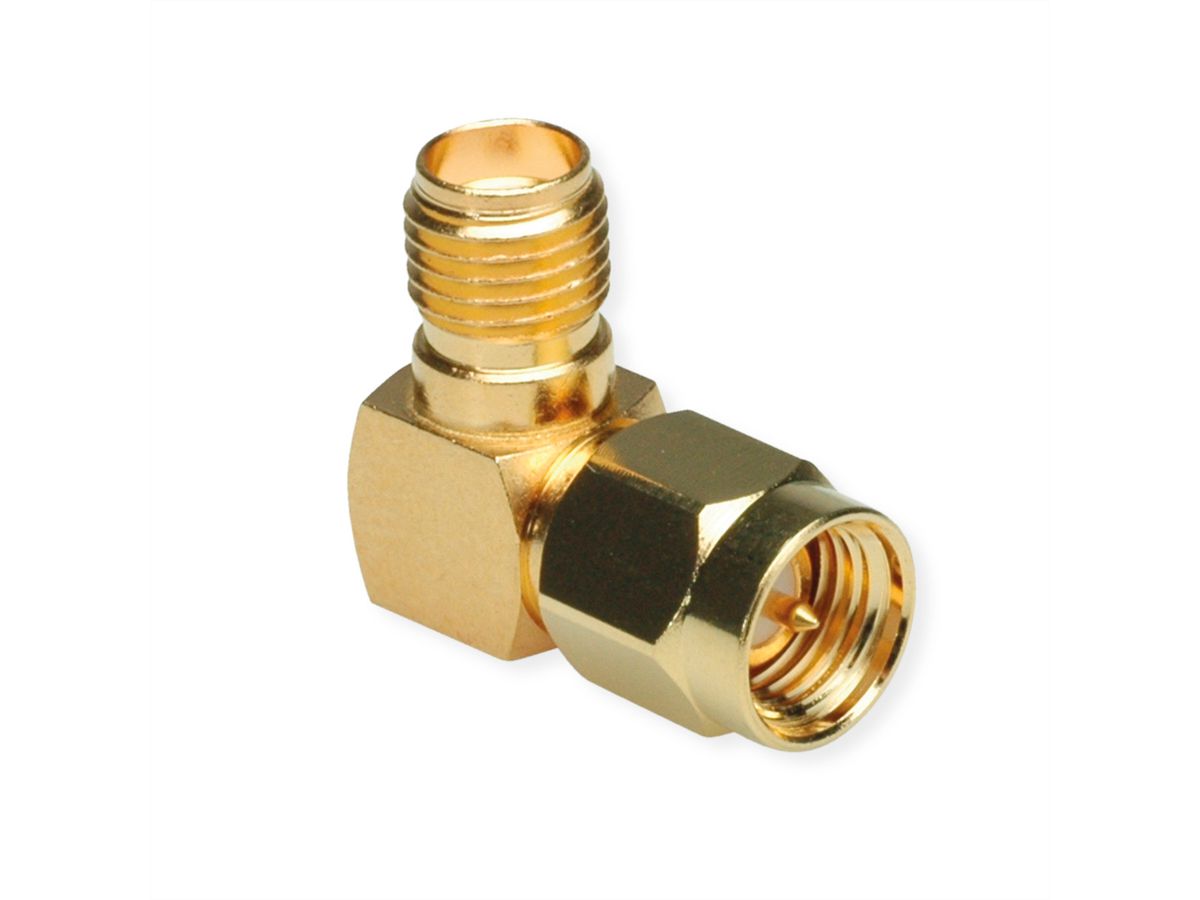

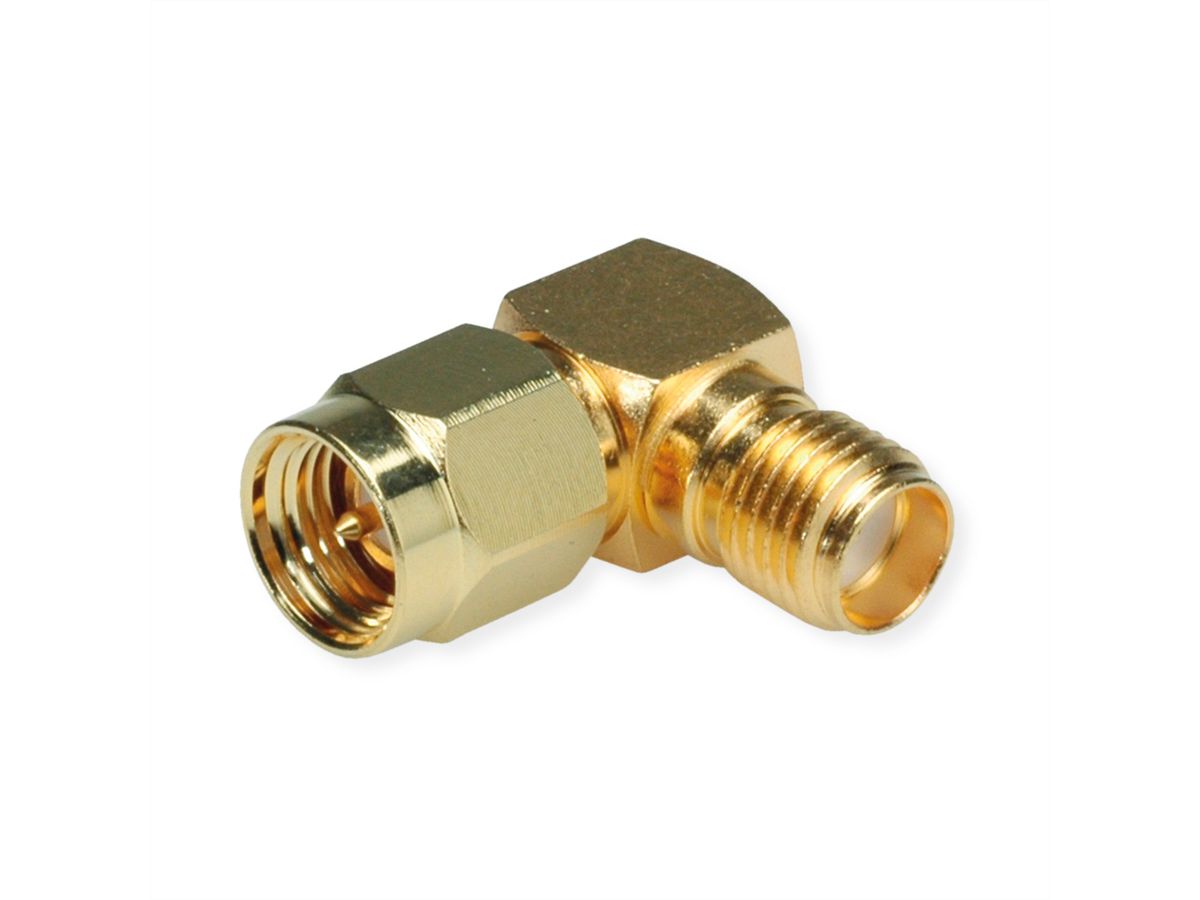

TELEGÄRTNER SMA Angle Adaptor
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 21170465 |
|---|---|
| Brand / Manufacturer | TELEGÄRTNER |
| Manuf. item no. | 100024792 |
| EAN | 4018359122348 |
:strip_icc():strip_exif()/logos/telegaertner.png "TELEGÄRTNER")
Description
Mating face sealing for SMA connectors between plug and jack (mated) according to IP 68.
- Durability (Matings) ≥ 500
- Recommended coupling torque 79 - 113 Ncm
- Material: spring contacts CuBe2
- Material: crimp ferrule Cu
- Material: serrated lock washer CuSn6
- Material: insulators PTFE
- Material: gaskets MVQ
- Finish: Inner conductor Cu1Ni2Au1.27
- Finish outer conductor: Gold (standard; last digit ...1) NiPAu
- Finish outer conductor: MIL gold (last digit ...2) Cu1Ni2Au1.27
- Finish outer conductor: Stainless Steel (last digit ...6) passivated
- Finish outer conductor: Type for printed circuits (last digit ...7) SnPb8
- Finish outer conductor: Telealloy (white bronze) (last digit ...8) CuSnZn3 (Telealloy); Ag2CuSnZn0.5 (Optargen)
- Finish outer conductor: Nickel (last digit ...9) Cu2Ni5
- Finish other metal parts: Gold (standard; last digit ...1) Cu2Ni5Au0.2
- Finish other metal parts: MIL gold (last digit ...2) Cu1Ni2Au0.8
- Finish other metal parts: Stainless steel (MIL type; last digit ...6) passivated
- Finish other metal parts: Telealloy (white bronze) (last digit ...8) CuSnZn3
- Finish other metal parts: Nickel (last digit ...9) Cu2Ni5
- Insulation resistance ≥ 5 GΩ
- Frequency range for flexible cable up to 12,4 GHz
- Return loss flexible cable (straight and angle style) at 1 GHz ≥ 20,00 dB
- Return loss flexible cable (straight and angle style) at 2 GHz ≥ 19,20 dB
- Return loss flexible cable (straight and angle style) at 4 GHz ≥ 17,70 dB
- Return loss flexible cable (straight and angle style) at 6 GHz ≥ 16,50 dB
- Return loss semi-rigid cable (angle style) at 1 GHz ≥ 25,70 dB
- Return loss semi-rigid cable (angle style) at 2 GHz ≥ 25,20 dB
- Return loss semi-rigid cable (angle style) at 4 GHz ≥ 24,20 dB
- Return loss semi-rigid cable (angle style) at 6 GHz ≥ 23,20 dB
Remark: Picture similar
Specifications
| Manufacturer | TELEGÄRTNER |
|---|---|
| Product group | Plug / cable ties |
| Product type | Coaxial Connectors |
| Colour | silver |
| Quantity of ports | 1 |
| Connection direction | angled |
| Height of packaging (single piece) | 0 mm |
| Width of packaging (single piece) | 0 mm |
| Depth of packaging (single piece) | 0 mm |
| Package weight (single piece) | 0 kg |
The products of the TELEGÄRTNER brand stand for professional connection technology.
