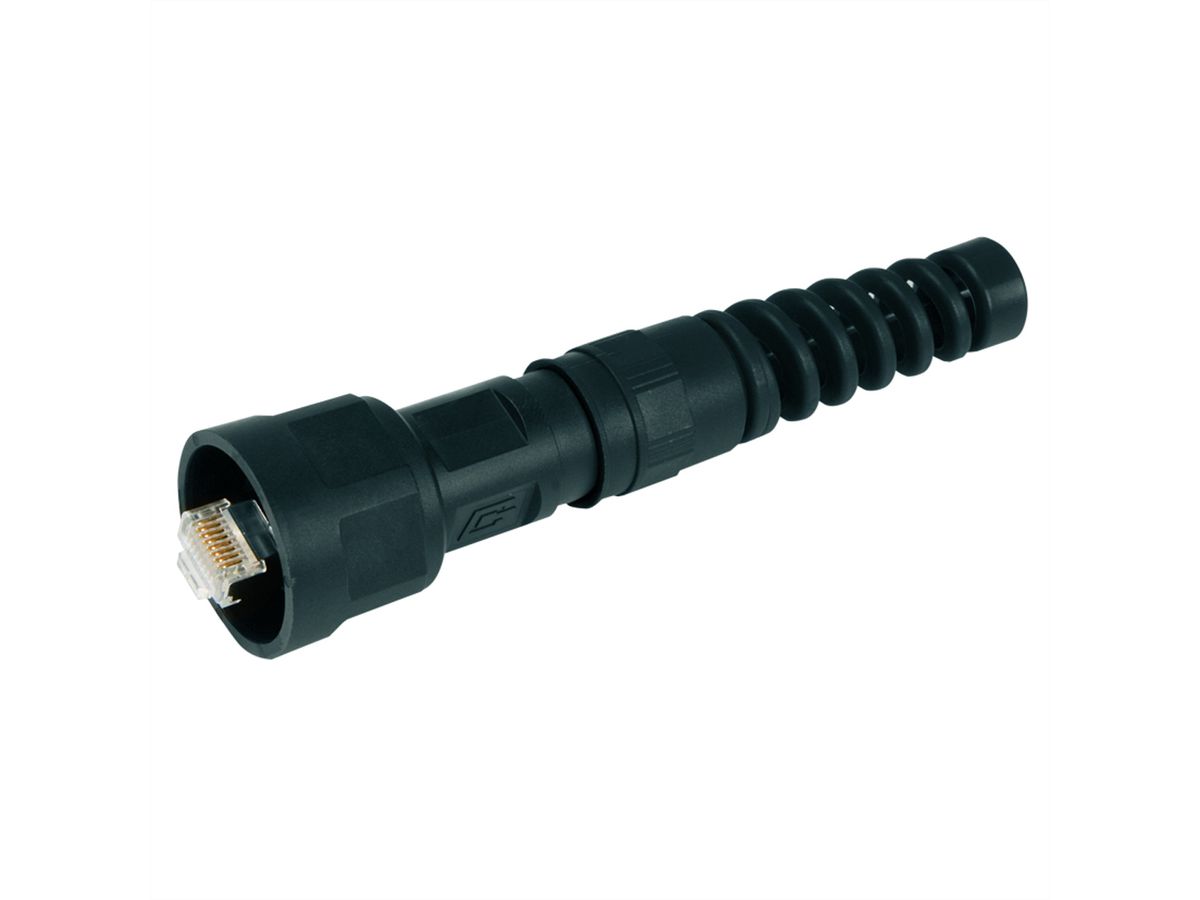

TELEGÄRTNER STX V1 RJ45 plug set, AWG24-27 Cat.6A plastic with bend protection

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Item no.	21173185
Brand / Manufacturer	TELEGÄRTNER
Manuf. item no.	100007460
EAN	4018359328870
Item weight	0.04 kg

Description

storage of cables with diameter 5...10 mm
simple mounting of bulkheads through a central screwed gland or four screws
NBR aiguilette at the protection cap
bay for marking labels
with bend protection to prevent cables from being excessively bent
rugged zinc diecast or plastic housing
protection class IP67
Variant 1 acc. to IEC 61076-3-106
pre-assembled plugs and set products for simple assembly
available with RJ45 Cat.6A, Cat.6 Class EA, USB or FO insert

Specifications

Manufacturer	TELEGÄRTNER
Product group	Connection technology TP
Product type	Connectors RJ-45
Shield type	Screened
Transfer quality	Cat6A / Class EA
Component-Level certified	yes
Quantity of ports	1
Material (casing)	PC UL94 V0
Protection class (IP Code)	IP67
Operating temperature min.	-40 °C
Operating temperature max.	85 °C
Weight	23.67 g
Height of packaging (single piece)	50 mm
Width of packaging (single piece)	120 mm
Depth of packaging (single piece)	120 mm
Package weight (single piece)	0.04 kg
