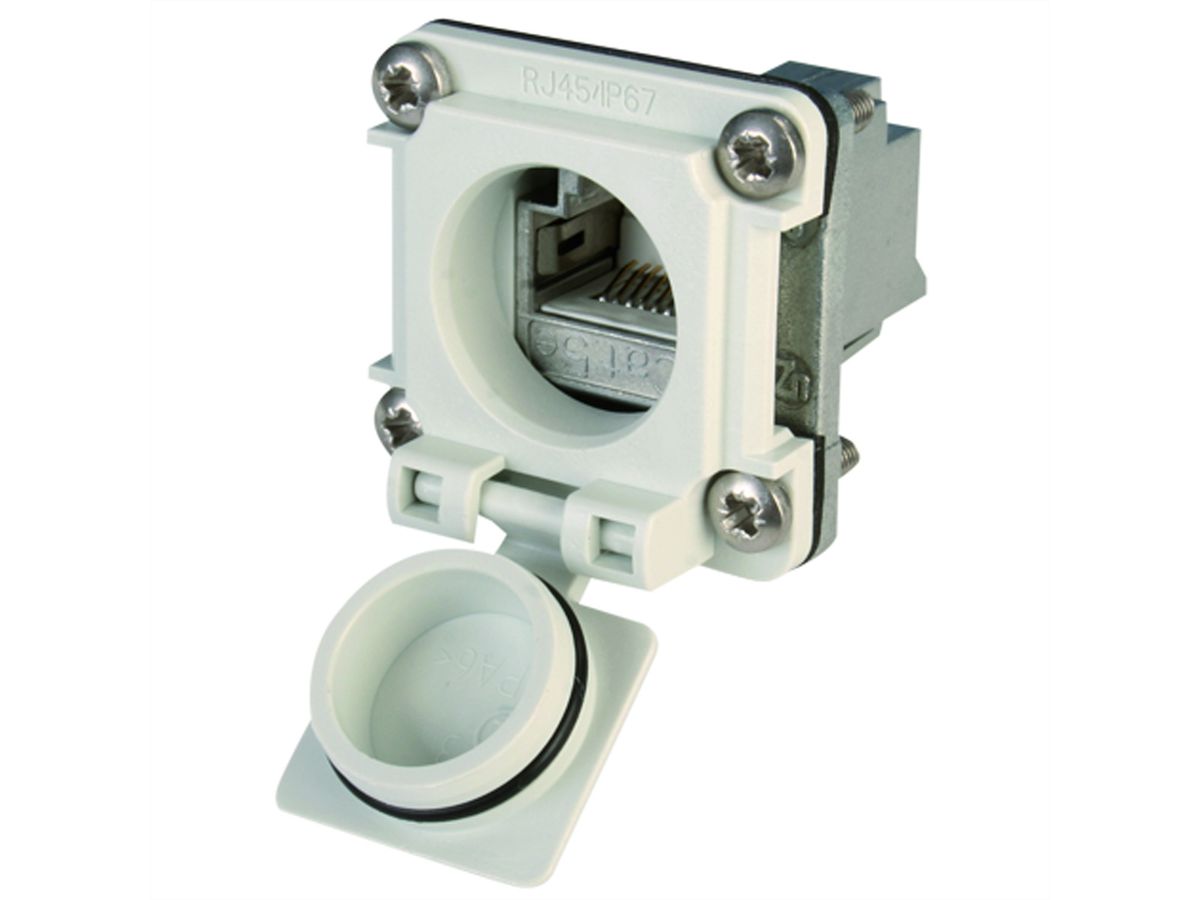

TELEGÄRTNER STX V6 Bulkhead, AMJ coupler K Cat.5e
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 21170699 |
|---|---|
| Brand / Manufacturer | TELEGÄRTNER |
| Manuf. item no. | 100022953 |
| EAN | 4018359323974 |
| Item weight | 0.048 kg |
:strip_icc():strip_exif()/logos/telegaertner.png "TELEGÄRTNER")
Description
STX V6 Bulkhead with AMJ coupler K Cat.5e
- Cat.6A acc. to IEC 60603-7-51
- Cat.6A re-embedded tested acc. to IEC 60512-27-100
- link certificate: Class EA acc. to ISO/IEC 11801
- 10 Gigabit-Ethernet compliant (IEEE 802.3an)
- overbending protection: ≥750 mating cycles with RJ45/RJ11/RJ12 plugs
- suitable for PoE+ acc. to IEEE 802.3at
- suitable for switching programs from several manufacturers with design capable faceplate AMJ-S Up/0 flex
- integrated strain relief for cable O.D. to 9 mm
- universal, world-wide available installation dimension for mounting cut-outs: 19.3 x 14.7 mm
- universal, world-wide available installation dimension for mounting cut-outs: 19.3 x 14.7 mm
- AMJ-S DD: with integrated protection against damage to the contacts by automatic disconnection of the plug connection
Specifications
| Manufacturer | TELEGÄRTNER |
|---|---|
| Product group | Connection technology TP |
| Product type | RJ-45 coupling |
| Colour | grey |
| Quantity of ports | 1 |
| Material (casing) | zinc diecast |
| Protection class (IP Code) | IP67 |
| Dimensions (HxWxD) | 33 x 32,5 x 57 mm |
| Operating temperature min. | -40 °C |
| Operating temperature max. | 70 °C |
| Height | 33 mm |
| Width | 32.5 mm |
| Depth | 57 mm |
| Weight | 47.7 g |
| Height of packaging (single piece) | 40 mm |
| Width of packaging (single piece) | 70 mm |
| Depth of packaging (single piece) | 130 mm |
| Package weight (single piece) | 0.048 kg |
The products of the TELEGÄRTNER brand stand for professional connection technology.
