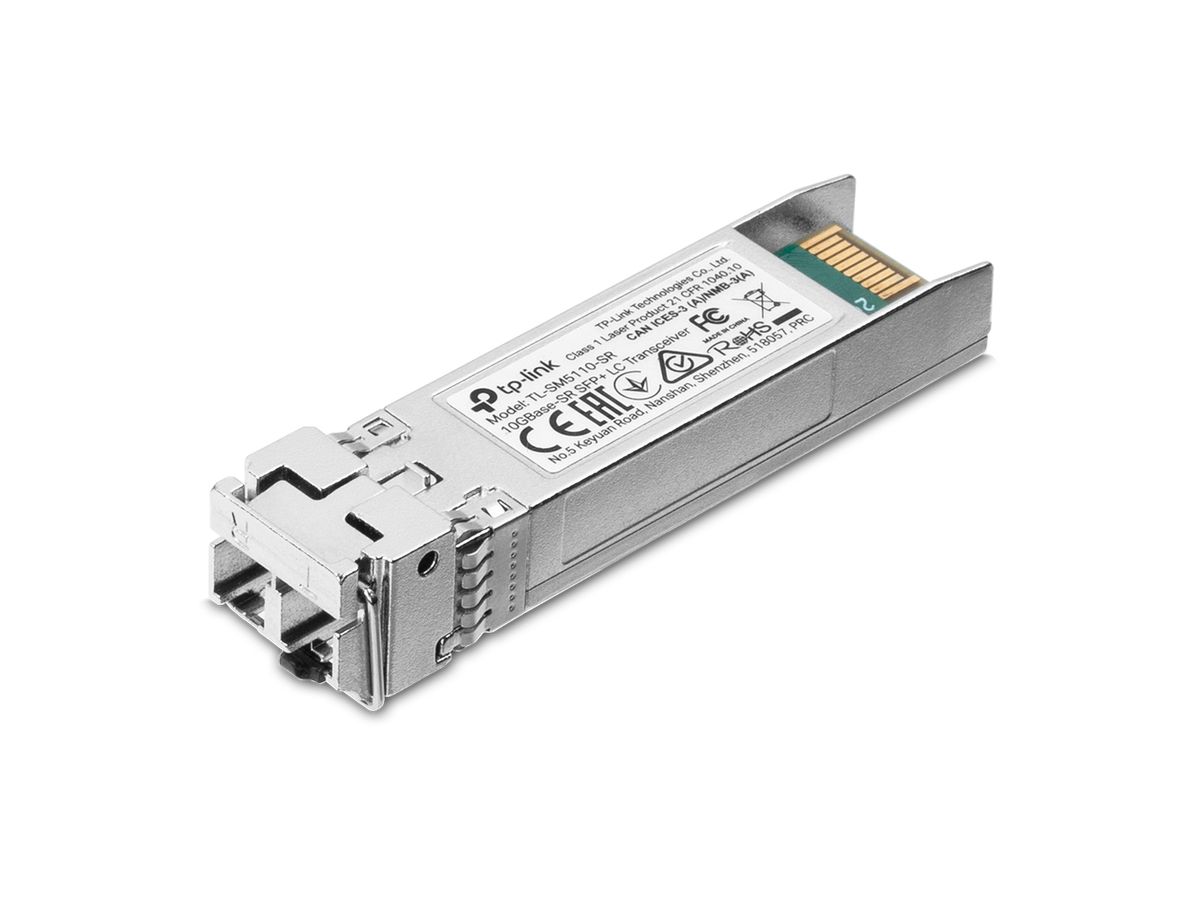

TP-Link 10GBase-SR SFP+ LC Transceiver
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 524467312 |
|---|---|
| Brand / Manufacturer | TP-LINK TECHNOLOGIES |
| Manuf. item no. | TL-SM5110-SR |
| EAN | 6935364006297 |
:strip_icc():strip_exif()/logos/tp-link-technologies.png "TP-LINK TECHNOLOGIES")
Description
TP-Link 10GBase-SR SFP+ LC Transceiver. SFP transceiver type: Fiber optic, Maximum data transfer rate: 10000 Mbit/s, Interface type: SFP+. Product colour: Silver, Certification: FCC, CE. Input voltage: 3.3 V. Width: 14.5 mm, Depth: 61.3 mm, Height: 12.2 mm. Package width: 81.5 mm, Package depth: 122.5 mm, Package height: 38.5 mm
The TL-SM5110-SR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-SR high performance 850nm multi-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 300m or 33m with 50/125µm or 62.5/125µm fiber cables respectively.
Specifications
| Manufacturer | TP-LINK TECHNOLOGIES |
|---|---|
| Product type | Network Transceiver Modules |
Weight & dimensions
| Width | 14.5 mm |
|---|---|
| Depth | 61.3 mm |
| Height | 12.2 mm |
Power
| Input voltage | 3.3 V |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 70 °C |
|---|---|
| Storage temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Packaging data
| Package width | 81.5 mm |
|---|---|
| Package depth | 122.5 mm |
| Package height | 38.5 mm |
| Package weight | 60 g |
Performance
| SFP transceiver type | Fiber optic |
|---|---|
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | LC (UPC) |
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
| Maximum transfer distance | 300 m |
| Wavelength | 850 nm |
| Digital Diagnostics Monitoring (DDM) | Yes |
Features
| Product colour | Silver |
|---|---|
| Hot-swap | Yes |
| Certification | FCC, CE |
Logistics data
| Harmonized System (HS) code | 85369010 |
|---|
