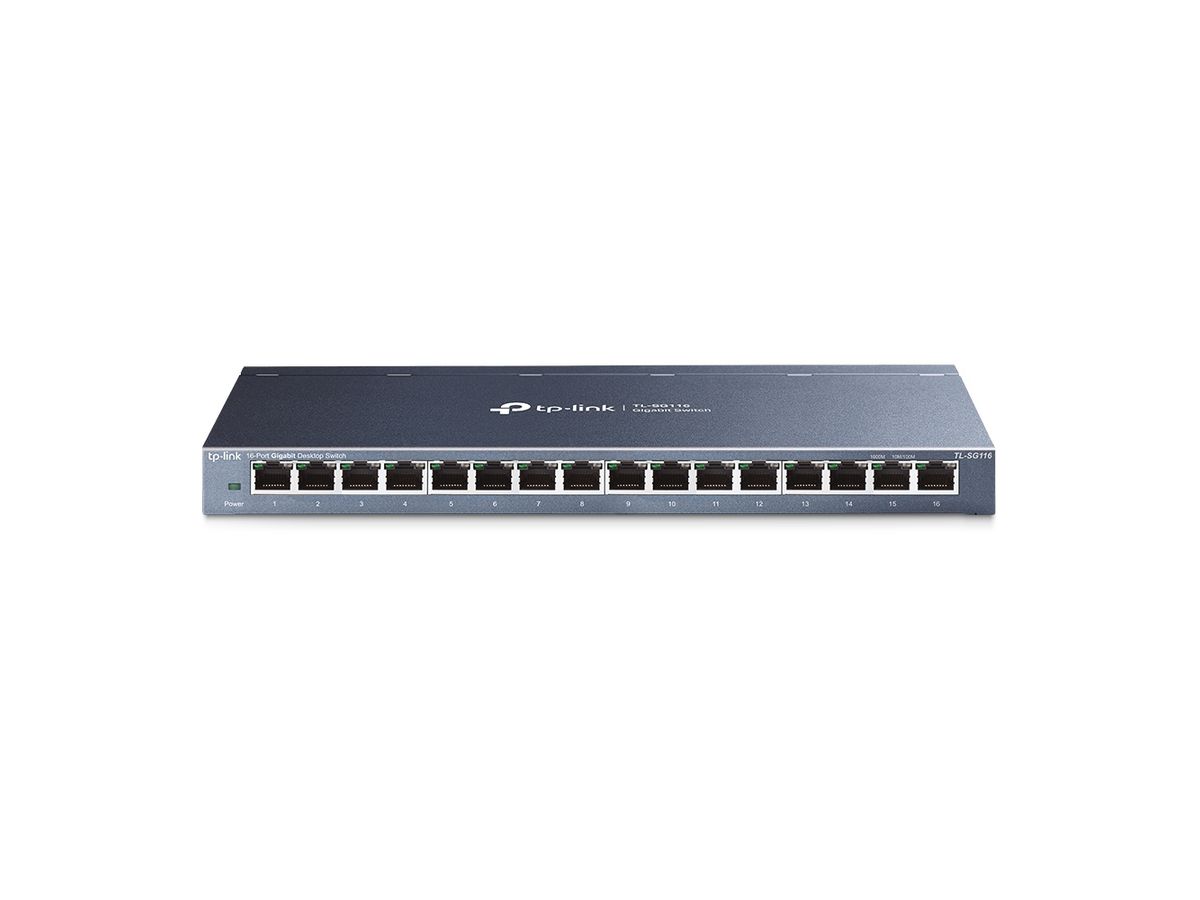

TP-Link 16-Port Gigabit Desktop Network Switch

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Item no.	520917154
Brand / Manufacturer	TP-LINK TECHNOLOGIES
Manuf. item no.	TL-SG116E
EAN	6935364084301

Description

TP-Link 16-Port Gigabit Desktop Network Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x

What This Product DoesThe TP-Link 16-Port 10/100/1000Mbps Desktop Switch provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Plug and Play design, with no configuration required, makes the product easy to use. Moreover, TL-SG116 adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG116 can save power consumption, making it an eco-friendly solution for your home or office network.Gigabit SwitchFeatured with 16 10/100/1000Mbps ports, TL-SG116 greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly. Go Green With Your EthernetYou now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG116 16-Port 10/100/1000Mbps Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.Traffic Optimization802.1p and DSCP QoS enable smooth latency-sensitive traffic such as voice and video, and IGMP Snooping optimizes the Multicast data stream. Easy to useThe auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Moreover, fanless design ensures quiet operation.

Specifications

Manufacturer	TP-LINK TECHNOLOGIES
Product type	Network Switches

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	16

Weight & dimensions

Width	286 mm
Depth	111.7 mm
Height	25.4 mm

Power

Power source	DC
Power supply included	Y
Input current	1 A
Input voltage	12 V
Power consumption (max)	10 W

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%

Network

Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
10G support	N
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Full duplex	Y
Flow control support	Y
Auto MDI/MDI-X	Y
Auto-negotiation	Y

Data transmission

MAC address table	8000 entries
Switching capacity	32 Gbit/s
Forwarding rate	23.8 Mpps
Store-and-forward	Y
Jumbo frames support	Y
Jumbo frames	10000
Packet buffer memory	4.1 MB

Packaging data

Quick start guide	Y
AC adapter included	Y
Package type	Box
Rubber feet	Y
Package width	412 mm
Package depth	170 mm
Package height	70 mm

Security

IGMP snooping	Y

Management features

Switch type	Unmanaged
Quality of Service (QoS) support	Y

Design

Rack mounting	N
Product colour	Black
Housing material	Steel
LED indicators	Y
Certification	CE, FCC ,RoHS

Power over Ethernet (PoE)

Power over Ethernet (PoE)	N

Performance

Plug and Play	Y
