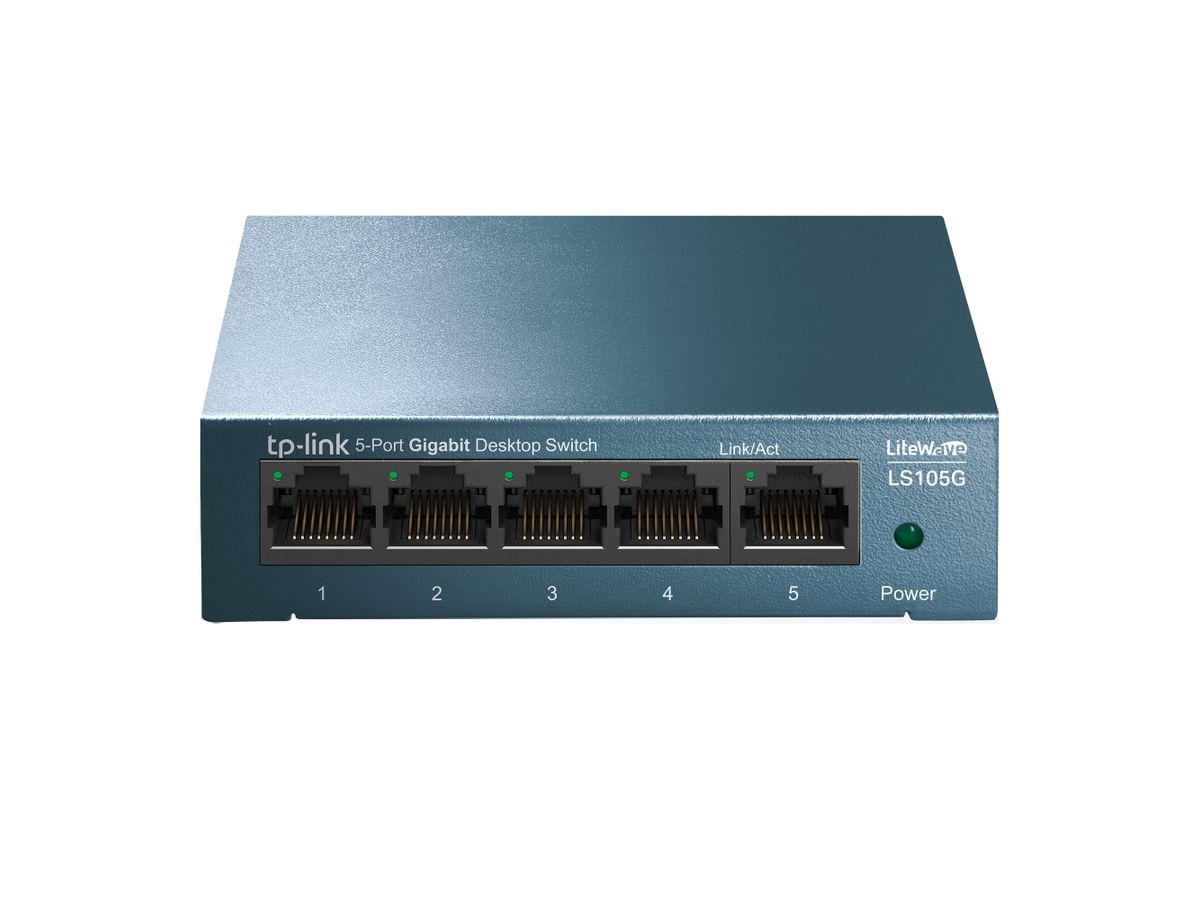

TP-LINK 5-Port 10/100/1000Mbps Desktop Network Switch

TP-LINK 5-Port 10/100/1000Mbps Desktop Network Switch

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Deliverable approx. 01/06/2025
Item no. 522071737
Brand / Manufacturer TP-LINK TECHNOLOGIES
Manuf. item no. LS105G
EAN 6935364085445

Description

TP-LINK 5-Port 10/100/1000Mbps Desktop Network Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1p,IEEE 802.3ab,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x

Increase Your Network Speed and Save Energy Let LiteWave Bring You Lighter Network Life The TP-Link LiteWave Series Unmanaged Switches provide easy and affordable way to expand your wired network. They are easy to use and reliable. With these plug-and-play switches, you can expand your network connections to multiple devices instantly. With all ports support Auto-MDI/MDIX, there’s no need to worry about the type of cable to use. Go Green with Your Ethernet The LiteWave Series also supports energy-efficient technology, helping you save power and money. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win! Durable Metal Casing The interior components of LS105G are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, LS105G delivers switching performance you can depend on. Its compact size makes it ideal for deployment on desktops or work benches. Use Where You Need, However You Need The LS105G is fully compatible with networked devices such as computers, printers, webcams, IPTVs. It has a wide range of application scenarios and is suitable for networking in school dormitories, surveillance, homes, and small businesses.

Specifications

Manufacturer TP-LINK TECHNOLOGIES
Product type Network Switches
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 5
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Weight & dimensions
Width 99.8 mm
Depth 98 mm
Height 25 mm
Power
Power supply included Y
Power consumption (max) 2.776 W
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 90%
Heat dissipation 9.466 BTU/h
Network
Networking standards IEEE 802.1p,IEEE 802.3ab,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x
10G support N
Data transmission
MAC address table 2000 entries
Switching capacity 10 Gbit/s
Forwarding rate 7.4 Mpps
Jumbo frames support Y
Jumbo frames 16
Packet buffer memory 1 MB
Packaging data
Quick start guide Y
Management features
Switch type Unmanaged
Quality of Service (QoS) support Y
Design
Rack mounting N
Product colour Blue
LED indicators LAN,Power
Certification CE, FCC, RoHS
Power over Ethernet (PoE)
Power over Ethernet (PoE) N
