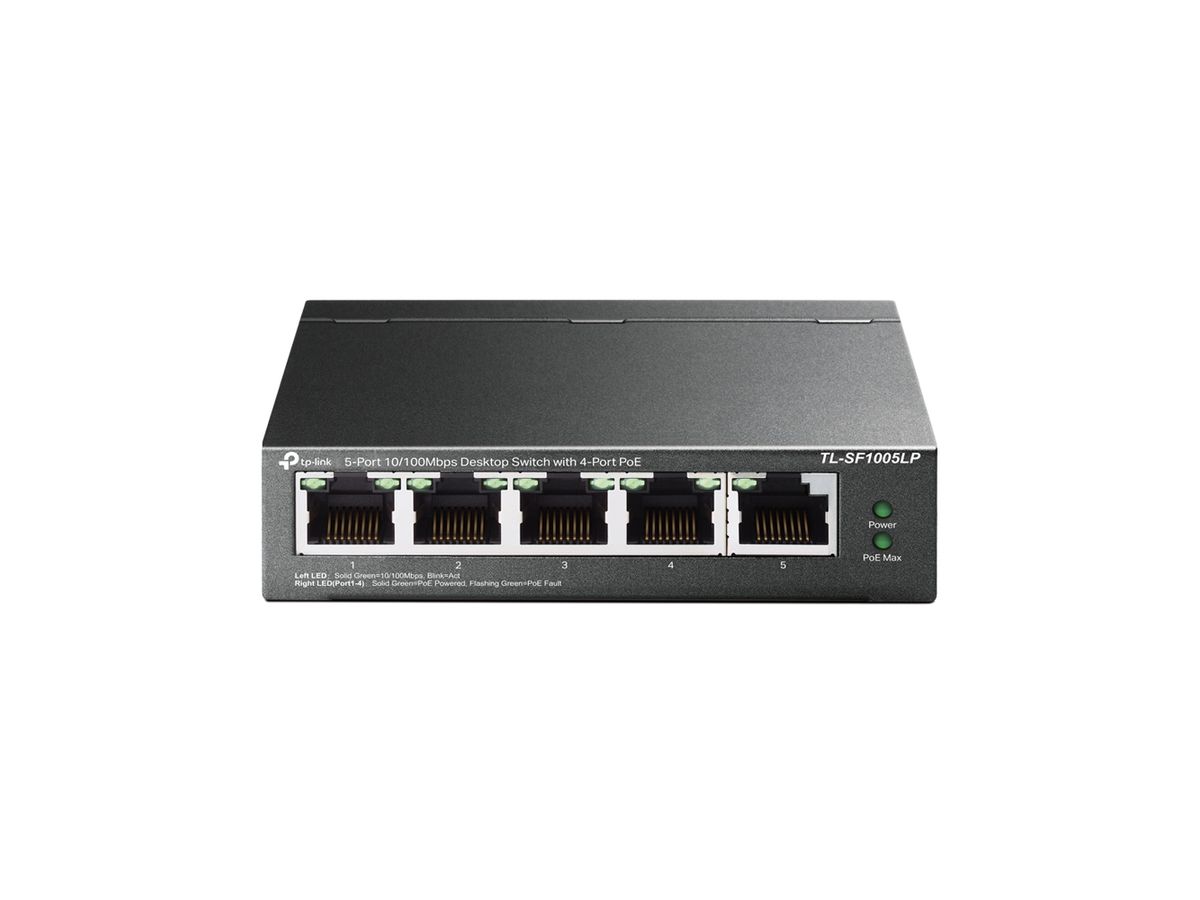

TP-Link 5-Port 10/100Mbps Desktop Switch with 4-Port PoE

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Deliverable approx. 11/29/2024

Item no.	523736593
Brand / Manufacturer	TP-LINK TECHNOLOGIES
Manuf. item no.	TL-SF1005LP
EAN	6935364052782

Description

TP-Link 5-Port 10/100Mbps Desktop Switch with 4-Port PoE. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 1 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE)

Professional Fast Ethernet Switch with 4 PoE PortsPlug and Play, with PoE Transmission for Surveillance up to 250 mTL-SF1005LPDedicated 4-Port PoE Switch (41 W Budget) for Numerous ApplicationsCompliance with the 802.3af PoE standard supports up to 15.4 W on each PoE port. The total 41 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.Ideal for IP Surveillance—Up to 250 m TransmissionsWith extend mode, the PoE transmission distance reaches up to 250 m**—perfect for IP Camera deployment in large areas.The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.Priority VideoQuality GuaranteedQuality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.Intelligent Power ManagementWhen total power consumption exceeds 41 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.Durable Metal CasingThe interior components of TL-SF1005LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1005LP delivers switching performance you can depend on.

Specifications

Manufacturer	TP-LINK TECHNOLOGIES
Product type	Network Switches

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)

Weight & dimensions

Width	100 mm
Depth	98 mm
Height	25 mm

Power

Power source	DC
Power supply included	Y
Input current	0.81 A
Input voltage	53.5 V
Power consumption (max)	47 W

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%

Network

Networking standards	IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support	N
Copper ethernet cabling technology	10BASE-T, 100BASE-TX
Cable types supported	Cat3, Cat4, Cat5, Cat5e
Auto MDI/MDI-X	Y
Auto-negotiation	Y

Data transmission

MAC address table	2000 entries
Switching capacity	1 Gbit/s
Forwarding rate	0.744 Mpps
Store-and-forward	Y
Jumbo frames support	Y
Jumbo frames	2000

Management features

Switch type	Unmanaged

Design

Rack mounting	N
Product colour	Black
LED indicators	Y

Power over Ethernet (PoE)

Power over Ethernet (PoE)	Y
Power over Ethernet (PoE) ports quantity	4
Total Power over Ethernet (PoE) budget	41 W

Logistics data

Harmonized System (HS) code	85176990

Downloads

PDF data sheet - TP-Link 5-Port 10/100Mbps Desktop Switch with 4-Port PoE - English (380.6 KB)

Download
