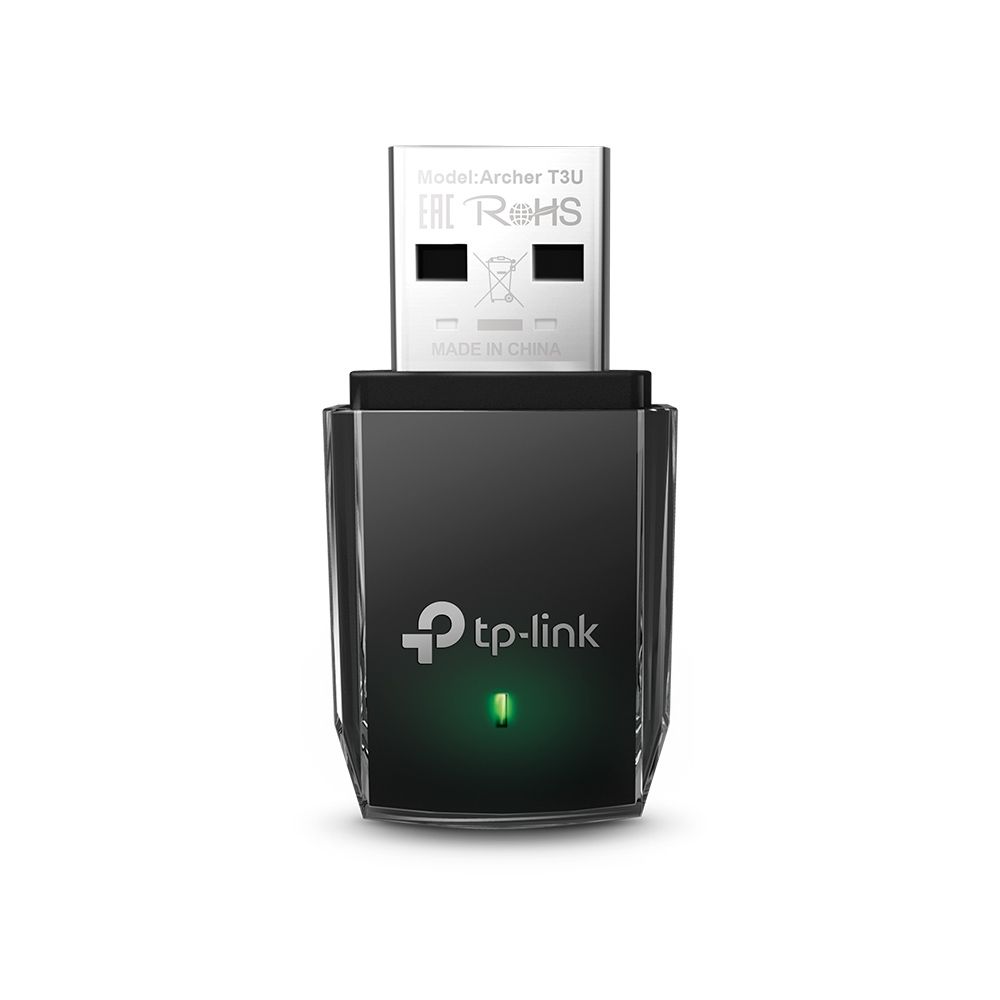

TP-Link AC1300 Mini Wireless MU-MIMO USB Adapter WLAN 1267 Mbit/s

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Item no.	521243335
Brand / Manufacturer	TP-LINK TECHNOLOGIES
Manuf. item no.	ARCHER T3U
EAN	6935364083830
Item weight	0.078 kg

Description

TP-Link AC1300 Mini Wireless MU-MIMO USB Adapter. Connectivity technology: Wired, Host interface: USB, Interface: WLAN. Maximum data transfer rate: 1267 Mbit/s, Top Wi-Fi standard: Wi-Fi 5 (802.11ac), Wi-Fi band: Dual-band (2.4 GHz / 5 GHz). USB powered. Product colour: Black

Mini Size,Big performanceAC1300 Mini Wireless MU-MIMO USB AdapterHigh-Speed Dual Band Adapter for Better ConnectionsWireless AC technology means Archer T3U delivers connections that are up to 3x faster than with the previous Wireless N standard. High-speed WiFi (up to 867 Mbps over the 5 GHz band and 400 Mbps over the 2.4 GHz band) means Archer T3U is able to support all your online activities, from HD video streaming to lag-free online gaming and web surfing.Miniature Design - Take With You On the GoArcher T3U has a smart design that is tinier than most USB adapters. Not only can it be inserted into any USB port but is also easy to carry.USB 3.0 for Superior Transfer SpeedsExperience blazing-fast data transfers of up to 4.8 Gbps with USB 3.0 — the latest USB connectivity standard. USB 3.0 transfers data up to 10x faster than USB 2.0 and is also backwards compatible with USB 2.0. Combined with 802.11ac Wi-Fi, USB 3.0 makes Archer T3U ideal for HD streaming, online gaming and large file downloads.Boosted Throughput with MU-MIMOWith MU-MIMO technology, Archer T3U can provide two simultaneous data streams, improving the throughput and efficiency of the entire network when working with a compatible MU-MIMO router.Easy SetupA friendly user interface comes on a CD for simple installation.Advanced SecurityWPA/WPA2 encryption standards ensure your wireless connections safety.Operating SystemSupports Windows, Mac OS

Specifications

Manufacturer	TP-LINK TECHNOLOGIES
Product type	Network Cards

System requirements

Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1, Windows XP
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.9 Mavericks

Ports & interfaces

Connectivity technology	Wired
Host interface	USB
Interface	WLAN
USB version	3.2 Gen 1 (3.1 Gen 1)

Weight & dimensions

Width	40.5 mm
Depth	19.7 mm
Height	10.3 mm

Power

USB powered	Y

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%

Network

Maximum data transfer rate	1267 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-Fi	Y
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Frequency range	2.4 - 5 GHz
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN data transfer rates supported	11,54,300,400,867 Mbit/s
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK

Packaging content

Quick installation guide	Y

Other features

Harmonized System (HS) code	85176990

Design

Internal	N
Component for	PC/notebook
Product colour	Black
Antenna	Y
Antenna design	Internal
Transmitting power (CE)	23 dBm
Transmitting power (FCC)	23 dBm
LED indicators	Status
Receiver sensitivity	5GHz：11a 6Mbps: -91dBm11a 54Mbps: -76dBm11n HT20：-71dBm11n HT40：-70dBm11ac HT20: -68dBm11ac HT40: -64dBm11ac HT80: -62dBm2.4GHz:11b 11Mbps: -86dBm11g 54Mbps: -73dBm11n HT20: -71dBm11n HT40: -70dBm
Certification	CE, FCC

Sustainability

Sustainability certificates	RoHS

Downloads

PDF data sheet - TP-Link AC1300 Mini Wireless MU-MIMO USB Adapter WLAN 1267 Mbit/s - English (2.8 MB)

Download
