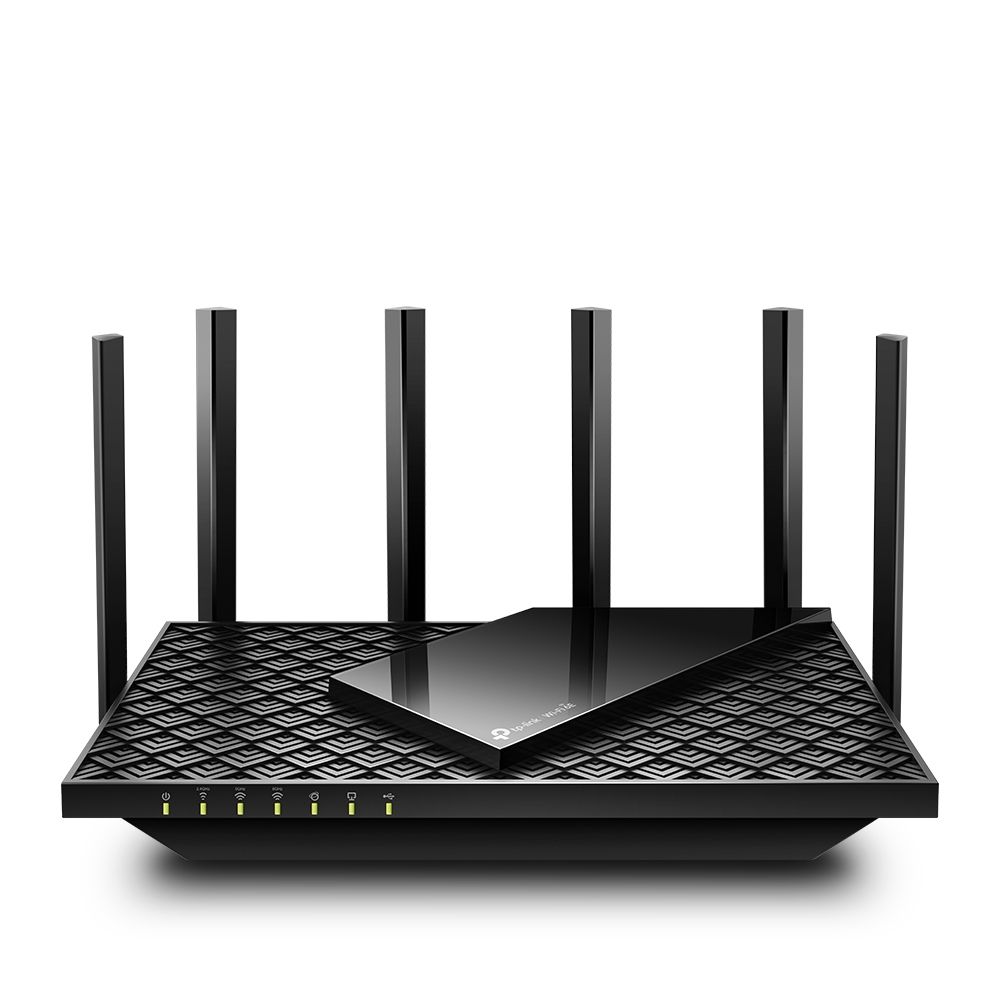

TP-Link Archer AXE5400 Tri-Band Gigabit Wi-Fi 6E Router
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 526601164 |
|---|---|
| Brand / Manufacturer | TP-LINK TECHNOLOGIES |
| Manuf. item no. | ARCHER AXE75 |
| EAN | 4897098687482 |
:strip_icc():strip_exif()/logos/tp-link-technologies.png "TP-LINK TECHNOLOGIES")
Description
TP-Link Archer AXE5400 Tri-Band Gigabit Wi-Fi 6E Router. WAN connection type: RJ-45. Wi-Fi band: Tri-band (2.4 GHz / 5 GHz / 6 GHz), Top Wi-Fi standard: Wi-Fi 6E (802.11ax), WLAN data transfer rate (max): 5400 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 2500 Mbit/s, Cabling technology: 10/100/1000Base-T(X). Security algorithms: WPA, WPA-Enterprise, WPA2, WPA3, Firewall security: SPI Firewall. Supported network protocols: IPv4, IPv6
Reaching New
Peaks of Performance
WiFi 6E: A Freer and Faster Future
WiFi 6E introduces the brand new 6 GHz band without any overlap or interference from other bands and older devices. This means a congestion-free frequency that offers more bandwidth, faster speed, and lower latency.
Maximize All Your Device Speeds
Archer AXE75 provides WiFi speeds up to 5400 Mbps, enabling your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads.
More RAM, Better Processing
With an advanced chipset and high memory, experience fast connections with minimal latency even under heavy loads. Every click and tap on your laptop or phone responds quicker.
Connect More Stay Fast
The number of IoT devices today creates greater demands on home WiFi. Archer AXE75 future-proofs your home network with a higher capacity of up to 200+ devices. OFDMA and other advanced tech cut down the clutter throughout your frequency bands, eliminating latency and jitter.
WiFi Coverage Throughout Your Home
6× high-performance antennas boost WiFi signals throughout your home. Beamforming technology detects devices and concentrates signals towards them, especially to previously hard-to-reach areas.
USB 3.0
Easily share files between connected devices with an external drive. Or create your own personal cloud storage for simple, secure access from anywhere.
TP-Link OneMesh
Flexibly Create Whole Home WiFi with Archer AXE75
OneMesh is a simple way to form a mesh network with a single WiFi name for seamless whole home coverage. Just connect a OneMesh range extender to a OneMesh router. No more searching for a stable connection.
TP-Link HomeShield
Advanced Security for Your Everyday Devices
With TP-Link HomeShield, enjoy advanced secuirty features delivering a safe environment that protects your family and network's data and privacy.
WPA3: Stronger Security for Your Network
The latest WiFi security protocol, WPA3, brings new capabilities to improve cybersecurity in personal networks. More secure encryption in WiFi password safety and enhanced protection against brute-force attacks combine to safeguard your home network.
Easy Setup and Use
Whether you prefer the intuitive Tether app or TP-Link’s powerful web interface, you can set up your Archer AXE75 in minutes. The Tether app allows you to manage network settings from any Android or iOS device.
Protect Your Children
Block inappropriate content for your children, and customize a time range for better online habits.
New Connection Notification
You will be notified by your phone when new devices connect. Kick off any suspicious connections and block them. It’s as simple as that.
Easy Firmware Upgrade
Tired of upgrading firmware? OTA updates enable easy firmware upgrades with a click in the management panel. To keep your security and functions always up-to-date, just turn on the auto schedule.
Specifications
| Manufacturer | TP-LINK TECHNOLOGIES |
|---|---|
| Product type | Wireless Routers |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 5 |
|---|---|
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
Weight & dimensions
| Width | 272.5 mm |
|---|---|
| Depth | 147.2 mm |
| Height | 49.2 mm |
Power
| Power source type | DC |
|---|---|
| Output voltage | 12 V |
| Output current | 2.5 A |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
Protocols
| DHCP client | Yes |
|---|---|
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Supported network protocols | IPv4, IPv6 |
Network
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 2500 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11n |
| Port forwarding | Yes |
| Port triggering | Yes |
| Dynamic DNS (DDNS) | Yes |
| Static route | No |
| Number of guest networks (2.4 GHz) | 1 |
| Number of guest networks (5 GHz) | 1 |
| Support Samba (storage) | Yes |
| Built-in FTP server | Yes |
| VPN server | OpenVPN Server |
| Media server | Yes |
| VPN Passthrough | Yes |
| VPN support | OpenVPN ServerPPTP VPN ServerL2TP VPN Server |
Packaging data
| Package width | 328 mm |
|---|---|
| Package depth | 265 mm |
| Package height | 120 mm |
| Package weight | 1.53 kg |
| Number of products included | 1 pc(s) |
Security
| Security algorithms | WPA, WPA-Enterprise, WPA2, WPA3 |
|---|---|
| Firewall | Yes |
| Firewall security | SPI Firewall |
| Guest access | Yes |
| Access Control List (ACL) | Yes |
| DoS attack prevention | Yes |
| DDoS protection | Yes |
| MAC address filtering | Yes |
| IP address filtering | Yes |
| URL filtering | Yes |
| DMZ support | Yes |
| Network address translation (NAT) | Yes |
Wireless LAN features
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| WLAN data transfer rate (max) | 5400 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (first band) | 574 Mbit/s |
| WLAN data transfer rate (second band) | 2402 Mbit/s |
| WLAN data transfer rate (third band) | 2402 Mbit/s |
Management features
| Web-based management | Yes |
|---|---|
| Quality of Service (QoS) support | Yes |
| Wake-on-LAN ready | Yes |
| Wireless statistics | Yes |
| Reset button | Yes |
| WPS push button | Yes |
Packaging content
| Cables included | LAN (RJ-45) |
|---|---|
| AC adapter included | Yes |
| Quick installation guide | Yes |
Antenna
| Antenna design | External |
|---|---|
| Antennas quantity | 6 |
| Detachable antenna(s) | Yes |
| Transmit power | FCC: ≤29dBm (2.4 GHz), ≤28dBm (5 GHz), ≤22dBm (6 GHz) CE: ≤17dBm (2.4 GHz), ≤27dBm (5 GHz), ≤20dBm (6 GHz) |
Design
| Product type | Tabletop router |
|---|---|
| Product colour | Black |
| Wall mountable | Yes |
| LED indicators | Power, WAN, WLAN |
| On/off switch | Yes |
Features
| Built-in processor | Yes |
|---|---|
| Processor frequency | 1700 MHz |
| Processor cores | 4 |
| Firmware upgradeable | Yes |
Logistics data
| Harmonized System (HS) code | 85176990 |
|---|
WAN connection
| Ethernet WAN | Yes |
|---|---|
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| WAN connection type | RJ-45 |
Sustainability
| Sustainability compliance | Yes |
|---|---|
| Sustainability certificates | Federal Communications Commission (FCC), RoHS |
