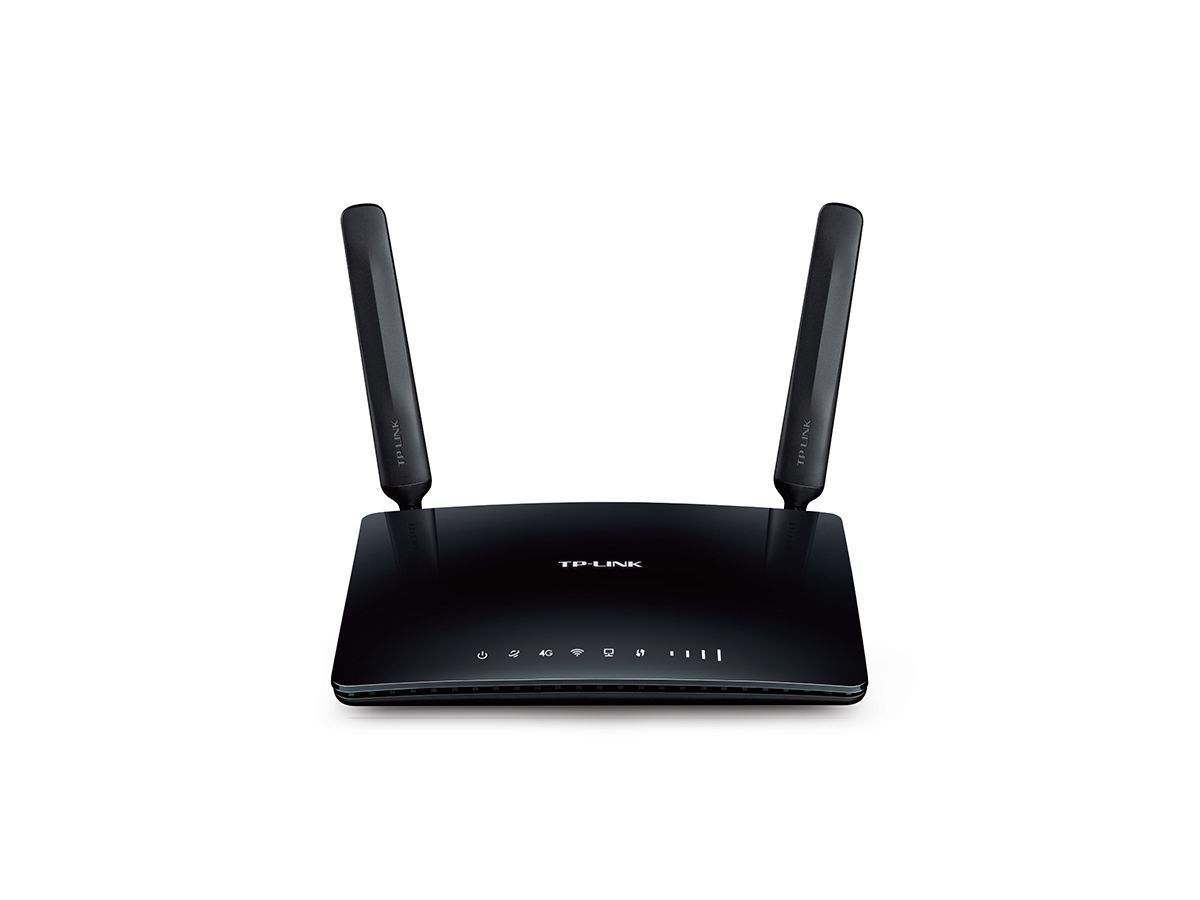

TP-LINK Archer MR200 wireless router Dual-band (2.4 GHz / 5 GHz) Fast Ethernet 3G 4G Black
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 516156742 |
|---|---|
| Brand / Manufacturer | TP-LINK TECHNOLOGIES |
| Manuf. item no. | ARCHER MR200 |
| EAN | 6935364092740 |
| Item weight | 0.677 kg |
:strip_icc():strip_exif()/logos/tp-link-technologies.png "TP-LINK TECHNOLOGIES")
Description
TP-LINK Archer MR200. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: IEEE 802.11ac, WLAN data transfer rate (max): 433 Mbit/s. Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Cabling technology: 10/100Base-T(X). 2G standards: EDGE,GPRS,GSM, 3G standards: DC-HSPA+,HSPA,HSPA+,UMTS, 4G standard: LTE. Networking standards: IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n, Data link protocols: IPv4, IPv6. Antenna type: External, Transmit power range: 0 - 23 dBmW
- Shares your 4G LTE network with multiple Wi-Fi devices and enjoy download speeds of up to 150Mbps - Powerful, integrated antennas provide stable wireless connections and better coverage - Requires no configuration, just insert a SIM card and turn it on to enjoy a fast wireless connection - Creates simultaneous dual band Wi-Fi networks, with maximum speeds of up to 300Mbps on the 2.4GHz band and 433Mbps on the 5GHz band - Offers options and flexibility with the LAN/WAN port, allowing you to choose your connection type Share Your 4G LTE Network Take full advantage of your cutting-edge 4G LTE network with the Archer MR200, which can achieve download speeds of up to 150Mbps. The Archer MR200 allows you to share your 4G LTE network with multiple Wi-Fi devices so you can enjoy uninterrupted HD movies, rapid file downloads, and video chats that won't freeze up. Great Coverage and Dual Band Wi-Fi The 4G LTE router creates a simultaneous dual band Wi-Fi network that can deliver data at speeds of up to 733Mbps. The two distinct wireless networks, utilizing the 2.4GHz and 5GHz bands, provide optimized performance and minimize signal interference. The incorporation of advanced antennas and the latest wireless technology allows you to enjoy stable connections and incredible coverage. No Configuration Required With an integrated 4G LTE modem and a built-in SIM card slot, all you need to do insert a SIM card and turn on the Archer MR200. Enjoying fast, stable Wi-Fi on a 4G LTE network has never been easier. Wi-Fi Where You Need It The Archer MR200 offers unmatched convenience and versatility. The ability to quickly establish powerful wireless networks can be tremendously important. The Archer MR200 is the perfect solution whether you're at home or working in a remote location. Just plug it in to boost on-site productivity and stay connected in a diverse range of environments. From the exhibition center to the RV, the Archer MR200 has you covered. Available WAN Connection as Backup With the inclusion of the WAN/LAN port, the Archer MR200 can also support a wide variety of connection types, including cable, fiber, and DSL modems.
Specifications
| Manufacturer | TP-LINK TECHNOLOGIES |
|---|---|
| Product type | Wireless Routers |
Ports & interfaces
| USB port | N |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| DC-in jack | Y |
Weight & dimensions
| Width | 202 mm |
|---|---|
| Depth | 141 mm |
| Height | 33.6 mm |
Power
| Power source type | AC |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Protocols
| DHCP client | Y |
|---|---|
| DHCP server | Y |
Networking
| Networking standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n |
|---|---|
| Data link protocols | IPv4, IPv6 |
Security
| Security algorithms | 64-bit WEP,128-bit WEP,WPA,WPA-PSK,WPA2,WPA2-PSK |
|---|---|
| Firewall | Y |
| MAC address filtering | Y |
| Firewall security | DoS, SPI |
| IP address filtering | Y |
| DoS attack prevention | Y |
| VPN support | PPTP, L2TP, IPSec |
Certificates
| Certification | CE, FCC, RoHS |
|---|
Software
| Windows operating systems supported | Windows 2000,Windows 2000 Professional,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64 |
|---|---|
| Linux operating systems supported | Y |
| Mac operating systems supported | Y |
Wireless LAN features
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
|---|---|
| Top Wi-Fi standard | IEEE 802.11ac |
| WLAN data transfer rate (max) | 433 Mbit/s |
| Wi-Fi standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n |
| WLAN data transfer rate (first band) | 300 Mbit/s |
| WLAN data transfer rate (second band) | 433 Mbit/s |
Management features
| Web-based management | Y |
|---|---|
| Reset button | Y |
| Quality of Service (QoS) support | Y |
| Universal Plug and Play (UPnP) | Y |
Ethernet LAN features
| Ethernet LAN | Y |
|---|---|
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Cabling technology | 10/100Base-T(X) |
Packaging content
| Nano to standard SIM card adapter | Y |
|---|---|
| Micro to standard SIM card adapter | Y |
| AC adapter included | Y |
| Cables included | LAN (RJ-45) |
| Quick start guide | Y |
Antenna
| Antenna type | External |
|---|---|
| Detachable antenna(s) | Y |
| Transmit power range | 0 - 23 dBmW |
| Antennas quantity | 5 |
Other features
| Input current | 1 A |
|---|
Design
| Product type | Tabletop router |
|---|---|
| Product colour | Black |
| LED indicators | Y |
| On/off switch | Y |
Mobile networking
| 3G | Y |
|---|---|
| 4G | Y |
| 2G standards | EDGE,GPRS,GSM |
| 3G standards | DC-HSPA+,HSPA,HSPA+,UMTS |
| 4G standard | LTE |
| GSM bands supported | 850,900,1800,1900 MHz |
| UMTS bands supported | 900,2100 MHz |
| 4G bands supported | 800,900,1800,2100,2600 MHz |
Performance
| Memory card slot(s) | N |
|---|
WAN connection
| Ethernet WAN | Y |
|---|---|
| DSL WAN | N |
| SIM card slot | Y |
| 3G/4G USB modem compatibility | N |
