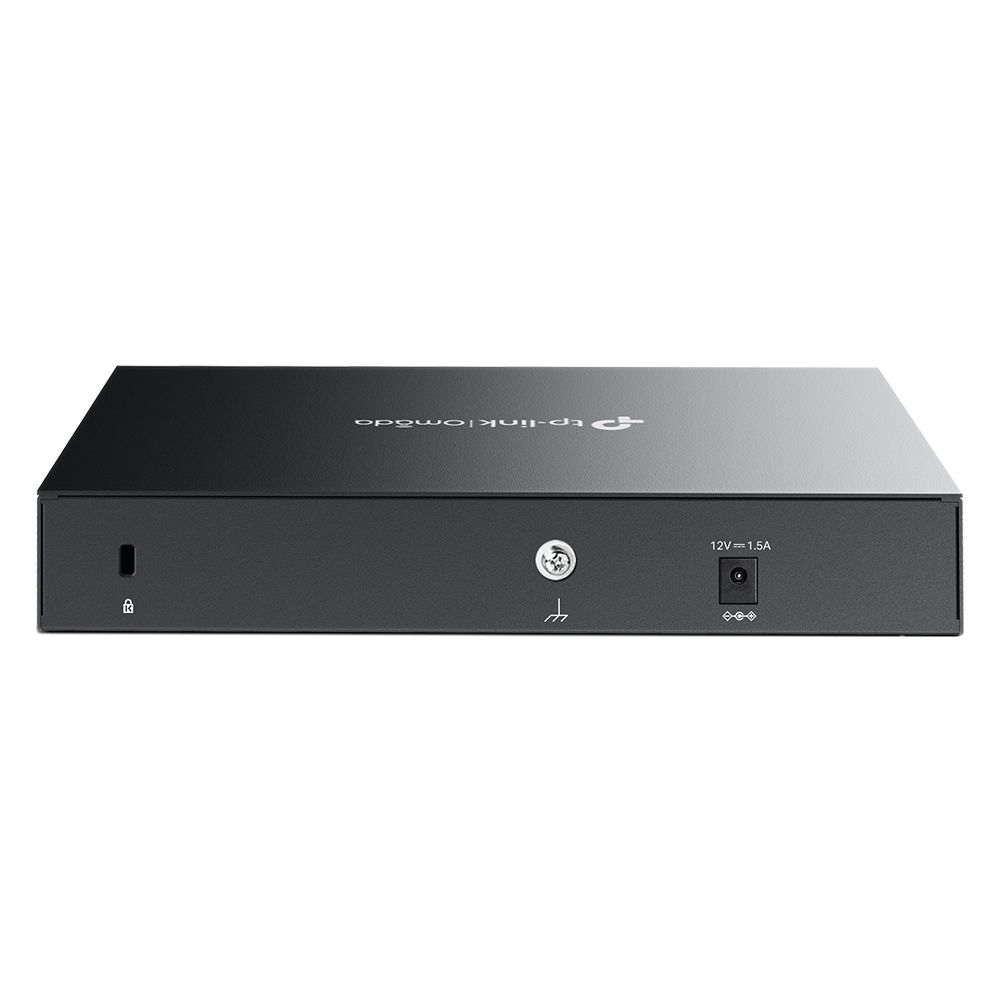

TP-Link ER707-M2 wired router 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet Black
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 527749800 |
|---|---|
| Brand / Manufacturer | TP-LINK TECHNOLOGIES |
| Manuf. item no. | ER707-M2 |
| EAN | 4895252500738 |
:strip_icc():strip_exif()/logos/tp-link-technologies.png "TP-LINK TECHNOLOGIES")
Description
TP-Link ER707-M2. Networking standards: IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3q, IEEE 802.3u, IEEE 802.3x, Ethernet interface type: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000,2500 Mbit/s. Supported network protocols: TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP. Security algorithms: 3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SHA-1, SNMP, SNMPv2, SNMPv3. Flash memory: 128 MB, Internal memory: 1000 MB, Internal memory type: DDR4. Product colour: Black, Housing material: Steel, LED indicators: LAN, Link, Power, Speed, System, USB, WAN
Two 2.5G Ports: 1× 2.5G WAN and 1× 2.5G WAN/LAN ports provide high-bandwidth aggregation connectivity.Up to 6 WAN Ports: 2.5G RJ45, gigabit Fiber, and gigabit RJ45 WAN ports with load balance raise the utilization rate of multi-line broadband.Highly Secure VPN: Enterprise-standard SSL/IPSec/GER§/PPTP/L2TP VPN & OpenVPN are ideal for use across multiple branches and for WFH.Integrated into Omada SDN: Supports Zero-Touch Provisioning (ZTP),** Centralized Cloud Management, Intelligent Monitoring, and more.Centralized Management: Cloud access and Omada app provide the utmost in management convenience.Extensive Security Features: Protect your network and data with advanced firewall policies, DoS defense, IP/MAC/URL filtering, and more security functions.
Specifications
| Manufacturer | TP-LINK TECHNOLOGIES |
|---|---|
| Product type | Wired Routers |
Technical details
| Sustainability compliance | Y |
|---|---|
| Sustainability certificates | CE, Federal Communications Commission (FCC), RoHS |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 6 |
|---|---|
| WAN/Ethernet LAN ports quantity | 6 |
| WAN ports quantity | 1 |
| Installed SFP modules quantity | 1 |
| USB ports quantity | 1 |
| USB version | 2.0 |
Weight & dimensions
| Width | 226 mm |
|---|---|
| Depth | 131 mm |
| Height | 35 mm |
Power
| Power source type | DC |
|---|---|
| Output voltage | 12 V |
| Output current | 1.5 A |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Protocols
| DHCP client | Y |
|---|---|
| DHCP server | Y |
| Supported network protocols | TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP |
Network
| Networking standards | IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3q, IEEE 802.3u, IEEE 802.3x |
|---|---|
| Ethernet interface type | 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Throughput | 1.44 Gbit/s |
| Static route | Y |
| VLAN support | Y |
| Policy-based routing | Y |
Packaging data
| AC adapter included | Y |
|---|---|
| Quick installation guide | Y |
Security
| Security algorithms | 3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SHA-1, SNMP, SNMPv2, SNMPv3 |
|---|---|
| URL filtering | Y |
| ICMP attack prevention | Y |
| Network address translation (NAT) | Y |
| System event log | Y |
| VPN tunnels quantity | 66 |
Management features
| Web-based management | Y |
|---|---|
| Universal Plug and Play (UPnP) | Y |
| Reset button | Y |
Design
| Product colour | Black |
|---|---|
| Housing material | Steel |
| Wall mountable | Y |
| LED indicators | LAN, Link, Power, Speed, System, USB, WAN |
Features
| Flash memory | 128 MB |
|---|---|
| Internal memory | 1000 MB |
| Internal memory type | DDR4 |
| Windows operating systems supported | Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP |
| Mac operating systems supported | Y |
| Linux operating systems supported | Y |
WAN connection
| Ethernet WAN | Y |
|---|---|
| SFP WAN | Y |
