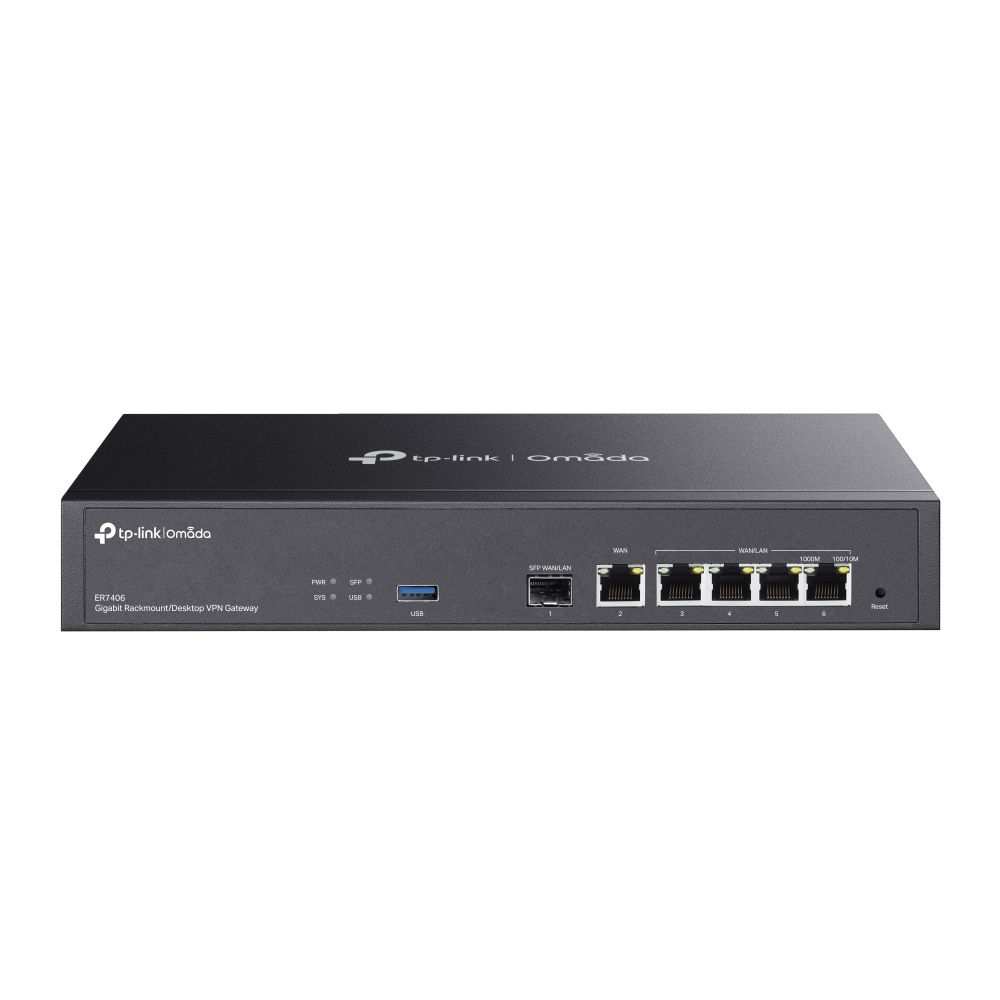

TP-Link ER7406 wired router Gigabit Ethernet Black
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 529629942 |
|---|---|
| Brand / Manufacturer | TP-LINK TECHNOLOGIES |
| Manuf. item no. | ER7406 |
| EAN | 8885020622300 |
:strip_icc():strip_exif()/logos/tp-link-technologies.png "TP-LINK TECHNOLOGIES")
Description
TP-Link ER7406. Networking standards: IEEE 802.1D, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s. Security algorithms: 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SHA-1, SHA-2, SHA-384, SHA-512. Flash memory: 128 MB, Internal memory: 512 MB, Internal memory type: DDR4. Product colour: Black. Power consumption (max): 7.5 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz
Specifications
| Manufacturer | TP-LINK TECHNOLOGIES |
|---|---|
| Product type | Wired Routers |
Technical details
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
|---|
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 5 |
|---|---|
| Installed SFP modules quantity | 1 |
| USB ports quantity | 1 |
Weight & dimensions
| Width | 294 mm |
|---|---|
| Depth | 140 mm |
| Height | 44 mm |
Power
| Power consumption (max) | 7.5 W |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Protocols
| DHCP server | Yes |
|---|---|
| DMZ support | Yes |
Network
| Networking standards | IEEE 802.1D, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Static route | Yes |
| VLAN support | Yes |
Packaging data
| Cables included | AC |
|---|---|
| Quick installation guide | Yes |
Security
| Security algorithms | 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SHA-1, SHA-2, SHA-384, SHA-512 |
|---|---|
| URL filtering | Yes |
| DoS attack prevention | Yes |
| ARP attack prevention | Yes |
| ICMP attack prevention | Yes |
| VPN tunnels quantity | 50 |
Management features
| Web-based management | Yes |
|---|---|
| Reset button | Yes |
Design
| Product colour | Black |
|---|---|
| Rack mounting | Yes |
Features
| Flash memory | 128 MB |
|---|---|
| Internal memory | 512 MB |
| Internal memory type | DDR4 |
| Windows operating systems supported | Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
WAN connection
| Ethernet WAN | Yes |
|---|---|
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | Yes |
| SFP WAN | Yes |
