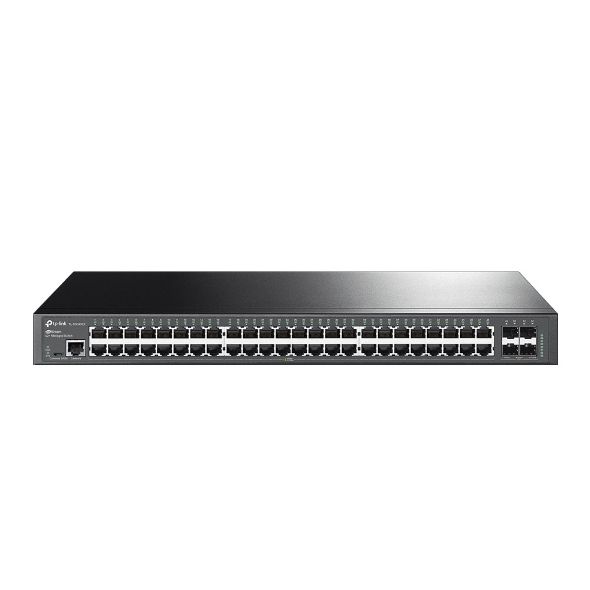

TP-Link JetStream 48-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Item no.	526669076
Brand / Manufacturer	TP-LINK TECHNOLOGIES
Manuf. item no.	TL-SG3452X
EAN	0840030702501

Description

TP-Link JetStream 48-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, Console port: RJ-45. MAC address table: 16000 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad. Rack mounting, Form factor: 1U

10G Uplink Managed Switch for a Complete Omada Network- 10G Lightning-Fast Uplink Connection4× 10Gbps SFP+ Slots for High-Bandwidth Connectivity- Gigabit Connections48× Gigabit Ethernet Ports Offer Reliable Connections- Centralized Cloud ManagementSDN Solutions Integration for a Highly Efficient Network- Advanced L2+ FeaturesStatic Routing, IGMP Snooping, 802.1Q VLAN and MoreEnterprise Switchwith 10G Uplink4× 10 Gbps SFP+ slots provide non-blocking switching performance and ultra-low latency, so reliable and lightning-fast connections to server and other switches are easily built.Software Defined Networking (SDN) with Cloud AccessOmada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.Advanced L3 Features**An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs.Secure NetworkingSecurity features include IP-MAC-Port-VID Binding, Port Security, Storm Control, and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. Users’ network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.Enterprise Level FeaturesA complete lineup of L2+ features is supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to the appropriate subscribers, cutting unnecessary traffic. IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routes traffic through the switch for improved efficiency.Advanced QoSVoice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.ISP Features**sFlow, QinQ, L2PT PPPoE ID Insertion, and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links.IPv6 SupportIPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery, and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.*Zero-Touch Provisioning requires the use of Omada Cloud-Based Controller. Please go to www.tp-link.com/en/omada-cloud-based-controller/product-list/ to find all the models supported by Omada Cloud-Based Controller.**L3 and ISP features can only be configured in standalone mode.

Specifications

Manufacturer	TP-LINK TECHNOLOGIES
Product type	Network Switches

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity	4
Console port	RJ-45

Weight & dimensions

Width	440 mm
Depth	220 mm
Height	44 mm

Power

Power source	AC
Power supply included	Y
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	32.72 W

Operational conditions

Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	111.65 BTU/h

Protocols

GARP VLAN Registration Protocol (GVRP)	Y
IPv4 & IPv6 features	IPv6 Telnet, IPv6 tracert

Network

Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad
10G support	Y
Port mirroring	Y
Flow control support	Y
Link aggregation	Y
Broadcast storm control	Y
Rate limiting	Y
Spanning tree protocol	Y
Head-of-line (HOL) blocking	Y
VLAN support	Y

Data transmission

MAC address table	16000 entries
Switching capacity	176 Gbit/s
Forwarding rate	130.9 Mpps
Jumbo frames support	Y
Jumbo frames	9000

Packaging data

Cables included	AC
Quick start guide	Y
Rack rails	Y

Security

DHCP features	DHCP client, DHCP relay, DHCP server
Access Control List (ACL)	Y
IGMP snooping	Y
MAC address filtering	Y
Static port security	Y
SSH/SSL support	Y
BPDU filtering/protection	Y
IP-MAC-Port binding	Y
Authentication	Auto VLAN, Guest VLAN

Management features

Switch type	Managed
Switch layer	L2+
Quality of Service (QoS) support	Y
Web-based management	Y
Cloud-managed	Y
ARP inspection	Y
Configuring Location Settings (CLI)	Y
System event log	Y
MIB support	Y
Public MIB	Y
Huawei-proprietary MIB	Y

Design

Rack mounting	Y
Form factor	1U
Product colour	Black
LED indicators	Y
Certification	CE, FCC, RoHS

Power over Ethernet (PoE)

Power over Ethernet (PoE)	N

Logistics data

Harmonized System (HS) code	85176990

Multicast features

Multicast support	Y
Multicast Listener Discovery (MLD) snooping	Y
