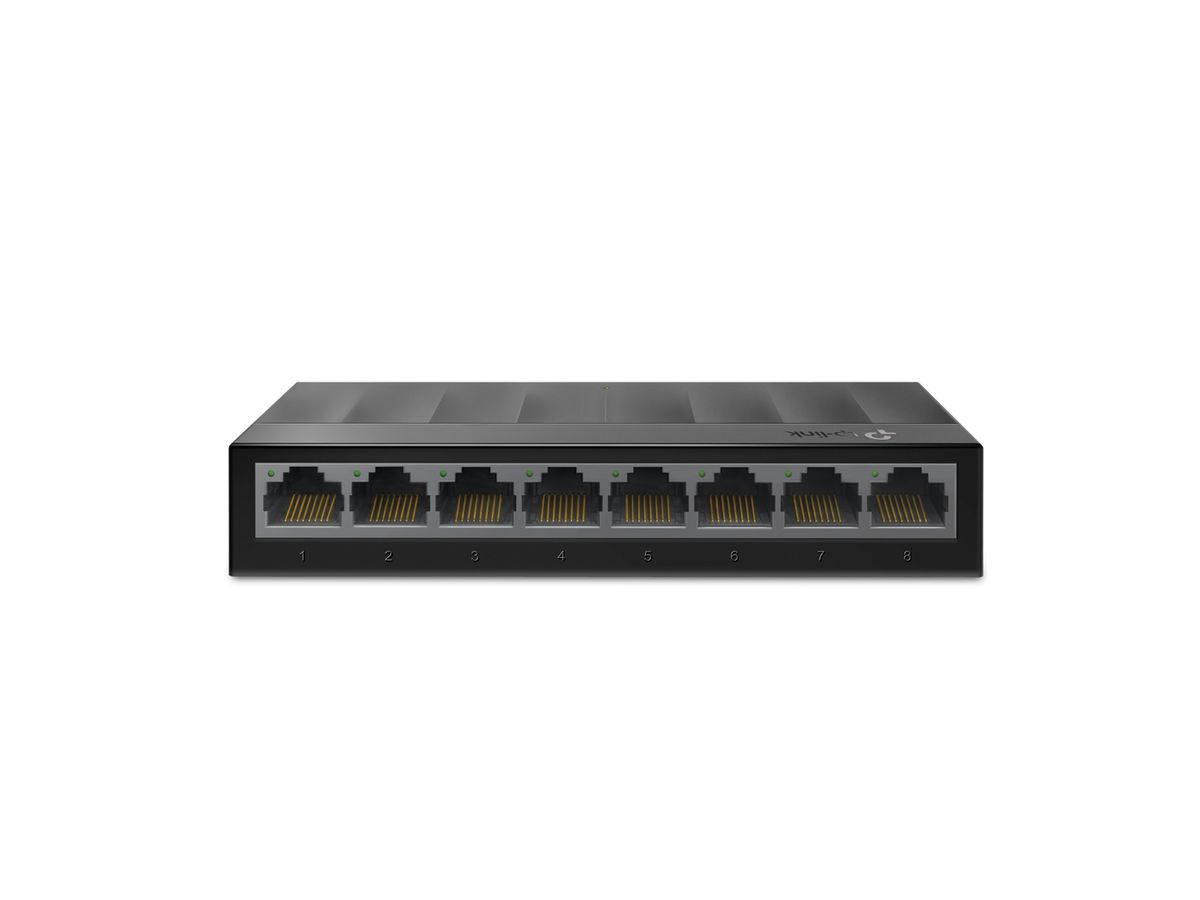

TP-LINK LS1008G network switch Unmanaged Gigabit Ethernet (10/100/1000) Black

TP-LINK LS1008G network switch Unmanaged Gigabit Ethernet (10/100/1000) Black

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Deliverable approx. 12/27/2024
Item no. 522212336
Brand / Manufacturer TP-LINK TECHNOLOGIES
Manuf. item no. LS1008G
EAN 6935364085476
Item weight 0.219 kg

Description

TP-LINK LS1008G. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 4000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.3i,IEEE 802.3u,IEEE 802.3x. DC input voltage: 5 V. Wall mountable

Let LiteWave Bring You Lighter Network LifeThe TP-Link LiteWave Series Unmanaged Switches provide easy and affordable way to expand your wired network. They are easy to use and reliable. With these plug-and-play switches, you can expand your network connections to multiple devices instantly. With all ports support Auto-MDI/MDIX, there’s no need to worry about the type of cable to use.Go Green with Your EthernetThe LiteWave Series also supports energy-efficient technology, helping you save power and money. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!Gigabit Ports For Faster SpeedsIncrease the speed of your network with the LS1008G 8-port Gigabit desktop switch. Non-blocking, 8× 10/100/1000Mbps ports enable instant transferring of large, bandwidth intensive files without interference.Use Where You Need, However You NeedThe LS1008G is fully compatible with networked devices such as computers, printers, webcams, IPTVs. It has a wide range of application scenarios and is suitable for networking in school dormitories, surveillance, homes, and small businesses.

Specifications

Manufacturer TP-LINK TECHNOLOGIES
Product type Network Switches
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 8
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Power
Power supply included Y
DC input voltage 5 V
Input current 0.6 A
Power consumption (max) 3.9 W
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 90%
Heat dissipation 13.299 BTU/h
Network
Networking standards IEEE 802.3i,IEEE 802.3u,IEEE 802.3x
10G support N
Flow control support Y
Auto MDI/MDI-X Y
Auto-negotiation Y
Data transmission
MAC address table 4000 entries
Switching capacity 16 Gbit/s
Forwarding rate 11.9 Mpps
Store-and-forward Y
Jumbo frames support Y
Jumbo frames 16000
Packet buffer memory 1.5 MB
Packaging data
Quick start guide Y
Package type Box
Management features
Switch type Unmanaged
Design
Product colour Black
Housing material Plastic
Wall mountable Y
Power over Ethernet (PoE)
Power over Ethernet (PoE) N

Downloads

PDF data sheet - Installation Guide - English (121.2 KB)
