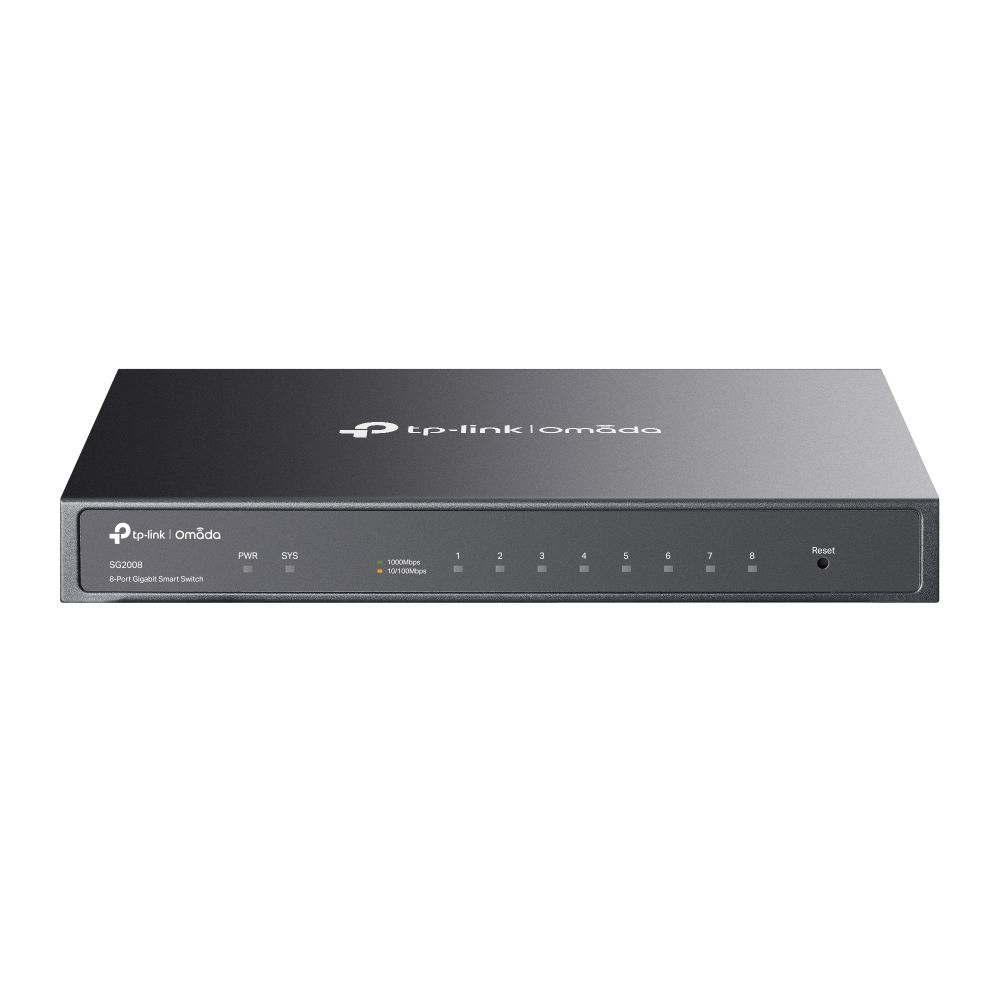

TP-Link Omada 8-Port Gigabit Smart Switch
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
LoginDescription
TP-Link Omada 8-Port Gigabit Smart Switch. Switch type: Managed, Switch layer: L2/L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 8000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE.... Power connector: DC-in jack. Wall mountable
TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.
Specifications
Manufacturer | TP-LINK TECHNOLOGIES |
---|---|
Product type | Network Switches |
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity | 8 |
---|---|
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Power connector | DC-in jack |
Weight & dimensions
Width | 209 mm |
---|---|
Depth | 126 mm |
Height | 26 mm |
Power
Power source | DC |
---|---|
Power supply included | Yes |
Input current | 1 A |
Input voltage | 12 V |
Power consumption (max) | 6.4 W |
Operational conditions
Operating temperature (T-T) | 0 - 40 °C |
---|---|
Storage temperature (T-T) | -40 - 70 °C |
Operating relative humidity (H-H) | 10 - 90% |
Storage relative humidity (H-H) | 5 - 90% |
Heat dissipation | 21.84 BTU/h |
Protocols
Management protocols | SNMPv1/v2c/v3, SNTP |
---|---|
GARP VLAN Registration Protocol (GVRP) | Yes |
Network
Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
---|---|
10G support | No |
Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
Port mirroring | Yes |
Flow control support | Yes |
Link aggregation | Yes |
Broadcast storm control | Yes |
Rate limiting | Yes |
Spanning tree protocol | Yes |
VLAN support | Yes |
Virtual LAN features | MAC address-based VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
Number of VLANs | 4000 |
Data transmission
MAC address table | 8000 entries |
---|---|
Switching capacity | 16 Gbit/s |
Forwarding rate | 11.9 Mpps |
Static route | Yes |
Number of static routes | 32 |
Number of IP interfaces | 16 |
Jumbo frames support | Yes |
Jumbo frames | 9000 |
Packet buffer memory | 4.1 MB |
Packaging data
Cables included | AC |
---|---|
User guide | Yes |
Security
DHCP features | DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping |
---|---|
Access Control List (ACL) | Yes |
IGMP snooping | Yes |
Security algorithms | SSH, SSH-2, SSL/TLS |
SSH/SSL support | Yes |
BPDU filtering/protection | Yes |
IP-MAC-Port binding | Yes |
Management features
Switch type | Managed |
---|---|
Switch layer | L2/L2+ |
Quality of Service (QoS) support | Yes |
Web-based management | Yes |
Cloud-managed | Yes |
ARP inspection | Yes |
Configuring Location Settings (CLI) | Yes |
System event log | Yes |
Design
Product colour | Black |
---|---|
LED indicators | Yes |
Wall mountable | Yes |
Certification | CE, FCC, RoHS |
Power over Ethernet (PoE)
Power over Ethernet (PoE) | No |
---|
Performance
Fanless | Yes |
---|
Multicast features
Multicast support | Yes |
---|
