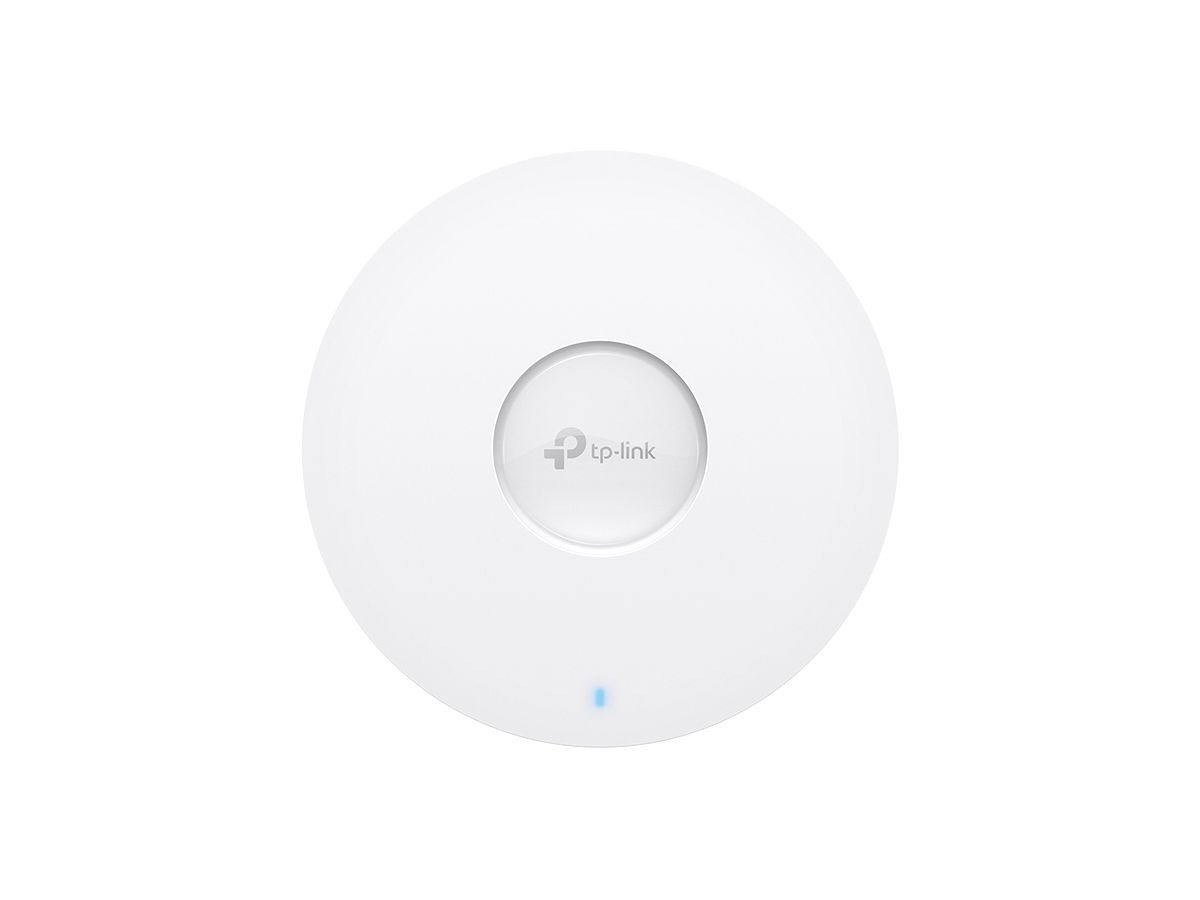

TP-Link Omada AX1800 Ceiling Mount WiFi 6 Access Point
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 527503176 |
|---|---|
| Brand / Manufacturer | TP-LINK TECHNOLOGIES |
| Manuf. item no. | EAP613 |
| EAN | 4895252500516 |
:strip_icc():strip_exif()/logos/tp-link-technologies.png "TP-LINK TECHNOLOGIES")
Description
TP-Link Omada AX1800 Ceiling Mount WiFi 6 Access Point. Maximum data transfer rate: 1800 Mbit/s, Maximum data transfer rate (2.4 GHz): 574 Mbit/s, Maximum data transfer rate (5 GHz): 1201 Mbit/s. Security algorithms: HTTPS, SNMP, SNMPv2, SNMPv3, WPA, WPA2, WPA3. Management platform: Omada. Placement: Ceiling, Wall, Product colour: White, Certification: CE, FCC, RoHS. Antenna type: Internal, Antenna direction type: Omni-directional, Antenna gain level (max): 5 dBi
Easily Upgrade to Business WiFi 6 Network
AX1800 Ceiling Mount WiFi 6 Access Point
Upgrade to WiFi 6, Power up Your Business
WiFi 6 brings faster speeds, less lag, and higher capacity.
Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers. It provides 100% centralized cloud management and creates a highly scalable network controlled from a single interface.
Auto Channel Selection and Power Adjustment to Optimize Overall Performance
Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network.
Easy Deployment & Higher Performance by Omada Mesh Easy Pairing, Less Wiring
With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.
Optimized Network Performance
Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted.
Always Stay Smooth with Fast Roaming
Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.
Ultra-Slim Design Brings More Agility
Exceptional performance with compact design ensures simple WiFi installation while saving space. The elegant appearance makes EAP613 perfectly blend into any modern office, hotel, classroom, or café.
Specifications
| Manufacturer | TP-LINK TECHNOLOGIES |
|---|---|
| Product type | Wireless Access Points |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
|---|---|
| DC-in jack | Yes |
Weight & dimensions
| Width | 160 mm |
|---|---|
| Depth | 160 mm |
| Height | 33.6 mm |
Power
| Power over Ethernet (PoE) | Yes |
|---|
Operational conditions
| Operating relative humidity (H-H) | 0 - 40% |
|---|---|
| Operating temperature (T-T) | 10 - 90 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
Security
| Security algorithms | HTTPS, SNMP, SNMPv2, SNMPv3, WPA, WPA2, WPA3 |
|---|---|
| Number of SSID supported | 16 |
Management features
| Web-based management | Yes |
|---|---|
| Management platform | Omada |
Packaging content
| Number of products included | 1 pc(s) |
|---|---|
| Mounting kit | Yes |
| Quick start guide | Yes |
Antenna
| Antenna type | Internal |
|---|---|
| Antenna direction type | Omni-directional |
| Antennas quantity | 4 |
| Antenna gain level (max) | 5 dBi |
Design
| Placement | Ceiling, Wall |
|---|---|
| Product colour | White |
| Reset button | Yes |
| LED indicators | Yes |
| Certification | CE, FCC, RoHS |
Performance
| Compatible operating systems | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
|---|
Features
| 2.4 GHz | Yes |
|---|---|
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 1800 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1201 Mbit/s |
| Frequency band | 2.4 - 5 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Automatic channel selection | Yes |
| Automatic channel scanning | Yes |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Spread spectrum method | OFDMA |
| Virtual LAN features | SSID-based VLAN assignment |
| Rate limiting | Yes |
| Adaptive bandwidth management | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Transmitting power (CE) | <20 dBm(2.4 GHz, EIRP); <23 dBm(5 GHz band1/2, EIRP); <25 dBm (5 GHz band3) |
| Transmitting power (FCC) | <25 dBm (2.4 GHz); <25 dBm (5 GHz) |
