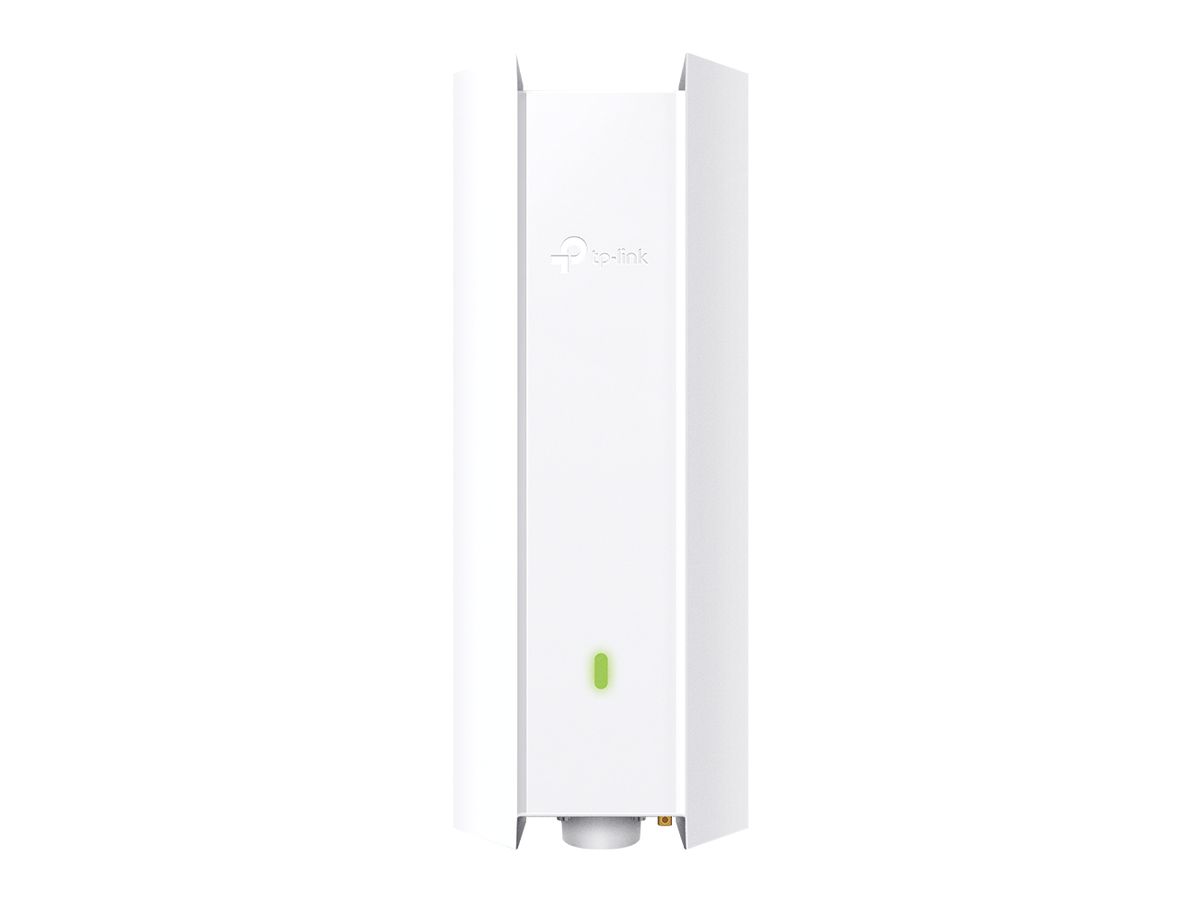

TP-Link Omada AX1800 Indoor/Outdoor Wi-Fi 6 Access Point
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 529225625 |
|---|---|
| Brand / Manufacturer | TP-LINK TECHNOLOGIES |
| Manuf. item no. | EAP623-OUTDOOR HD |
| EAN | 4895252506303 |
:strip_icc():strip_exif()/logos/tp-link-technologies.png "TP-LINK TECHNOLOGIES")
Description
TP-Link Omada AX1800 Indoor/Outdoor Wi-Fi 6 Access Point. Maximum data transfer rate: 1800 Mbit/s, Maximum data transfer rate (2.4 GHz): 574 Mbit/s, Maximum data transfer rate (5 GHz): 1201 Mbit/s. Security algorithms: SNMP, SNMPv2, SNMPv3, SSH. Power over Ethernet (PoE) type supported: Passive PoE. Placement: Pole, Product colour: White, Certification: CE, FCC, RoHS. Antenna type: Internal, Antenna direction type: Omni-directional, Antenna features: Integrated antenna
Long-Range, High-Speed WiFi 6Professional antennas with high-power amplifiers utilize WiFi 6 technology to deliver robust and extensive wireless coverage.
Powered by the latest WiFi 6 technology, the AP delivers speeds of up to 1.8 Gbps.
Explore More with Smart Antennas
Equipped with horizontally polarized and vertically polarized antennas, EAP623-Outdoor HD’s intelligent algorithms automatically select the optimal antennas, bringing lower interference, longer coverage, and higher performance.
Ideal for High-Density Outdoor Scenes
OFDMA and MU-MIMO provide simultaneous connections for dozens of clients in large open areas.
Equipped with an IP67 weatherproof enclosure, our EAP623-Outdoor HD withstands the most extreme environments.
Flexible Deployment with Omada Mesh and PoE Support
Seamless Integration into Omada SDN
Specifications
| Manufacturer | TP-LINK TECHNOLOGIES |
|---|---|
| Product type | Wireless Access Points |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
|---|
Weight & dimensions
| Width | 280.4 mm |
|---|---|
| Depth | 106.5 mm |
| Height | 56.8 mm |
Power
| Power over Ethernet (PoE) | Yes |
|---|---|
| Power over Ethernet (PoE) type supported | Passive PoE |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90% |
|---|---|
| Operating temperature (T-T) | -30 - 70 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
Security
| Security algorithms | SNMP, SNMPv2, SNMPv3, SSH |
|---|---|
| MAC address filtering | Yes |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Access Control List (ACL) | Yes |
Management features
| Web-based management | Yes |
|---|---|
| Syslog | Yes |
Packaging content
| Number of products included | 1 pc(s) |
|---|---|
| Mounting kit | Yes |
| Quick start guide | Yes |
Antenna
| Antenna type | Internal |
|---|---|
| Antenna direction type | Omni-directional |
| Antenna features | Integrated antenna |
| Antennas quantity | 2 |
Design
| Placement | Pole |
|---|---|
| Product colour | White |
| Reset button | Yes |
| LED indicators | Yes |
| Certification | CE, FCC, RoHS |
Features
| 2.4 GHz | Yes |
|---|---|
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 1800 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1201 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Frequency band | 2.4 - 5 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Cabling technology | 10/100/1000Base-T(X) |
| Number of users | 1020 user(s) |
| Automatic channel selection | Yes |
| Automatic channel scanning | Yes |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| VLAN support | Yes |
| Rate limiting | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Quality of Service (QoS) support | Yes |
| BeamForming | Yes |
| Transmitting power (CE) | < 20 dBm (2.4 GHz, EIRP), < 30 dBm (5 GHz, EIRP); |
| Transmitting power (FCC) | < 25 dBm (2.4 GHz), < 25 dBm (5 GHz) |
