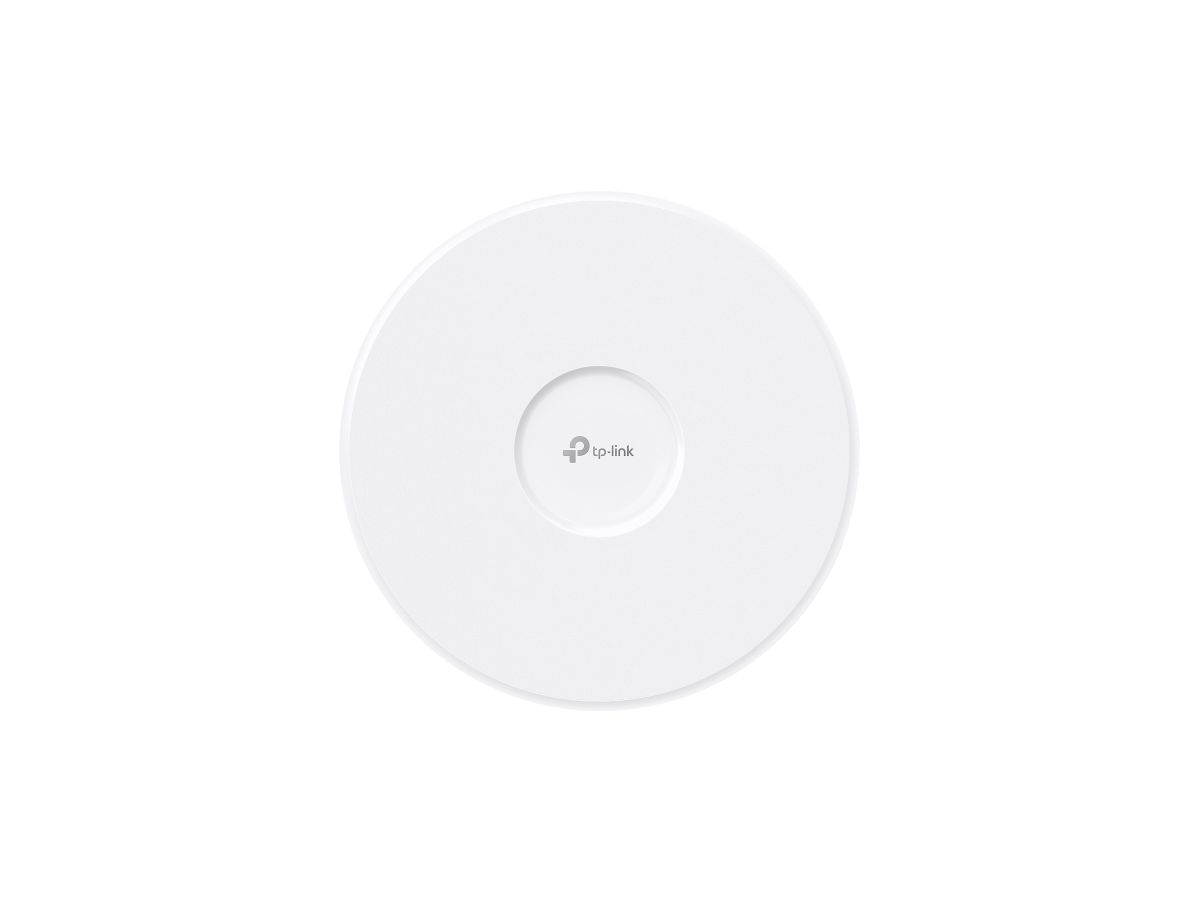

TP-Link Omada BE22000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 528794442 |
|---|---|
| Brand / Manufacturer | TP-LINK TECHNOLOGIES |
| Manuf. item no. | EAP783 |
| EAN | 4895252503517 |
:strip_icc():strip_exif()/logos/tp-link-technologies.png "TP-LINK TECHNOLOGIES")
Description
TP-Link Omada BE22000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point. Maximum data transfer rate: 19000 Mbit/s, Maximum data transfer rate (2.4 GHz): 1376 Mbit/s, Maximum data transfer rate (5 GHz): 5760 Mbit/s. Security algorithms: WPA, WPA2, WPA3. DC voltage range: 12 V. Placement: Ceiling, Wall, Product colour: White. Antenna type: Internal
Multi-Link Operation (MLO)
Enables devices to simultaneously send and receive data across different frequency bands and channels.
Two 10G PoE++ Ports
Boosts overall throughput and offers flexible deployment with two 10 Gbps PoE++ ports.
Auto Channel Selection and Power Adjustment
Boost WiFi performance and minimize interference for your network.
Intelligent Power Management
Offers more reliable network operation for your business.
Centralized Cloud Management
Manage the whole network locally or from the cloud.
Omada Mesh Technology
More flexible and convenient wireless deployment.△
PoE++ Power
Supports both 12V DC and 802.3bt PoE++ for flexible installations.
Specifications
| Manufacturer | TP-LINK TECHNOLOGIES |
|---|---|
| Product type | Wireless Access Points |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 2 |
|---|---|
| DC-in jack | Yes |
Weight & dimensions
| Width | 280 mm |
|---|---|
| Depth | 280 mm |
| Height | 46.5 mm |
Power
| Power over Ethernet (PoE) | Yes |
|---|---|
| DC voltage range | 12 V |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90% |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
Packaging data
| Package type | Box |
|---|
Security
| Security algorithms | WPA, WPA2, WPA3 |
|---|---|
| Access Control List (ACL) | Yes |
Packaging content
| Number of products included | 1 pc(s) |
|---|---|
| Mounting kit | Yes |
| Quick start guide | Yes |
Antenna
| Antenna type | Internal |
|---|
Design
| Placement | Ceiling, Wall |
|---|---|
| Product colour | White |
| Reset button | Yes |
| LED indicators | Yes |
Features
| 2.4 GHz | Yes |
|---|---|
| 5 GHz | Yes |
| 6 GHz | Yes |
| Maximum data transfer rate | 19000 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 1376 Mbit/s |
| Maximum data transfer rate (5 GHz) | 5760 Mbit/s |
| Maximum data transfer rate (6 GHz) | 11520 Mbit/s |
| Ethernet LAN data rates | 10000 Mbit/s |
| Frequency band | 2.4 - 6 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n |
| Number of users | 760 user(s) |
| Automatic channel selection | Yes |
| Automatic channel scanning | Yes |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| VLAN support | Yes |
| Rate limiting | Yes |
| Flow control support | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Quality of Service (QoS) support | Yes |
| BeamForming | Yes |
