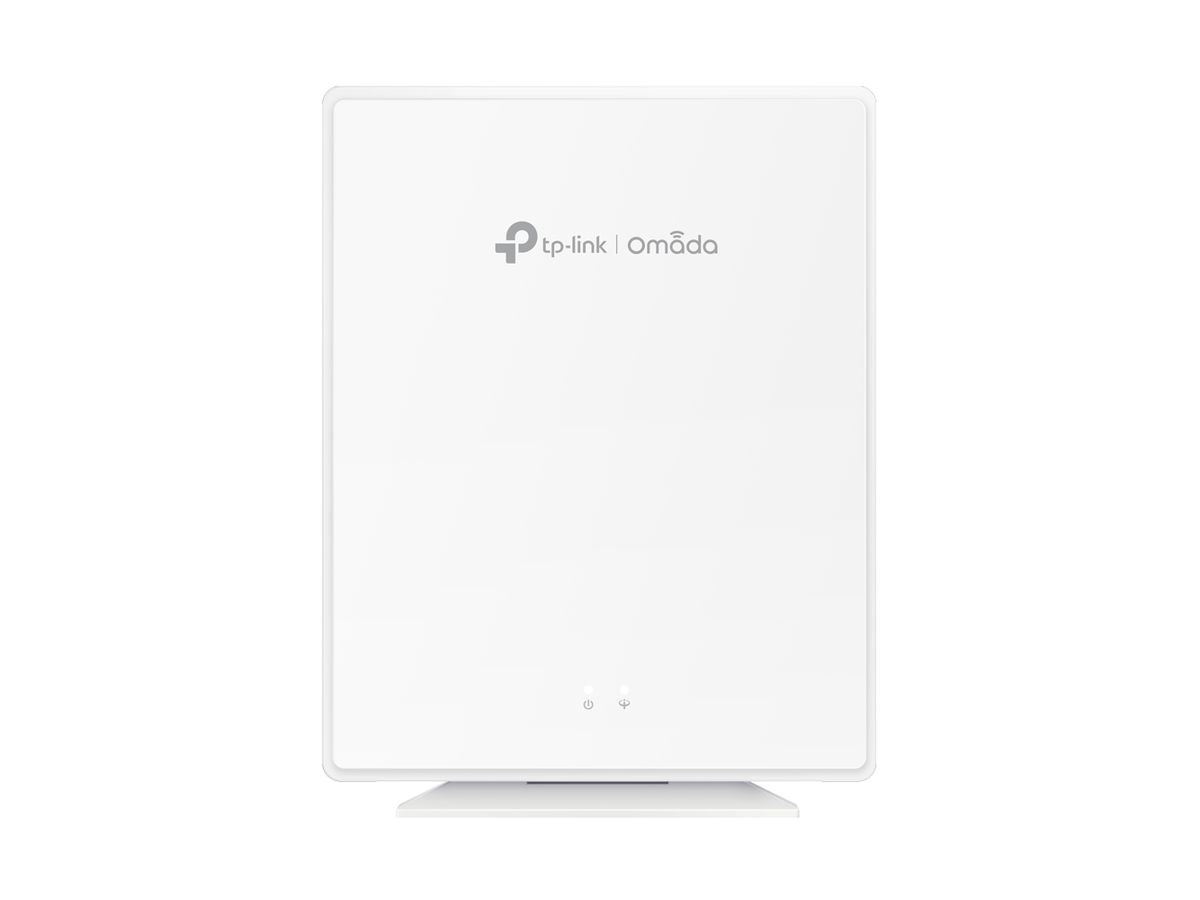

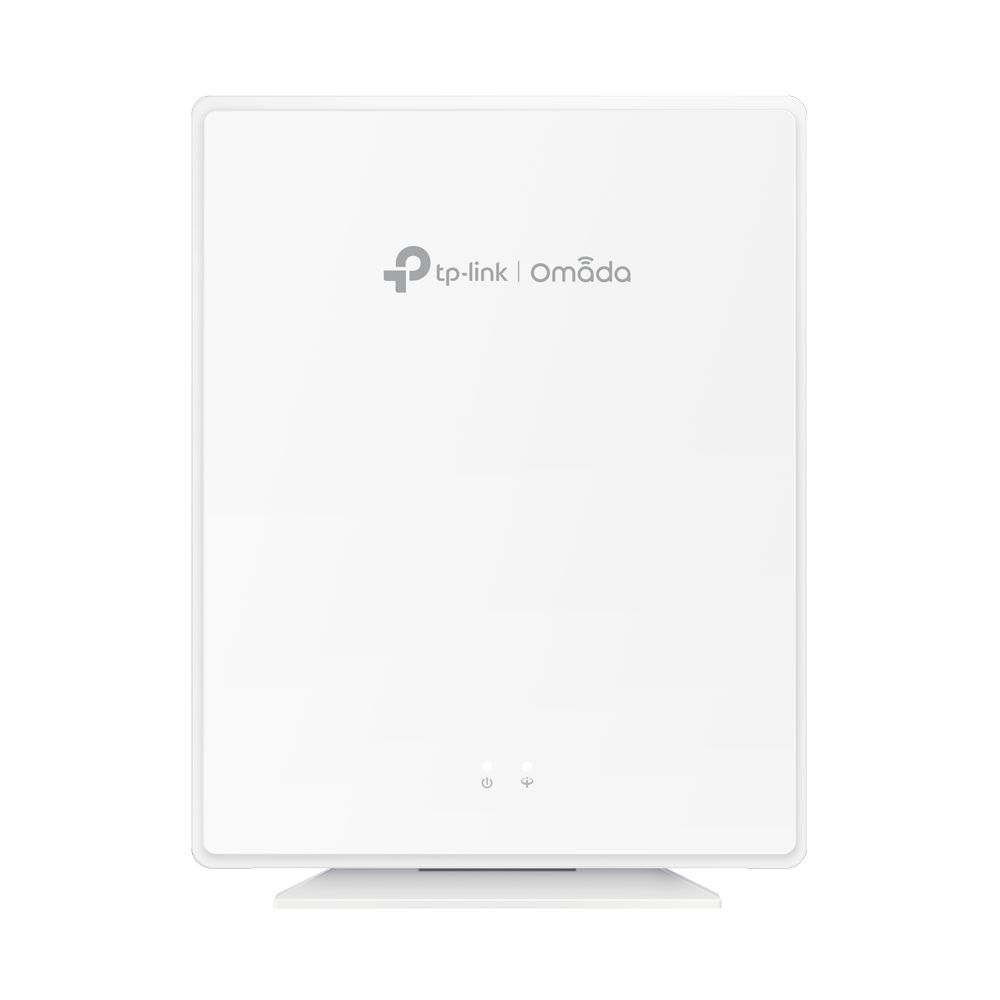

TP-Link Omada EAP610GP-DESKTOP wireless access point 1201 Mbit/s White Power over Ethernet (PoE)
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
LoginDescription
TP-Link Omada EAP610GP-DESKTOP. Maximum data transfer rate: 1201 Mbit/s, Maximum data transfer rate (2.4 GHz): 574 Mbit/s, Maximum data transfer rate (5 GHz): 1201 Mbit/s. Security algorithms: SNMP, SNMPv2, SNMPv3, SSH, WPA-Personal, WPA2-Personal, WPA3-Personal, Service Set Identifier (SSID) features: Multiple SSIDs, SSID broadcast on/off. DC voltage range: 53.5 V, Power consumption (typical): 17.3 W. Placement: Desk, Wall, Product colour: White, LED indicators: Power. Antenna type: Internal, Antenna direction type: Omni-directional, Antenna gain level (max): 5 dBi
Specifications
Manufacturer | TP-LINK TECHNOLOGIES |
---|---|
Product type | Wireless Access Points |
Technical details
Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
---|
Ports & interfaces
Ethernet LAN (RJ-45) ports | 4 |
---|
Weight & dimensions
Width | 175 mm |
---|---|
Depth | 140 mm |
Height | 33 mm |
Weight | 492 g |
Power
Power over Ethernet (PoE) | Yes |
---|---|
DC voltage range | 53.5 V |
Power consumption (typical) | 17.3 W |
Operational conditions
Operating relative humidity (H-H) | 10 - 90% |
---|---|
Operating temperature (T-T) | 0 - 40 °C |
Storage temperature (T-T) | -40 - 70 °C |
Storage relative humidity (H-H) | 5 - 90% |
Security
Security algorithms | SNMP, SNMPv2, SNMPv3, SSH, WPA-Personal, WPA2-Personal, WPA3-Personal |
---|---|
MAC address filtering | Yes |
Service Set Identifier (SSID) features | Multiple SSIDs, SSID broadcast on/off |
Number of SSID supported | 16 |
Remote Authentication Dial-In User Service (RADIUS) | Yes |
Management features
Web-based management | Yes |
---|---|
Syslog | Yes |
Packaging content
Number of products included | 1 pc(s) |
---|---|
Mounting kit | Yes |
Quick start guide | Yes |
Antenna
Antenna type | Internal |
---|---|
Antenna direction type | Omni-directional |
Antennas quantity | 2 |
Antenna gain level (max) | 5 dBi |
Design
Placement | Desk, Wall |
---|---|
Product colour | White |
Reset button | Yes |
LED indicators | Power |
Certification | CE, FCC, RoHS, IC |
Features
2.4 GHz | Yes |
---|---|
5 GHz | Yes |
6 GHz | No |
Maximum data transfer rate | 1201 Mbit/s |
Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
Maximum data transfer rate (5 GHz) | 1201 Mbit/s |
Ethernet LAN data rates | 1000 Mbit/s |
Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Number of users | 120 user(s) |
Channel bandwidth | 80 MHz |
MIMO | Yes |
MIMO type | Multi User MIMO |
Spread spectrum method | OFDMA |
Wi-Fi roaming | Yes |
VLAN support | Yes |
Rate limiting | Yes |
Wireless isolation | Yes |
Band steering | Yes |
Airtime Fairness (ATF) | Yes |
Quality of Service (QoS) support | Yes |
BeamForming | Yes |
Transmitting power (CE) | 20 dBm |
Transmitting power (FCC) | 25 dBm |
Sustainability
Sustainability certificates | CE, Federal Communications Commission (FCC), RoHS |
---|---|
Sustainability compliance | Yes |
