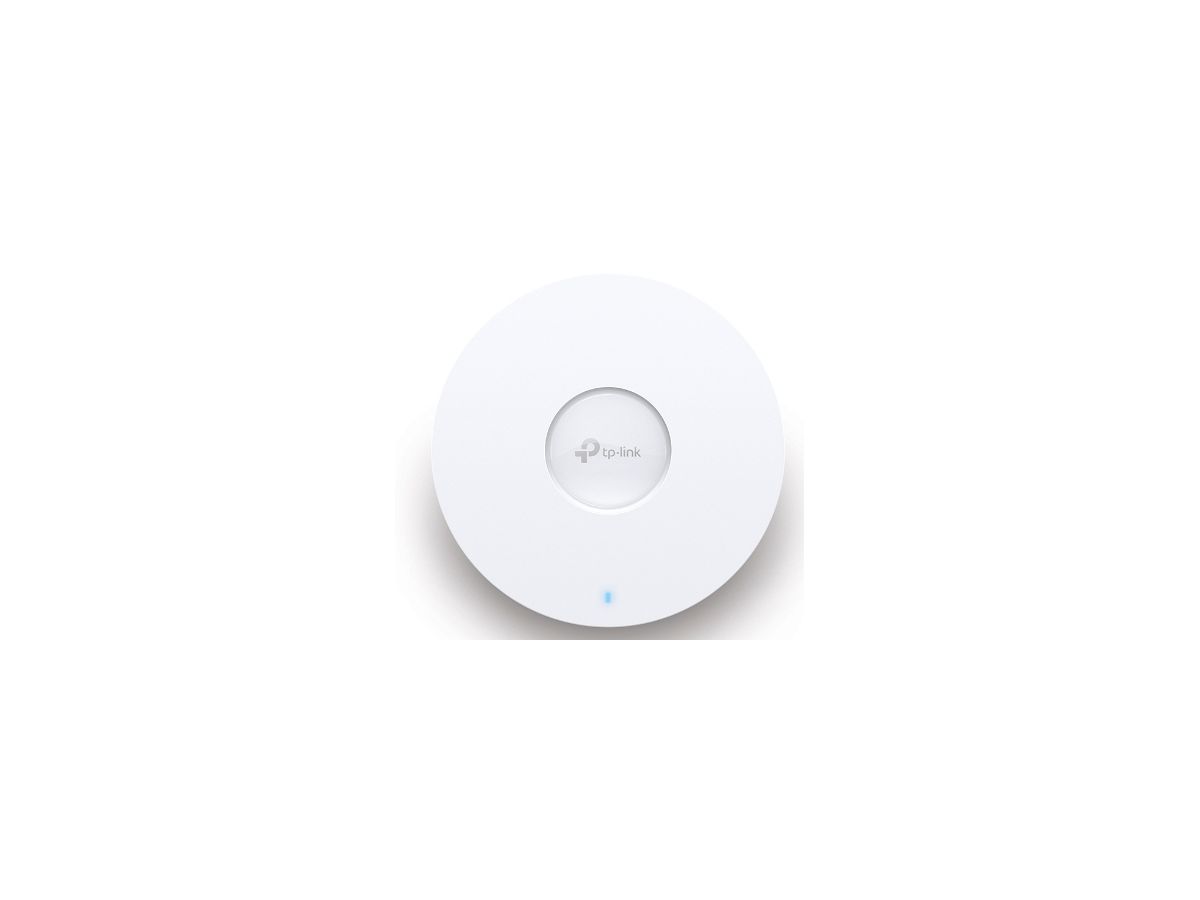

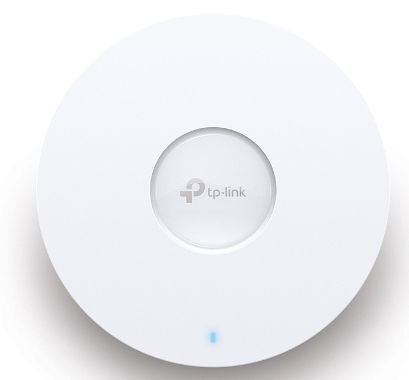

TP-Link Omada EAP653 UR wireless access point 2976 Mbit/s White Power over Ethernet (PoE)

TP-Link Omada EAP653 UR wireless access point 2976 Mbit/s White Power over Ethernet (PoE)

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Item no. 529629939
Brand / Manufacturer TP-LINK TECHNOLOGIES
Manuf. item no. EAP653 UR
EAN 8885020620566

Description

TP-Link Omada EAP653 UR. 2.4 GHz, 5 GHz, Maximum data transfer rate: 2976 Mbit/s. Security algorithms: HTTPS, SNMP, SNMPv2, SNMPv3, SSH, WPA, WPA2, WPA3. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White

Power up Your Business with New-Era Business WiFi 6
WiFi 6 brings faster speeds, lower lag, less interference, and higher capacity.

Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers. It provides 100% centralized cloud management and creates a highly scalable network controlled from a single interface.

Auto Channel Selection and Power Adjustment
to Optimize Overall Performance

Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network.

Easy Deployment & Higher Performance by Omada Mesh
Easy Pairing, Less Wiring

With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.

Optimized Network Performance
Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted.

Always Stay Smooth with Fast Roaming
Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.

Ultra-Slim Design Brings More Agility
Exceptional performance with compact design ensures simple WiFi installation while saving space. The elegant appearance makes EAP653 perfectly blend into any modern office, hotel, classroom, or café.


Secure Guest Network with Up to 16 SSIDs

Guest network access provides enhanced security to guests. Different SSIDs also enable flexible access management.

Boost Business with Facebook WiFi and SMS Login

Captive portal (including SMS, Facebook Wi-Fi, Voucher) and 802.1x authentication help maintain authorized guests to use the network. Boost your business with a customized marketing page.

WPA3 for Worry-Free Open Public Networks

With advanced enterprise security, WPA3 provides more data security for previously unsecured and open WiFi hotspots.

Specifications

Manufacturer TP-LINK TECHNOLOGIES
Product type Wireless Access Points
Ports & interfaces
Ethernet LAN (RJ-45) ports 1
DC-in jack Yes
Weight & dimensions
Width 160 mm
Depth 160 mm
Height 33.6 mm
Power
Power over Ethernet (PoE) Yes
DC voltage range 12 V
Operational conditions
Operating relative humidity (H-H) 10 - 90%
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -40 - 70 °C
Storage relative humidity (H-H) 5 - 90%
Packaging data
Package type Box
Security
Security algorithms HTTPS, SNMP, SNMPv2, SNMPv3, SSH, WPA, WPA2, WPA3
MAC address filtering Yes
Management features
Web-based management Yes
Syslog Yes
Firmware upgradeable Yes
Packaging content
Quantity per pack 1 pc(s)
Mounting kit Yes
Quick start guide Yes
Antenna
Antenna type Internal
Design
Placement Ceiling, Wall
Product colour White
Reset button Yes
LED indicators Yes
Features
2.4 GHz Yes
5 GHz Yes
6 GHz No
Maximum data transfer rate 2976 Mbit/s
Maximum data transfer rate (2.4 GHz) 574 Mbit/s
Maximum data transfer rate (5 GHz) 2402 Mbit/s
Ethernet LAN data rates 10,100,1000 Mbit/s
Frequency band 2.4 - 5 GHz
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11h
Cabling technology 10/100/1000Base-T(X)
Number of users 250 user(s)
Automatic channel selection Yes
Automatic channel scanning Yes
MIMO Yes
MIMO type Multi User MIMO
Spread spectrum method OFDMA
Fit AP mode features Mesh networking
VLAN support Yes
Rate limiting Yes
Flow control support Yes
Band steering Yes
Airtime Fairness (ATF) Yes
Quality of Service (QoS) support Yes
BeamForming Yes
Transmitting power (CE) 27 dBm
Transmitting power (FCC) 22 dBm
