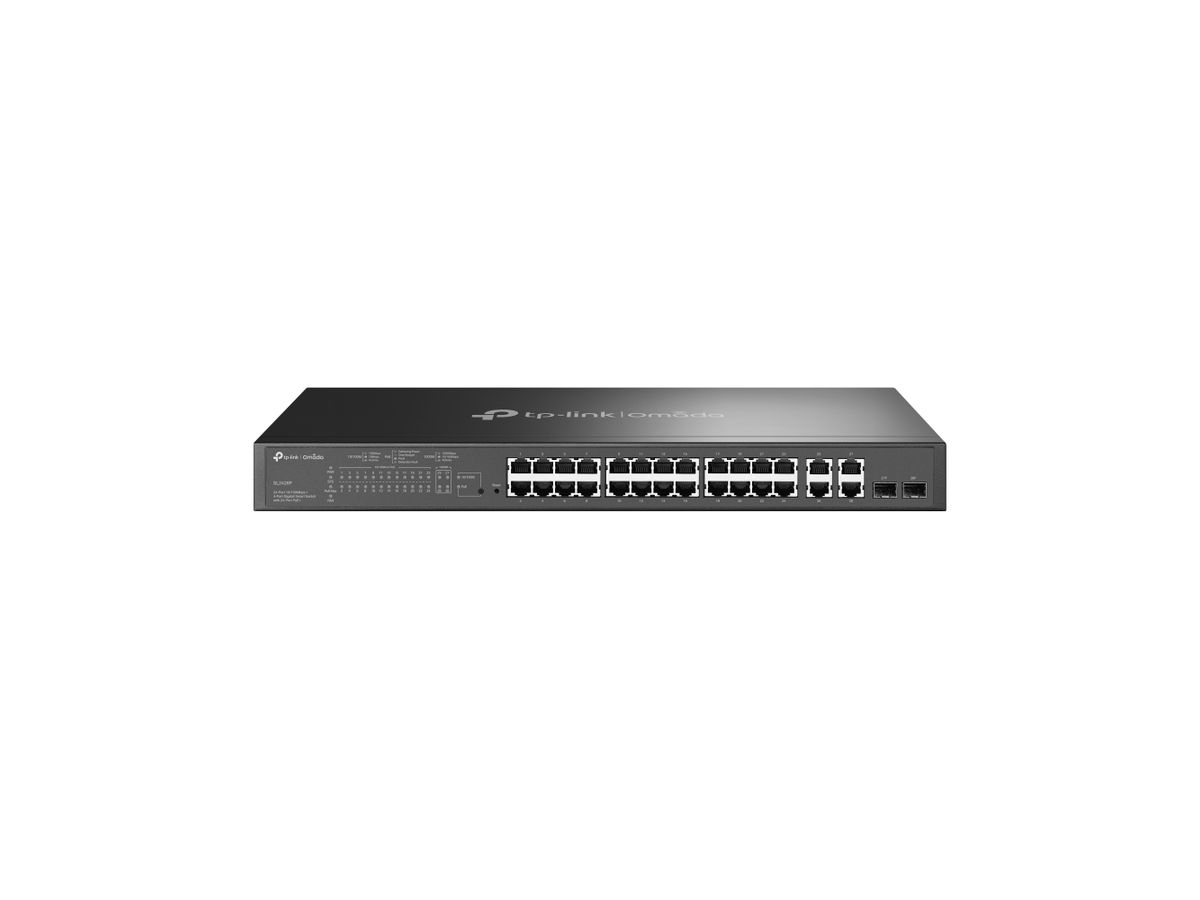

TP-Link Omada SL2428P network switch Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Black
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 529260922 |
|---|---|
| Brand / Manufacturer | TP-LINK TECHNOLOGIES |
| Manuf. item no. | SL2428P |
:strip_icc():strip_exif()/logos/tp-link-technologies.png "TP-LINK TECHNOLOGIES")
Description
TP-Link Omada SL2428P. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8000 entries, Switching capacity: 12.8 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U
TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.
Specifications
| Manufacturer | TP-LINK TECHNOLOGIES |
|---|---|
| Product type | Network Switches |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 24 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 24 |
| Gigabit Ethernet (copper) ports quantity | 4 |
| Combo SFP ports quantity | 2 |
Weight & dimensions
| Width | 440 mm |
|---|---|
| Depth | 180 mm |
| Height | 44 mm |
Power
| Power source | AC |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 291.6 W |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 995.09 BTU/h |
Protocols
| Management protocols | SNMP v1/v2c/v3, RMON, SNTP, TFTP |
|---|
Network
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
|---|---|
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat5, Cat5e |
| Port mirroring | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Number of VLANs | 512 |
Data transmission
| MAC address table | 8000 entries |
|---|---|
| Switching capacity | 12.8 Gbit/s |
| Throughput | 9.5 Mpps |
| Number of queues | 4 |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 4.1 MB |
Packaging data
| Cables included | AC |
|---|---|
| Quick start guide | Yes |
| Rack mount kit | Yes |
Security
| Access Control List (ACL) | Yes |
|---|---|
| IGMP snooping | Yes |
| Security algorithms | SNMPv2, SNMPv3, SSH, SSH-2, SSL/TLS |
| SSH/SSL support | Yes |
Management features
| Switch type | Managed |
|---|---|
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| System event log | Yes |
Design
| Rack mounting | Yes |
|---|---|
| Form factor | 1U |
| Product colour | Black |
| Number of fans | 2 fan(s) |
| Certification | CE, FCC, RoHS |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
|---|---|
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 250 W |
Performance
| Compatible operating systems | Microsoft Windows XP, Vista, Windows 7, Windows 8, MAC OS, NetWare, UNIX, Linux |
|---|---|
| Firmware upgradeable | Yes |
Multicast features
| Multicast support | Yes |
|---|
