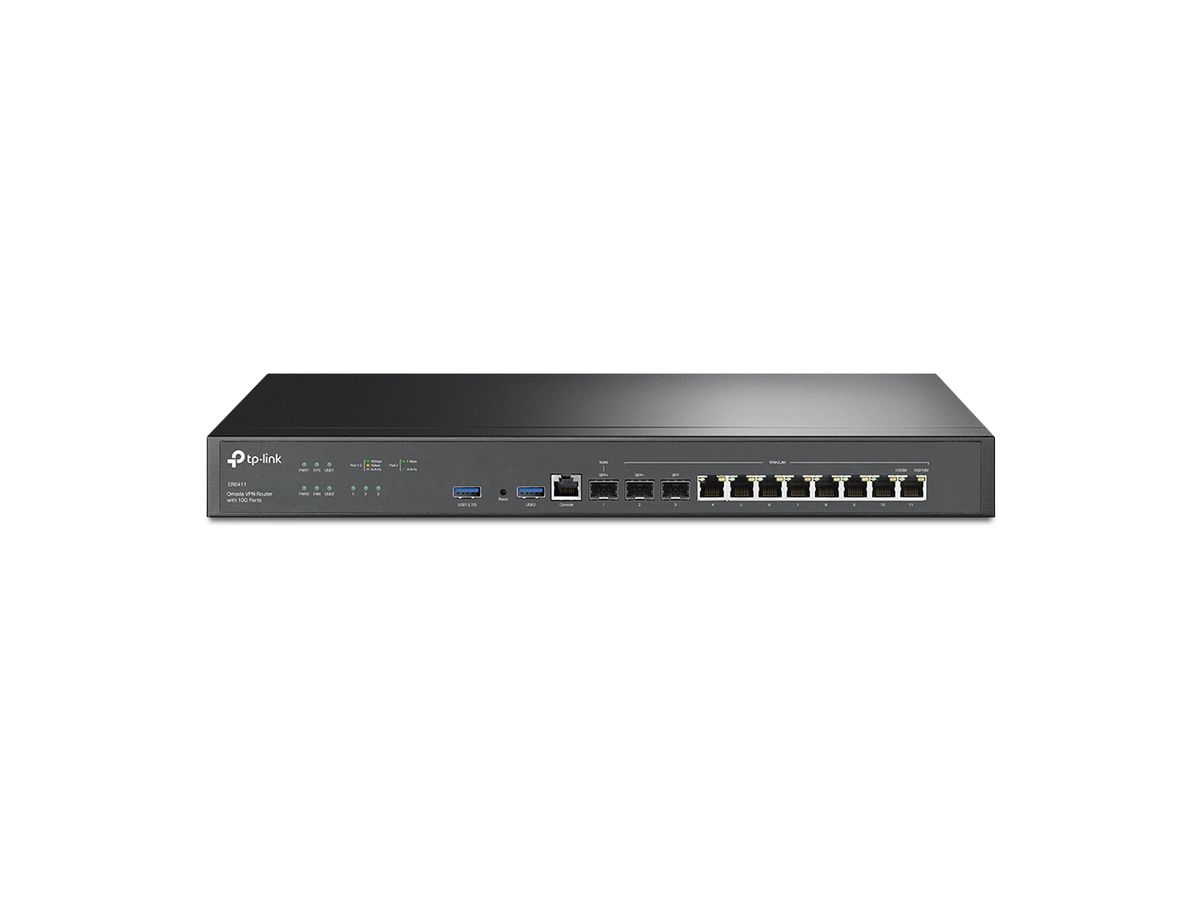

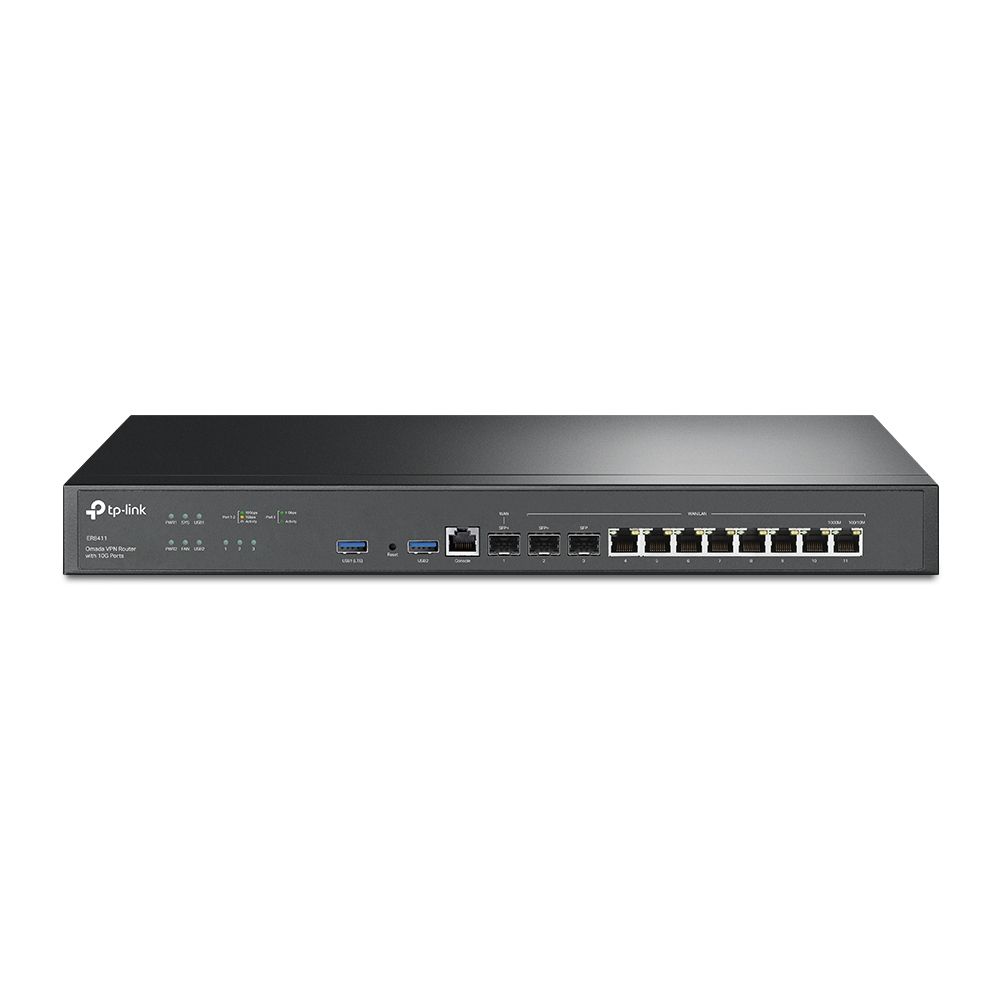

TP-Link Omada VPN Router with 10G Ports

TP-Link Omada VPN Router with 10G Ports

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Item no. 526923129
Brand / Manufacturer TP-LINK TECHNOLOGIES
Manuf. item no. ER8411
EAN 4897098683309

Description

TP-Link Omada VPN Router with 10G Ports. Networking standards: IEEE 802.1Q, Ethernet interface type: Gigabit Ethernet, Cabling technology: 10/100/1000Base-T(X). NAT functionality: One-to-One NAT; Multi-Net NAT; Virtual Server; Port Triggering; NAT-DMZ; FTP/H.323/SIP/IPSec/PPTP.... Flash memory: 256 MB, Internal memory: 4096 MB, Internal memory type: DDR4. Product colour: Black. AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz

Future-Proof Your Business with 10G Enterprise ConnectivityOmada VPN Router with 10G PortsCentralized Cloud ManagementSeamless integration into the Omada SDN platformQuad-Core 2.2 GHz CPUEnterprise–level hardware design provides maximum performanceTwo 10GE SFP+ PortsHigh-bandwidth aggregation with 1× WAN and 1× WAN/LAN portsUp to 10 WAN PortsMulti-WAN Load Balance raises the utilization rate of multi-line broadbandTwo USB 3.0 PortsAvailable 4G/3G Modem connection for LTE WAN backupHigh-Capacity PerformanceSupports up to 2,300,000 concurrent sessionsHigh-Security VPNEnterprise-standard SSL / IPSec / PPTP / L2TP VPN & OpenVPN / L2TP over IPSec VPNEnhanced SecurityPowerful Firewall, DoS defense, IP/MAC/URL/ Keyword filteringDual Redundant Power SuppliesCarrier-class reliability for enterprise networkingHigh-Capacity Performance with Quad-Core 2.2 GHz CPUManage your entire business network with the right amount of processing power. Dual redundant power supplies further ensure carrier-class reliability for enterprise networking.Maximize the 10G Broadband with Omada Enterprise GatewayMaximized 10G Broadband with the Omada Enterprise Gateway Build your lightning-fast network with Omada ER8411 — an enterprise VPN router with 10G ports. It surpasses the need for high-speed, reliable, and safe enterprise networks, ideal for large-scale deployments such as offices, schools, and hotels.10× WAN Ports & One USB WAN for Mobile BroadbandUp to 10× WAN SFP+, SFP, and RJ45 ports allow the router to support various internet access requirements. Multi-WAN Load Balancing distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband. Connect a 4G/3G modem to one of the USB 3.0 ports for LTE WAN backup.High-Security and High-Performance VPNER8411 supports pass-through traffic and multiple VPN protocols, including SSL, IPSec, PPTP, and L2TP in Client/Server mode. One-click auto IPSec VPN simplifies VPN configuration and facilitates network management and deployment. The router also features built-in VPN engine hardware, allowing support and management of hundreds of IPSec, PPTP, L2TP, SSL VPN, and OpenVPN Tunnels.Robust Security FeaturesPowerful FirewallAdvanced firewall policies protect your network and data.IP/MAC/URL/Keyword FilteringForcefully prevent viruses and attacks from intruders.Convenient VLAN SupportCreate virtual network segments for enhanced security and simplified network management.IP-MAC BindingReserves static IP assignment for clients to defend against ARP attacks and spoofing.DoS DefenseAutomatically detects and blocks Denial of Service (DoS) attacks such as TCP/UDP/ICMP Flooding, Ping of Death, and other related threats.One-Click ALG ActivationOne-Click ALG Activation for applications such as FTP, H323, SIP, IPSec, and PPTP.Seamless Integration into Omada SDNThe Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface.

Specifications

Manufacturer TP-LINK TECHNOLOGIES
Product type Wired Routers
Ports & interfaces
Ethernet LAN (RJ-45) ports 8
Combo SFP ports quantity 2
USB ports quantity 2
DC-in jack Y
Weight & dimensions
Width 440 mm
Depth 220 mm
Height 44 mm
Power
AC input voltage 100 - 240 V
AC input frequency 50 - 60 Hz
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 90%
Protocols
DHCP client Y
DHCP server Y
Network
Networking standards IEEE 802.1Q
Ethernet interface type Gigabit Ethernet
Cabling technology 10/100/1000Base-T(X)
Ethernet LAN data rates 10,100,1000 Mbit/s
Static route Y
VLAN support Y
Port forwarding Y
Packaging data
AC adapter included Y
Manual Y
Security
URL filtering Y
Access Control List (ACL) Y
NAT functionality One-to-One NAT;Multi-Net NAT;Virtual Server;Port Triggering;NAT-DMZ;FTP/H.323/SIP/IPSec/PPTP ALG;UPnP;
Management features
Universal Plug and Play (UPnP) Y
Reset button Y
Design
Product colour Black
LED indicators Y
Features
Built-in processor Y
Flash memory 256 MB
Internal memory 4096 MB
Internal memory type DDR4
Certification CE, FCC, RoHS
WAN connection
Ethernet WAN Y
DSL WAN N
SIM card slot N
3G/4G USB modem compatibility N
SFP WAN Y
