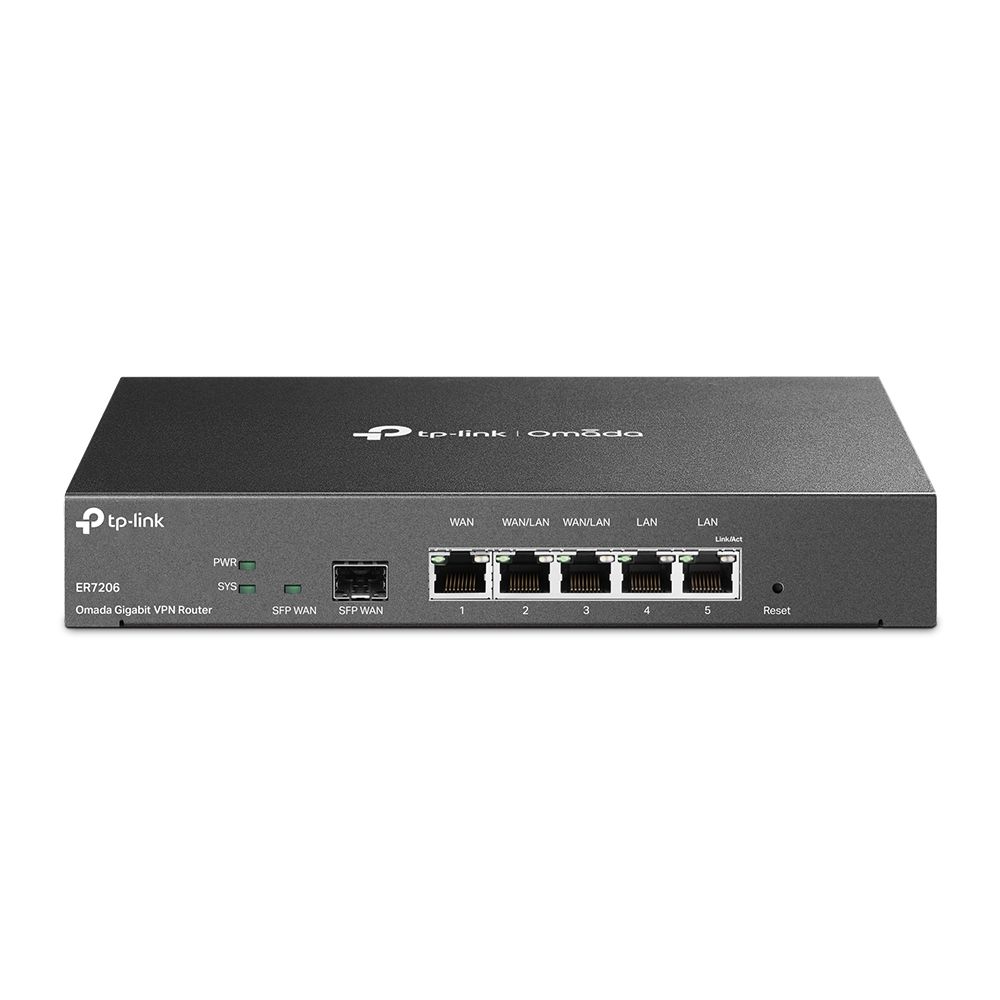

TP-Link SafeStream Gigabit Multi-WAN VPN Router

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Deliverable approx. 12/30/2024

Item no.	524738558
Brand / Manufacturer	TP-LINK TECHNOLOGIES
Manuf. item no.	TL-ER7206
EAN	6935364072391

Description

TP-Link SafeStream Gigabit Multi-WAN VPN Router. Networking standards: IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, Ethernet interface type: Gigabit Ethernet, Cabling technology: 10/100/1000Base-T(X). Supported network protocols: TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, IPsec, PPTP, L2TP. Security algorithms: 3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, IPSEC, MD5, SHA-1, SNMP, SNMPv2, SNMPv3, Firewall security: SPI, VPN support: IPSec VPN, PPTP VPN, L2TP VPN, OpenVPN. Flash memory: 132 MB, Internal memory: 512 MB, Internal memory type: DRAM. Product colour: Black, LED indicators: Activity, Link, Power, System, WAN

Omada SDN—The Smarter Cloud Solution for Business Networking
As the gateway that seamlessly integrates into the Omada Software Defined Networking (SDN) platform, ER7206 allows for remote and centralized management, anywhere, anytime. Standalone management via the Web UI or app is also available to maximize convenience.

Up to Four WAN Gigabit Ports to Optimize Bandwidth Usage
One gigabit SFP WAN port, one gigabit RJ45 WAN port, and two freely interchangeable WAN/LAN ports allow the router to support up to four WAN ports to satisfy various internet access requirements through one device. The multi-WAN Load Balancing function distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband.

Highly Secure VPN
ER7206 supports IPSec/PPTP/L2TP VPN over IPSec/SSL protocols. With a powerful hardware design, the router supports and manages up to 100× LAN-to-LAN IPSec, 50× OpenVPN*, 50× L2TP, and 50× PPTP VPN connections. One-click auto IPSec VPN* greatly simplifies VPN configuration and facilitates network management and deployment while also securing and encrypting private site-to-site data communications traveling over the internet.

Internet Access Management Strategy
Standardize users’ online behavior and easily specify the internet access rights and strategies of employee via IP/MAC/URL Filtering and Access Control List (ACL). Captive Portal authentication facilitates network resource control by capturing, authenticating, and classifying user access. Appropriate network resources can also be allocated for particular users or guests.

Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.

Specifications

Manufacturer	TP-LINK TECHNOLOGIES
Product type	Wired Routers

Ports & interfaces

Ethernet LAN (RJ-45) ports	4

Weight & dimensions

Width	226 mm
Depth	131 mm
Height	35 mm

Power

Power source type	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%

Protocols

DHCP server	Yes
DMZ support	Yes
Supported network protocols	TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, IPsec, PPTP, L2TP

Network

Networking standards	IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet interface type	Gigabit Ethernet
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10,100,1000 Mbit/s
Static route	Yes
VLAN support	Yes
Policy-based routing	Yes

Packaging data

Cables included	AC
Quick installation guide	Yes
Package width	226 mm
Package depth	288 mm
Package height	72 mm
Package weight	1.32 kg

Security

Security algorithms	3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, IPSEC, MD5, SHA-1, SNMP, SNMPv2, SNMPv3
Firewall	Yes
Firewall security	SPI
URL filtering	Yes
ARP attack prevention	Yes
Access Control List (ACL)	Yes
System event log	Yes
VPN support	IPSec VPN, PPTP VPN, L2TP VPN, OpenVPN

Management features

Web-based management	Yes
Universal Plug and Play (UPnP)	Yes
Reset button	Yes

Design

Product colour	Black
LED indicators	Activity, Link, Power, System, WAN

Features

Flash memory	132 MB
Internal memory	512 MB
Internal memory type	DRAM
Windows operating systems supported	Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Certification	CE, FCC, RoHS

Logistics data

Harmonized System (HS) code	85176990

WAN connection

Ethernet WAN	Yes
DSL WAN	No
SIM card slot	No
3G/4G USB modem compatibility	No
SFP WAN	Yes
