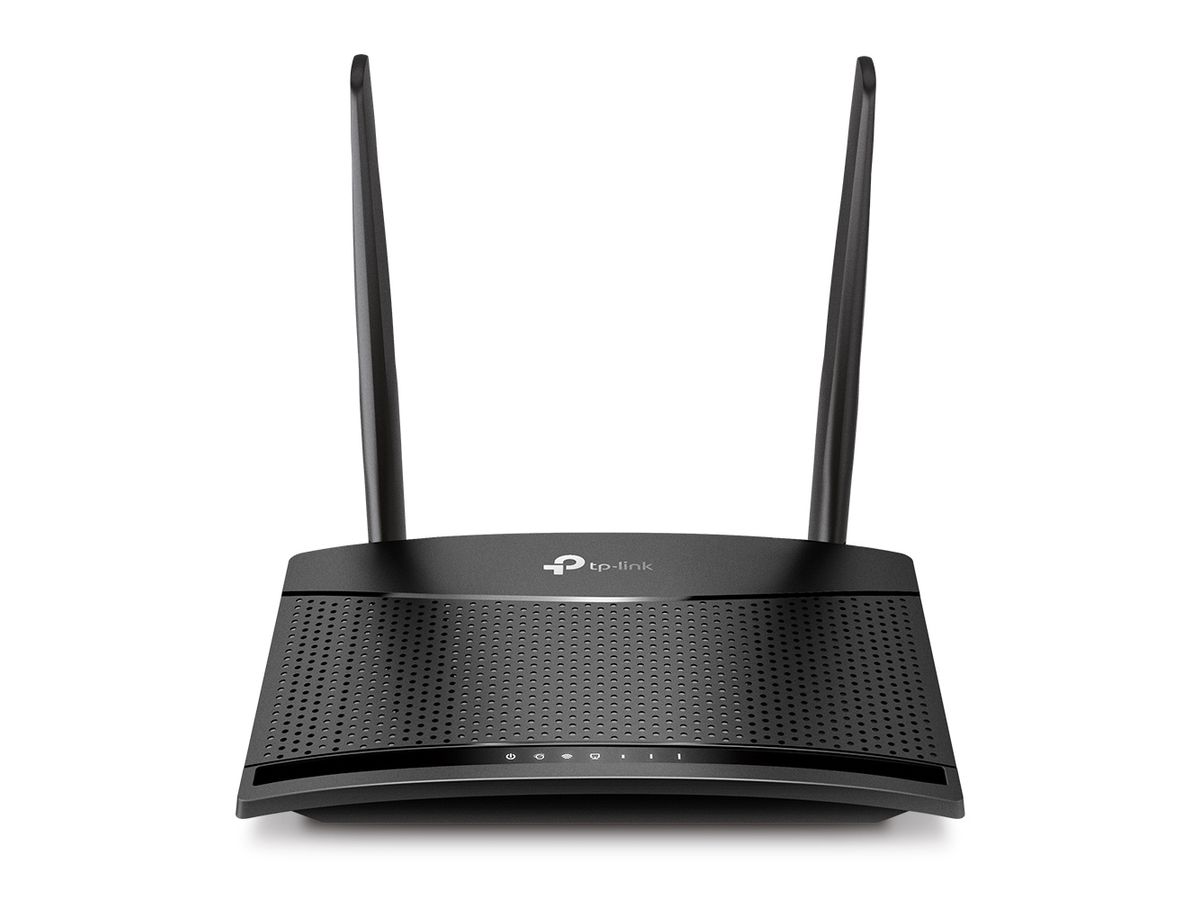

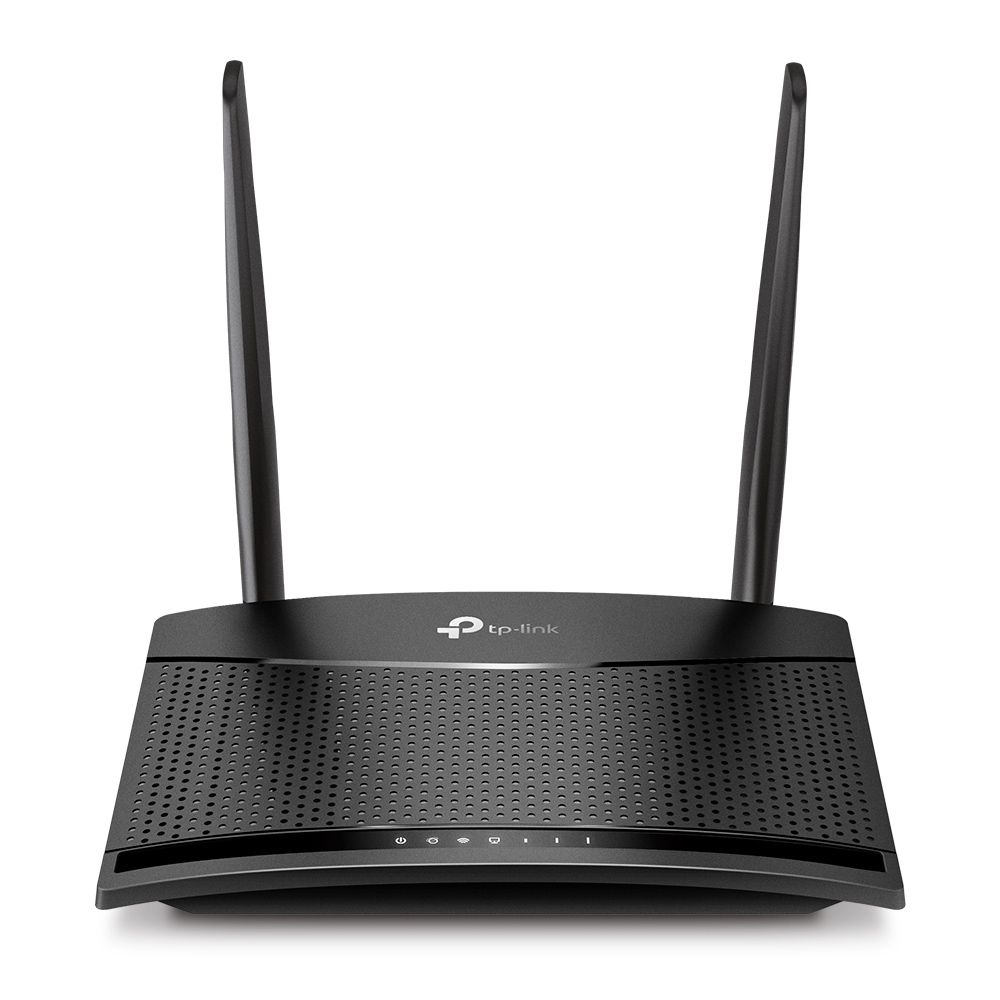

TP-Link TL-MR100 wireless router Fast Ethernet Single-band (2.4 GHz) 4G Black
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 523579717 |
|---|---|
| Brand / Manufacturer | TP-LINK TECHNOLOGIES |
| Manuf. item no. | TL-MR100 |
| EAN | 6935364088804 |
:strip_icc():strip_exif()/logos/tp-link-technologies.png "TP-LINK TECHNOLOGIES")
Description
TP-Link TL-MR100. WAN connection type: RJ-45. Wi-Fi band: Single-band (2.4 GHz), Top Wi-Fi standard: Wi-Fi 4 (802.11n), WLAN data transfer rate (max): 300 Mbit/s. Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Cabling technology: 10/100Base-T(X). Mobile network generation: 4G, 3G standards: HSPA, UMTS, 4G standard: LTE-TDD & LTE-FDD. Security algorithms: 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
No Configuration Needed Simply Plug and Play!
With an integrated 4G LTE modem and a built-in SIM card slot, all you need to do is inserting a micro SIM card and turning on the router. It has never been easier than enjoy a fast, stable Wi-Fi on 4G LTE network.
Share Your 4G LTE Network
Take full advantage of your cutting-edge 4G LTE network to download speed up to 150 Mbps. Share your 4G LTE network with multiple Wi-Fi devices and enjoy uninterrupted HD movies, rapid file downloads, and smooth video chats. Fully compatible with FDD-LTE and TDD-LTE to work with most service providers worldwide.
Robust Parental Controls
If you want to block harmful websites, set surfing time limits, check which sites your kids are using or just pause the internet, you can do it all.
Wi-Fi Where You Need It
Enjoy unconstrained convenience and versatility. MR100 has been tested in the field for years to ensure universal compatibility with 2 advanced LTE antennas to deliver a smooth connection. Simply plug in a micro SIM card and power on this elegant piece of device to utilize fast and stable Wi-Fi, whether you’re at home or working remotely.
Reliable Access for Up to 32 Devices Simultaneously
Easily share a 3G/4G connection with up to 32 wireless devices, such as phones, tablets, and laptops, at the same time. 1 LAN ports stand ready to provide internet for wired devices like desktop computers.
Specifications
| Manufacturer | TP-LINK TECHNOLOGIES |
|---|---|
| Product type | Wireless Routers |
System requirements
| Browser supported | Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 |
|---|---|
| Windows operating systems supported | Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 2 |
|---|---|
| USB port | No |
| Memory card slot(s) | No |
| DC-in jack | Yes |
Weight & dimensions
| Width | 154 mm |
|---|---|
| Depth | 114 mm |
| Height | 36 mm |
Power
| Power source type | DC |
|---|---|
| Output voltage | 9 V |
| Output current | 0.85 A |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Protocols
| DHCP client | Yes |
|---|---|
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Supported network protocols | IPv4, IPv6 |
Network
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Cabling technology | 10/100Base-T(X) |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Port forwarding | Yes |
| Port triggering | Yes |
| Dynamic DNS (DDNS) | Yes |
| Wireless radio | Yes |
| Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11n) | 20 dBmW |
| Receiver sensitivity | 11g 54M: -74dBm11n HT20: -71dBm11n HT40: -67dBm |
Packaging data
| Package width | 293 mm |
|---|---|
| Package depth | 161 mm |
| Package height | 66 mm |
| Package weight | 450 g |
Security
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
|---|---|
| Firewall | Yes |
| Guest access | Yes |
| Stateful Packet Inspection (SPI) | Yes |
| Schedule access | Yes |
| MAC address filtering | Yes |
| IP address filtering | Yes |
| DMZ support | Yes |
Wireless LAN features
| Wi-Fi band | Single-band (2.4 GHz) |
|---|---|
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (max) | 300 Mbit/s |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
Management features
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
|---|---|
| Quality of Service (QoS) support | Yes |
| Wireless statistics | Yes |
| Reset button | Yes |
| WPS push button | Yes |
Packaging content
| Cables included | LAN (RJ-45) |
|---|---|
| AC adapter included | Yes |
| Quick installation guide | Yes |
Antenna
| Antenna design | External |
|---|---|
| Antenna connector type | N-type |
| Antennas quantity | 2 |
Design
| Product type | Tabletop router |
|---|---|
| Product colour | Black |
| On/off switch | Yes |
Mobile network
| Mobile network generation | 4G |
|---|---|
| 3G | Yes |
| 4G | Yes |
| 3G standards | HSPA, UMTS |
| 4G standard | LTE-TDD & LTE-FDD |
| UMTS bands supported | 850,900,2100 MHz |
| 4G bands supported | 800,900,1800,1900,2100,2300,2500,2600 MHz |
Features
| Firmware upgradeable | Yes |
|---|---|
| Certification | CE, RoHS |
Logistics data
| Harmonized System (HS) code | 85176990 |
|---|
WAN connection
| Ethernet WAN | Yes |
|---|---|
| DSL WAN | Yes |
| SIM card slot | Yes |
| 3G/4G USB modem compatibility | Yes |
| WAN connection type | RJ-45 |
