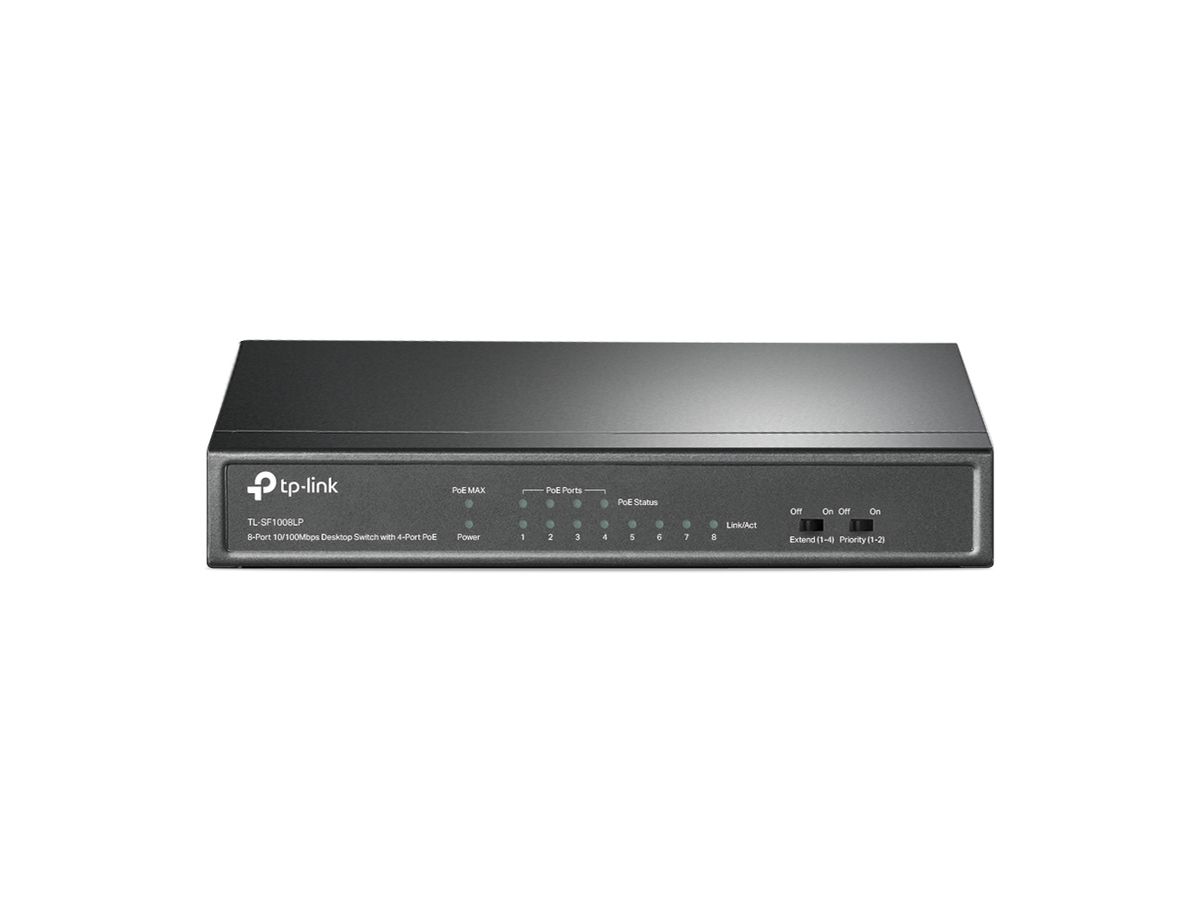

TP-Link TL-SF1008LP network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 523625228 |
|---|---|
| Brand / Manufacturer | TP-LINK TECHNOLOGIES |
| Manuf. item no. | TL-SF1008LP |
| EAN | 6935364052768 |
:strip_icc():strip_exif()/logos/tp-link-technologies.png "TP-LINK TECHNOLOGIES")
Description
TP-Link TL-SF1008LP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 2000 entries, Switching capacity: 1.6 Gbit/s. DC input voltage: 53.5 V. Power connector: DC-in jack. Power over Ethernet (PoE)
Professional Fast Ethernet Switch with 4 PoE PortsPlug and Play, with PoE Transmission for Surveillance up to 250 mDedicated 4-Port PoE Switch (41 W Budget) for Numerous ApplicationsCompliance with the 802.3af PoE standard supports up to 15.4 W on each PoE port. The total 41 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.Priority VideoQuality GuaranteedQuality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.Intelligent Power ManagementWhen total power consumption exceeds 41 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.Durable Metal CasingThe interior components of TL-SF1008LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1008LP delivers switching performance you can depend on.
Specifications
| Manufacturer | TP-LINK TECHNOLOGIES |
|---|---|
| Product type | Network Switches |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 8 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Power connector | DC-in jack |
Weight & dimensions
| Width | 171 mm |
|---|---|
| Depth | 98 mm |
| Height | 27 mm |
Power
| AC input voltage | 220 V |
|---|---|
| AC input frequency | 50 Hz |
| DC input voltage | 53.5 V |
| Input current | 0.81 A |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 160.61 BTU/h |
Protocols
| GARP VLAN Registration Protocol (GVRP) | Y |
|---|---|
| Routing protocols | OSPF |
| IPv4 & IPv6 features | IPv6 portal |
Network
| 10G support | N |
|---|---|
| Auto MDI/MDI-X | Y |
| Auto-negotiation | Y |
| MAC address auto-learning supported | Y |
| MAC address auto-aging supported | Y |
Data transmission
| MAC address table | 2000 entries |
|---|---|
| Switching capacity | 1.6 Gbit/s |
| Forwarding rate | 11904 Mpps |
| Store-and-forward | Y |
Packaging data
| Cables included | AC |
|---|---|
| User guide | Y |
Security
| DHCP features | DHCPv6 relay |
|---|
Management features
| Switch type | Unmanaged |
|---|
Design
| Rack mounting | N |
|---|---|
| Product colour | Black |
| LED indicators | Y |
| Certification | FCC, CE, RoHS |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Y |
|---|---|
| Power over Ethernet (PoE) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 41 W |
Performance
| Fanless | Y |
|---|---|
| Harmonized System (HS) code | 85176990 |
