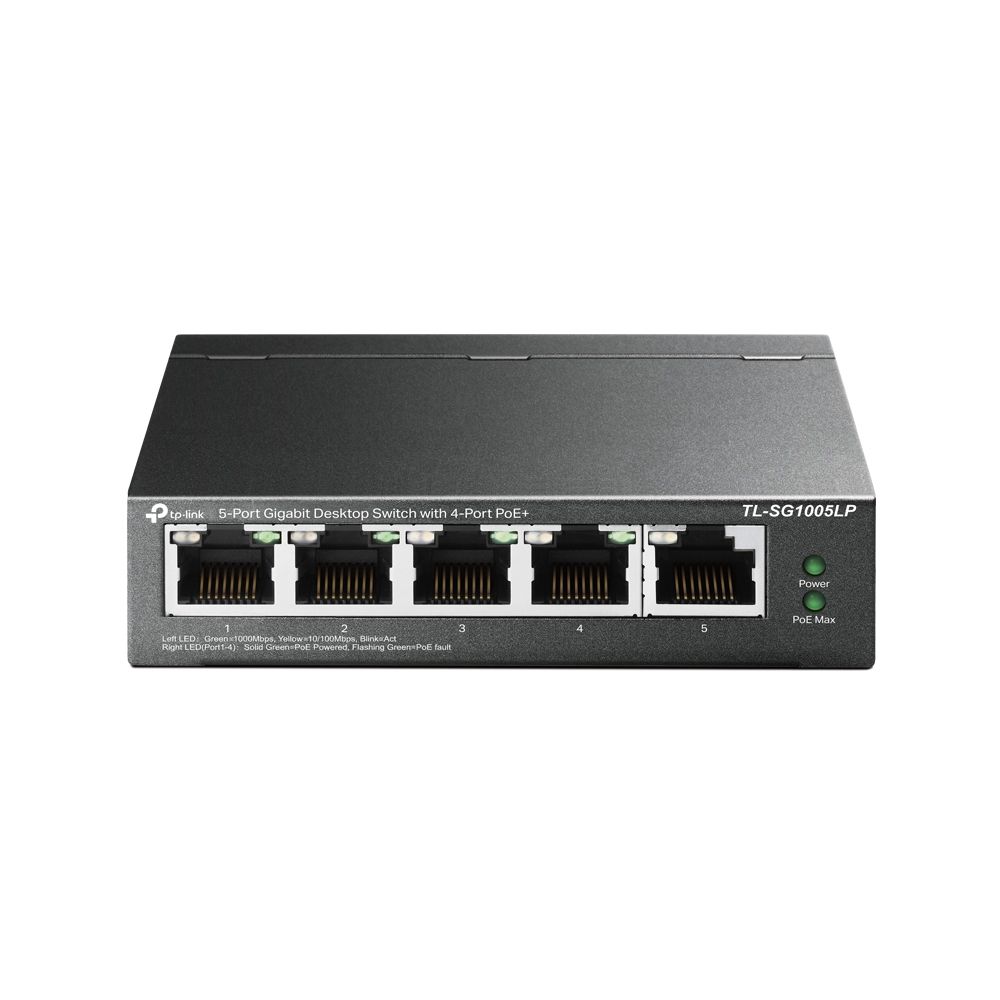

TP-Link TL-SG1005LP network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 523660602 |
|---|---|
| Brand / Manufacturer | TP-LINK TECHNOLOGIES |
| Manuf. item no. | TL-SG1005LP |
| EAN | 6935364052720 |
:strip_icc():strip_exif()/logos/tp-link-technologies.png "TP-LINK TECHNOLOGIES")
Description
TP-Link TL-SG1005LP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE). Wall mountable
Professional 5-Port Gigabit Switch with 4 PoE+ PortsPlug and Play, with PoE power supply which meets the needs of diverse devices.Dedicated 4-Port PoE+ Switch (40 W Budget) for Numerous ApplicationsCompliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 40 W PoE power budget for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.Intelligent Power ManagementWhen total power consumption exceeds 40 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.Advanced Functions for Higher PerformanceAdministrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free.IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.Durable Metal CasingThe interior components of TL-SG1005LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1005LP delivers switching performance you can depend on.
Specifications
| Manufacturer | TP-LINK TECHNOLOGIES |
|---|---|
| Product type | Network Switches |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 5 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Weight & dimensions
| Width | 99.8 mm |
|---|---|
| Depth | 98 mm |
| Height | 25 mm |
Power
| Power supply included | Y |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 47.5 W |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 161.98 BTU/h |
Network
| Networking standards | IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
|---|---|
| 10G support | N |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
| Flow control support | Y |
| Auto MDI/MDI-X | Y |
| Auto-negotiation | Y |
| MAC address auto-learning supported | Y |
| MAC address auto-aging supported | Y |
Data transmission
| MAC address table | 2000 entries |
|---|---|
| Switching capacity | 10 Gbit/s |
| Forwarding rate | 7.44 Mpps |
| Store-and-forward | Y |
| Jumbo frames support | Y |
| Jumbo frames | 16000 |
Packaging data
| User guide | Y |
|---|
Security
| IGMP snooping | Y |
|---|
Management features
| Switch type | Unmanaged |
|---|---|
| Quality of Service (QoS) support | Y |
Design
| Rack mounting | N |
|---|---|
| Product colour | Black |
| LED indicators | Y |
| Wall mountable | Y |
| Certification | FCC, CE, RoHS |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Y |
|---|---|
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 40 W |
Performance
| Fanless | Y |
|---|
Logistics data
| Harmonized System (HS) code | 85176990 |
|---|
