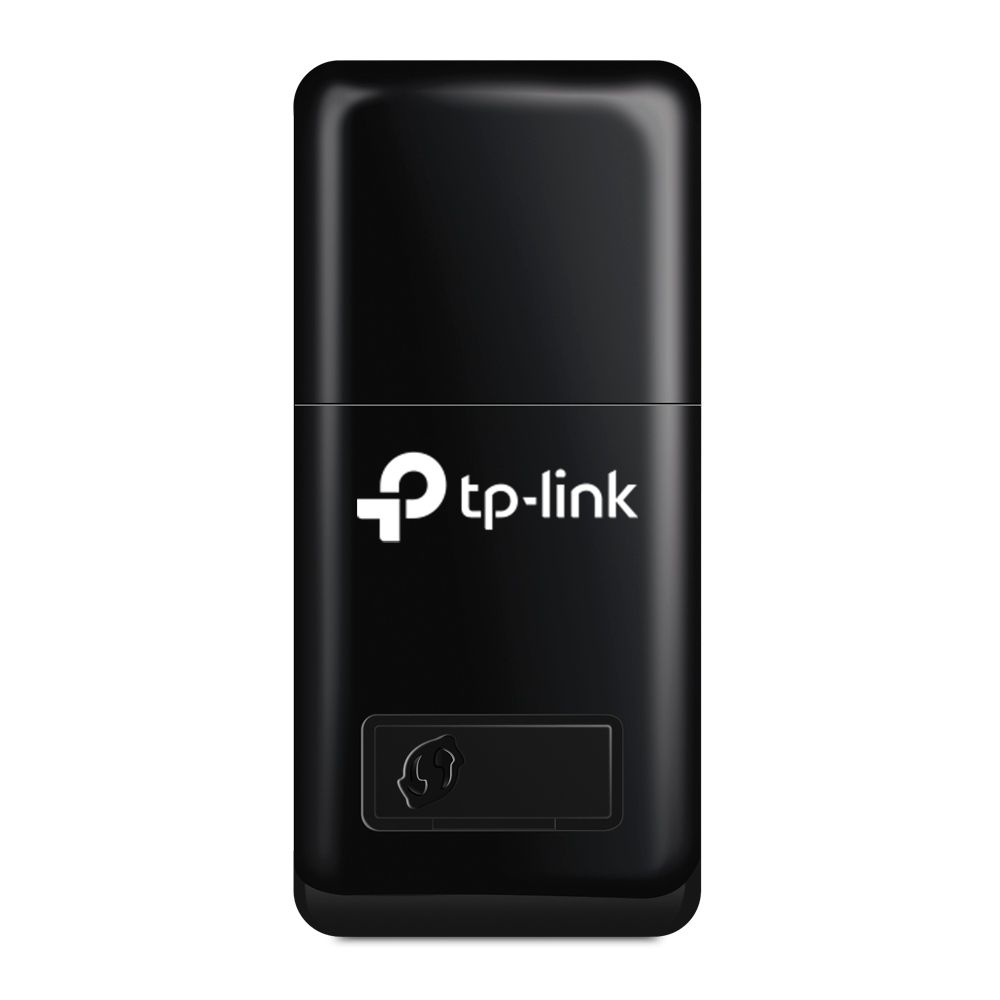

TP-Link TL-WN823N network card WLAN 300 Mbit/s
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
LoginDescription
TP-Link TL-WN823N. Connectivity technology: Wired, Host interface: USB, Interface: WLAN. Maximum data transfer rate: 300 Mbit/s, Top Wi-Fi standard: Wi-Fi 4 (802.11n), Wi-Fi band: Single-band (2.4 GHz). USB powered. Product colour: Black
What This Product Does
TP-LINK's 300Mbps Mini Wireless N USB Adapter TL-WN823N is designed to connect your laptop or desktop to a wireless network and enjoy high speed wireless performance. The fingertip design makes the adapter convenient and easy to carry around. What’s more, the TL-WN823N features SoftAP Mode, one-button security setup, easy-to-use configuration software, making it a great choice for enjoying fast wireless network.
300Mbps Wireless N Speed – Extend Wireless Coverage
With wireless speeds of up to 300Mbps and advanced MIMO technology, the TL-WN823N provides you with a fast, reliable wireless connection for lag-free online gaming and video streaming. Better still, TL-WN823N achieves the best performance with wireless N devices, but also works seamlessly with existing IEEE 802.11b/g networks
Easy to Install
A friendly user interface utility on a CD for simple installation
Soft AP
Easily establish a high speeds Wi-Fi hotspot with just a few clicks
WPS
Easy wireless security encryption at a push of the WPS button
Specifications
Manufacturer | TP-LINK TECHNOLOGIES |
---|---|
Product type | Network Cards |
Technical details
Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
---|
System requirements
Windows operating systems supported | Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
---|---|
Mac operating systems supported | Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
Ports & interfaces
Connectivity technology | Wired |
---|---|
Host interface | USB |
Interface | WLAN |
Weight & dimensions
Width | 39 mm |
---|---|
Depth | 18.4 mm |
Height | 7.87 mm |
Power
USB powered | Yes |
---|
Operational conditions
Operating temperature (T-T) | 0 - 40 °C |
---|---|
Storage temperature (T-T) | -40 - 70 °C |
Operating relative humidity (H-H) | 10 - 90% |
Storage relative humidity (H-H) | 5 - 90% |
Network
Maximum data transfer rate | 300 Mbit/s |
---|---|
Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Wi-Fi | Yes |
Wi-Fi band | Single-band (2.4 GHz) |
Frequency range | 2.4 - 2.4835 GHz |
Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
WLAN data transfer rates supported | 11,54,300 Mbit/s |
Modulation | 16-QAM, 64-QAM, CCK, DBPSK, DQPSK, OFDM |
Security algorithms | 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
Wake-on-LAN ready | Yes |
Packaging data
Package width | 138 mm |
---|---|
Package depth | 128 mm |
Package height | 30 mm |
Package weight | 80 g |
Packaging content
Resource CD | Yes |
---|---|
Quick installation guide | Yes |
Design
Internal | No |
---|---|
Component for | PC/Laptop |
Product colour | Black |
Antenna | Yes |
Antenna design | Internal |
Transmitting power (CE) | 20 dBm |
Transmitting power (FCC) | 20 dBm |
Plug and Play | Yes |
LED indicators | Status |
Operating modes | Infrastructure mode |
Logistics data
Harmonized System (HS) code | 85176990 |
---|
Sustainability
Sustainability certificates | CE, Federal Communications Commission (FCC), RoHS |
---|---|
Sustainability compliance | Yes |
