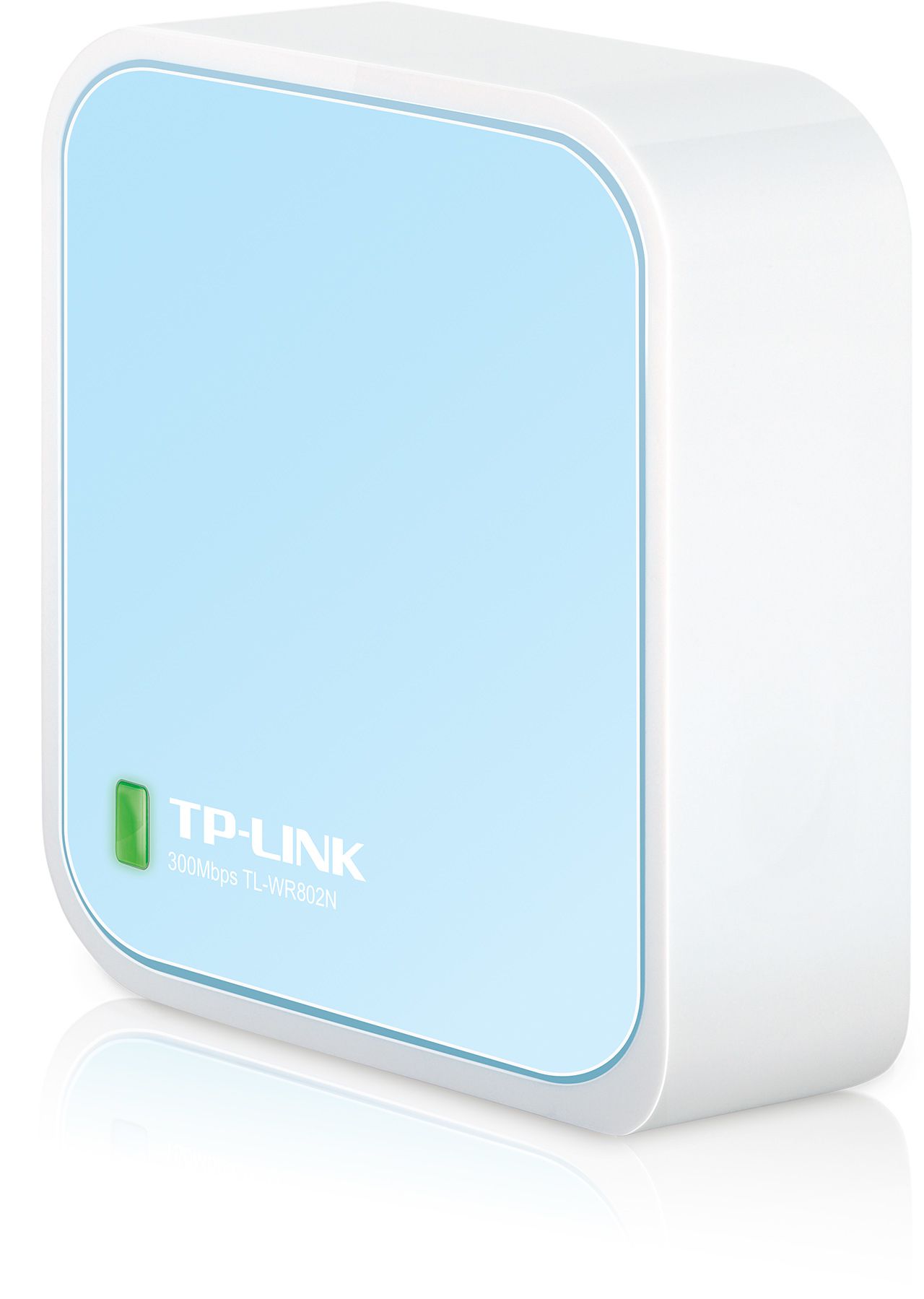

TP-Link TL-WR802N wireless router Fast Ethernet Single-band (2.4 GHz) Blue, White

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Item no.	515678019
Brand / Manufacturer	TP-LINK TECHNOLOGIES
Manuf. item no.	TL-WR802N
EAN	6935364071714
Item weight	0.237 kg

Description

TP-Link TL-WR802N. WAN connection type: RJ-45. Wi-Fi band: Single-band (2.4 GHz), Top Wi-Fi standard: Wi-Fi 4 (802.11n), WLAN data transfer rate (max): 300 Mbit/s. Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Cabling technology: 10/100Base-T(X). Security algorithms: WEP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, Firewall security: SPI. Supported network protocols: IPv4, IPv6

Multiple Operating Modes
Ideal for Home and Travel Use
To meet the wireless needs of almost any situation you might encounter, the TL-WR802N supports Router, Hotspot, Range Extender, Client and Access Point Modes.

During Travel
Router Mode
Instantly create a private wireless network and share Internet access with multiple Wi-Fi devices. Ideal for setup in most hotels.

Hotspot Mode
Enjoy wireless Internet access by connecting to an outdoor WISP Access Point.

At Home
Range Extender Mode
Extend existing Wi-Fi to improve signal strength and maximize coverage.

Client Mode
Allow devices that require a wired connection to access an existing Wi-Fi network.

Access Point Mode
Create a wireless network for Wi-Fi devices.

Portable and Compact - Suitable for Home and Travel
The TL-WR802N is the smallest wireless router in the world. It is very easy to use and is a perfect choice for travelers, students, and anyone else who lives life on the go.

Flexible Power Supply - Find Power Wherever You Are
The TL-WR802N can be powered using the included power adapter or using a smartphone /USB charger.

Specifications

Manufacturer	TP-LINK TECHNOLOGIES
Product type	Wireless Routers

System requirements

Windows operating systems supported	Windows 2000, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 98SE, Windows NT, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Linux operating systems supported	Y
Mac operating systems supported	macOS

Ports & interfaces

Ethernet LAN (RJ-45) ports	1
USB port	Y
Memory card slot(s)	N
DC-in jack	Y

Weight & dimensions

Width	57 mm
Depth	57 mm
Height	18 mm

Power

Power source type	USB
Output voltage	5 V
Output current	1 A

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%

Protocols

DHCP client	Y
DHCP server	Y
Universal Plug and Play (UPnP)	Y
Supported network protocols	IPv4, IPv6

Network

Ethernet LAN	Y
Ethernet LAN interface type	Fast Ethernet
Ethernet LAN data rates	10,100 Mbit/s
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Port forwarding	Y
Port triggering	Y
Dynamic DNS (DDNS)	Y
Number of guest networks (2.4 GHz)	1
VPN Passthrough	Y

Packaging data

Package width	110 mm
Package depth	109 mm
Package height	73.5 mm
Package weight	240 g

Security

Security algorithms	WEP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise
Firewall	Y
Firewall security	SPI
Stateful Packet Inspection (SPI)	Y
DoS attack prevention	Y
Filtering	Y
MAC address filtering	Y
IP address filtering	Y
DMZ support	Y

Wireless LAN features

Wi-Fi band	Single-band (2.4 GHz)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)

Management features

Web-based management	Y
Quality of Service (QoS) support	Y
Reset button	Y

Packaging content

Cables included	LAN (RJ-45), USB
AC adapter included	Y
Quick installation guide	Y

Antenna

Antenna design	Internal
Antennas quantity	2
Receive power	270M: -65dBm@10% PER , 130M: -70dBm@10% PER , 108M: -82dBm@10% PER , 54M: -73dBm@10% PER , 11M: -82dBm@8% PER , 6M: -86dBm@10% PER , 1M: -90dBm@8% PER
Transmit power	CE: , <20dBm(2.4GHz) , FCC: , <30dBm

Design

Product type	Portable router
Product colour	Blue, White
LED indicators	Activity, LAN, Power, WLAN
On/off switch	Y

Features

Built-in processor	Y
Processor cores	1

Logistics data

Harmonized System (HS) code	85176990

WAN connection

Ethernet WAN	Y
DSL WAN	N
SIM card slot	N
3G/4G USB modem compatibility	N
WAN connection type	RJ-45

Sustainability

Sustainability compliance	Y
Sustainability certificates	Federal Communications Commission (FCC)
