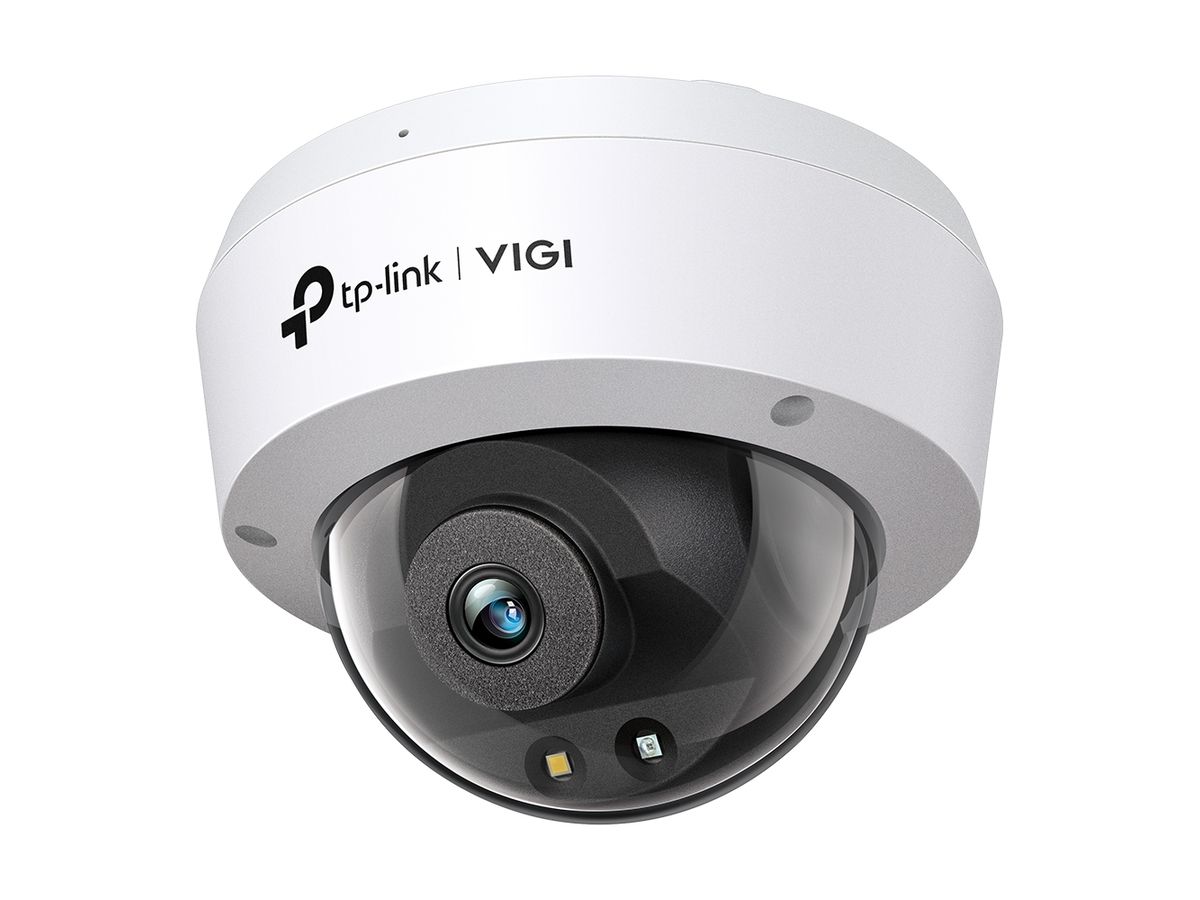

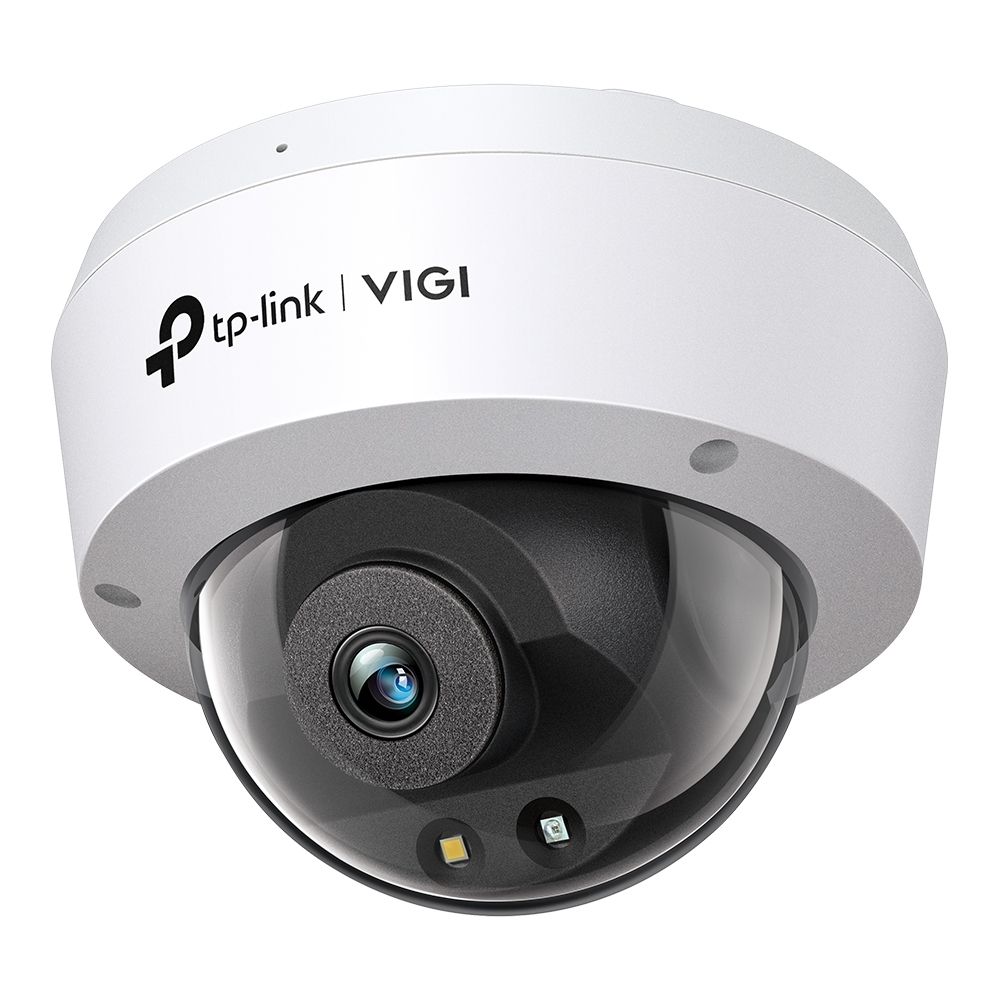

TP-Link VIGI 4MP Full-Color Dome Network Camera
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 527700170 |
|---|---|
| Brand / Manufacturer | TP-LINK TECHNOLOGIES |
| Manuf. item no. | VIGI C240(2.8MM) |
| EAN | 4895252501070 |
:strip_icc():strip_exif()/logos/tp-link-technologies.png "TP-LINK TECHNOLOGIES")
Description
TP-Link VIGI 4MP Full-Color Dome Network Camera. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.005 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 95.7°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Lens diameter: 2.8 mm
Clarity and Colors, All in One
Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 4MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.
We keep an eye on your business.
Smart Detection
Backed by AI algorithms, the VIGI camera offers more smart detection. You will receive notifications when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
No more silent surveillance.
Built-In Microphone
The VIGI camera features a built-in microphone to record anything going on within a 15-ft radius of the camera. This gives you more detailed monitoring for greater peace of mind.
IK10 Vandal-Proof & IP67 Waterproof
With vandal-resistant, rugged housing and waterproof design, this VIGI dome camera is built tough to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime.
More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Never miss a detail.
SmartVid-Smart Video Enhancement
VIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
Discover the best way to power your camera.
PoE/12V DC
Two power supply ways not only give you more convenience but also make your wiring remarkably easy.
Flexible Management and Storage
Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. Local storage is available for each methods, as well as onboard storage with SD card slot.
One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
Specifications
| Manufacturer | TP-LINK TECHNOLOGIES |
|---|---|
| Product type | Security Cameras |
Technical details
| Sustainability certificates | CE |
|---|---|
| Compliance certificates | CE |
Audio
| Built-in microphone | Yes |
|---|
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
|---|
Lens system
| Number of lenses | 1 |
|---|---|
| Lens diameter | 2.8 mm |
Weight & dimensions
| Width | 115 mm |
|---|---|
| Depth | 115 mm |
| Height | 86 mm |
| Package width | 153 mm |
| Package depth | 193 mm |
| Package height | 120 mm |
| Package weight | 460 g |
Power
| Power source type | DC, PoE |
|---|---|
| Power consumption (max) | 5.4 W |
Operational conditions
| Operating temperature (T-T) | -30 - 60 °C |
|---|
Network
| Ethernet LAN | Yes |
|---|---|
| Wi-Fi | No |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| Number of simultaneous live view channels | 3 channels |
Video
| Maximum resolution | 2560 x 1440 pixels |
|---|---|
| Total megapixels | 4 MP |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Supported graphics resolutions | 320 x 240, 352 x 288, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440 |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Noise reduction technology | 3D noise reduction |
| Image quality adjustment | Brightness, Contrast, Mirror, Saturation, Sharpness |
| Privacy masking | Yes |
| Bit rate | 64 Kbps - 4 Mbps |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
Storage
| Built-in HDD | No |
|---|---|
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256 GB |
Security
| Password protection | Yes |
|---|---|
| Video motion detection | Yes |
| Active tampering alarm | Yes |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Intelligent Video Surveillance (IVS) system features | Abandoned object, Crossing line, Human detection, Intrusion, Region entrance detection, Region exiting detection, Vehicle detection |
| Mirror | Yes |
| Digest authentication | Yes |
Image sensor
| Sensor type | CMOS |
|---|---|
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
Management features
| Web-based management | Yes |
|---|---|
| Reset button | Yes |
| Management software | VIGI App, VIGI Security Manager, VIGI NVR |
Camera
| Camera pan control | Yes |
|---|---|
| Camera tilt control | Yes |
| Minimum illumination | 0.005 lx |
| Angle of rotation | 360° |
| Lens viewing angle, horizontal | 95.7° |
| Lens viewing angle, vertical | 51.7° |
| Lens viewing angle, diagonal | 113° |
| Tilt angle range | 0 - 85° |
| Pan range | 0 - 360° |
Packaging content
| Number of cameras | 1 |
|---|---|
| Mounting kit | Yes |
Design
| Mounting type | Ceiling/wall |
|---|---|
| Product colour | Black, White |
| Form factor | Dome |
| Housing material | Plastic |
| International Protection (IP) code | IP67 |
| IK code | IK10 |
Night vision
| Night vision | Yes |
|---|---|
| Night vision distance | 30 m |
| LED type | IR |
| Number of illumination LEDs | 1 |
| Infra-red wavelength | 850 nm |
Performance
| Type | IP security camera |
|---|---|
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Certification | CE, BSMI, VCCI, ONVIF |
Features
| Basic event | Motion Detection, Camera Tampering Detection, Exception |
|---|
