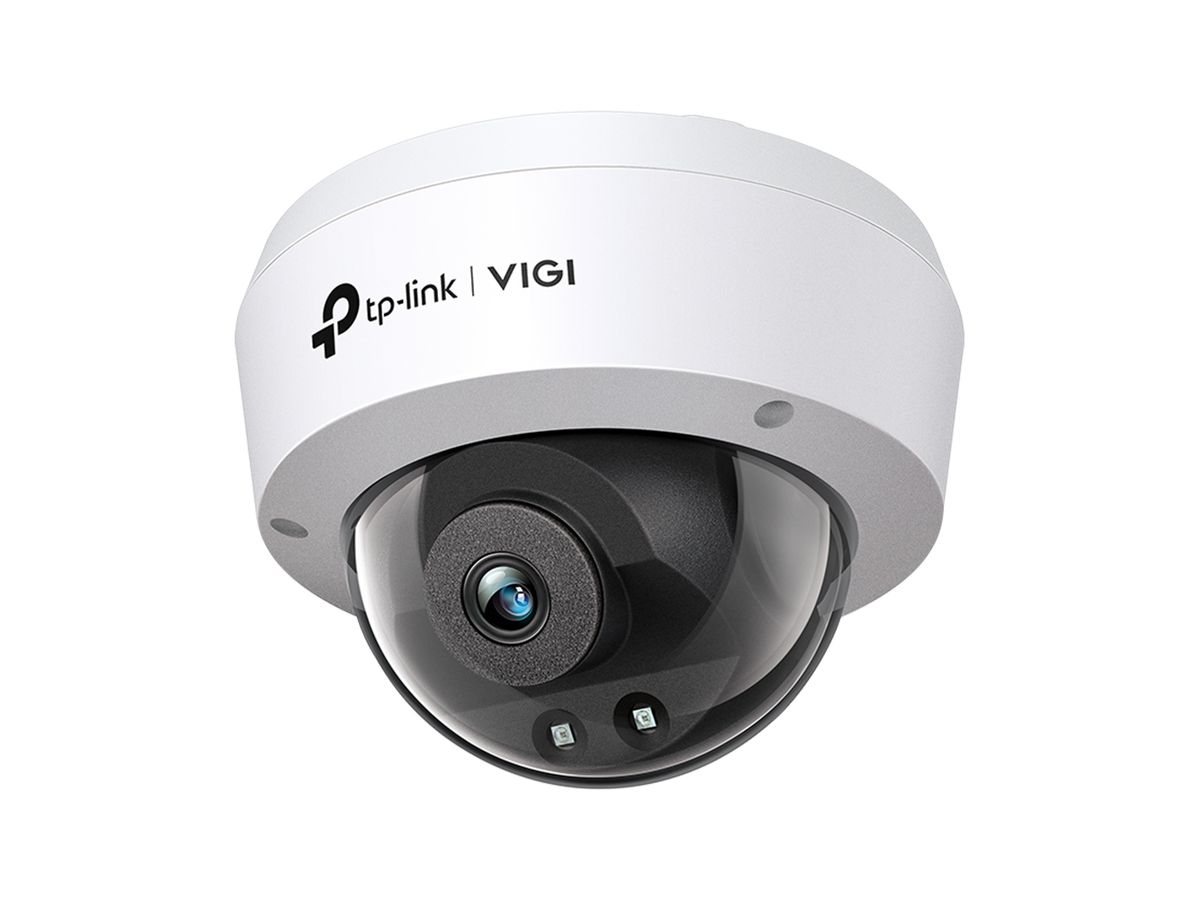

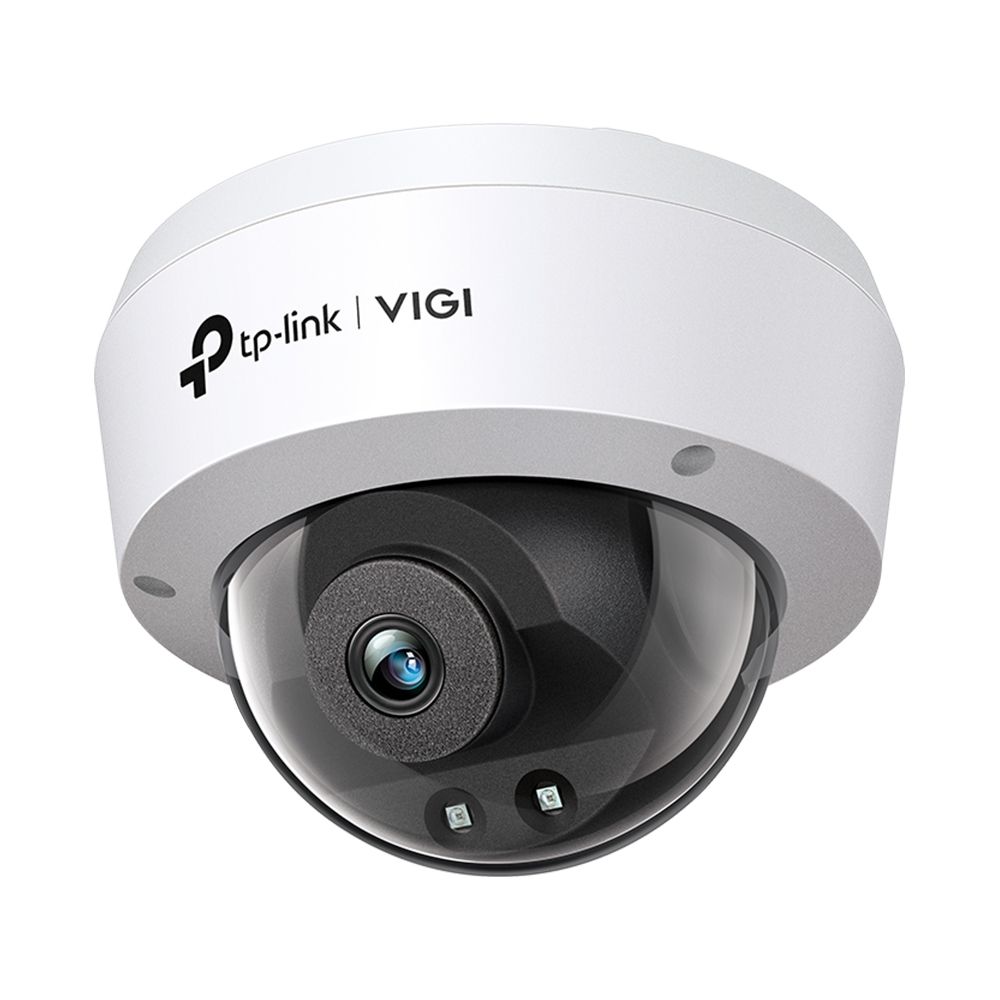

TP-Link VIGI 4MP IR Dome Network Camera
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 527868365 |
|---|---|
| Brand / Manufacturer | TP-LINK TECHNOLOGIES |
| Manuf. item no. | VIGI C240I(4MM) |
| EAN | 4897098688915 |
:strip_icc():strip_exif()/logos/tp-link-technologies.png "TP-LINK TECHNOLOGIES")
Description
TP-Link VIGI 4MP IR Dome Network Camera. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Lens viewing angle, horizontal: 75.1°, Lens viewing angle, vertical: 41.5°, Lens viewing angle, diagonal: 88.7°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Lens diameter: 4 mm
Looking for a higher resolution? It's right here.
4MP Super-High Definition
The VIGI C240I camera comes with 4MP—more than enough pixels to pick up some of the more discrete details.
Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.
We keep an eye on your business.
Smart Detection
Backed by AI algorithms, the VIGI camera offers more smart detection. You will receive notifications when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
IK10 Vandal-Proof & IP67 Waterproof
With vandal-resistant, rugged housing and waterproof design, this VIGI dome camera is built tough to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime.
More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Never miss a detail.
SmartVid-Smart Video Enhancement
VIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
Flexible Management
Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager.
Specifications
| Manufacturer | TP-LINK TECHNOLOGIES |
|---|---|
| Product type | Security Cameras |
Technical details
| Sustainability certificates | CE |
|---|---|
| Compliance certificates | CE |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
|---|
Lens system
| Number of lenses | 1 |
|---|---|
| Lens diameter | 4 mm |
Weight & dimensions
| Width | 115 mm |
|---|---|
| Depth | 115 mm |
| Height | 86 mm |
| Package width | 153 mm |
| Package depth | 193 mm |
| Package height | 120 mm |
| Package weight | 450 g |
Power
| Power source type | PoE |
|---|---|
| Power consumption (max) | 5 W |
Operational conditions
| Operating temperature (T-T) | -30 - 60 °C |
|---|
Network
| Ethernet LAN | Yes |
|---|---|
| Wi-Fi | No |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| Number of simultaneous live view channels | 3 channels |
Video
| Maximum resolution | 2560 x 1440 pixels |
|---|---|
| Total megapixels | 4 MP |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Supported graphics resolutions | 320 x 240, 352 x 288, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440 |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Noise reduction technology | 3D noise reduction |
| Image quality adjustment | Brightness, Contrast, Mirror, Saturation, Sharpness |
| Privacy masking | Yes |
| Bit rate | 64 Kbps - 4 Mbps |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
Storage
| Built-in HDD | No |
|---|
Security
| Password protection | Yes |
|---|---|
| Video motion detection | Yes |
| Active tampering alarm | Yes |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Intelligent Video Surveillance (IVS) system features | Abandoned object, Crossing line, Human detection, Intrusion, Region entrance detection, Region exiting detection, Vehicle detection |
| Mirror | Yes |
| Digest authentication | Yes |
Image sensor
| Sensor type | CMOS |
|---|---|
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
Management features
| Web-based management | Yes |
|---|---|
| Management software | VIGI App, VIGI Security Manager, VIGI NVR |
Camera
| Lens viewing angle, horizontal | 75.1° |
|---|---|
| Lens viewing angle, vertical | 41.5° |
| Lens viewing angle, diagonal | 88.7° |
Packaging content
| Number of cameras | 1 |
|---|---|
| Mounting kit | Yes |
Design
| Mounting type | Ceiling/wall |
|---|---|
| Product colour | Black, White |
| Form factor | Dome |
| Housing material | Plastic |
| International Protection (IP) code | IP67 |
| IK code | IK10 |
Night vision
| Night vision | Yes |
|---|---|
| Night vision distance | 30 m |
| LED type | IR |
| Number of illumination LEDs | 1 |
| Infra-red wavelength | 850 nm |
Performance
| Type | IP security camera |
|---|---|
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Certification | CE, BSMI, VCCI, ONVIF |
Features
| Basic event | Motion Detection, Camera Tampering Detection, Exception |
|---|
