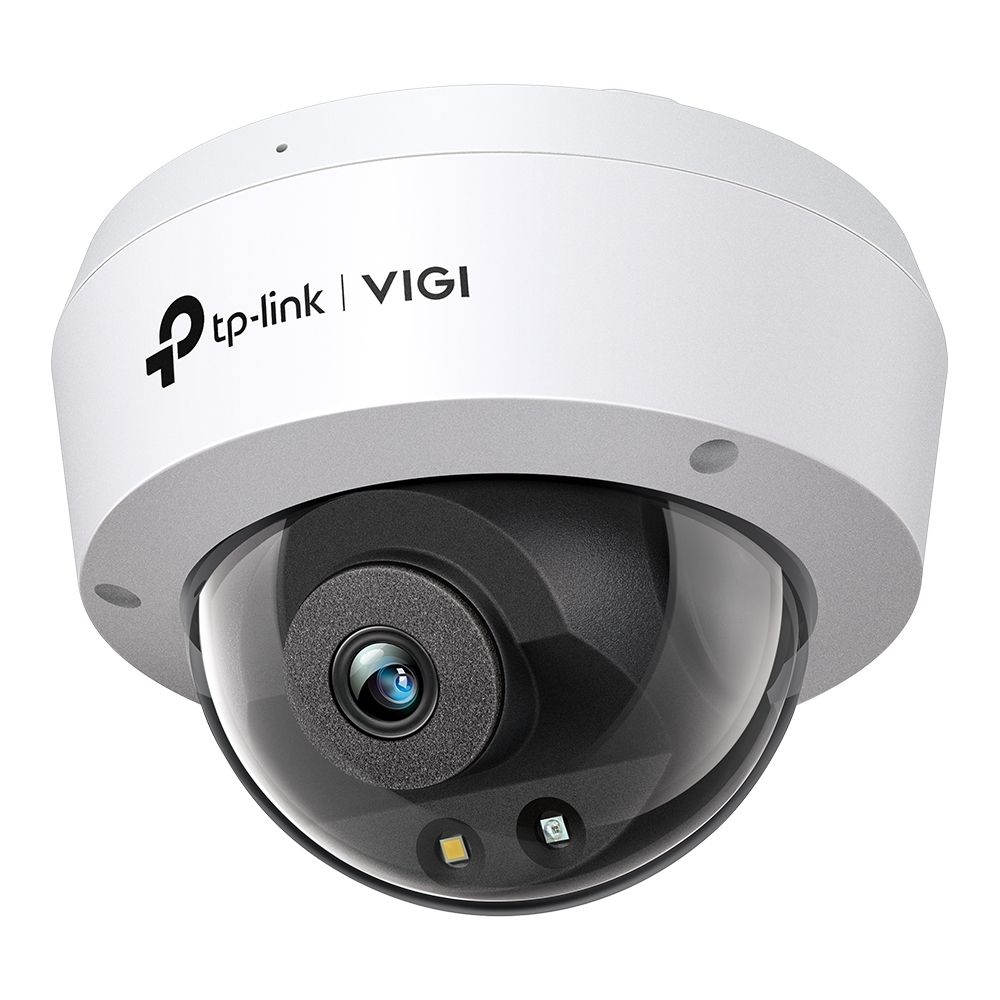

TP-Link VIGI 5MP Full-Color Dome Network Camera

TP-Link VIGI 5MP Full-Color Dome Network Camera

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Item no. 528031487
Brand / Manufacturer TP-LINK TECHNOLOGIES
Manuf. item no. VIGI C250(4MM)
EAN 4895252503050

Description

TP-Link VIGI 5MP Full-Color Dome Network Camera. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Black, Form factor: Dome. Minimum illumination: 0.005 lx, Field of view (FOV) angle: 107°, Lens viewing angle, horizontal: 90°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Detect distance: 80 m, Observe distance: 33 m, Recognize distance: 16 m

All The Colors, All The Time
5MP Full-Color Dome Network Camera


24/7 Stunning Visual Experience
5MP Super-High Definition

Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 5MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.

SmartVid-Smart Video Enhancement
VIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including WDR, 3D DNR, Smart IR, and Night Vision.

Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.

Comprehensive AI Detection with Pre-Set Rules Supported
By setting the detection rules in advance, VIGI AI-powered cameras can accurately capture various abnormal events. This will greatly reduce false alarms and cover your specified monitoring needs in different scenarios.

People & Vehicle Analytics
Quickly find people and vehicles of interest using a series of attributes.

People Analytics
Filter people of interest by various attributes, such as gender, hair length, and clothing, allowing you to improve search efficiency.

Vehicle Analytics
Identify and search for vehicles of interest based on vehicle color and type for targeting meaningful events in a short time.

No More Silent Surveillance
Built-In Microphone

The VIGI camera features a built-in microphone to record anything going on within a 15-ft radius of the camera. This gives you more detailed monitoring for greater peace of mind.

IK10 Vandal-Proof & IP67 Waterproof
With vandal-resistant, rugged housing and waterproof design, this VIGI dome camera is built tough to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime.

Smart Video Coding by H.265+
Compresses the video size without sacrificing video quality, easing the network load and saving disk space.

Flexible Storage
Local storage is available for each method, as well as onboard storage with an SD card slot (up to 256 GB).

PoE/12V DC
Two power supply ways not only give you more convenience but also make your wiring remarkably easy.

Flexible Installation
Easily route your camera’s cable into a dropped ceiling or avoid drilling by slotting it through the camera’s side outlet.

Remote Management
Take full control over your security anytime and anywhere on the VIGI app or client.

One system. Full security.
Run your business with peace of mind.

The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.

Specifications

Manufacturer TP-LINK TECHNOLOGIES
Product type Security Cameras
Audio
Sample rate 8 kHz
Signal-to-Noise Ratio (SNR) 52 dB
Built-in microphone Y
Voice codecs G.711
Ports & interfaces
Ethernet LAN (RJ-45) ports 1
DC-in jack Y
Lens system
Number of lenses 1
Detect distance 80 m
Observe distance 33 m
Recognize distance 16 m
Maximum aperture number 1.6
Identify distance 8 m
Fixed focal length 4 mm
Weight & dimensions
Height 85.7 mm
Diameter 11.5 cm
Weight 280 g
Package weight 470 g
Package type Box
Power
Power source type DC
Power consumption (typical) 1.5 W
Power consumption (max) 7 W
Operational conditions
Operating temperature (T-T) -30 - 60 °C
Storage temperature (T-T) -40 - 60 °C
Operating relative humidity (H-H) 0 - 95%
Storage relative humidity (H-H) 0 - 95%
Network
Ethernet LAN Y
Wi-Fi N
Bluetooth N
Ethernet interface type Fast Ethernet
Supported network protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Video
Maximum resolution 2880 x 1620 pixels
Total megapixels 5 MP
Video formats supported H.264, H.264+, H.265, H.265+
Supported graphics resolutions 1280 x 720 (HD 720), 2048 x 1280, 2304 x 1296, 2688 x 1520, 1920 x 1080 (HD 1080), 2880 x 1620
Supported video modes 1080p, 720p, 2560p, 2880p
Video recording Y
Frame rate 30 fps
Video streaming Y
Bit rate control Variable Bit Rate (VBR)
Bit rate 256 Kbps - 6 Mbps
Storage
Built-in HDD N
Compatible memory cards MicroSD (TransFlash)
Maximum memory card size 256 GB
Image sensor
Sensor type CMOS
Number of sensors 1
Optical sensor size 25.4 / 2.7 mm (1 / 2.7")
Management features
Reset button Y
Camera
Minimum illumination 0.005 lx
Field of view (FOV) angle 107°
Lens viewing angle, horizontal 90°
Lens viewing angle, vertical 48°
Lens viewing angle, diagonal 107°
Tilt angle range 0 - 85°
Pan range 0 - 360°
Camera shutter speed 1/3 - 1/10000 s
Packaging content
Number of cameras 1
Design
Mounting type Ceiling
Product colour White, Black
Form factor Dome
Housing material Plastic
International Protection (IP) code IP67
IK code IK10
Weatherproof Y
Night vision
Night vision Y
Night vision distance 30 m
Infra-red wavelength 850 nm
Performance
Type IP security camera
Placement supported Indoor & outdoor
Connectivity technology Wired
Day/night mode Y
Infrared (IR) cut-off filter Y
Dynamic range 120 dB
Certification CE, NTRA, VCCI, KC, BSMI, FCC, IC
