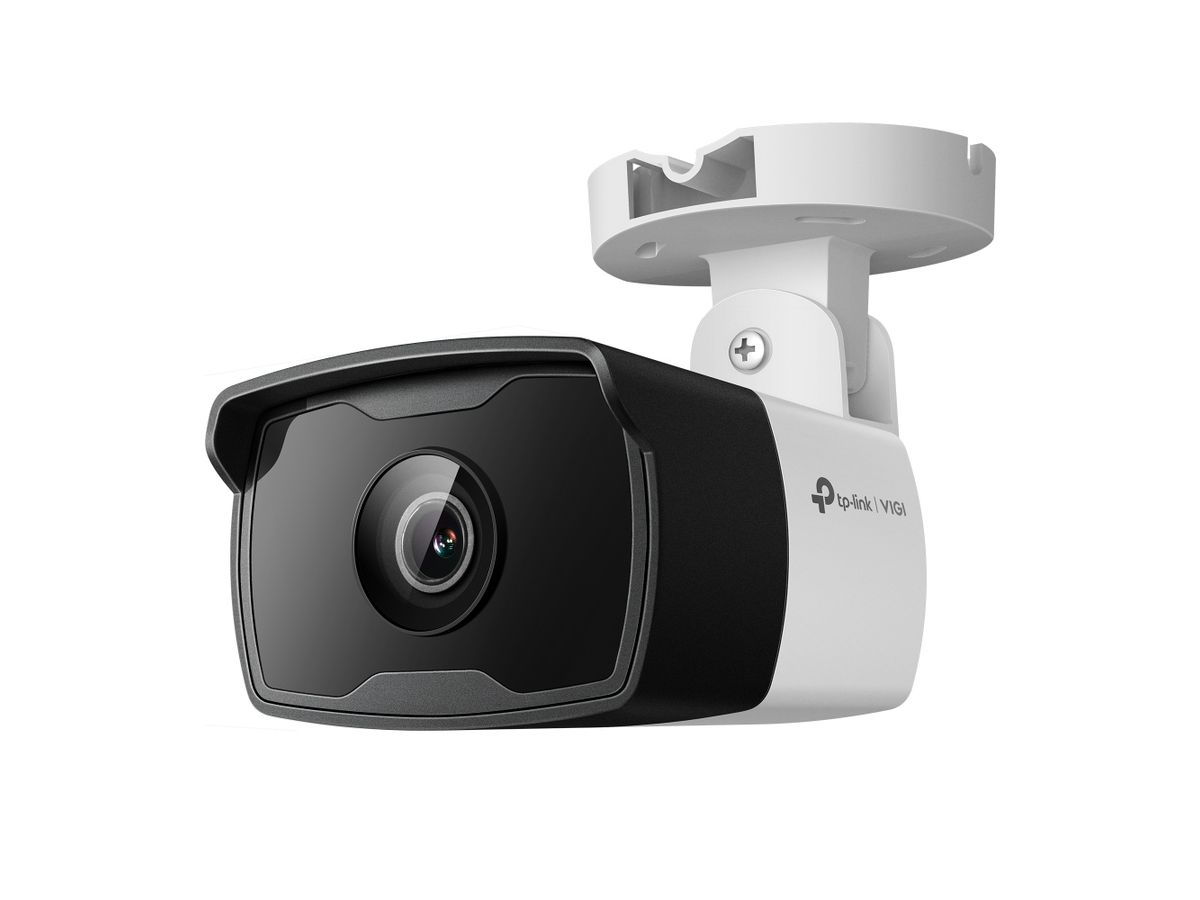

TP-Link VIGI C340I 4MM security camera Bullet IP security camera Outdoor 2560 x 1440 pixels Ceiling/Wall/Pole
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 527899676 |
|---|---|
| Brand / Manufacturer | TP-LINK TECHNOLOGIES |
| Manuf. item no. | VIGI C340I(4MM) |
| EAN | 4897098689004 |
:strip_icc():strip_exif()/logos/tp-link-technologies.png "TP-LINK TECHNOLOGIES")
Description
TP-Link VIGI C340I 4MM. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: Black, White, Form factor: Bullet. Minimum illumination: 0.01 lx, Lens viewing angle, horizontal: 75.1°, Lens viewing angle, vertical: 41.5°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Detect distance: 80 m, Observe distance: 33 m, Recognize distance: 16 m
Security Never Shuts Down
4MP Outdoor IR Bullet Network Camera
Looking for a higher resolution? It's right here.
4MP Super-High Definition
The VIGI C340I camera comes with 4MP—more than enough pixels to pick up some of the more discrete details.
Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications
We keep an eye on your business.
Smart Detection
Backed by AI algorithms, the VIGI camera offers more smart detection. You will receive notifications when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
Never miss a detail.
SmartVid-Smart Video Enhancement
VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
IP67 for Better Protection
Capable of withstanding temperatures from -30–60 °C (-22–140 °F), VIGI performs well even in harsh
environments with rain and dust.
Discover the best way to power your camera.
PoE/12V DC
Two power supply ways not only give you more convenience but also make your wiring remarkably easy.
Choose the right lens for your security.
2.8/4/6 mm lens
Whether you need a wide angle lens to cover enclosed spaces like elevators or a higher millimeter lens for longer distances in open spaces like parking lots, C340I comes with three different lens versions to better suit your security needs.
Flexible Installation
Find the perfect vantage point by simply securing your camera to ceiling, pole or wall.
Flexible Management
Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager.
One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
Specifications
| Manufacturer | TP-LINK TECHNOLOGIES |
|---|---|
| Product type | Security Cameras |
Technical details
| Sustainability compliance | Yes |
|---|---|
| Sustainability certificates | BSMI, CE, EAC, Federal Communications Commission (FCC), UKCA |
Audio
| Signal-to-Noise Ratio (SNR) | 52 dB |
|---|
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
|---|---|
| DC-in jack | Yes |
Lens system
| Number of lenses | 1 |
|---|---|
| Detect distance | 80 m |
| Observe distance | 33 m |
| Recognize distance | 16 m |
| Maximum aperture number | 2 |
| Identify distance | 8 m |
| Fixed focal length | 4 mm |
Weight & dimensions
| Width | 73 mm |
|---|---|
| Height | 71 mm |
| Length | 174 mm |
| Weight | 200 g |
| Package weight | 350 g |
| Package type | Box |
Power
| Power source type | DC, PoE |
|---|---|
| Power consumption (typical) | 1.32 W |
| Power consumption (max) | 5 W |
| DC output voltage | 12 |
Operational conditions
| Operating temperature (T-T) | -30 - 60 °C |
|---|---|
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Network
| Ethernet LAN | Yes |
|---|---|
| Wi-Fi | No |
| Bluetooth | No |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| Number of simultaneous live view channels | 3 channels |
Video
| Maximum resolution | 2560 x 1440 pixels |
|---|---|
| Total megapixels | 4 MP |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Supported graphics resolutions | 320 x 240, 352 x 288, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440 |
| Supported video modes | 240p, 480p, 720p, 1080p, 1280p, 1440p |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Image quality adjustment | Brightness, Contrast, Mirror, Saturation, Sharpness |
| Privacy masking | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bit rate | 256 Kbps - 4 Mbps |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Region of Interest (ROI) encoding | Yes |
| Smart IR | Yes |
| 3D positioning | Yes |
Security
| Password protection | Yes |
|---|---|
| Video motion detection | Yes |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Intelligent Video Surveillance (IVS) system features | Region entrance detection, Vehicle detection, Region exiting detection, Crossing line |
| Mirror | Yes |
| Password reset via email | Yes |
| Human and vehicle targets classification | Yes |
| Digest authentication | Yes |
| Network access storage (NAS) | Yes |
Image sensor
| Sensor type | CMOS |
|---|---|
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Progressive scan | Yes |
Management features
| Web browser | Yes |
|---|---|
| Behavior analysis | Intrusion detection, Line crossing detection, Object removal detection, Region entrance detection, Region exiting detection |
Camera
| Minimum illumination | 0.01 lx |
|---|---|
| Lens viewing angle, horizontal | 75.1° |
| Lens viewing angle, vertical | 41.5° |
| Lens viewing angle, diagonal | 88.7° |
| Tilt angle range | -90 - 90° |
| Pan range | -90 - 90° |
| Camera shutter speed | 1/3 - 1/10000 s |
| Number of Privacy masking areas | 4 |
Packaging content
| Number of cameras | 1 |
|---|---|
| Mounting kit | Yes |
| Manual | Yes |
Design
| Mounting type | Ceiling/Wall/Pole |
|---|---|
| Product colour | Black, White |
| Form factor | Bullet |
| Housing material | Plastic |
| International Protection (IP) code | IP67 |
Night vision
| Night vision | Yes |
|---|---|
| Night vision distance | 30 m |
| LED type | IR |
| Number of illumination LEDs | 2 |
| Infra-red wavelength | 850 nm |
Performance
| Type | IP security camera |
|---|---|
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
