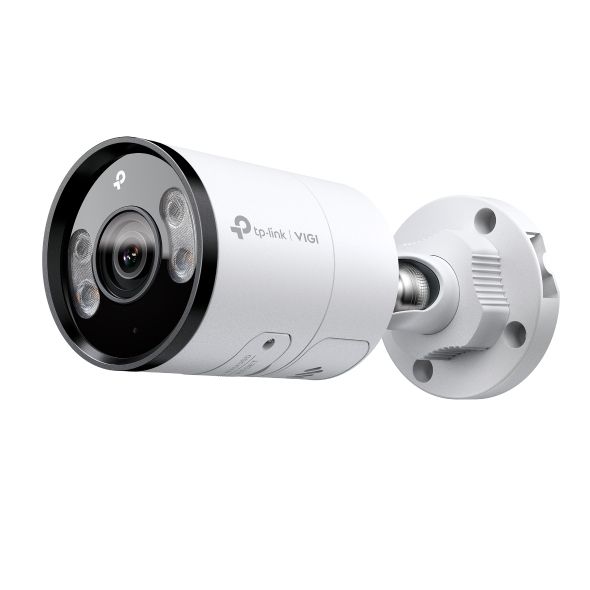

TP-Link VIGI C355 Bullet IP security camera Outdoor 2880 x 1620 pixels Wall
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
LoginDescription
TP-Link VIGI C355. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Form factor: Bullet. Minimum illumination: 0.0005 lx, Lens viewing angle, horizontal: 88°, Lens viewing angle, vertical: 46°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.2 mm (1 / 1.2"). Detect distance: 80 m, Observe distance: 33 m, Recognize distance: 16 m
People & Vehicle Analytics
Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.
Human & Vehicle Classification
Distinguish humans and vehicles from other objects and receive more accurate event notifications.
Smart Video Enhancement Technology
- True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.△
- Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.
- 3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.
- White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.
Specifications
Manufacturer | TP-LINK TECHNOLOGIES |
---|---|
Product type | Security Cameras |
Audio
Built-in speaker(s) | Yes |
---|---|
Sample rate | 8 kHz |
Signal-to-Noise Ratio (SNR) | 52 dB |
Built-in microphone | Yes |
Bit rate range | 256 - 6000 Kbit/s |
Ports & interfaces
Ethernet LAN (RJ-45) ports | 1 |
---|---|
DC-in jack | Yes |
Lens system
Number of lenses | 1 |
---|---|
Detect distance | 80 m |
Observe distance | 33 m |
Recognize distance | 16 m |
Lens diameter | 4 mm |
Focal length range | 4 mm |
Maximum aperture number | 1.6 |
Identify distance | 8 m |
Minimum aperture number | 1.6 |
Fixed focal length | 4 mm |
Weight & dimensions
Width | 184 mm |
---|---|
Depth | 74 mm |
Height | 74 mm |
Weight | 525 g |
Power
Power source type | DC, PoE |
---|---|
Power consumption (max) | 10.1 W |
Operational conditions
Operating temperature (T-T) | -30 - 60 °C |
---|---|
Storage temperature (T-T) | -40 - 60 °C |
Operating relative humidity (H-H) | 0 - 95% |
Storage relative humidity (H-H) | 0 - 95% |
Network
Ethernet LAN | Yes |
---|---|
Ethernet interface type | Fast Ethernet |
Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
Video
Maximum resolution | 2880 x 1620 pixels |
---|---|
Total megapixels | 5 MP |
Video compression formats | H.264, H.264+, H.265, H.265+ |
Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2688 x 1520, 2880 x 1620 |
Frame rate | 60 fps |
Noise reduction | Yes |
Noise reduction technology | 3D noise reduction |
Bit rate control | Constant Bit Rate (CBR), Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
Bit rate | 6 Mbps |
Region of Interest (ROI) encoding | Yes |
Smart IR | Yes |
Security
Password protection | Yes |
---|---|
IP address filtering | Yes |
Privacy protection | Yes |
Digest authentication | Yes |
Image sensor
Sensor type | CMOS |
---|---|
Optical sensor size | 25.4 / 1.2 mm (1 / 1.2") |
Camera
Camera pan control | Yes |
---|---|
Camera tilt control | Yes |
Minimum illumination | 0.0005 lx |
Lens viewing angle, horizontal | 88° |
Lens viewing angle, vertical | 46° |
Lens viewing angle, diagonal | 105.4° |
Tilt angle range | -90 - 90° |
Pan range | 0 - 360° |
Camera shutter speed | 1/10000 s |
Number of Privacy masking areas | 4 |
Packaging content
Number of cameras | 1 |
---|
Design
Mounting type | Wall |
---|---|
Product colour | White |
Form factor | Bullet |
Housing material | Metal, Plastic |
International Protection (IP) code | IP67 |
Night vision
Night vision | Yes |
---|---|
Night vision distance | 30 m |
LED type | IR/White |
Number of illumination LEDs | 4 |
Infra-red wavelength | 850 nm |
Performance
Type | IP security camera |
---|---|
Placement supported | Outdoor |
Connectivity technology | Wired |
Wide Dynamic Range (WDR) | Yes |
Day/night mode | Yes |
Infrared (IR) cut-off filter | Yes |
Dynamic range | 120 dB |
