TRENDnet TEG-10GBS10 10GBASE-LR SFP+, Single Mode LC (10KM with DDM)

TRENDnet TEG-10GBS10 10GBASE-LR SFP+, Single Mode LC (10KM with DDM)

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Item no. 21221087
Brand / Manufacturer TRENDNET
Manuf. item no. TEG-10GBS10
EAN 710931140187
Item weight 0.068 kg
TRENDNET

Description

Im laufenden Betrieb austauschbarer SFP+ Transceiver - SFP+ MSA konform - Unterstützt Durchsatz bis zu 10,5 Gbps

Der im laufenden Betrieb austauschbare TEG-10GBS10 von TRENDnet, ein 10GBASE-LR SFP+ Single-Mode LC Modul, funktioniert mit einem MSA-kompatiblen SFP+ Slot. Dieser Monomode-Transceiver überbrückt Entfernungen bis zu 10 km (6,2 Meilen), enthält einen LC-Duplex-Steckverbinder und unterstützt bis zu 10,5 Gbps Netzwerkdurchsatzgeschwindigkeit. Über Digital Diagnostics Monitoring (DDM) werden wichtige Geräteparameter wie Übermittlungs-/Empfangsleistung, Temperatur und Spannung aufgezeichnet.

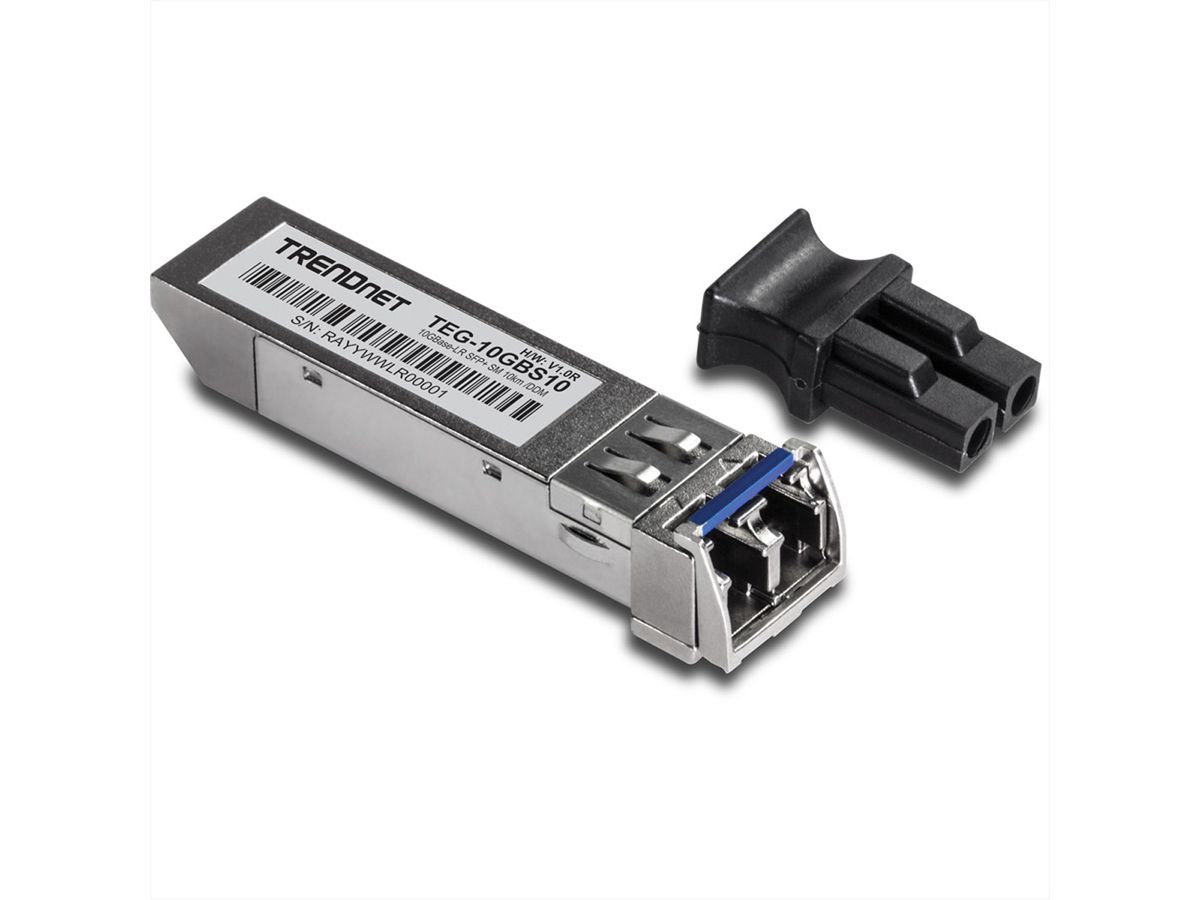

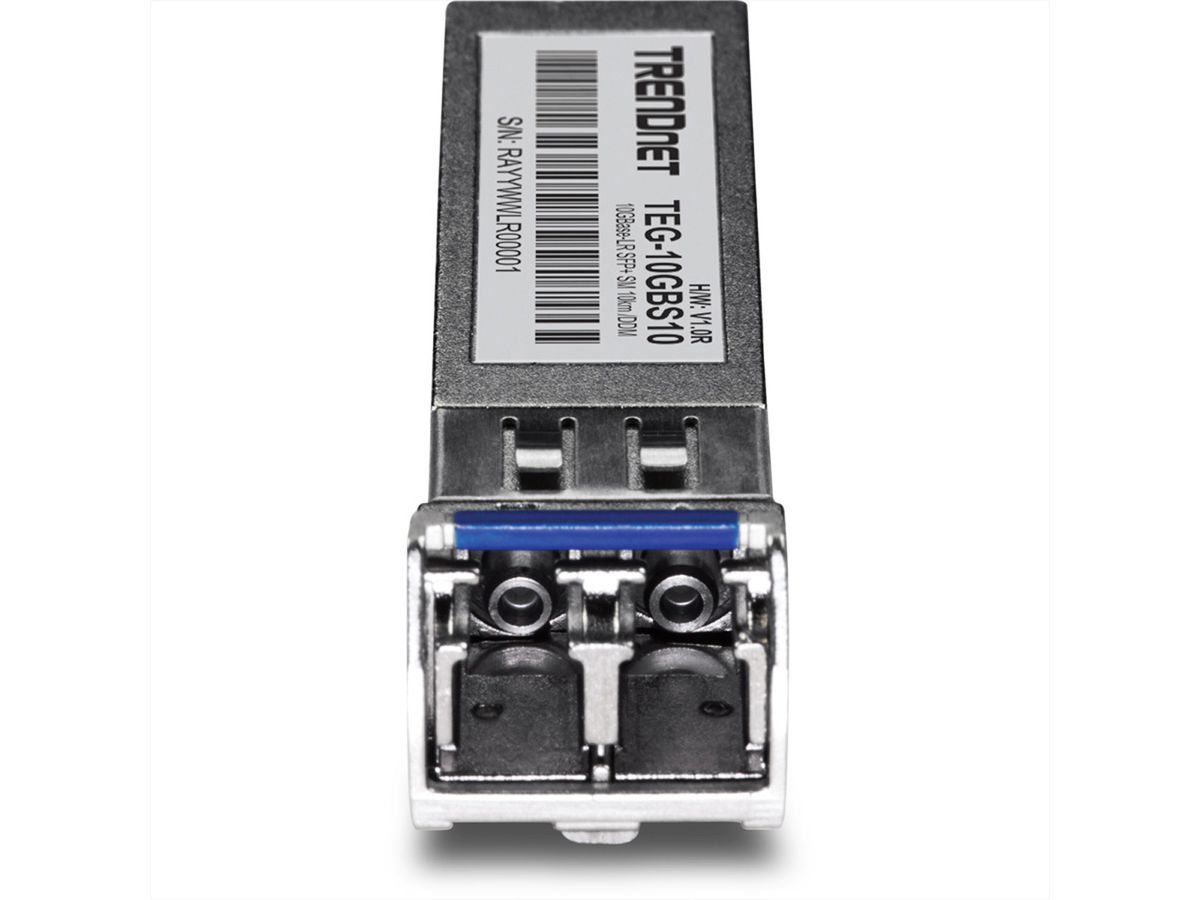

TRENDnet’s hot-pluggable TEG-10GBS10, 10GBASE-LR SFP+ Single Mode LC Module, works with a MSA compliant SFP+ slot. This Single Mode transceiver spans distances up to 10 km (6.2 miles), comes with a LC duplex connector, and supports up to 10.5 Gbps networking throughput speeds. Digital Diagnostics Monitoring (DDM) captures critical device parameters such as transmit/receive power, temperature, and voltage. Hot-Pluggable SFP+ Hot-pluggable SFP+ transceiver works with a MSA compliant SFP+ slot Fiber Wavelength Compatible with Single Mode 1310 nm transmissions Fiber Distance Supports networking for distances up to 10 km (6.2 miles) Fiber Port LC-type duplex connector DDM Support Digital Diagnostics Monitoring (DDM) captures critical device parameters such as transmit/receive power, temperature, and voltage Power Supply Single 3.3 volt power supply Operating Temperature Rated for an operating temperature range of 0 to 70 °C (32 to 158 °F) Standards Compliant with SFF-8431, SFF-8432, SFF-8472, 10G FC Rev 4.0, FC-PI-4 Rev 7.0, and IEEE802.3ae 10GBASE-LR/LW

Specifications

Manufacturer TRENDNET
Product group Netzwerkkomponenten
Product type SFP-GBIC-Modul
Colour grey
Scope of delivery TEG-10GBS10
Height 12 mm
Width 57 mm
Depth 15 mm
Weight 23.27 g
Height of packaging (single piece) 50 mm
Width of packaging (single piece) 80 mm
Depth of packaging (single piece) 140 mm
Package weight (single piece) 0.068 kg
Weight & dimensions
Width 14.8 mm
Depth 56.5 mm
Height 11.8 mm
Weight 22 g
Power
Power consumption (typical) 0.522 W
Operational conditions
Operating temperature (T-T) 0 - 70 °C
Operating relative humidity (H-H) 0 - 95%
Performance
SFP transceiver type Fiber optic
Maximum data transfer rate 10000 Mbit/s
Interface type SFP+
Single-mode fiber (SMF) supported Y
SFP transceiver standard SR
Fiber optic connector LC
Maximum transfer distance 10000 m
Wavelength 1310 nm
Networking standards IEEE 802.3ae
Fiber ports quantity 1
Features
Hot-Plug support Y
Certification CE, FCC
