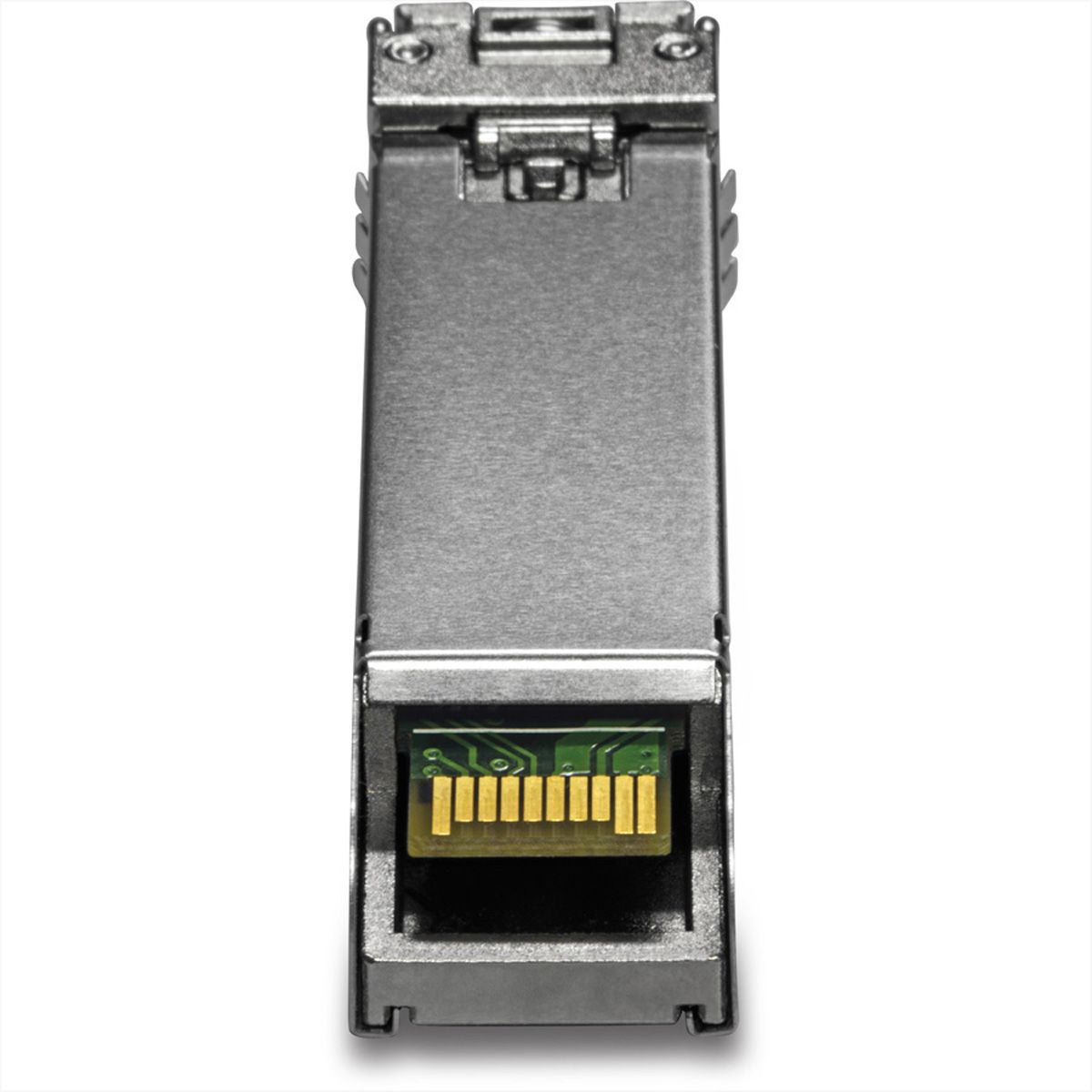

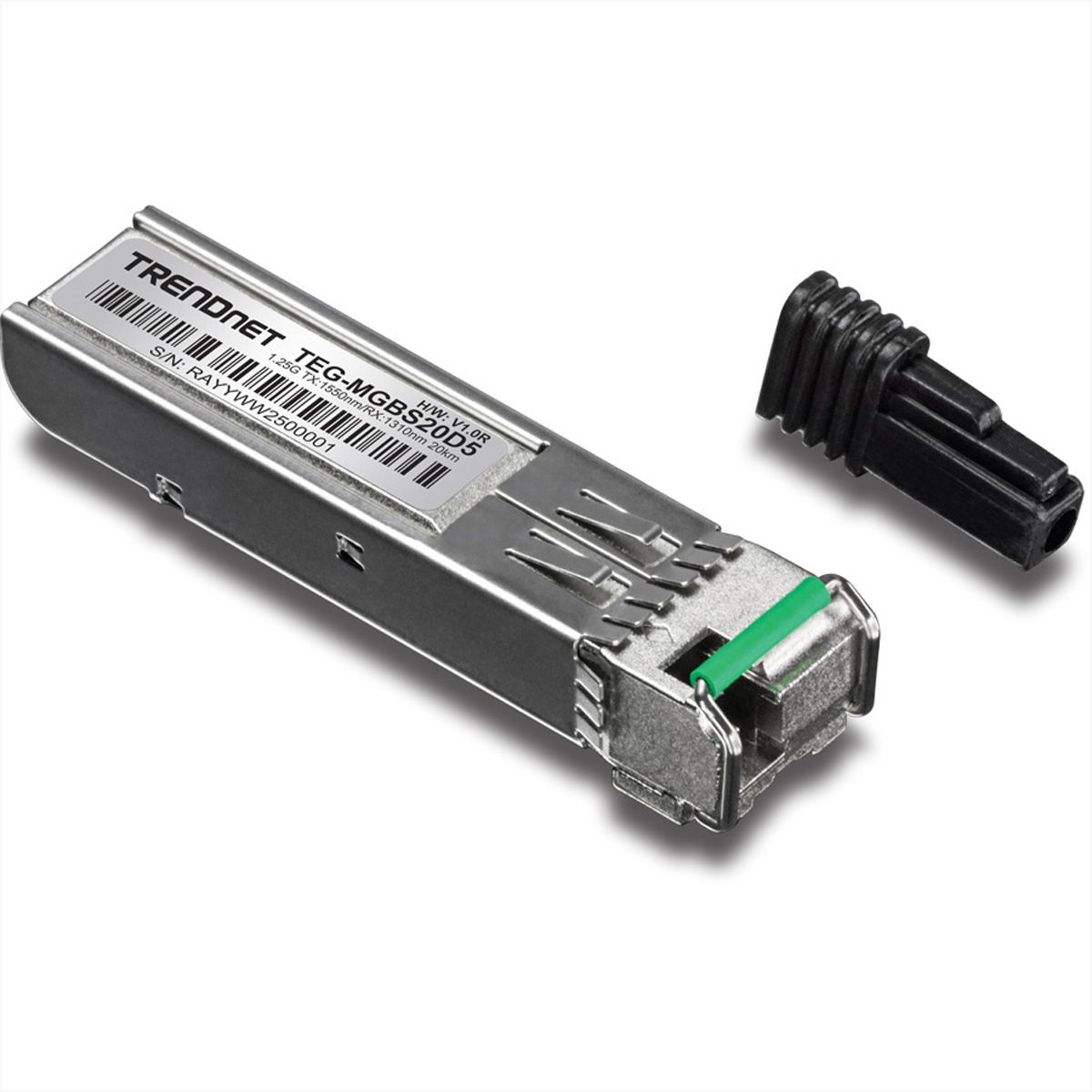

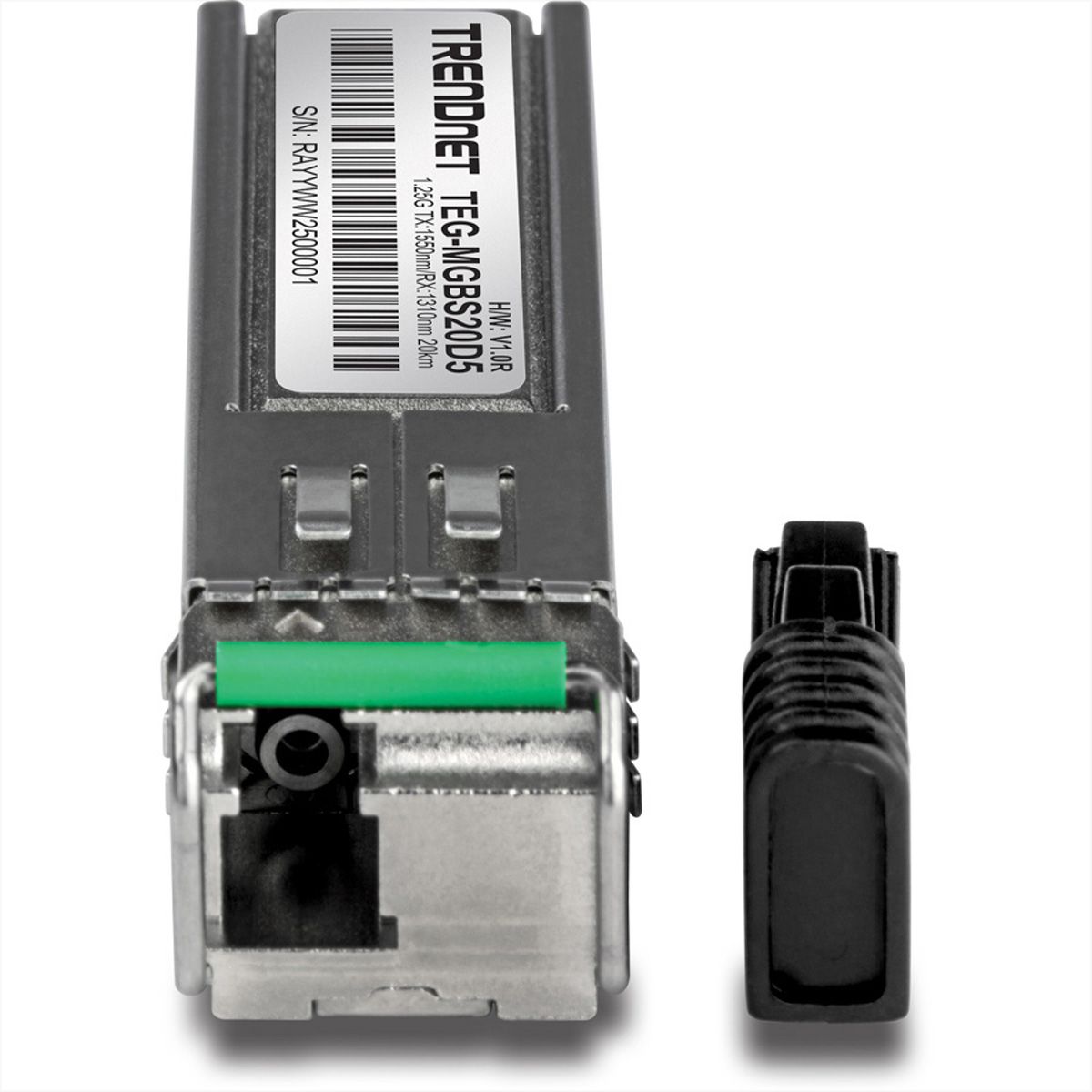

TRENDnet TEG-MGBS20D5 Mini-GBIC, Dual Wavelength Single-Mode LC 1550 20KM

TRENDnet TEG-MGBS20D5 Mini-GBIC, Dual Wavelength Single-Mode LC 1550 20KM

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Deliverable approx. 12/06/2024
Item no. 21221083
Brand / Manufacturer TRENDNET
Manuf. item no. TEG-MGBS20D5
EAN 710931502022
Item weight 0.07 kg

Description

mit TEG-MGBS20D3 oder kompatiblen Modul verwenden - LC-Simplex (Einzelstrang) Steckertyp - Bi-Direktionales (WDM) SFP-Modul

Der TEG-MGBS20D5 von TRENDnet schafft in Kombination mit dem TEG-MGBS20D3 eine Einzelstrang-Langstrecken-Glasfaserlösung mit einer
Reichweite von bis zu 20 km (12,4 Meilen). Mit dieser Alternative können Sie Ihre bestehende Zweistrang-Glasfaserverbindung erweitern und daraus
zwei separate Einzelstrang-Glasfaserverbindungen schaffen. Die SFP-Schnittstelle ist kompatibel mit Standard-SFP-Slots und verfügt über eine
1000BASE-LX SFP-Schnittstelle.

SFP Dual Wavelength Single-Mode LC Module

The hot-pluggable TEG-MGBS20D5 must be paired with the TEG-MGBS20D3 or other compatible module. This SFP Dual Wavelength Single Mode LC Type module spans distances of up to 20 kilometers (12.4 miles). The SFP interface is compatible with standard SFP slots and supports a 1000 Mbps-LX interface.

- Must pair with TEG-MGBS20D3 or other compatible module
- Compliant with IEEE 802.3z Gigabit Ethernet
- ANSI Fiber Channel compliant
- Compliant with Small Form-Factor Pluggable (SFP) Multi-Source Agreement (MSA) ports
- Supports data rate of up to 1.25 Gbps
- Transmission distance of up to 20 km (12.4 miles)
- Metal Enclosure with low Electromagnetic Interference (EMI) design
- Simplex LC optical interface
- Hot pluggable
- Low power consumption

Specifications

Manufacturer TRENDNET
Product group Netzwerkkomponenten
Product type Netzwerk-Transceiver-Module
Colour grey
Scope of delivery TEG-MGBS20D5
Height 12 mm
Width 57 mm
Depth 13 mm
Weight 19.3 g
Height of packaging (single piece) 50 mm
Width of packaging (single piece) 70 mm
Depth of packaging (single piece) 140 mm
Package weight (single piece) 0.07 kg
Weight & dimensions
Width 57 mm
Depth 13 mm
Height 12 mm
Weight 18 g
Operational conditions
Operating temperature (T-T) 0 - 70 °C
Storage temperature (T-T) -40 - 85 °C
Certificates
Compliance certificates RoHS
Certification CE, FCC
Packaging content
Quantity per pack 1 pc(s)
Performance
SFP transceiver type Fiber optic
Maximum data transfer rate 1000 Mbit/s
Interface type SFP
Single-mode fiber (SMF) supported Yes
Fiber optic connector LC
SFP transceiver standard LX
Maximum transfer distance 20000 m
Tx wavelength (max) 1550 nm
Rx wavelength (max) 1310 nm
Tx power (min) -9 dBmW
Tx power (max) -3 dBmW
Rx power (min) -23 dBmW
Rx power (max) -3 dBmW
Link budget -14 dB
Networking standards IEEE 802.3z
Cabling technology 1000BASE-LX
Fiber ports quantity 1
Features
Product colour Stainless steel
Housing material Metal
Hot-Plug support Yes
Logistics data
Harmonized System (HS) code 85369010
