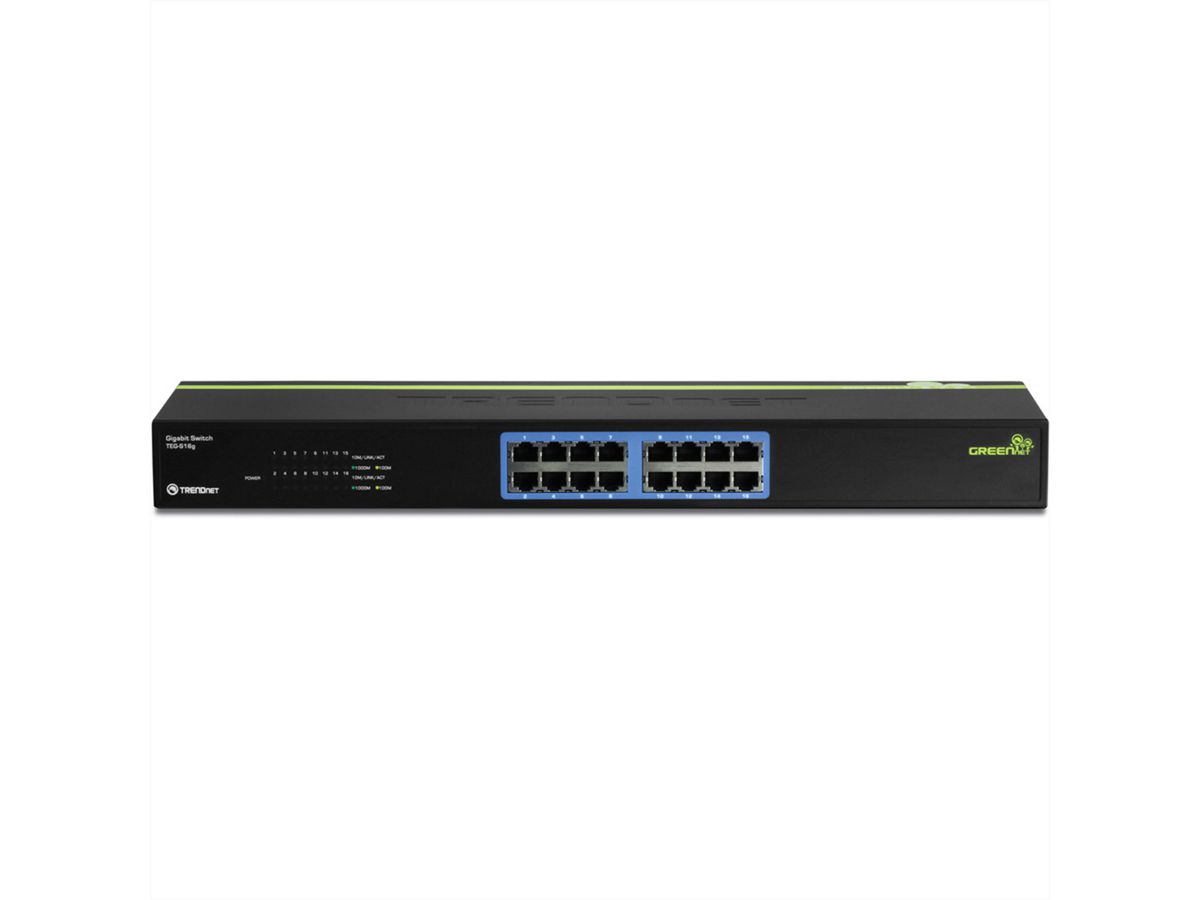

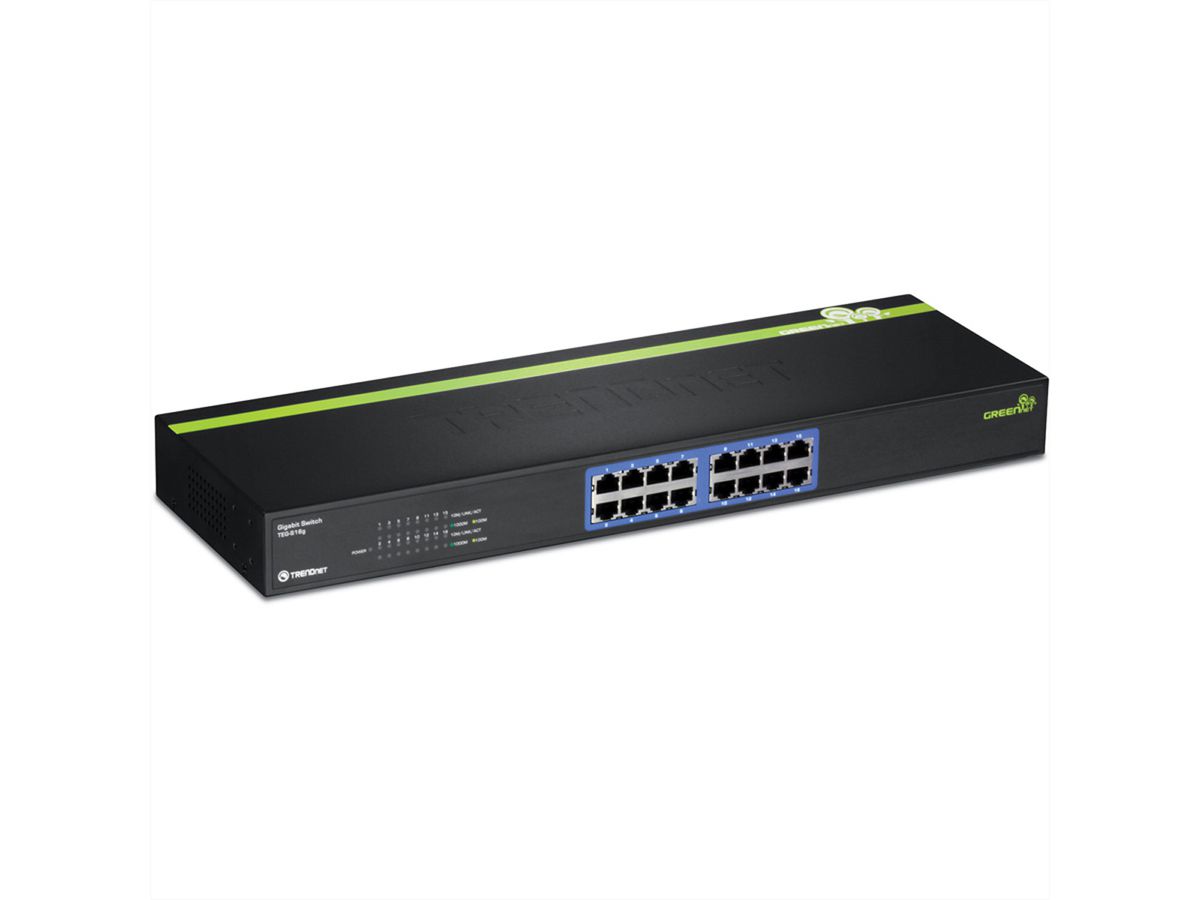

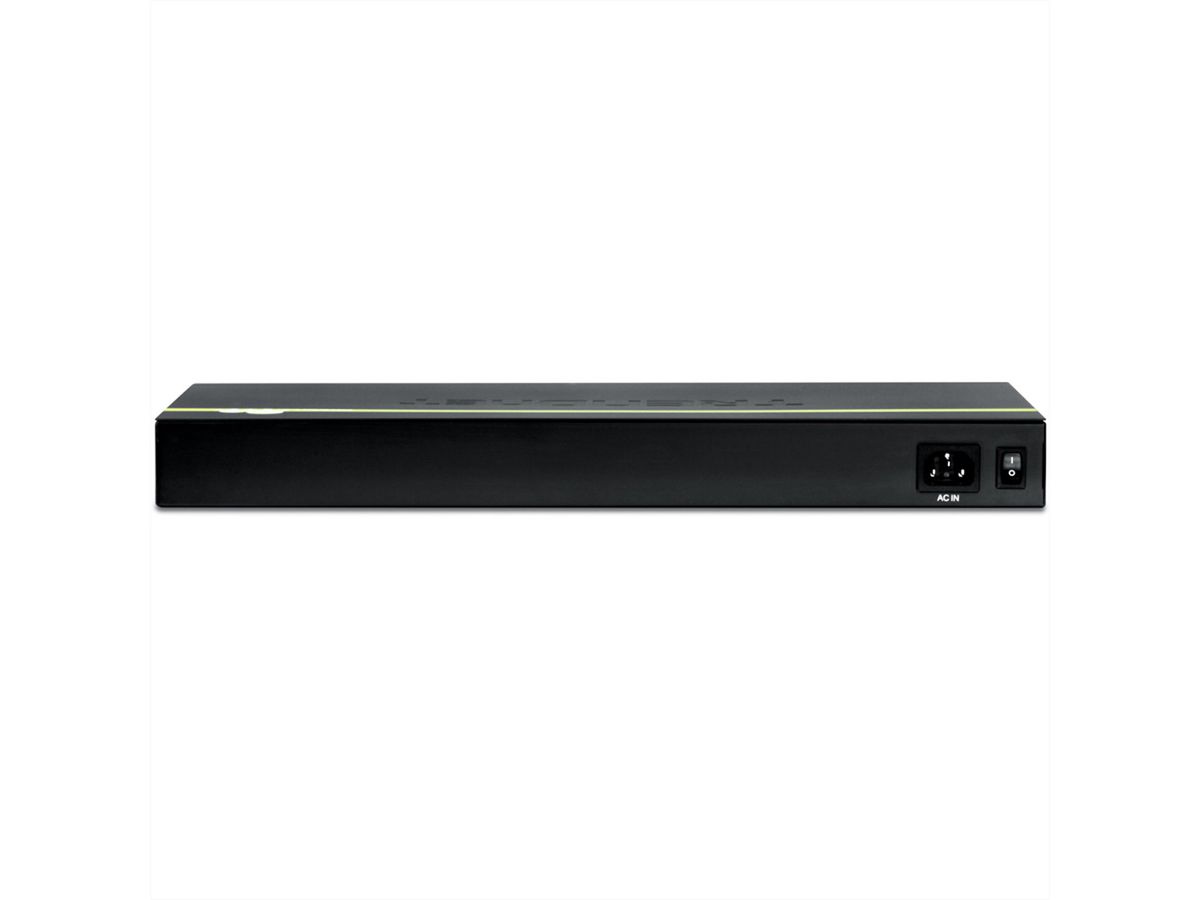

TRENDnet TEG-S16G Netzwerk Switch

TRENDnet TEG-S16G Netzwerk Switch

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Item no. 21221051
Brand / Manufacturer TRENDNET
Manuf. item no. TEG-S16g
EAN 710931610239
Item weight 2.538 kg
TRENDNET

Description

16-facher GREENnet-Gigabit-Switch

GREENnet-Technologie reduziert Stromverbrauch um bis zu 70%*
16 x Auto-MDIX Gigabit RJ-45-Ports
Robuster Umschalter aus Metall mit integriertem Netzteil zum Einbau in Gestell
Weiterleitungsrate von 32 GBit/s
Limited Lifetime Warranty*

Der kompakte 16-fache GREENnet-Gigabit-Switch (TEG-S16G) zeichnet sich durch eine hohe Bandbreite, Leistungsfähigkeit, Benutzerfreundlichkeit und Zuverlässigkeit aus und reduziert den Stromverbrauch um bis zu 70%. Die GREENnet-Technologie regelt die Spannung automatisch nach Bedarf, so dass erhebliche Mengen an Energie gespart werden können. Die integrierte GREENnet-Technologie ist sofort funktionsfähig und braucht nicht erst eingerichtet zu werden.
Mit Hilfe der Gigabit-Geschwindigkeit und einer Umschaltrate von 32 GBit/s im Vollduplexmodus können Sie die Effizienz Ihres Büros erheblich steigern und alle Engstellen im Netzwerk beseitigen. Das integrierte Netzteil reduziert den Kabelbedarf und die Diagnose-LEDs helfen bei Behebung von Netzwerkproblemen. Dieser aus Metall bestehende, robuste Umschalter lässt sich per Plug&Play installieren und bietet sofort eine zuverlässige Netzwerkverbindung in hoher Geschwindigkeit.

- GREENnet technology reduces power consumption by up to 70% - 16 x Gigabit Auto-MDIX RJ-45 ports - Sturdy rackmount metal switch with built in power supply - 32Gbps forwarding capacity The 16-Port Gigabit GREENnet Switch, model TEG-S16g, provides high bandwidth performance, ease of use, and reliability, all while reducing power consumption by up to 70%*. GREENnet technology automatically adjusts power voltage as needed, resulting in substantial energy savings. Embedded GREENnet technology works right out of the box with no management requirement. Boost office network efficiency and eliminate network congestion with Gigabit speeds and a total switching capacity of 32Gbps with Full-Duplex mode. A built in universal power supply reduces cable clutter and diagnostic LEDs help with network troubleshooting. Plug and Play this sturdy metal switch for reliable high-speed network connectivity.

Specifications

Manufacturer TRENDNET
Product group Netzwerk-Switches
Product type Gigabit Ethernet Switch
Colour black
Scope of delivery TEG-S16g, beknopte installatiegids, voedingskabel (1,8 m / 6 ft.), rackmontagekit
Network standard Gigabit Ethernet
LAN (Mbps) 10/100/1000
Quantity of ports 16
Fast Ethernet Ports RJ-45 16
Gigabit Ethernet Ports RJ-45 16
Power supply unit (internal/external) intern
Mains connection Kaltgeräte-Anschluss
Height 44 mm
Width 440 mm
Depth 140 mm
Weight 1.8 kg
Height of packaging (single piece) 100 mm
Width of packaging (single piece) 570 mm
Depth of packaging (single piece) 220 mm
Package weight (single piece) 2.538 kg
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 16
Weight & dimensions
Weight 1.6 kg
Power
Power consumption (typical) 7.2 W
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -10 - 70 °C
Protocols
Supported network protocols CSMA /CD, Star
Networking
Networking standards IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x
10G support N
Full duplex Y
Flow control support Y
Auto MDI/MDI-X Y
Data transmission
MAC address table 8000 entries
Switching capacity 32 Gbit/s
Supported data transfer rates 10, 20, 100, 200, 2000
Maximum data transfer rate 2 Gbit/s
Jumbo frames support Y
Management features
Switch type Unmanaged
Other features
Dimensions (WxDxH) 440 x 140 x 45 mm
Connectivity technology Wired
Input frequency 50-60 Hz
Input voltage 10-240 V
Non-operating relative humidity (non-condensing) 0 - 90%
Design
Stackable N
Product colour Black
LED indicators Y
Housing material Metal
Power over Ethernet (PoE)
Power over Ethernet (PoE) N

Downloads

Manufacturer data sheet - Deutsch (1.7 MB)

Download
