TRENDnet TI-PG541 5-Port gehärteter industrieller Gigabit PoE+ Switch DIN-Rail

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Item no.	21221191
Brand / Manufacturer	TRENDNET
Manuf. item no.	TI-PG541
EAN	710931160246
Item weight	0.878 kg

Description

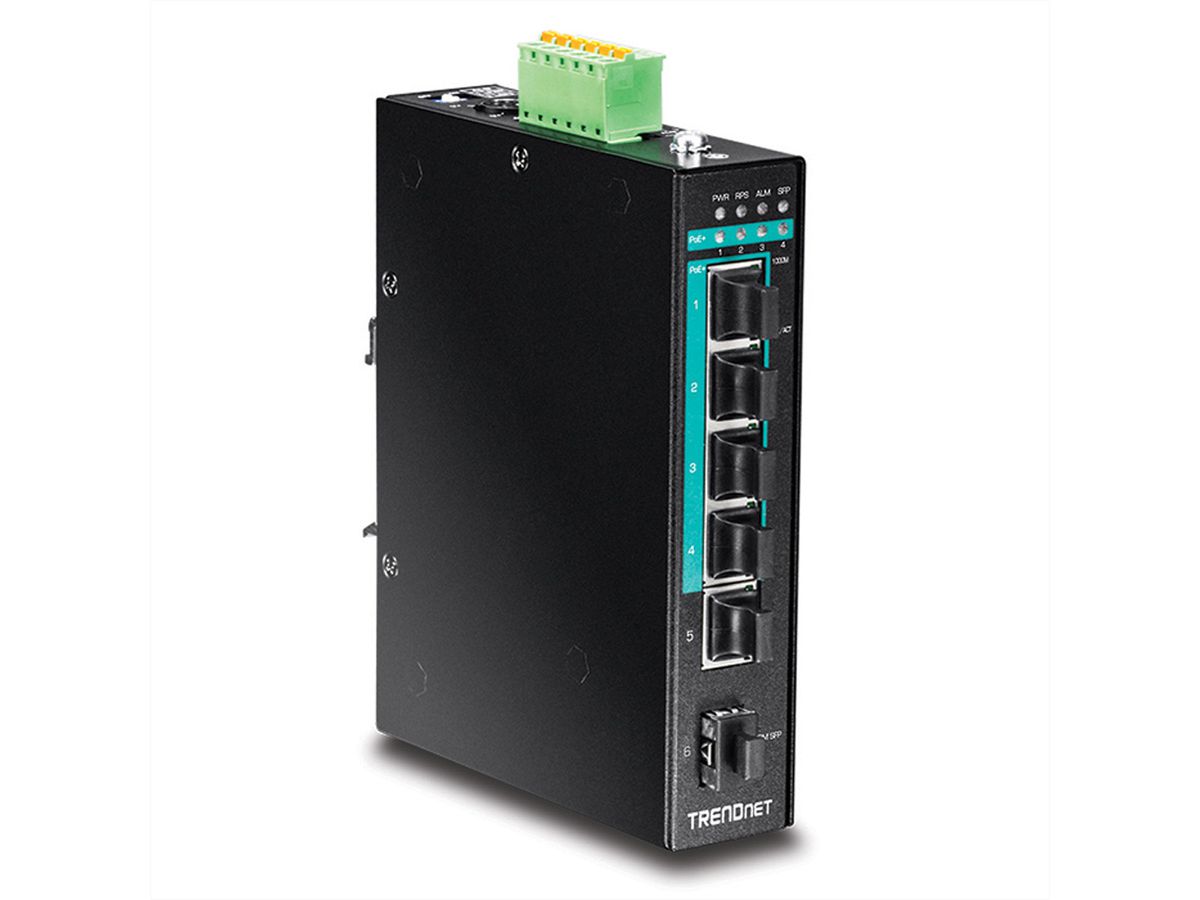

Trendnet TI-PG541 5-Port gehärteter industrieller Gigabit PoE+ Switch mit DIN-Rail

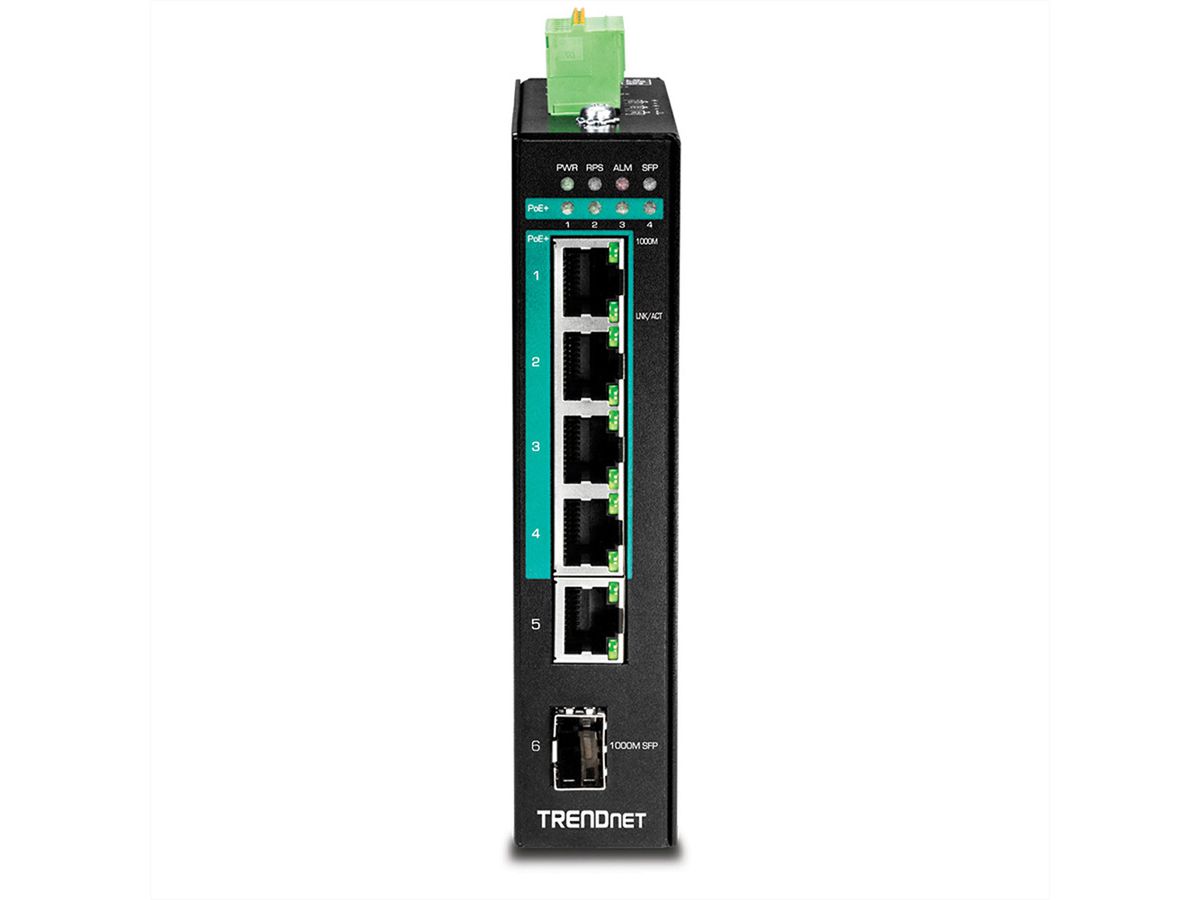

4 x Gigabit PoE+ (802.3at) Ports, 1 x Gigabit-Port und 1 x Gigabit SFP-Slot
120 W Voll-PoE+ Power Budget
12 Gbps Schaltkapazität
Gehärteter Metall-Switch mit Schutzklasse IP30 und integrierter DIN-Schienenmontage
Betriebstemperaturbereich -40 - 70 ºC (-40 - 158 ºF)

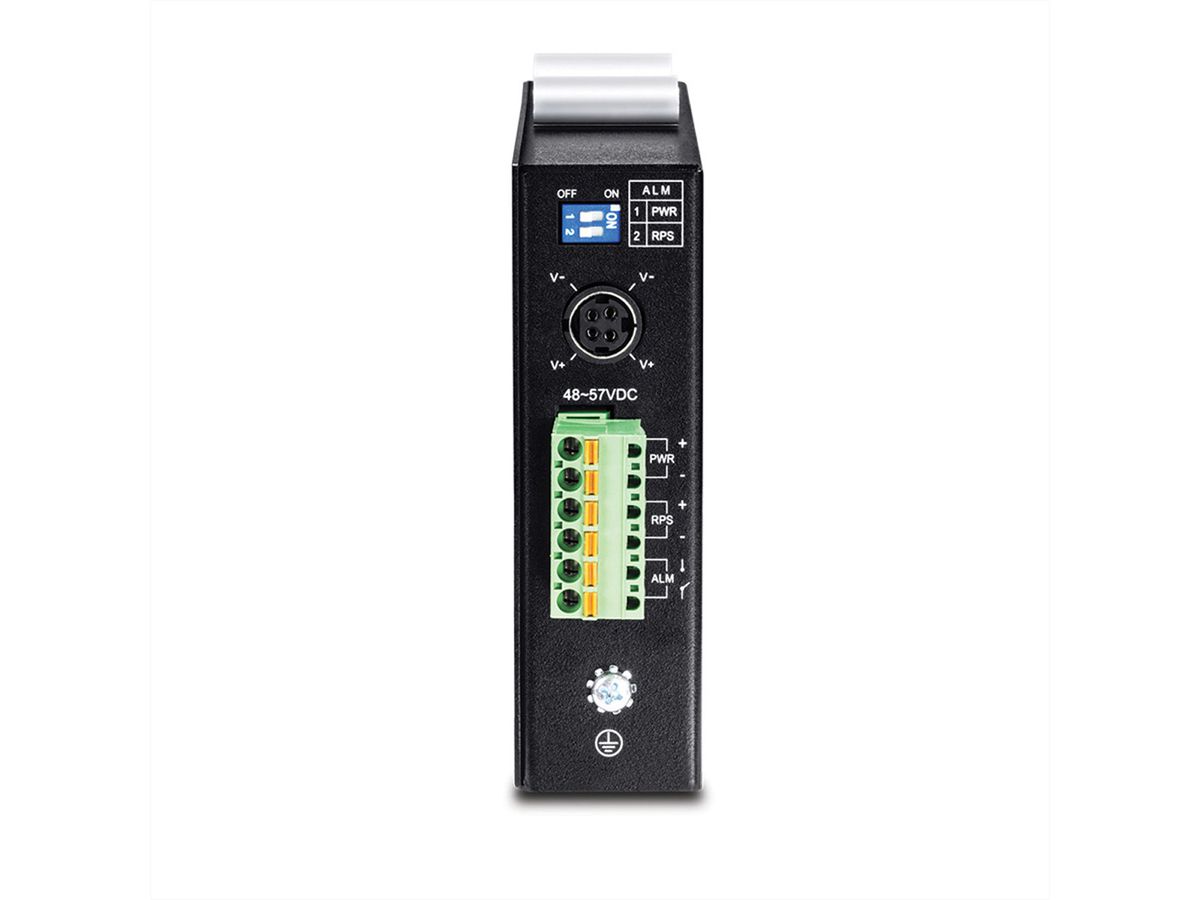

Duale redundante Stromversorgung mit Überlastschutz
Alarmauslösung bei Stromausfall
Netzteil separat erhältlich (modelle: 48VDC3000 / TI-S24048 / TI-S12048)

TRENDnet TI-PG541 ist ein zuverlässiger, unverwalteter PoE+ Switch mit DIN-Schiene, Schutzklasse IP30 und gehärteten Komponenten, die für extreme industrielle Umgebungen zertifiziert sind. Er bietet vier Gigabit PoE+ Ports (Ports 1-4, 802.3at), einen Gigabit-Port, einen SFP-Slot und ein Voll-PoE Power Budget in Höhe von 120 Watt. Duale redundante Stromversorgung (Netzadapter separat erhältlich) mit Überlastschutz wird Zero-Downtime -Anforderungen gerecht. Bei Ausfall der primären und/oder sekundären Stromversorgung kann ein Alarm ausgelöst werden.

TRENDnet’s TI-PG541 is a reliable IP30 unmanaged PoE+ DIN-rail switch with hardened components rated for extreme industrial environments. It offers four Gigabit PoE+ ports (Ports 1-4, 802.3at), one Gigabit port, one SFP slot, and a full PoE power budget of 120 Watts. Dual redundant power inputs (power adapter sold separately) with overload current protection support zero downtime requirements. An alarm output can be triggered by a primary and/or redundant power failure.

Specifications

Manufacturer	TRENDNET
Product group	Netzwerkkomponenten
Product type	Netzwerk-Switches
Colour	black
Scope of delivery	TI-PG541 Handleiding DIN-railset
Network standard	Gigabit Ethernet
LAN (Mbps)	10/100/1000
Quantity of ports	5
Gigabit Ethernet Ports RJ-45	5
Free slots for SFPs	1
Other connectors	6-pins klemmenblok (verwijderbaar)
Power over Ethernet (PoE)	PoE+
Quantity of PoE ports	4
Mounting form	Hutschiene
Protection class (IP Code)	IP30
Dimensions (HxWxD)	135x100x30mm
Operating temperature min.	-40 °C
Operating temperature max.	70 °C
Height	135 mm
Width	100 mm
Depth	30 mm
Weight	0.5 kg
Height of packaging (single piece)	80 mm
Width of packaging (single piece)	190 mm
Depth of packaging (single piece)	250 mm
Package weight (single piece)	0.878 kg

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP module slots quantity	1
Copper ethernet cabling technology	1000BASE-T,100BASE-TX,10BASE-T
Gigabit Ethernet (copper) ports quantity	5

Weight & dimensions

Width	100 mm
Depth	30 mm
Height	135 mm
Weight	500 g

Power

Power consumption (typical)	130 W
Power connector	DC-in jack
AC input voltage	100-240 V
AC input frequency	50/60 Hz
Redundant power supply (RPS) support	Y

Operational conditions

Operating temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 95%

Networking

Networking standards	IEEE 802.3,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
10G support	N
Full duplex	Y
Flow control support	Y

Data transmission

MAC address table	8000 entries
Switching capacity	12 Gbit/s
Throughput	8.9 Mpps
Store-and-forward	Y
Jumbo frames support	Y

Management features

Switch type	Unmanaged
Switch layer	L2

Packaging content

Quick start guide	Y

Optical fiber

Fiber ethernet cabling technology	1000BASE‑LX,100BASE-SX

Design

Rack mounting	N
Product colour	Black
LED indicators	Y
Housing material	Metal
International Protection (IP) code	IP30
Certification	CE, FCC

Power over Ethernet (PoE)

Power over Ethernet (PoE)	Y
Power over Ethernet plus (PoE+) ports quantity	4
Total Power over Ethernet (PoE) budget	120 W

Performance

Buffer size	512 KB

Downloads

Manufacturer data sheet - Deutsch (1,006.5 KB)

Download

PDF data sheet - Trendnet TI-PG541 network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Black Power over Ethernet (PoE) - English (1.4 MB)

Download
