Item no.: | 21152800 |
---|---|
Manuf. item no. | 21.15.2800 |

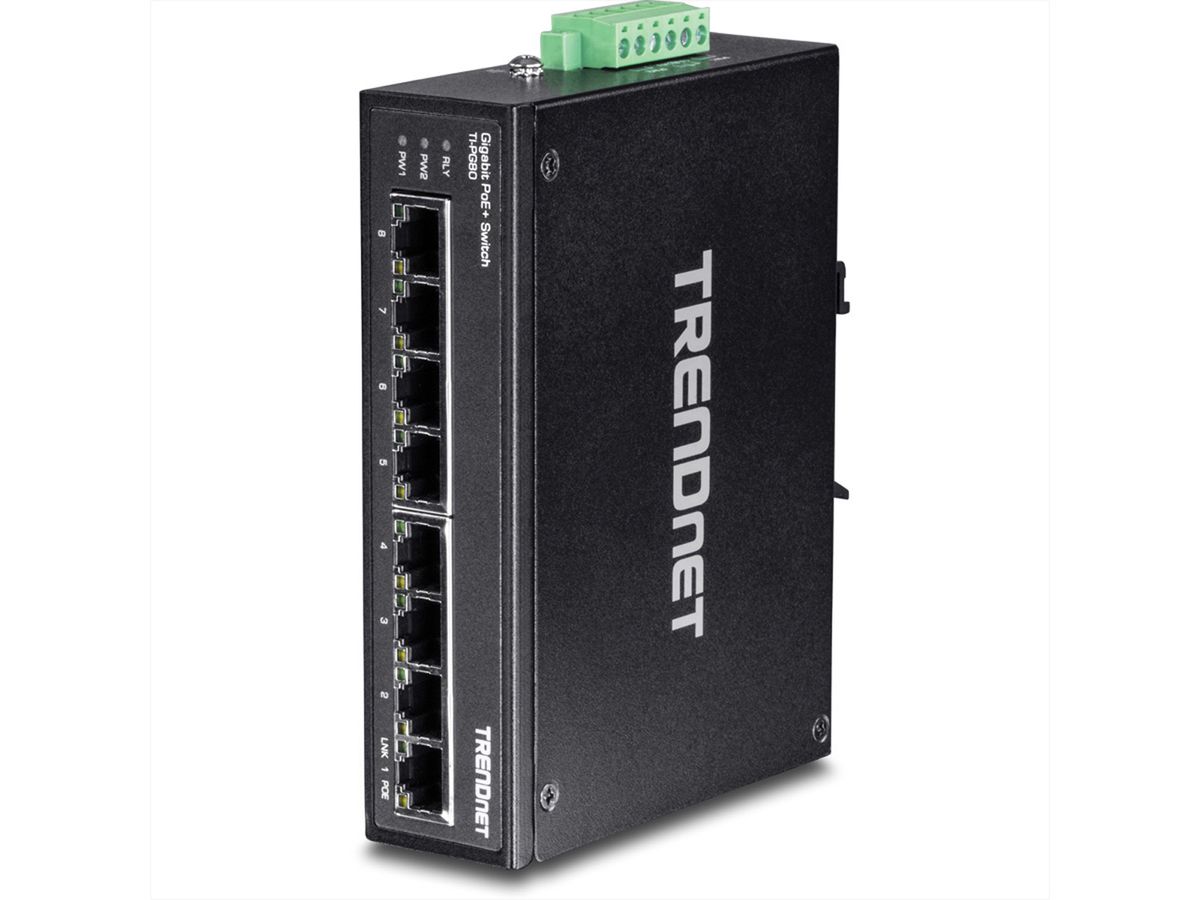

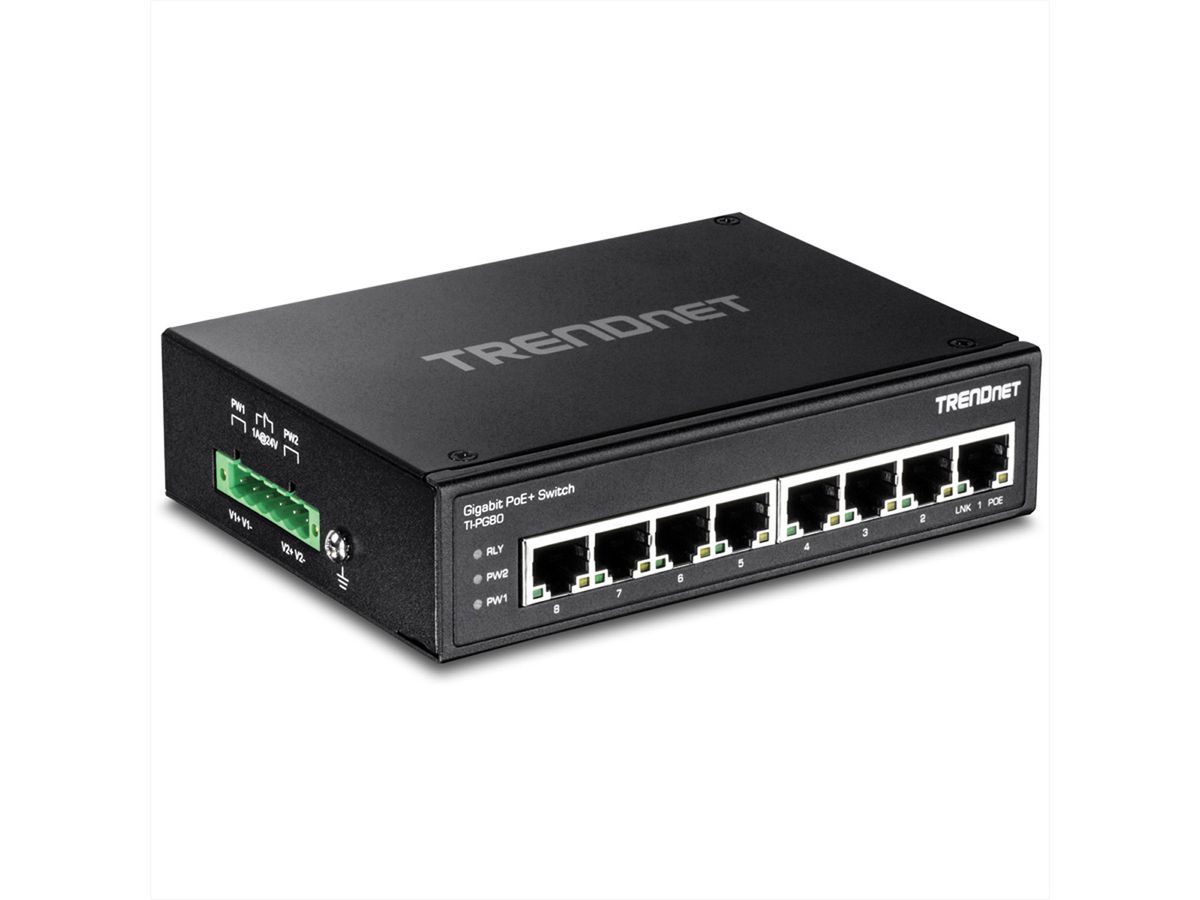

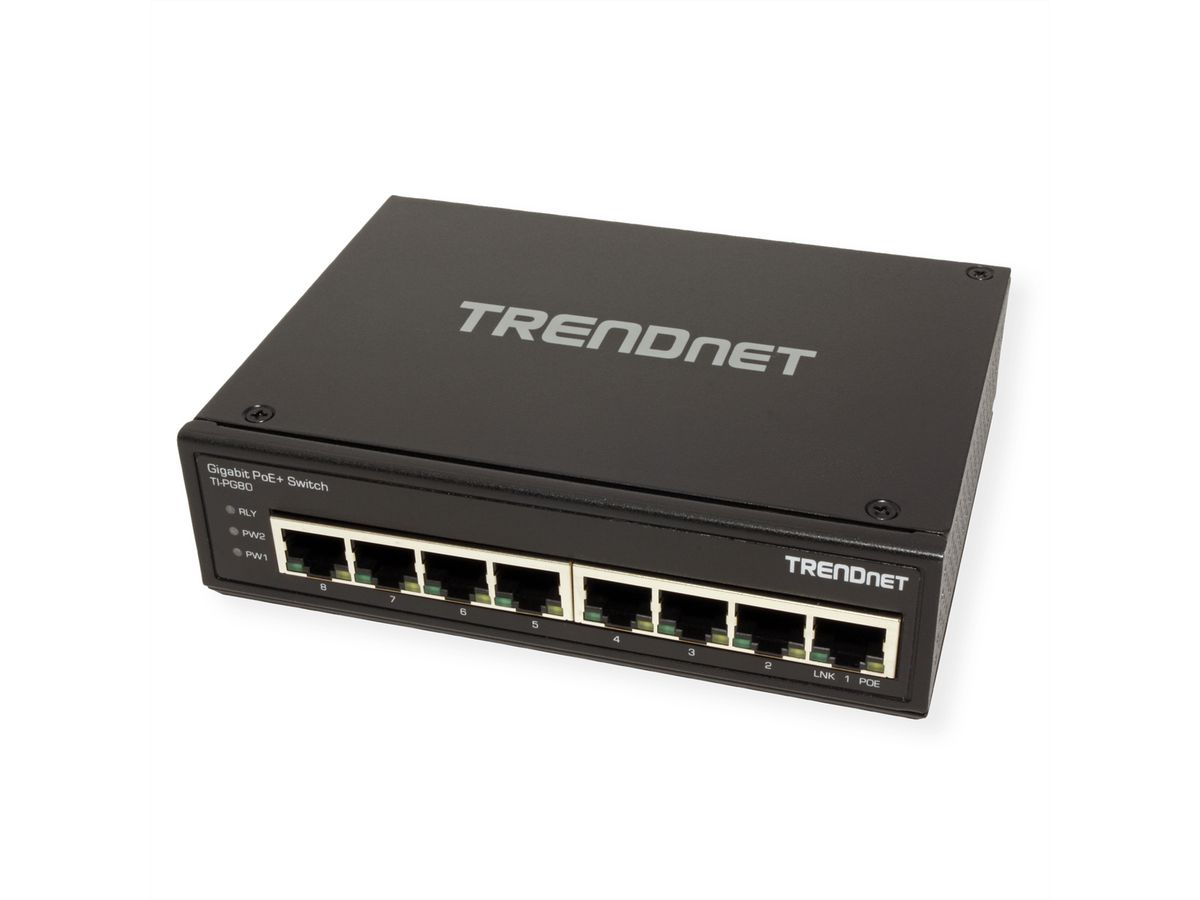

TRENDnet TI-PG80 8-Port Gehärteter Industrieller Gigabit PoE+ DIN-Rail Switch
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
LoginDescription
8 x Gigabit PoE+ Ethernet Ports - Bis zu 200 Watt Voll-PoE+ Gesamtleistung - 16 Gbps Schaltkapazität

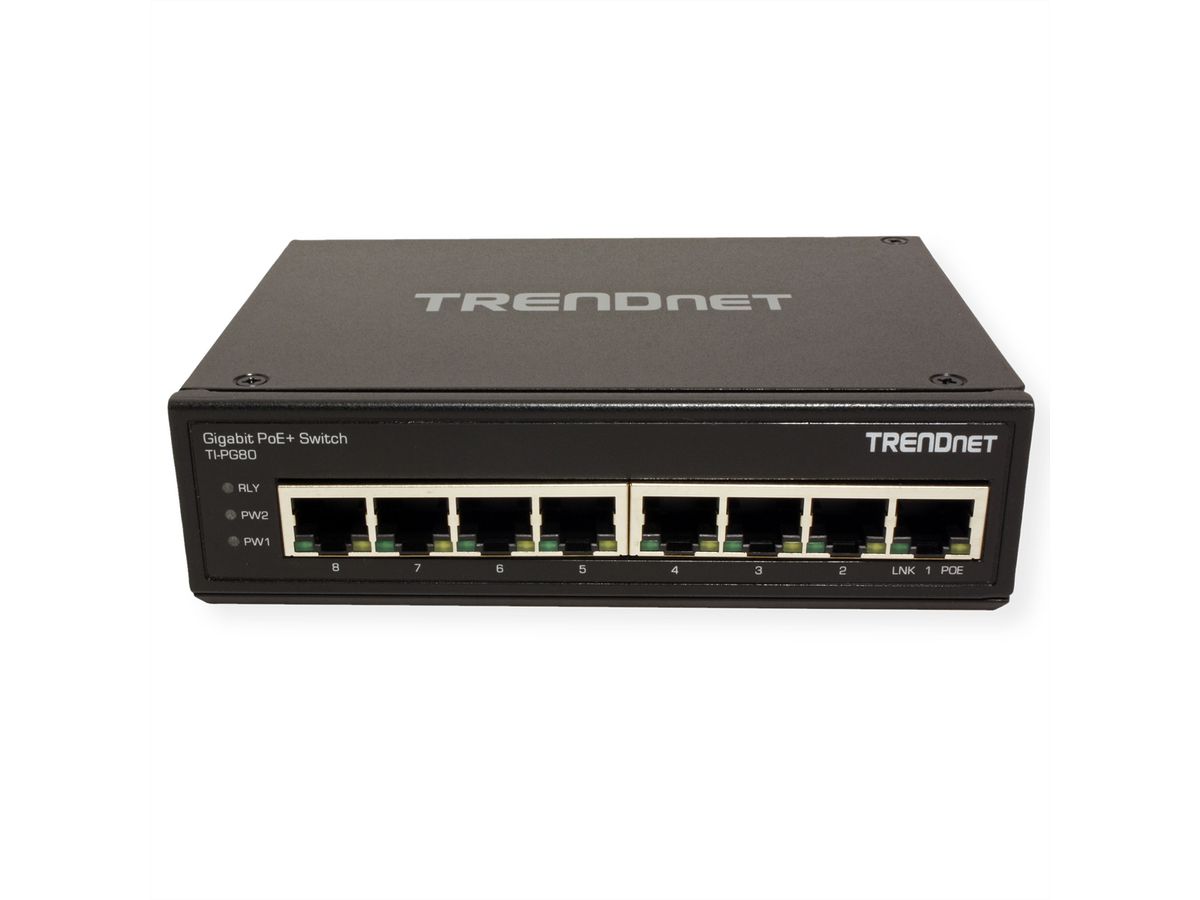

8 x Gigabit PoE+ Ethernet Ports
Bis zu 200 Watt Voll-PoE+ Gesamtleistung
16 Gbps Schaltkapazität
Gehärteter Metall-Switch der Schutzklasse IP30

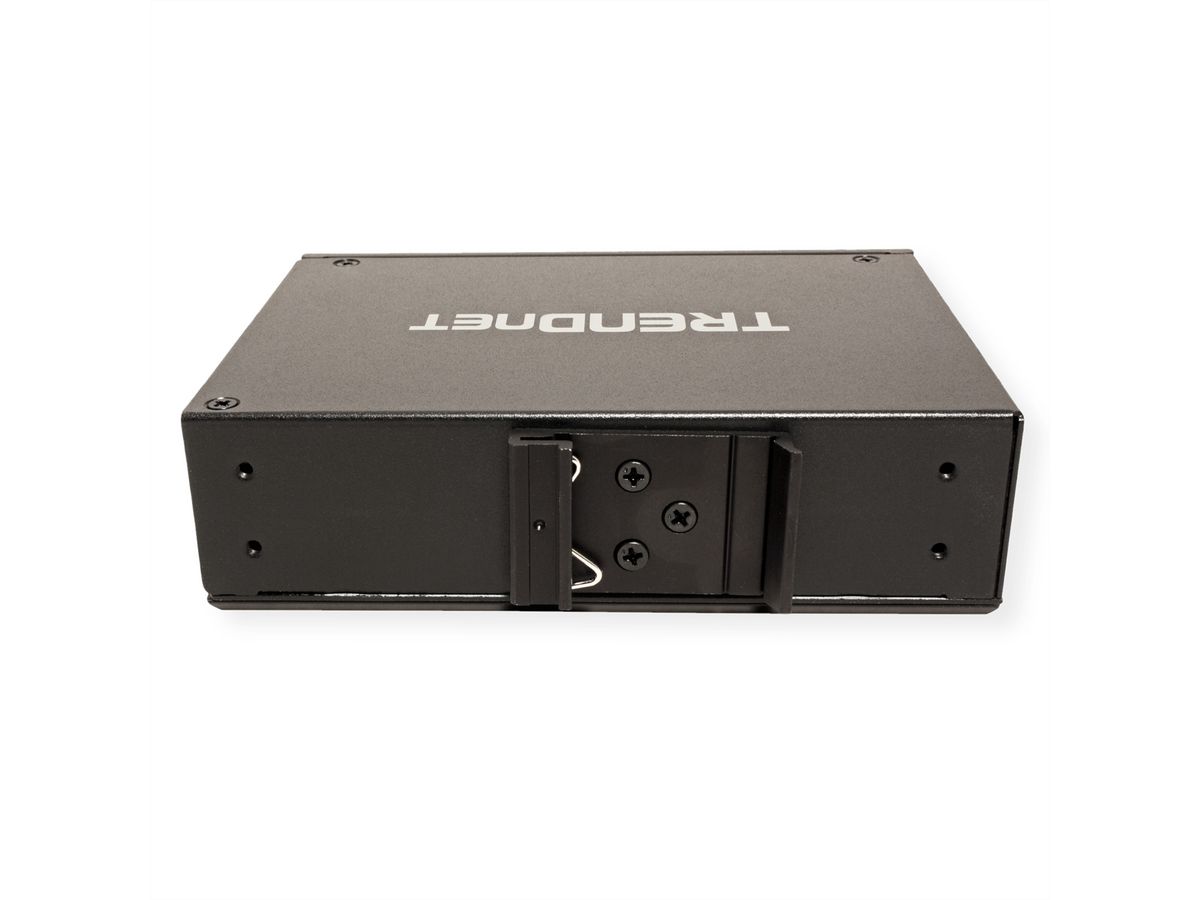

Enthält DIN-Schiene und Wandhalterung
Extremer -40 bis 75 ºC (-40 bis 167 ºF) Betriebstemperaturbereich

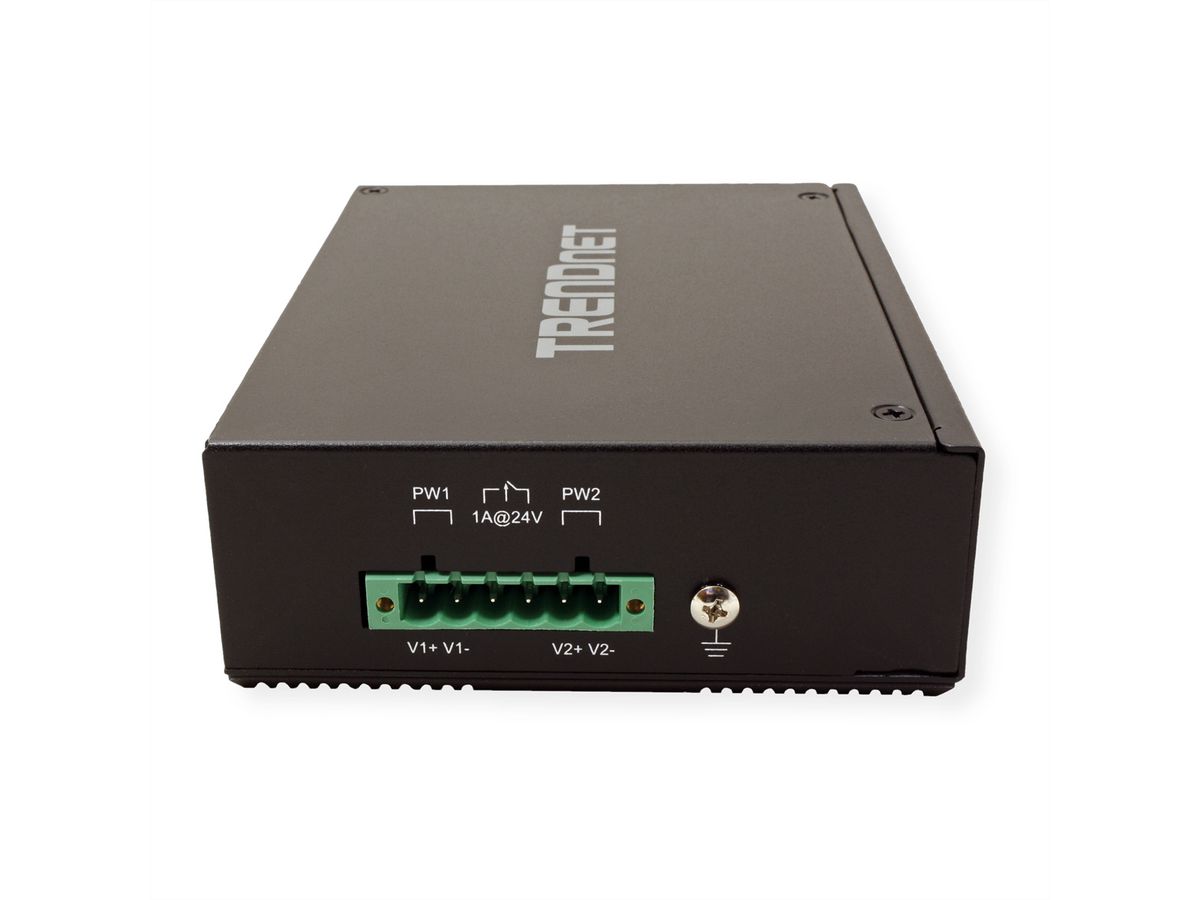

Duale redundante Stromversorgung mit Überlastschutz
Alarm bei Stromausfall
Netzteil separat erhältlich (Modell TI-S24048)
Der TI-PG80 von TRENDnet ist ein zuverlässiger unverwalteter PoE+ DIN-Rail Switch mit gehärteten Komponenten, der für extreme industrielle Bedingungen geeignet ist. Er bietet 8 Gigabit PoE+ Ports (802.3at/802.3af) und eine PoE Gesamtleistung von bis zu 200 Watt. Duale redundante Stromversorgung (Netzteil separat erhältlich: TI-S24048) und ein Alarm bei Stromausfall unterstützen Anwendungen, die null Ausfallzeit erfordern.
TRENDnet’s TI-PG80 is a reliable IP30 unmanaged PoE+ DIN-rail switch with hardened components rated for extreme industrial environments. It offers 8 Gigabit PoE+ ports (802.3at/802.3af) and a PoE power budget of up to 200 Watts. Dual redundant power inputs (power supply sold separately: TI-S24048) and a power failure alarm output trigger support zero downtime applications. - 8 x Gigabit PoE+ Ethernet ports - Up to a 200 Watt full PoE+ power budget - 16 Gbps switching capacity - Hardened IP30 rated metal switch - Includes DIN-rail and wall mounts - Extreme -40 to 75 ºC (-40 to 167 ºF) operating temperature range - Dual redundant power inputs with overload current protection - Alarm output triggered by power failure - Powers supply sold separately
Specifications
Manufacturer | TRENDNET |
---|---|
Product group | Netzwerkkomponenten |
Product type | Netzwerk-Switches |
Colour | black |

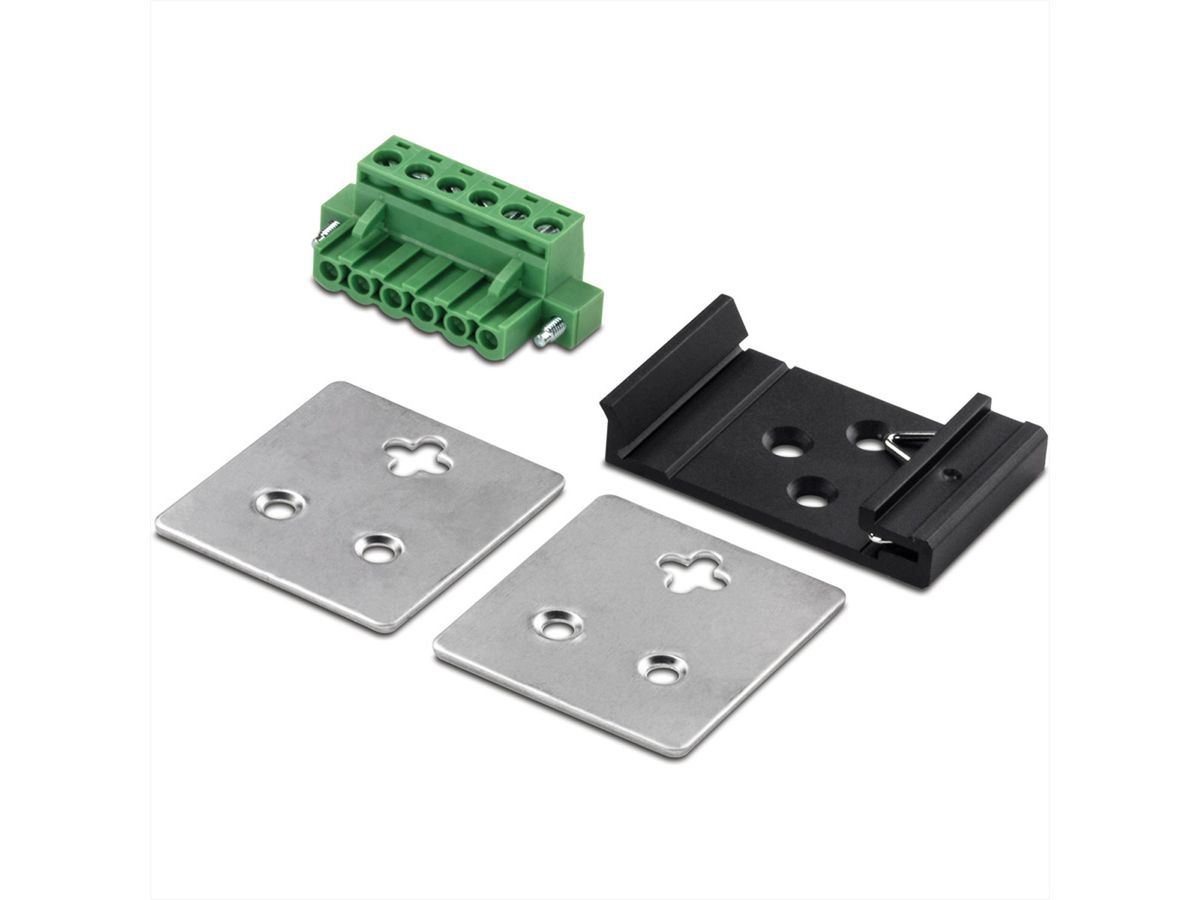

Scope of delivery |
TI-PG80 Handleiding Verwijderbaar klemmenblok DIN-railmontage / wandmontageset |
Network standard | Gigabit Ethernet |
LAN (Mbps) | 10/100/1000 |
Quantity of ports | 8 |
Gigabit Ethernet Ports RJ-45 | 8 |
Other connectors | 6-pins klemmenblok (verwijderbaar) |
Power over Ethernet (PoE) | PoE+ |
Quantity of PoE ports | 8 |
Max. PoE output power (total) | 200 W |
Mounting form | Hutschiene |
Protection class (IP Code) | IP30 |
Dimensions (HxWxD) | 143 x 104 x 36 mm |
Operating temperature min. | -40 °C |
Operating temperature max. | 75 °C |
Height | 143 mm |
Width | 104 mm |
Depth | 36 mm |
Weight | 0.55 kg |
Height of packaging (single piece) | 60 mm |
Width of packaging (single piece) | 230 mm |
Depth of packaging (single piece) | 170 mm |
Package weight (single piece) | 0.853 kg |
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity | 8 |
---|---|
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Copper ethernet cabling technology | 1000BASE-T,100BASE-TX,10BASE-T |
Gigabit Ethernet (copper) ports quantity | 8 |
Weight & dimensions
Width | 104 mm |
---|---|
Depth | 36 mm |
Height | 143 mm |
Weight | 554 g |
Power
Power consumption (max) | 5.76 W |
---|---|
Redundant power supply (RPS) support | Y |
Operational conditions
Operating temperature (T-T) | -40 - 75 °C |
---|
Networking
Networking standards | IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x |
---|---|
10G support | N |
Full duplex | Y |
Flow control support | Y |
Data transmission
MAC address table | 8000 entries |
---|---|
Switching capacity | 16 Gbit/s |
Throughput | 11.9 Mpps |
Store-and-forward | Y |
Jumbo frames support | Y |
Management features
Switch type | Unmanaged |
---|---|
Switch layer | L2 |
Packaging content
Quick start guide | Y |
---|---|
Wall mounting kit | Y |
Design
Rack mounting | N |
---|---|
Product colour | Black |
LED indicators | Y |
Housing material | Metal |
International Protection (IP) code | IP30 |
Wall mountable | Y |
Certification | FCC, CE |
Power over Ethernet (PoE)
Power over Ethernet (PoE) | Y |
---|---|
Power over Ethernet plus (PoE+) ports quantity | 8 |
Total Power over Ethernet (PoE) budget | 200 W |
Performance
Packet buffer memory | 1 MB |
---|---|
Mean time between failures (MTBF) | 510304 h |
