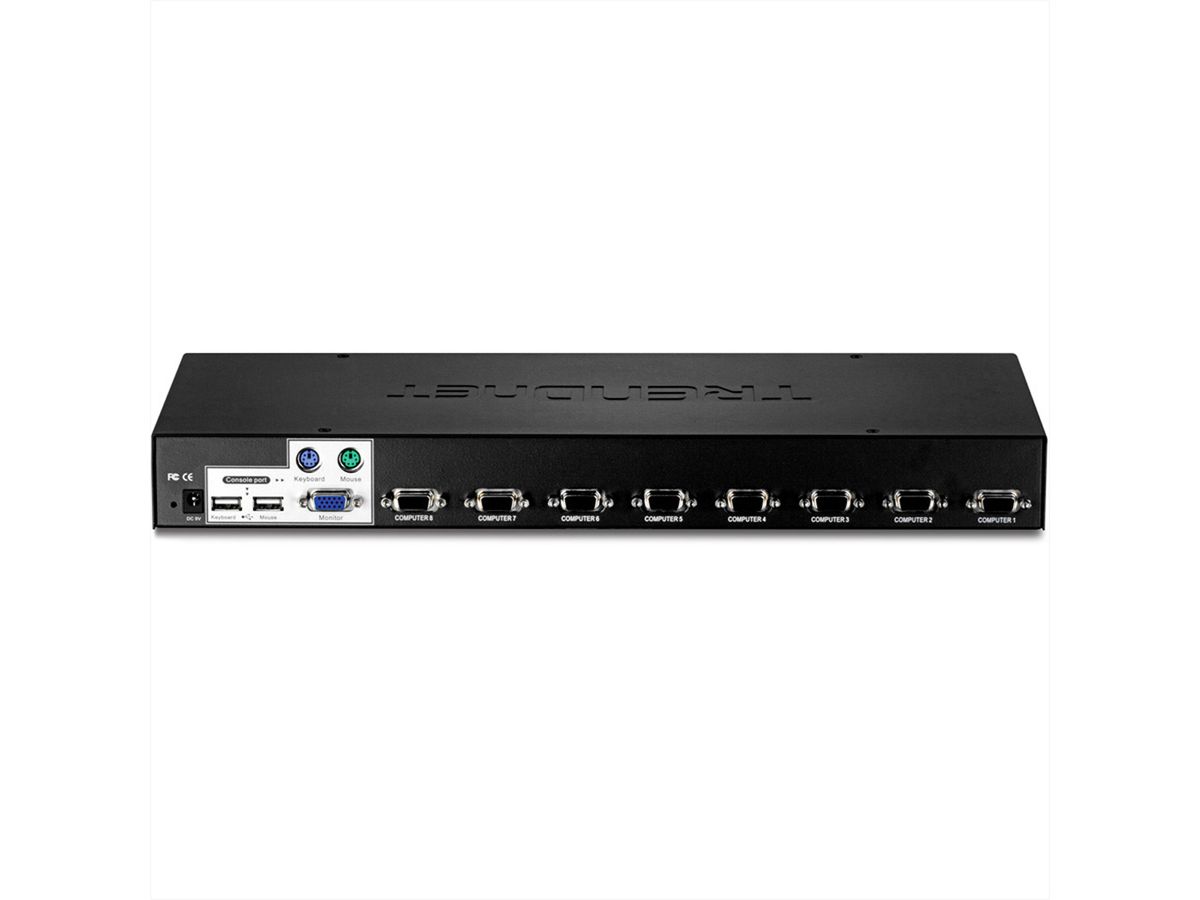

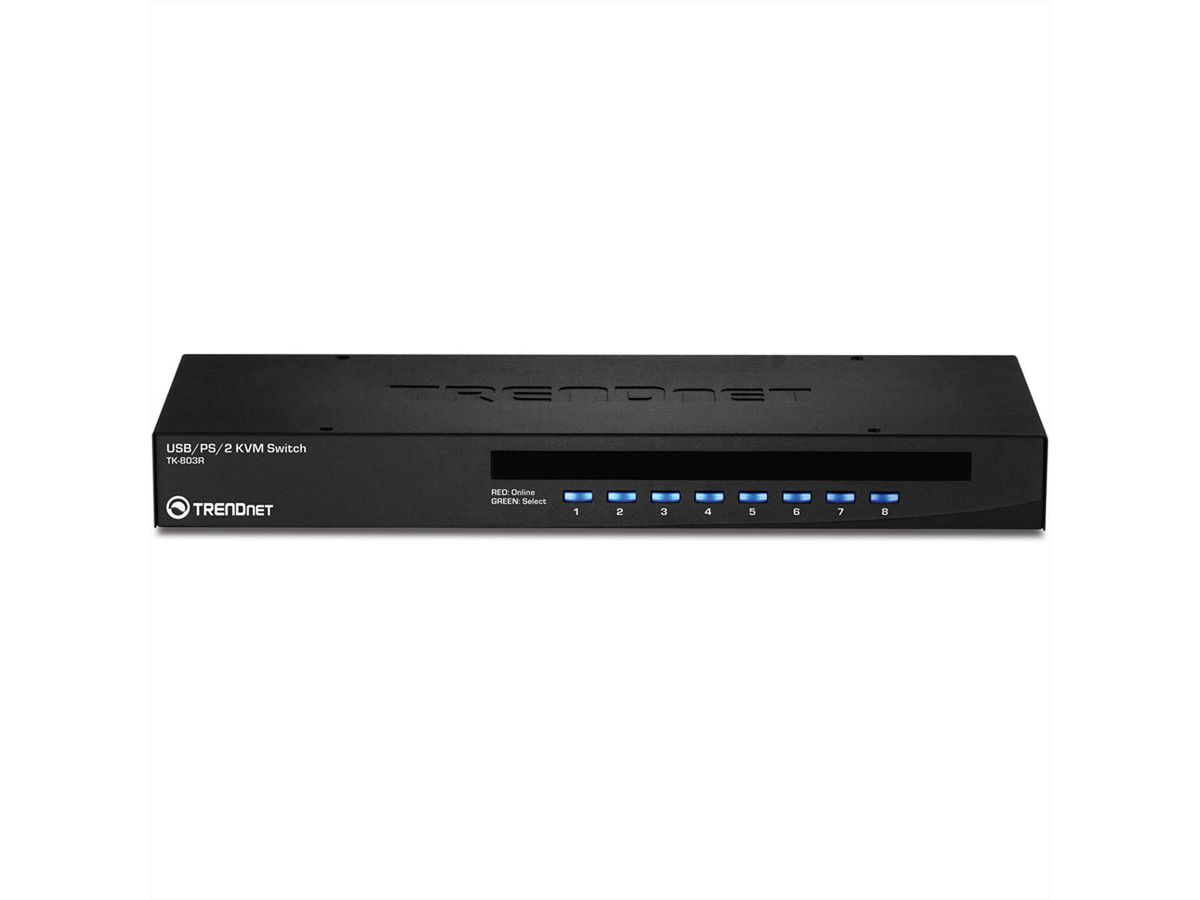

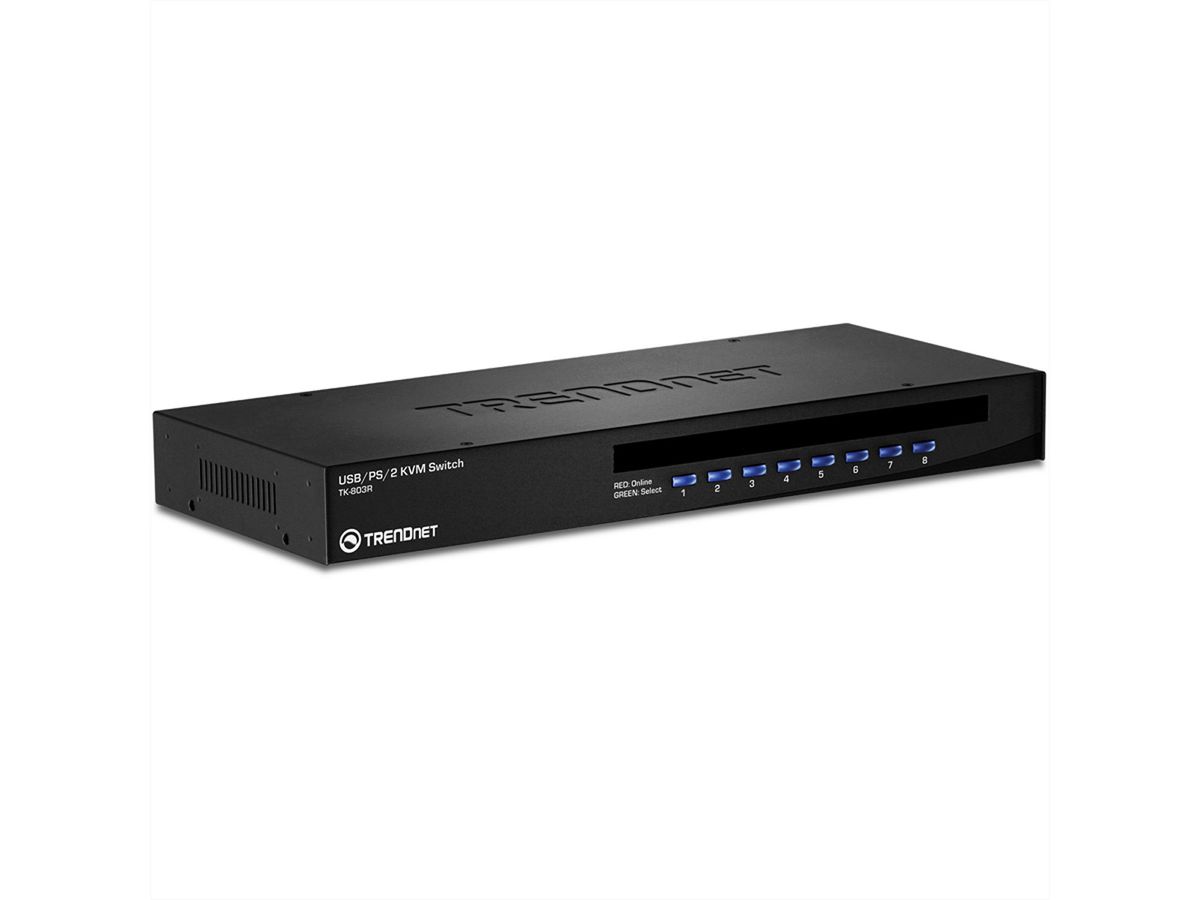

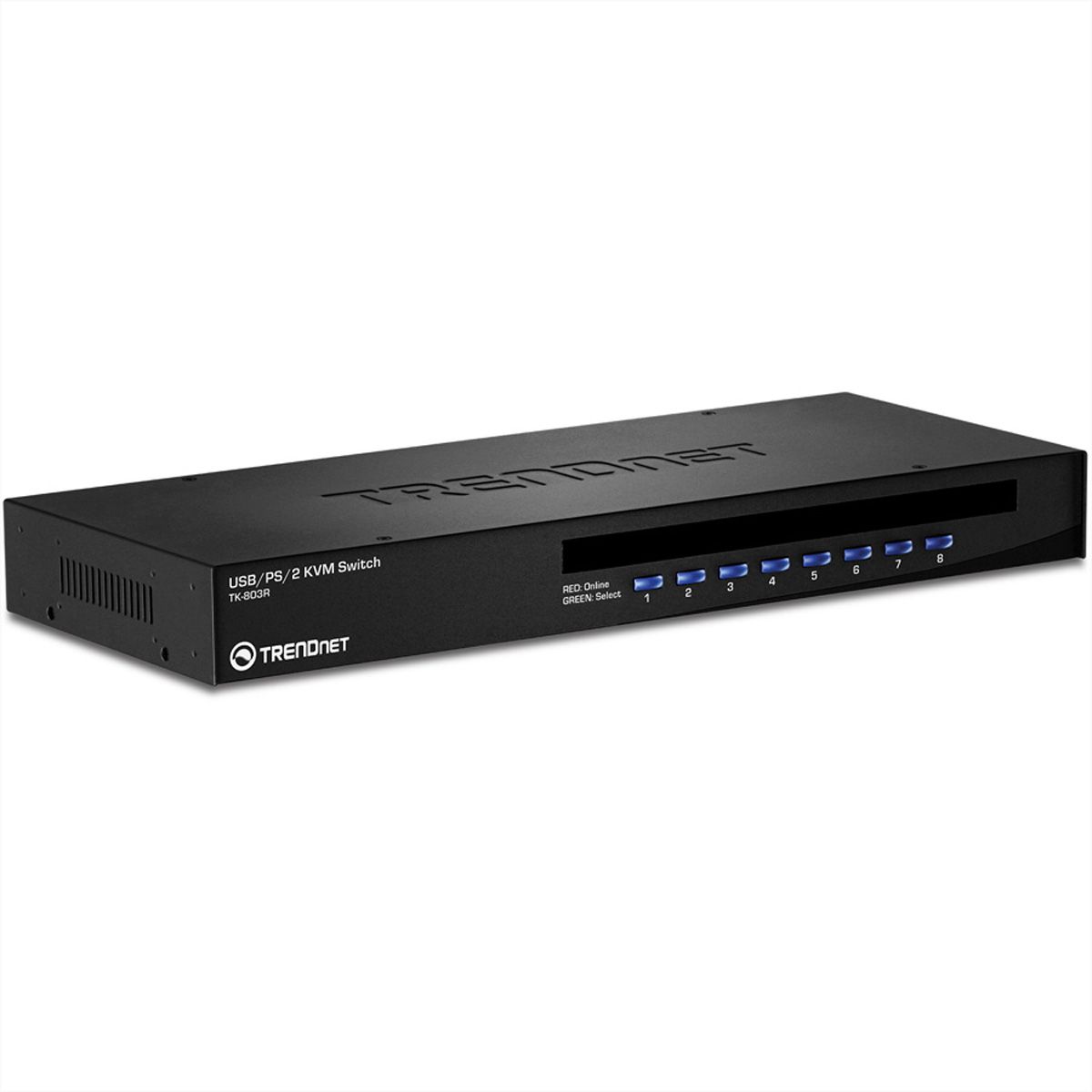

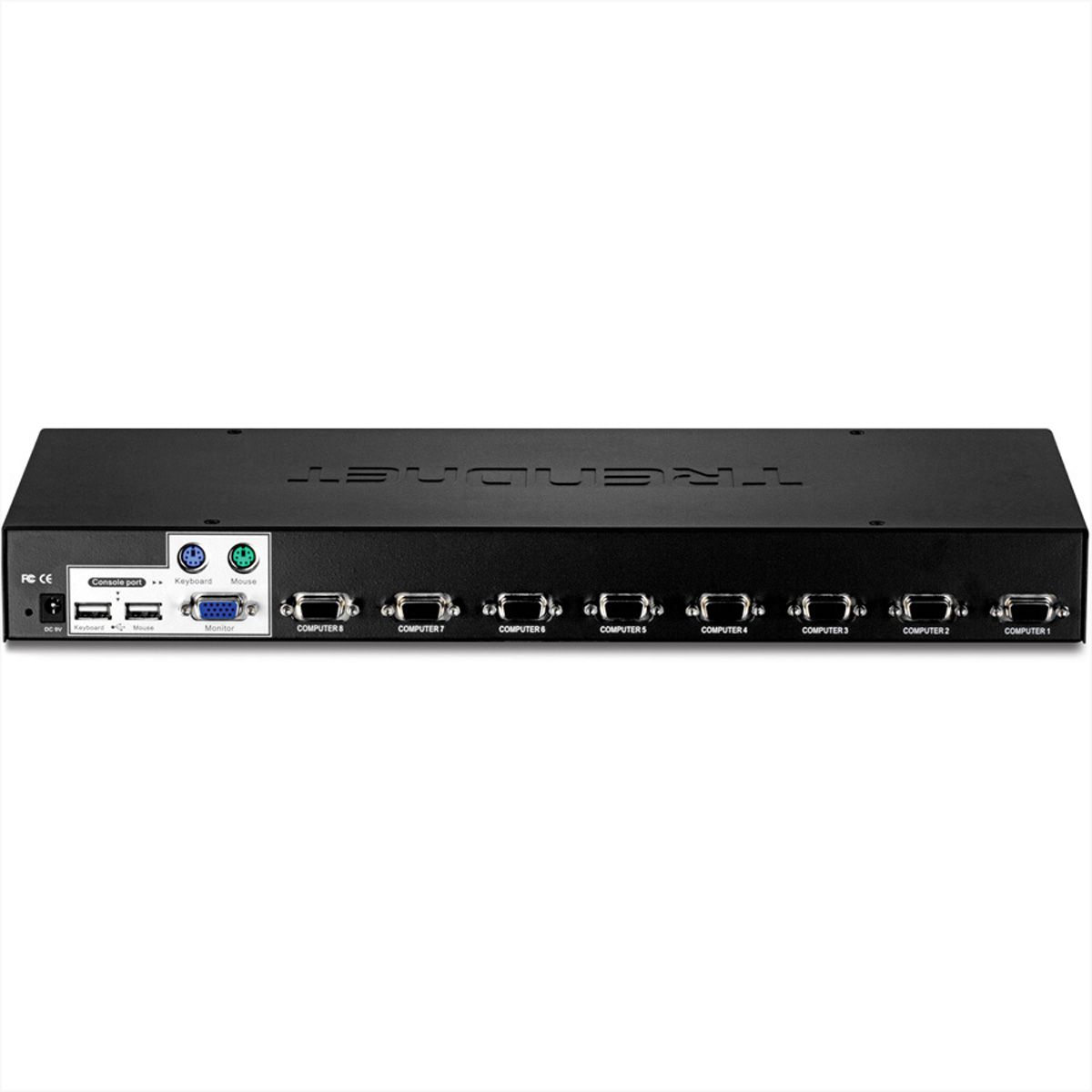

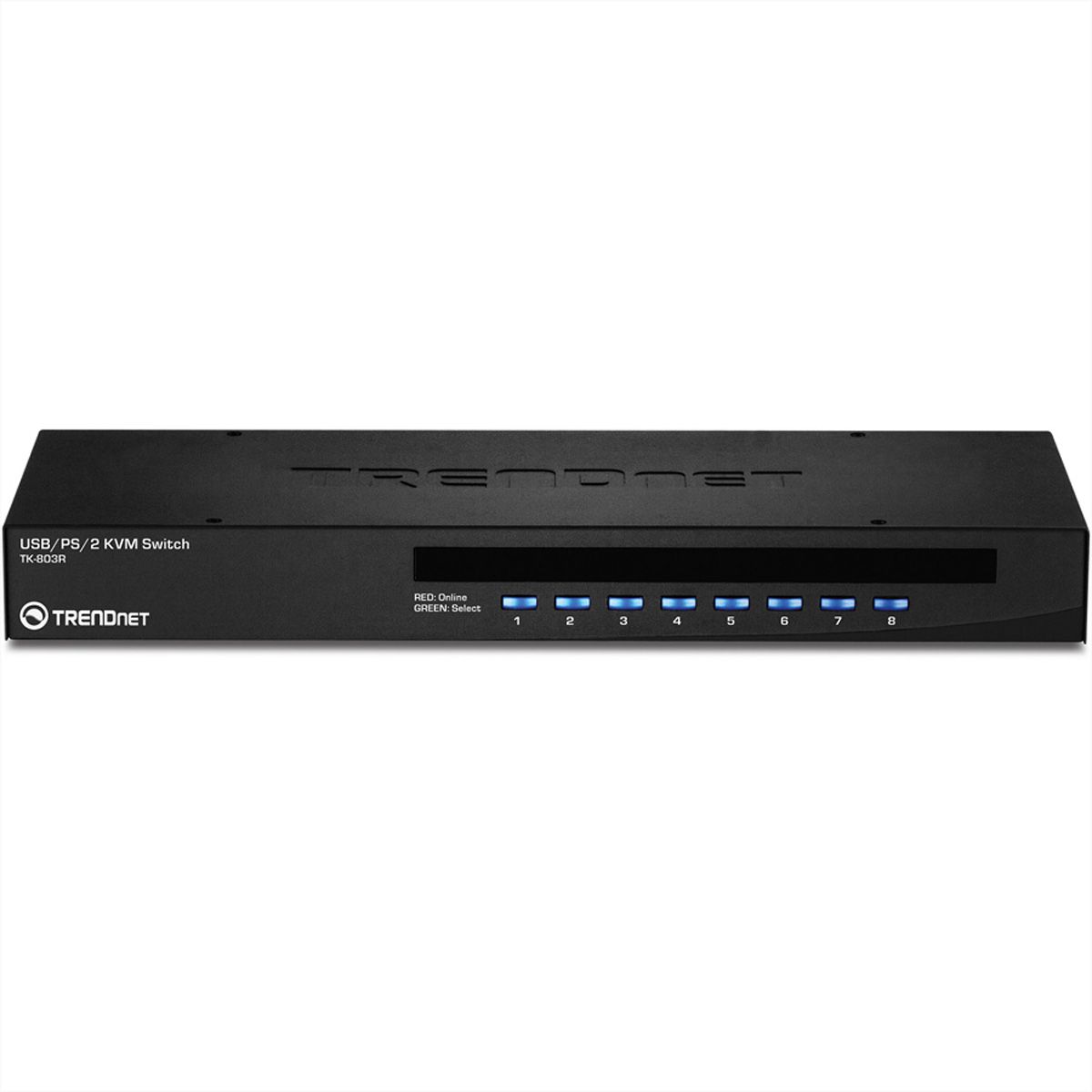

TRENDnet TK-803R KVM Switch 8-Port USB/PS/2 Rack Mount

TRENDnet TK-803R KVM Switch 8-Port USB/PS/2 Rack Mount

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Item no. 21221212
Brand / Manufacturer TRENDNET
Manuf. item no. TK-803R
EAN 710931304305
Item weight 2.651 kg
TRENDNET

Description

8-Port Rackmount-KVM-Switch - Steuert bis zu 8 Computer oder Server - Der Konsolenanschluss unterstützt sowohl USB als auch PS/2 - Nur USB für PC-seitige Maus- und Tastaturanschlüsse

Mit Hilfe dieses 8-port USB-KVM-Switchs können Sie mehrere Computer über jeweils nur eine Tastatur, eine Maus und einen Monitor ansteuern. Das in ein Gestell montierbare Gerät unterstützt auf der PCSeite USB-Anschlüsse und auf der Konsolenseite USB- sowie PS/2- Anschlüsse. Der Switch ist mit allen geläufigen Hardware-Plattformen wie PC, Linux und Mac kompatibel. Der Wechsel zwischen den PCs erfolgt mit Hilfe von Tastenkombinationen oder Drucktasten. Die PCs lassen sich während des laufenden Betriebs anschließen, so dass keine Ausfallzeiten auftreten. Der 8-port USB-KVM-Switch ist die ideale Lösung für den gleichzeitigen Einsatz mehrerer PCs.

  • 8-port KVM-Switch mit VGA- und USB-Computeranschlüssen
  • Unterstützt USB- und PS/2-Verbindungen mit Konsolenport
  • Geräteüberwachung mit einstellbarer automatischer Abfrage und akustischen Rückmeldungen
  • Unterstützt die meisten Betriebssysteme und modernsten Maustechnologien

The 8-Port USB KVM Switch lets you manage multiple computers with just one set of keyboard, monitor and mouse. This rack mount device supports USB and PS/2 interface on the console side and USB only on the PC side. Popular hardware platforms such as PC, Linux and Mac are supported. Users can switch between PCs using hot-key or push button for flexible management. Users can also hot-plug PCs on the fly to avoid downtime. The 8-Port USB KVM Switch is the perfect choice for managing multiple PC's. -8-port KVM switch with VGA and USB connection to computers. -Supports both USB and PS/2 connections to console port. -Device monitoring with adjustable Auto-Scan and audible feedback. -Supports most operating systems and advance mouse designs. -8-Port USB KVM Switch. -Supports both USB and PS/2 Interface for console port. -Supports Microsoft IntelliMouse, IntelliMouse Explorer, Logitech NetMouse, Optical Mouse, and more. -Supports Windows 98SE/ME/ 2000/XP/2003 Server, Linux, Mac OS and more. -High video quality; up to 2048 x 1536 VGA resolution. -Firmware upgradeable via PC port. -Auto-Scan for monitored PCs with adjustable scan interval from 10-99 seconds. -Keyboard status restored when switching between PCs. -LEDs display for easy status monitoring. -Beeping sound for port switching confirmation (enable/disable). -Hot-Key or push button switching. -Plug & Play and Hot-Pluggable. -Standard 19” (1U) rack mount design. -2-year limited warranty.

Specifications

Manufacturer TRENDNET
Product type Tastatur/Video/Maus (KVM)-Switches
Colour black
Scope of delivery TK-803R, Beknopte installatiegids, Voedingseenheid (9 V DC, 1 A)
Quantity of PCs 8
PC: monitor connection 15-pins VGA HDB-aansluiting
PC: mouse/keyboard connection USB (type A)/PS/2
Mains connection Gerät-Eurostecker, Typ-C
Height 45 mm
Width 407 mm
Depth 165 mm
Weight 1.83 kg
Height of packaging (single piece) 70 mm
Width of packaging (single piece) 470 mm
Depth of packaging (single piece) 300 mm
Package weight (single piece) 2.651 kg
Ports & interfaces
Number of computers controlled 8
Keyboard port type USB, PS/2
Mouse port type USB, PS/2
Video port type VGA
Weight & dimensions
Weight 1.83 kg
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 0 - 80%
Video
Maximum resolution 2048 x 1536 pixels
Other features
Connectivity technology Wired
Dimensions (WxDxH) 407 x 165 x 45 mm
Ports quantity 8
Compatible operating systems Windows 98(SE)/ME/ 2000/XP/2003 Server,\nLinux, Mac.
Power requirements 9V DC, 1A
Design
Rack mounting Y
Rack capacity 1U
LED indicators Y
Certification CE, FCC
Performance
Scan interval 10 s

Downloads

Manufacturer data sheet - Deutsch (616.4 KB)

Download

Manufacturer data sheet - English (618.2 KB)

Download

Manufacturer data sheet - Français (632.6 KB)

Download

PDF data sheet - Trendnet TK-803R 8-Port USB/PS/2 Rack Mount KVM switch Rack mounting - English (209.9 KB)

Download
