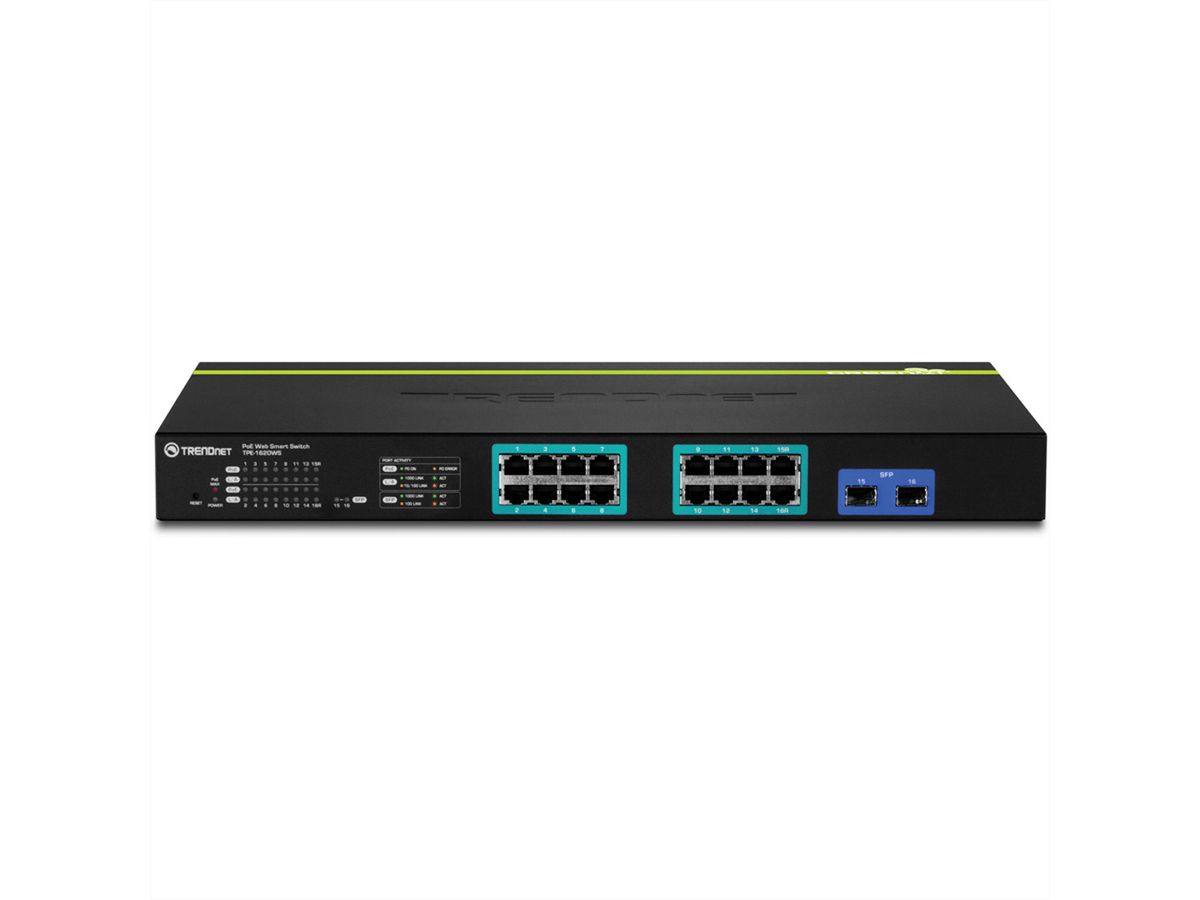

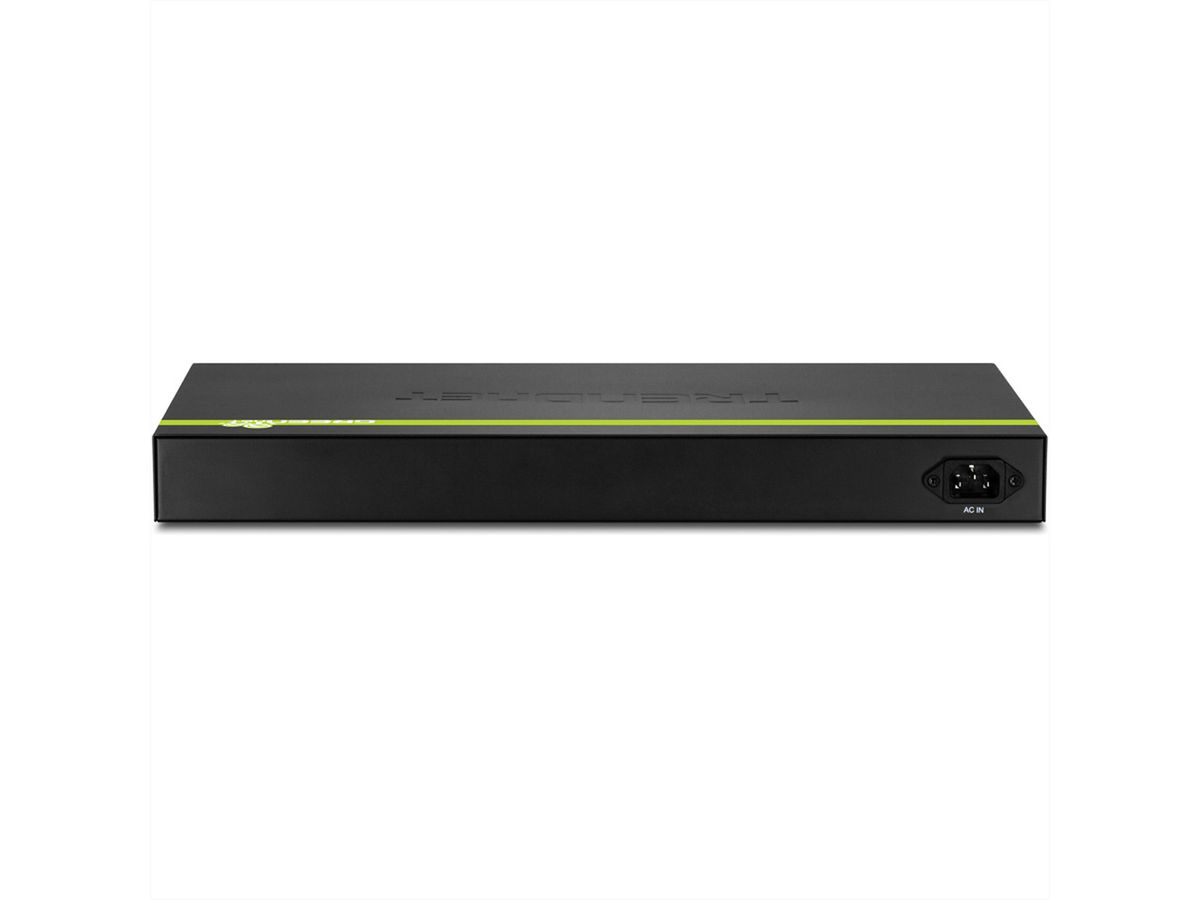

TRENDnet TPE-1620WS 16-Port Switch Gigabit Web Smart 16 PoE, 2 SFP (shared)

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Item no.	21221165
Brand / Manufacturer	TRENDNET
Manuf. item no.	TPE-1620WS
EAN	710931160093
Item weight	4.634 kg

Description

TRENDnet TPE-1620WS 16-Port Switch Gigabit Web Smart 16 PoE, 2 SFP (shared)

16 PoE+ Gigabit ports
2 gemeinsam genutzte Mini-GBIC (SFP)-Steckplätze
Bis zu 30 W pro Port mit 185 W Gesamtleistung
Switching Rate von 32 GBit/s
Unterstützt die IPv6-Konfiguration und IPv6 Neighbor Network Support
02,3ad Link Aggregation, asymmetrisches VLAN, 802,1Q VLAN, Voice VLAN, GVRP, 802,1p Class of Service (CoS), und QoS Queue Scheduling
Echtzeit-Diagramme zum Traffic-Vergleich, Fehlergruppendiagramme und ein bequemer Kabeldiagnosetest
ACL, SSL, MAC/Portfilterung, 802,1X, TACACS+ und RADIUS
RMON, SNMP, SNMP Trap, und Port Mirroring
Rack-Montage möglich

TRENDnet‘s 16-Port Gigabit Web Smart PoE+ Switch, Modell TPE-1620WS, bietet 32 GBit/s Schaltleistung mit 16 PoE+ Gigabit Ports@@und zwei gemeinsamen SFP-Steckplätzen. Dieser IPv6-fähige Schalter ermöglicht ein erweitertes Traffic Management, Fehlerbehebung,@@Sicherheit, Energie sparendes GREENnet und Überwachungsfunktionen zum reduzierten Preis.

TRENDnet’s 16-Port Gigabit Web Smart PoE+ Switch, model TPE-1620WS, delivers a 32 Gbps switching capacity with 16 PoE+ Gigabit ports and two shared SFP slots. This IPv6 ready switch offers advanced traffic management, troubleshooting, security, energy saving GREENnet, and monitoring features at a reduced cost.

Specifications

Manufacturer	TRENDNET
Product group	Netzwerk-Switches
Product type	Netzwerk-Switches
Colour	black
Scope of delivery	TPE-1620WS, handleiding, cd-rom (hulpprogramma en gebruikershandleiding), voedingskabel (1,8 m), hardware voor rack montage
Network standard	Gigabit Ethernet
LAN (Mbps)	10/100/1000
Quantity of ports	16
Gigabit Ethernet Ports RJ-45	16
Free slots for SFPs	2
Power over Ethernet (PoE)	ja
Quantity of PoE ports	16
Max. PoE output power (total)	185 W
Mounting angle	im Lieferumfang enthalten
Mains connection	Kaltgeräte-Anschluss
Height	44 mm
Width	440 mm
Depth	52 mm
Weight	3.66 kg
Height of packaging (single piece)	100 mm
Width of packaging (single piece)	370 mm
Depth of packaging (single piece)	530 mm
Package weight (single piece)	4.634 kg

Ports & interfaces

Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity	2
Copper ethernet cabling technology	1000BASE-T,100BASE-TX,10BASE-T
Gigabit Ethernet (copper) ports quantity	16

Weight & dimensions

Width	440 mm
Depth	251 mm
Height	44.5 mm
Weight	3.6 kg

Power

Power consumption (typical)	198 W
AC input voltage	100-240
AC input frequency	50/60

Operational conditions

Operating temperature (T-T)	0 - 45 °C

Protocols

Management protocols	HTTP/HTTPS (SSL v2/3 TLS), Web-based GUI, SNMP v1/v2c/v3, LLDP, RMON v1

Networking

Networking standards	IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x
10G support	N
Full duplex	Y
Flow control support	Y
Port mirroring	Y
Link aggregation	Y
Broadcast storm control	Y
DHCP client	Y
DHCP server	Y
Spanning tree protocol	Y

Data transmission

MAC address table	16000 entries
Switching capacity	32 Gbit/s
Throughput	23.8 Mpps
Jumbo frames support	Y

Security

Security algorithms	802.1x RADIUS,SSL/TLS
MAC address filtering	Y
Access Control List (ACL)	Y
IGMP snooping	Y

Management features

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Y
MIB support	MIB II
Web-based management	Y

Design

Rack mounting	Y
Colour of product	Black
Form factor	1U
LED indicators	Y
Certification	CE\nFCC

Power over Ethernet (PoE)

Power over Ethernet (PoE)	Y
Power over Ethernet plus (PoE+) ports quantity	16
Total Power over Ethernet (PoE) budget	185 W

Virtual LAN features

VLAN support	Y
Number of VLANs	256

Multicast features

Multicast support	Y
