Description

Allows you to extend the transmission range of your HDMI connection by up to 20m in total (max. 15m input + 5m output). Supports a maximum resolution of up to 3840x2160 @60Hz!

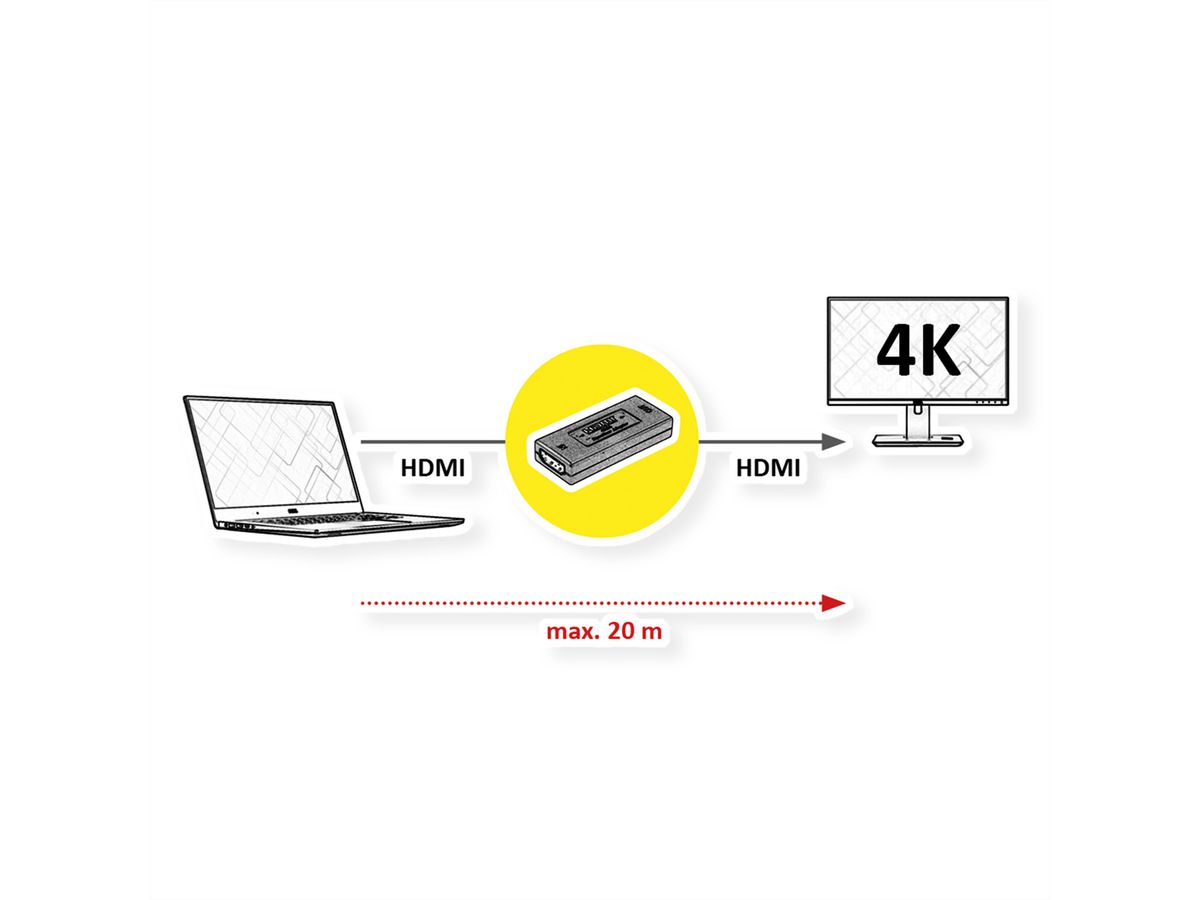

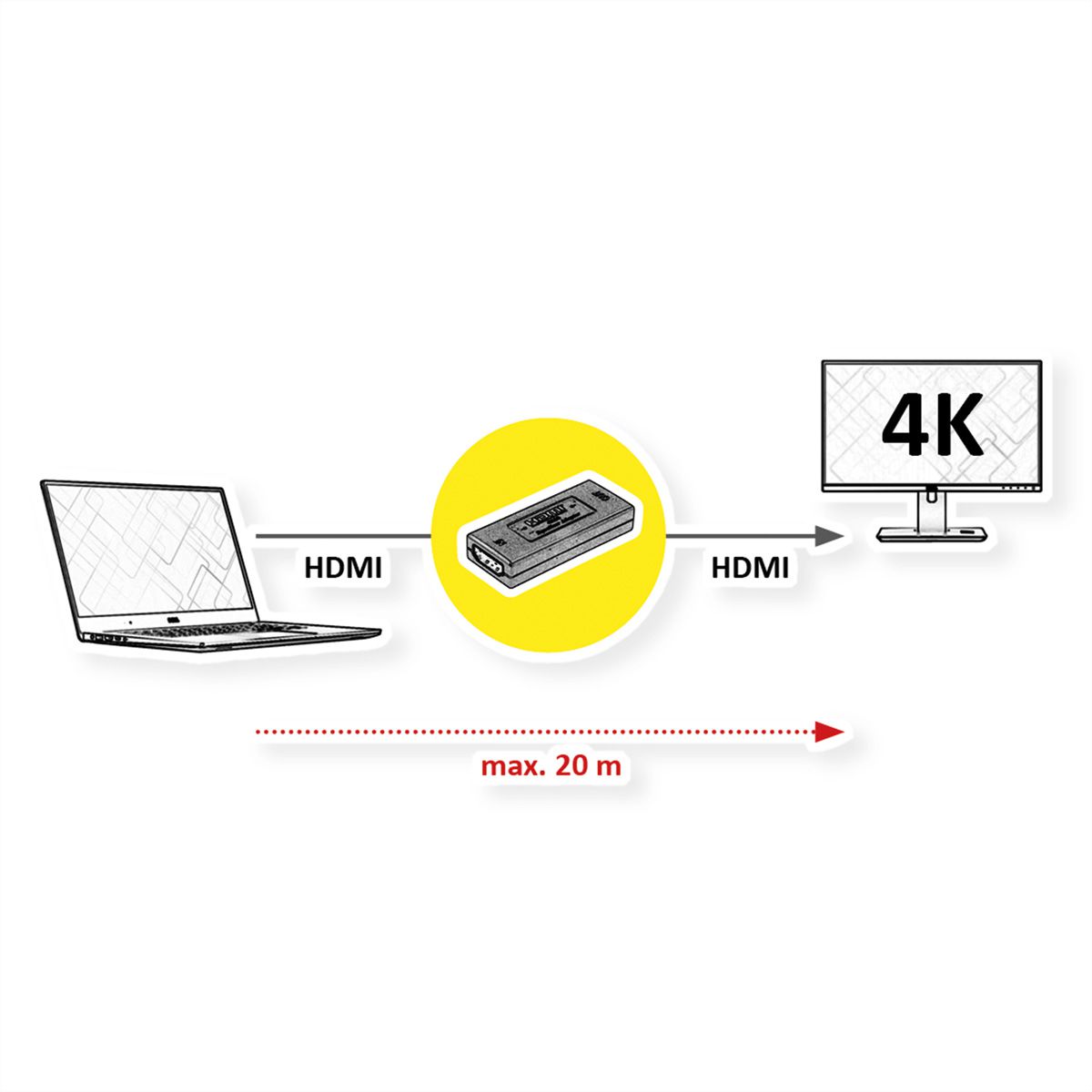

This 4K HDMI repeater regenerates the incoming HDMI Signal by decoding and re-encoding it to a new standard HDMI signal, so it can extend the transmission range without degradation. Up to 20 meters transmission distance in total, but max. 15m on in- and 5m on output side.

• Supports 3D and resolutions of up to 3840x2160 @60Hz
• Compliant with HDCP
• Dimensions (WxHxD): 21x7x51 mm

Specifications

Manufacturer	VALUE
Product group	Video Extender
Product type	HDMI Extender
Colour	black
Interface	HDMI
Inputs	1
Outputs	1
Max. distance	20 m
Max. bandwidth	340 MHz
Max. resolution (nom.)	2160P @60Hz
Max. resolution	3840 x 2160 @60Hz (4K, UHD-1)
Height	7 mm
Width	21 mm
Depth	51 mm
Weight	10.5 g
Height of packaging (single piece)	10 mm
Width of packaging (single piece)	60 mm
Depth of packaging (single piece)	30 mm
Package weight (single piece)	0.025 kg

Downloads

Product data sheet - English (58.1 KB)

Download

Manufacturer data sheet - English (167.7 KB)

Download
