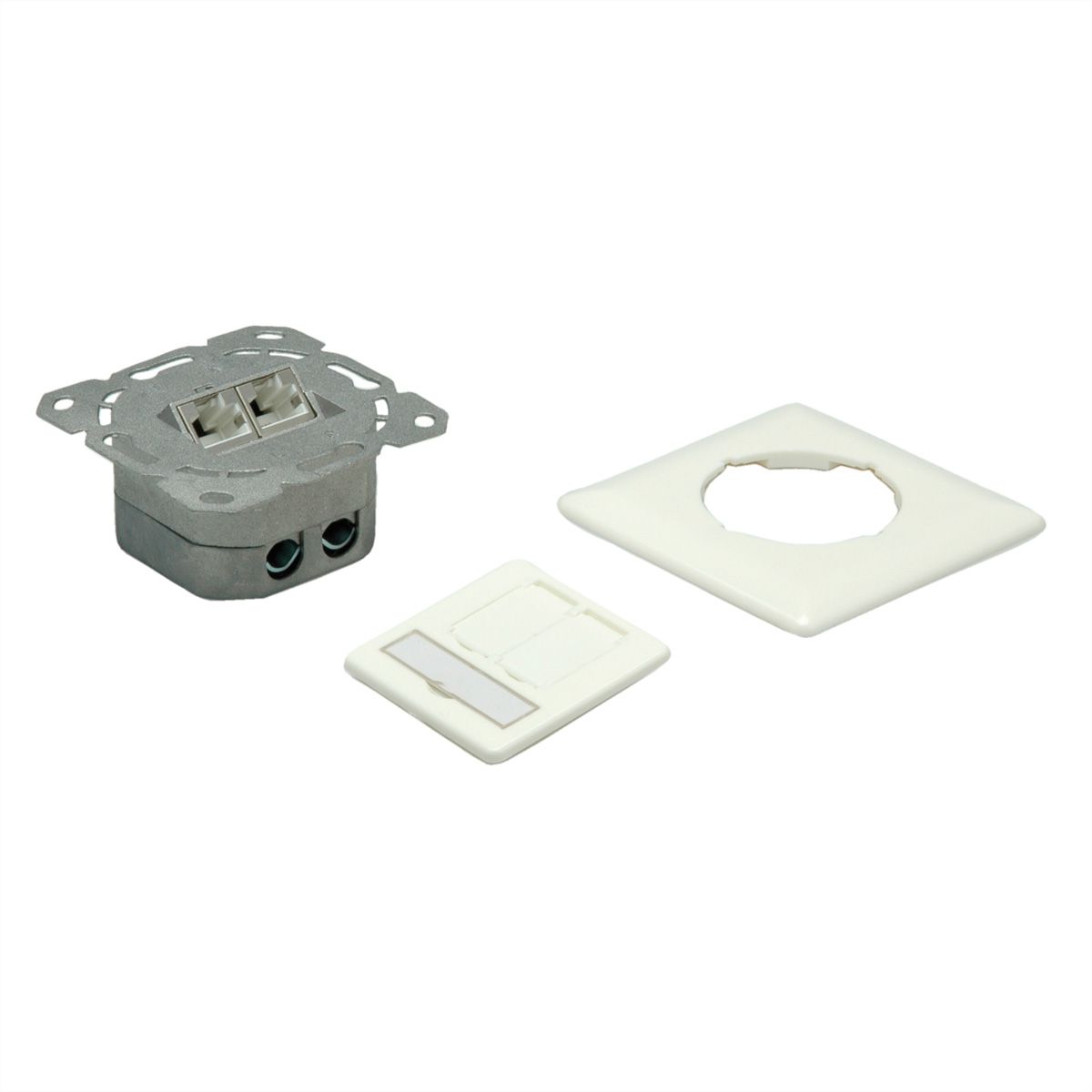

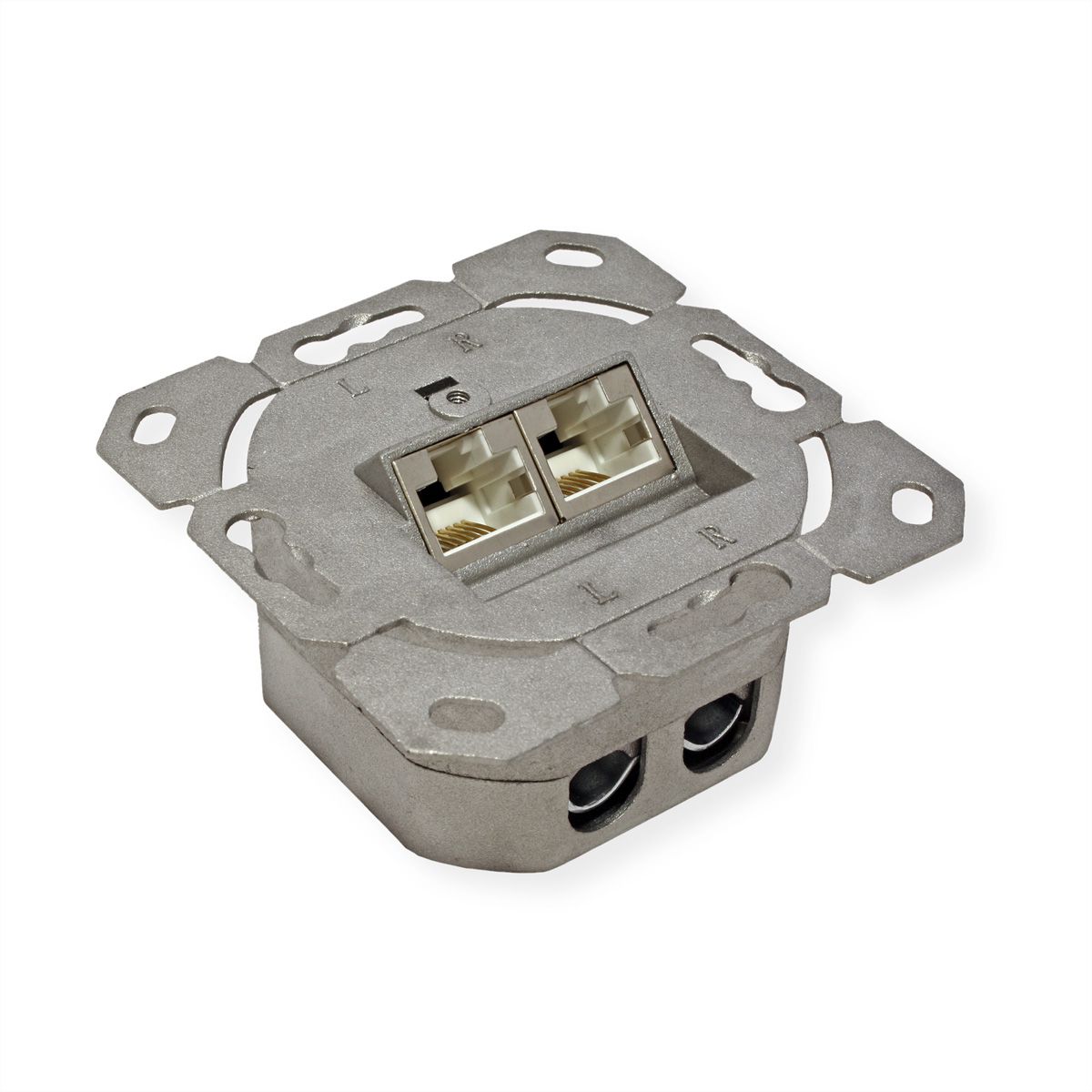

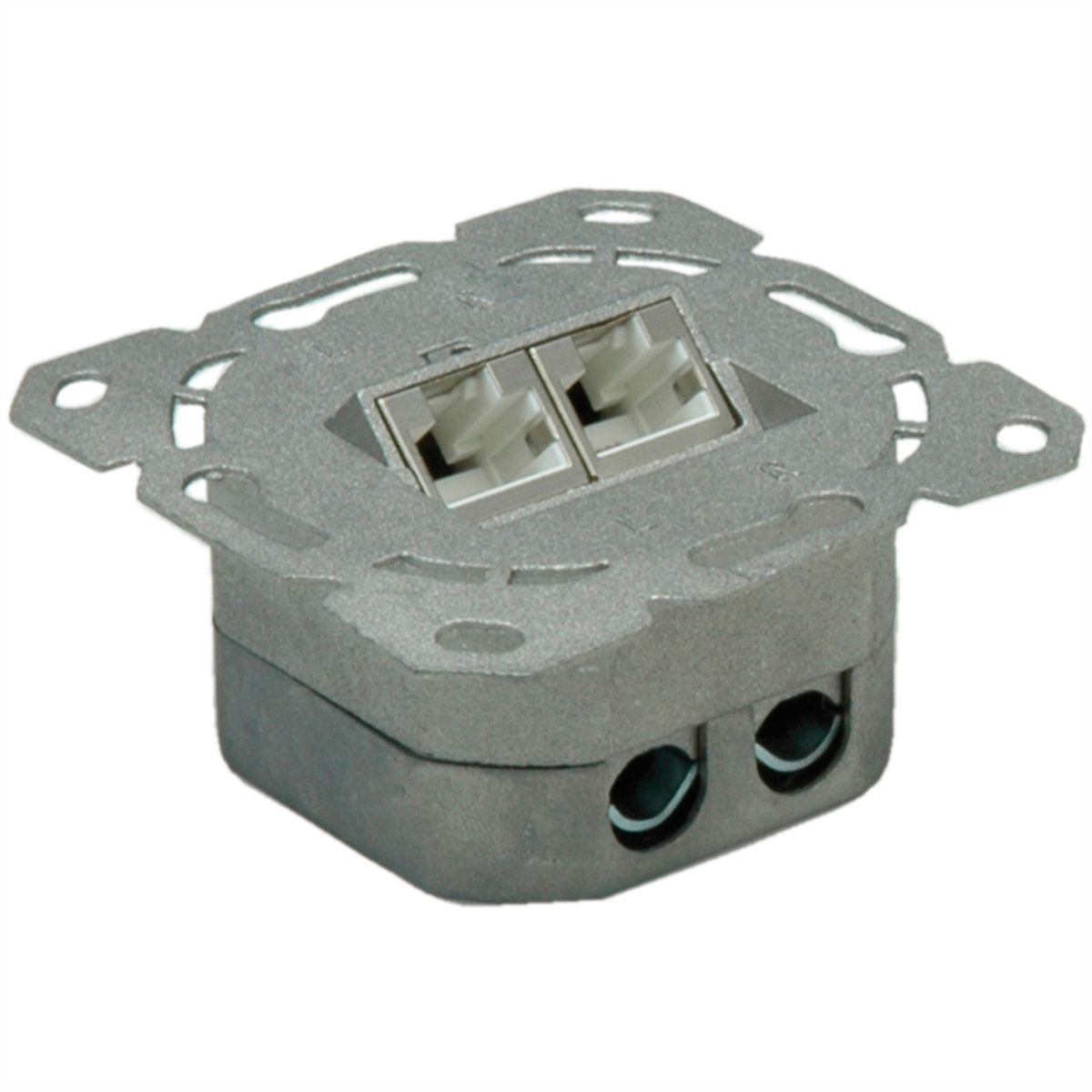

VALUE Cat.6A (Class EA) Flush Mount Wall Jack, STP, vertical, white
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 25998491 |
|---|---|
| Brand / Manufacturer | VALUE |
| Manuf. item no. | 25.99.8491 |
| EAN | 7611990131365 |
| Item weight | 0.2 kg |
:strip_icc():strip_exif()/logos/value.png "VALUE")
Description
- The VALUE Cat.6a wall jacks fulfil the Cat.6/Class EA Permanent Link Standard and are ideal for gigabit ethernet networks
- Fully screened box in a metal housing, provides security against EMI (shielded version)

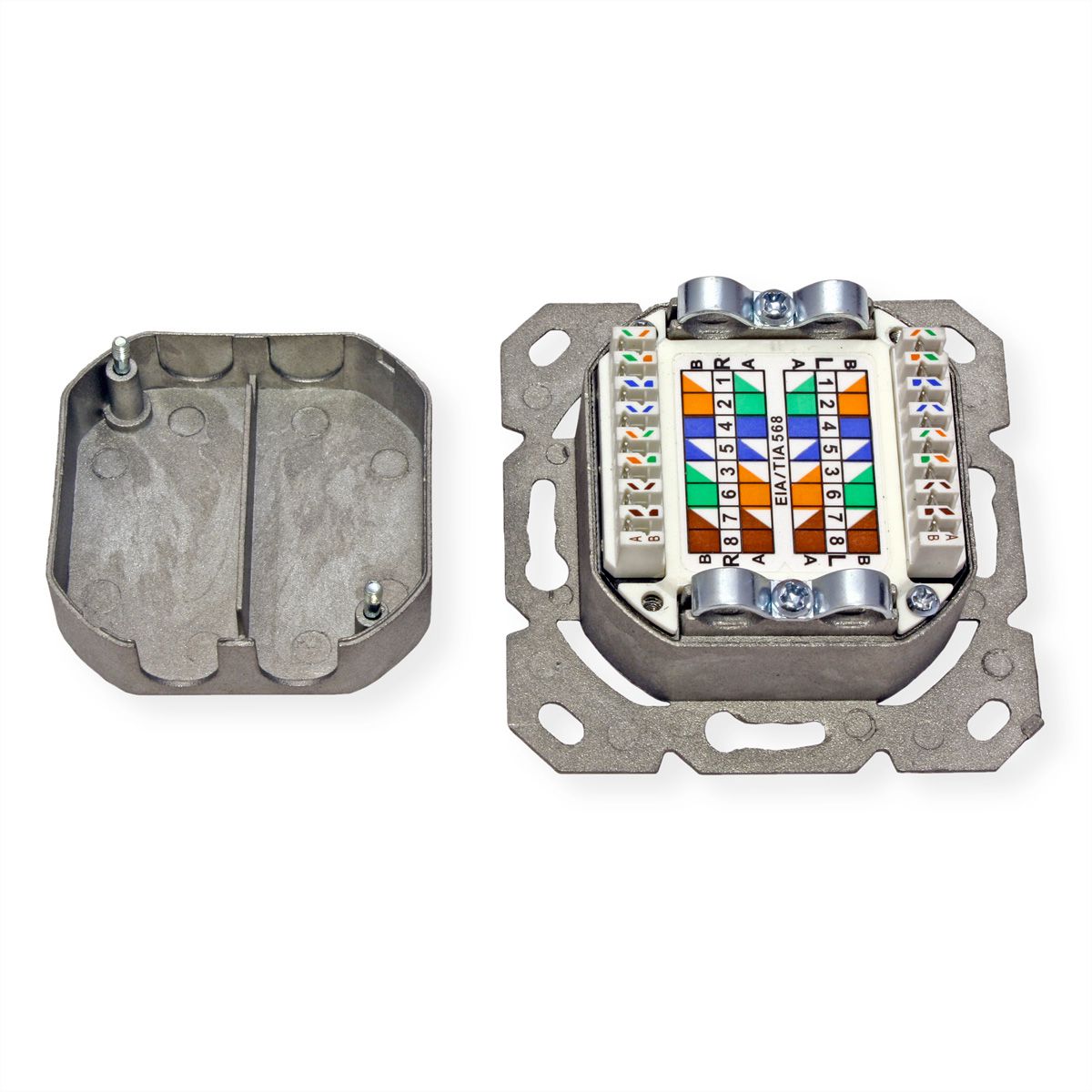

- Cable assembly takes place using LSAplus piercing terminals with colour coding on the top in accordance with EIA/TIA 568
Specifications
| Manufacturer | VALUE |
|---|---|
| Product group | Connection technology TP |
| Product type | Connection box Cat.6A |
| Colour | white |
| Shield type | Screened |
| Transfer quality | Cat6A / Class EA |
| Wall fixening | Flush mount |
| Quantity of ports | 2 |
| Assembly cable connection | Krone LSAplus |
| Modular assembly | no |
| Material (casing) | metal |
| Shield contacts | Yes |
| Connection direction | 45°-inclination |
| Operating temperature min. | 0 °C |
| Operating temperature max. | 70 °C |
| Height | 80 mm |
| Width | 80 mm |
| Depth | 39 mm |
| Weight | 181.4 g |
| Height of packaging (single piece) | 85 mm |
| Width of packaging (single piece) | 60 mm |
| Depth of packaging (single piece) | 85 mm |
| Package weight (single piece) | 0.2 kg |
